kubernetes1.30集群部署+dashboard+heapster
v2.1
1、系统配置
1.1、禁用防火墙、禁用selinux
#防火墙禁用
systemctl stop firewalld
systemctl disable firewalld
#SELinux禁用
setenforce 0
sed -i '/^SE/s/enforcing/disabled/' /etc/selinux/config 1.2、创建修改内核文件/etc/sysctl.d/k8s.conf
#写入文件
cat <<EOF > /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF
#使用sysctl使其生效
sysctl -p /etc/sysctl.d/k8s.conf1.3、禁用swap
#关闭系统的Swap
swapoff -a
#永久生效
echo "vm.swappiness=0" >> /etc/sysctl.d/k8s.conf
#修改 /etc/fstab 文件，注释掉 SWAP 的自动挂载
#/dev/mapper/centos-swap swap swap defaults 0 02、配置yum源
#配置阿里的docker-ce
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
#配置kubernetes
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
3、安装docker
#建立缓存
yum makecache fast
#安装依赖
yum install -y xfsprogs yum-utils device-mapper-persistent-data lvm2
#安装最新版本的docker
yum install -y --setopt=obsoletes=0 docker-ce-18.06.1.ce-3.el7
#可以使用以下命令查看docker版本
yum list docker-ce.x86_64 --showduplicates |sort -r
#启动docker
systemctl start docker
systemctl enable docker
4、在各节点安装kubeadm、kubelet和kubectl
#安装kubelet kubeadm kubectl
yum install -y kubelet kubeadm kubectl
5、准备需要用到的镜像
#因为kubeadm使用的镜像源是k8s.gcr.io，但是网站已被墙。所以需要提前准备所需要的镜像
#可以使用kubeadm 查看默认需要准备的镜像。并且在此可以看到k8s.gcr.io是无法连接的
[root@K8s-master ~]# kubeadm config images list
I0116 10:11:34.091410 91268 version.go:94] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://dl.k8s.io/release/stable-1.txt: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
I0116 10:11:34.107299 91268 version.go:95] falling back to the local client version: v1.13.2
k8s.gcr.io/kube-apiserver:v1.13.2
k8s.gcr.io/kube-controller-manager:v1.13.2
k8s.gcr.io/kube-scheduler:v1.13.2
k8s.gcr.io/kube-proxy:v1.13.2
k8s.gcr.io/pause:3.1
k8s.gcr.io/etcd:3.2.24
k8s.gcr.io/coredns:1.2.6
根据提示，到docker hub 搜索到对应的镜像后pull下来再tag标签
kube-apiserver:v1.13.0
kube-controller-manager:v1.13.0
kube-scheduler:v1.13.0
kube-proxy:v1.13.0
pause:3.1
etcd:3.2.24
coredns:1.2.6
下载完后，tag标签为k8s.gcr.io/***
如：
docker pull mirrorgooglecontainers/kube-apiserver:v1.13.0
docker tag mirrorgooglecontainers/kube-apiserver:v1.13.0 k8s.gcr.io/kube-apiserver:v1.13.0
[root@K8s-master ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
k8s.gcr.io/kube-proxy v1.13.0 8fa56d18961f 6 weeks ago 80.2MB
k8s.gcr.io/kube-apiserver v1.13.0 f1ff9b7e3d6e 6 weeks ago 181MB
k8s.gcr.io/kube-controller-manager v1.13.0 d82530ead066 6 weeks ago 146MB
k8s.gcr.io/kube-scheduler v1.13.0 9508b7d8008d 6 weeks ago 79.6MB
k8s.gcr.io/coredns 1.2.6 f59dcacceff4 2 months ago 40MB
k8s.gcr.io/etcd 3.2.24 3cab8e1b9802 3 months ago 220MB
k8s.gcr.io/pause 3.1 da86e6ba6ca1 13 months ago 742kB
镜像准备完毕，开始集群初始化
6、初始化集群
master 节点
6.1初始化您的主节点
主节点是集群里运行控制面的机器，包括 etcd (集群的数据库)和 API 服务（kubectl CLI 与之交互）。
- 选择一个 Pod 网络插件，并检查是否在 kubeadm 初始化过程中需要传入什么参数。这个取决于 您选择的网络插件，您可能需要设置
--Pod-network-cidr来指定网络驱动的 CIDR。请参阅安装网络插件。 - (可选) 除非特别指定，kubeadm 会使用默认网关所在的网络接口广播其主节点的 IP 地址。若需使用其他网络接口，请 给
kubeadm init设置--apiserver-advertise-address=<ip-address>参数。如果需要部署 IPv6 的集群，则需要指定一个 IPv6 地址，比如--apiserver-advertise-address=fd00::101。 - (可选) 在运行
kubeadm init之前请先执行kubeadm config images pull来测试与 gcr.io 的连接。
-- 取自kubernetes官网
https://kubernetes.io/zh/docs/setup/independent/create-cluster-kubeadm/
开始初始化
#master 集群初始化
[root@K8s-master ~]# kubeadm init --kubernetes-version=v1.13.0 --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=192.168.146.10
[init] Using Kubernetes version: v1.13.0
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Activating the kubelet service
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [k8s-master localhost] and IPs [192.168.146.10 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [k8s-master localhost] and IPs [192.168.146.10 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s-master kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.146.10]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[kubelet-check] Initial timeout of 40s passed.
[apiclient] All control plane components are healthy after 184.547282 seconds
[uploadconfig] storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.13" in namespace kube-system with the configuration for the kubelets in the cluster
[patchnode] Uploading the CRI Socket information "/var/run/dockershim.sock" to the Node API object "k8s-master" as an annotation
[mark-control-plane] Marking the node k8s-master as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node k8s-master as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: fl099d.dxy00288pqxl2xj0
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstraptoken] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstraptoken] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstraptoken] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstraptoken] creating the "cluster-info" ConfigMap in the "kube-public" namespace
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes master has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
You can now join any number of machines by running the following on each node
as root:
kubeadm join 192.168.146.10:6443 --token f0hxzt.q34cvw84otvdnca8 --discovery-token-ca-cert-hash sha256:76c15a976e3bd80c5cea54afeba0587682a131cfc5485cb28e980000102bd945
kubeadm init --kubernetes-version=v1.13.0 --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=192.168.146.10
选择flannel作为Pod网络插件，所以指定–pod-network-cidr=10.244.0.0/16，API server 用来告知集群中其它成员的地址
6.2按提示配置常规用户如何使用kubectl访问集群
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config6.3查看集群状态
[root@K8s-master ~/kubernetes]# kubectl get cs
NAME STATUS MESSAGE ERROR
scheduler Healthy ok
controller-manager Healthy ok
etcd-0 Healthy {"health": "true"} 7、准备接下来用到的yml文件
使用git 拉取准备文件
[root@K8s-master ~]# git clone https://github.com/Nedved-liao/kubernetes.1.30_CN
正克隆到 'kubernetes.1.30_CN'...
remote: Enumerating objects: 23, done.
remote: Counting objects: 100% (23/23), done.
remote: Compressing objects: 100% (22/22), done.
remote: Total 23 (delta 6), reused 0 (delta 0), pack-reused 0
Unpacking objects: 100% (23/23), done.
[root@K8s-master ~]# ll kubernetes.1.30_CN/
总用量 32
-rw-r--r--. 1 root root 515 1月 16 10:44 dashboard-user-role.yaml
-rw-r--r--. 1 root root 4675 1月 16 10:44 kube-dashboard.yaml
-rw-r--r--. 1 root root 10739 1月 16 10:44 kube-flannel.yml
-rw-r--r--. 1 root root 276 1月 16 10:44 kubernetes.repo
-rw-r--r--. 1 root root 490 1月 16 10:44 README.md
8、安装Pod Network
#安装flannel
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl create -f kube-flannel.yml
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.extensions/kube-flannel-ds-amd64 created
daemonset.extensions/kube-flannel-ds-arm64 created
daemonset.extensions/kube-flannel-ds-arm created
daemonset.extensions/kube-flannel-ds-ppc64le created
daemonset.extensions/kube-flannel-ds-s390x created
#粗略查看
[root@K8s-master ~/kubernetes]# kubectl get ds -l app=flannel -n kube-system
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
kube-flannel-ds-amd64 1 1 1 1 1 beta.kubernetes.io/arch=amd64 113m
kube-flannel-ds-arm 0 0 0 0 0 beta.kubernetes.io/arch=arm 113m
kube-flannel-ds-arm64 0 0 0 0 0 beta.kubernetes.io/arch=arm64 113m
kube-flannel-ds-ppc64le 0 0 0 0 0 beta.kubernetes.io/arch=ppc64le 113m
kube-flannel-ds-s390x 0 0 0 0 0 beta.kubernetes.io/arch=s390x 113m
#确保结果无疑
[root@K8s-master ~/kubernetes]# kubectl get pod --all-namespaces -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-86c58d9df4-65nbv 1/1 Running 1 179m 10.244.0.4 k8s-master <none> <none>
kube-system coredns-86c58d9df4-gnczd 1/1 Running 1 179m 10.244.0.5 k8s-master <none> <none>
kube-system etcd-k8s-master 1/1 Running 1 178m 192.168.146.10 k8s-master <none> <none>
kube-system kube-apiserver-k8s-master 1/1 Running 1 179m 192.168.146.10 k8s-master <none> <none>
kube-system kube-controller-manager-k8s-master 1/1 Running 1 179m 192.168.146.10 k8s-master <none> <none>
kube-system kube-flannel-ds-amd64-9x8mc 1/1 Running 0 113m 192.168.146.10 k8s-master <none> <none>
kube-system kube-proxy-l9pgs 1/1 Running 1 179m 192.168.146.10 k8s-master <none> <none>
kube-system kube-scheduler-k8s-master 1/1 Running 1 179m 192.168.146.10 k8s-master <none> <none>
kube-system kubernetes-dashboard-6cb88fb59c-fccp4 1/1 Running 0 51m 10.244.0.7 k8s-master <none> <none>
9、添加 Slave节点
9.1、在两个 Slave节点上分别执行jion
如下命令来让其加入Master上已经就绪了的 k8s集群：
kubeadm join --token <token> <master-ip>:<master-port> --discovery-token-ca-cert-hash sha256:<hash>
9.2、node1取于前面kubeadm init 生成的（node2省略）
[root@K8s-node1 ~]# kubeadm join 192.168.146.10:6443 --token f0hxzt.q34cvw84otvdnca8 --discovery-token-ca-cert-hash sha256:76c15a976e3bd80c5cea54afeba0587682a131cfc5485cb28e980000102bd945
[preflight] Running pre-flight checks
[discovery] Trying to connect to API Server "192.168.146.10:6443"
[discovery] Created cluster-info discovery client, requesting info from "https://192.168.146.10:6443"
[discovery] Requesting info from "https://192.168.146.10:6443" again to validate TLS against the pinned public key
[discovery] Cluster info signature and contents are valid and TLS certificate validates against pinned roots, will use API Server "192.168.146.10:6443"
[discovery] Successfully established connection with API Server "192.168.146.10:6443"
[join] Reading configuration from the cluster...
[join] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet] Downloading configuration for the kubelet from the "kubelet-config-1.13" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Activating the kubelet service
[tlsbootstrap] Waiting for the kubelet to perform the TLS Bootstrap...
[patchnode] Uploading the CRI Socket information "/var/run/dockershim.sock" to the Node API object "k8s-node1" as an annotation
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the master to see this node join the cluster.
如果 token忘记，则可以去 Master上执行如下命令来获取：
[root@K8s-master ~/kubernetes.1.30_CN]# kubeadm token list
TOKEN TTL EXPIRES USAGES DESCRIPTION EXTRA GROUPS
f0hxzt.q34cvw84otvdnca8 23h 2019-01-17T11:16:24+08:00 authentication,signing The default bootstrap token generated by 'kubeadm init'. system:bootstrappers:kubeadm:default-node-token
9.3、效果验证
查看节点状态
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl get no
NAME STATUS ROLES AGE VERSION
k8s-master Ready master 5m28s v1.13.1
k8s-node1 Ready <none> 107s v1.13.2
k8s-node2 Ready <none> 110s v1.13.2
查看所有 Pod状态
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl get pods --all-namespaces -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-86c58d9df4-xrz2j 1/1 Running 0 5m26s 10.244.0.19 k8s-master <none> <none>
kube-system coredns-86c58d9df4-z2lcj 1/1 Running 0 5m26s 10.244.0.18 k8s-master <none> <none>
kube-system etcd-k8s-master 1/1 Running 0 4m53s 192.168.146.10 k8s-master <none> <none>
kube-system kube-apiserver-k8s-master 1/1 Running 0 5m2s 192.168.146.10 k8s-master <none> <none>
kube-system kube-controller-manager-k8s-master 1/1 Running 0 4m51s 192.168.146.10 k8s-master <none> <none>
kube-system kube-flannel-ds-amd64-dwpcr 1/1 Running 0 4m9s 192.168.146.10 k8s-master <none> <none>
kube-system kube-flannel-ds-amd64-h2tm9 1/1 Running 0 2m4s 192.168.146.20 k8s-node1 <none> <none>
kube-system kube-flannel-ds-amd64-ssh2d 1/1 Running 0 2m7s 192.168.146.21 k8s-node2 <none> <none>
kube-system kube-proxy-4lr8q 1/1 Running 0 5m26s 192.168.146.10 k8s-master <none> <none>
kube-system kube-proxy-7b22t 1/1 Running 0 2m7s 192.168.146.21 k8s-node2 <none> <none>
kube-system kube-proxy-j6qkx 1/1 Running 0 2m4s 192.168.146.20 k8s-node1 <none> <none>
kube-system kube-scheduler-k8s-master 1/1 Running 0 4m58s 192.168.146.10 k8s-master <none> <none>
10、安装 dashboard
就像给elasticsearch配一个可视化的管理工具一样，我们最好也给 k8s集群配一个可视化的管理工具，便于管理集群。
因此我们接下来安装 v1.10.0版本的 kubernetes-dashboard，用于集群可视化的管理。
10.1、创建
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl create -f kube-dashboard.yaml
secret/kubernetes-dashboard-certs created
serviceaccount/kubernetes-dashboard created
role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
deployment.apps/kubernetes-dashboard creat10.2、查看 dashboard的 pod是否正常启动
如果正常说明安装成功:
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl get pods --namespace=kube-system
NAME READY STATUS RESTARTS AGE
coredns-86c58d9df4-xrz2j 1/1 Running 0 165m
coredns-86c58d9df4-z2lcj 1/1 Running 0 165m
etcd-k8s-master 1/1 Running 0 164m
kube-apiserver-k8s-master 1/1 Running 0 164m
kube-controller-manager-k8s-master 1/1 Running 0 164m
kube-flannel-ds-amd64-dwpcr 1/1 Running 0 163m
kube-flannel-ds-amd64-h2tm9 1/1 Running 0 161m
kube-flannel-ds-amd64-ssh2d 1/1 Running 0 161m
kube-proxy-4lr8q 1/1 Running 0 165m
kube-proxy-7b22t 1/1 Running 0 161m
kube-proxy-j6qkx 1/1 Running 0 161m
kube-scheduler-k8s-master 1/1 Running 0 164m
kubernetes-dashboard-98b7c88bb-lqggg 1/1 Running 0 150m
10.3、查看 dashboard的外网暴露端口
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl get service --namespace=kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP 167m
kubernetes-dashboard NodePort 10.106.23.70 <none> 443:31280/TCP 151m
10.4、生成私钥和证书签名
[root@K8s-master ~/kubernetes.1.30_CN]# openssl genrsa -des3 -passout pass:x -out dashboard.pass.key 2048
Generating RSA private key, 2048 bit long modulus
.....+++
.......................................................................................................................................................................................................................................................................................................+++
e is 65537 (0x10001)
[root@K8s-master ~/kubernetes.1.30_CN]# openssl rsa -passin pass:x -in dashboard.pass.key -out dashboard.key
writing RSA key
[root@K8s-master ~/kubernetes.1.30_CN]# rm -f dashboard.pass.key
#一路按回车即可
[root@K8s-master ~/kubernetes.1.30_CN]# openssl req -new -key dashboard.key -out dashboard.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:
State or Province Name (full name) []:
Locality Name (eg, city) [Default City]:
Organization Name (eg, company) [Default Company Ltd]:
Organizational Unit Name (eg, section) []:
Common Name (eg, your name or your server's hostname) []:
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
10.5、 生成SSL证书,并移动到 /etc/kubernetes/pki
将生成的 dashboard.key 和 dashboard.crt置于路径 /etc/kubernetes/pki下， 路径在dashboard.yaml 里面已经定义好
#生成证书
[root@K8s-master ~/kubernetes.1.30_CN]# openssl x509 -req -sha256 -days 365 -in dashboard.csr -signkey dashboard.key -out dashboard.crt
Signature ok
subject=/C=XX/L=Default City/O=Default Company Ltd
Getting Private key
#移动到/etc/kubernetes/pki
[root@K8s-master ~/kubernetes.1.30_CN]# cp dashboard.c* /etc/kubernetes/pki/
#确认移动
[root@K8s-master ~/kubernetes.1.30_CN]# ll /etc/kubernetes/pki/dashboard.*
-rw-r--r--. 1 root root 1103 1月 16 14:08 /etc/kubernetes/pki/dashboard.crt
-rw-r--r--. 1 root root 952 1月 16 14:08 /etc/kubernetes/pki/dashboard.csr
10.6、创建 dashboard用户
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl create -f dashboard-user-role.yaml
clusterrolebinding.rbac.authorization.k8s.io/admin created
serviceaccount/admin created
10.7、获取登陆token
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl describe secret/$(kubectl get secret -nkube-system |grep admin|awk '{print $1}') -nkube-system
Name: admin-token-q6v79
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: admin
kubernetes.io/service-account.uid: 9ef5dbe7-1955-11e9-a360-000c29b4a7f7
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1025 bytes
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi10b2tlbi1xNnY3OSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJhZG1pbiIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6IjllZjVkYmU3LTE5NTUtMTFlOS1hMzYwLTAwMGMyOWI0YTdmNyIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlLXN5c3RlbTphZG1pbiJ9.BS93rVuy_61e5NKU20ZbXMybtr239tLgv9cmfL1knu9YZf66GBwQvERUtnHcYACt8vaD55RNLVk_9uHAKESSo0iJMv1-doKbAPZDrL-PT7XomrSgHleVzSyPHMixFRZVcQXpi5l1DcBC2QdNdfZL7h5SAnrs2NFuoGRv5IQXMMnlRVvbWFhBXIbVqRU7lEJo7VXglOYFjNPOC8JkTxxk2GsWJmp1zT-8ZRpajhfhe9VFxi-JLcKgMgv4d5IYGXr1CGcwMIChJz7jnPg7itSTpyYLGGTinZx0HhBivMw9hRm6RqAQgsr4g9sgGCeBRrFcZMbjKsvaQ3dnb7Dnupyyag
访问https://IP:port
port 在dashboard.yaml 中的nodeport定义
10.8、访问UI页面
查看暴露端口
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl get svc --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 5h27m
kube-system kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP 5h27m
kube-system kubernetes-dashboard NodePort 10.106.23.70 <none> 443:31280/TCP 5h12m
如上所示，Dashboard已经在31280端口上公开，现在可以在外部使用https://<cluster-ip>:31280进行访问。
需要注意的是，在多节点的集群中，必须找到运行Dashboard节点的IP来访问，而不是Master节点的IP
MatserIP为192.168.146.10，ClusterIP为192.168.146.20,192.168.146.21

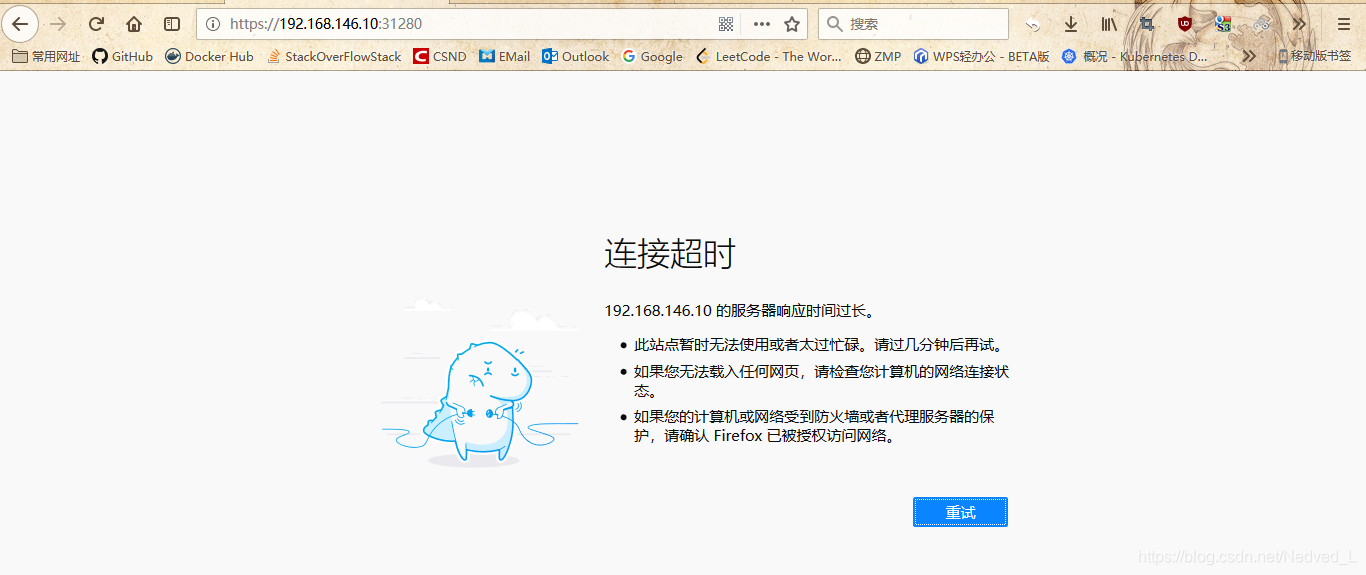

直接访问master 的可能会出现如下 ：
我们使用kubectl describe 来看下实际上是哪个node在运行dashboard
[root@K8s-master ~/kubernetes.1.30_CN]# kubectl describe po kubernetes-dashboard-98b7c88bb-lqggg -n kube-system
Name: kubernetes-dashboard-98b7c88bb-lqggg
Namespace: kube-system
Priority: 0
PriorityClassName: <none>
Node: k8s-node2/192.168.146.21
Start Time: Wed, 16 Jan 2019 11:31:42 +0800
Labels: k8s-app=kubernetes-dashboard
pod-template-hash=98b7c88bb
Annotations: <none>
Status: Running
IP: 10.244.1.2
Controlled By: ReplicaSet/kubernetes-dashboard-98b7c88bb
Containers:
kubernetes-dashboard:
Container ID: docker://4fe074b5a90e86bcdb1d055d26204523c0cd72ecd5502af5a805d992ff77436f
Image: mirrorgooglecontainers/kubernetes-dashboard-amd64:v1.10.0
Image ID: docker-pullable://mirrorgooglecontainers/kubernetes-dashboard-amd64@sha256:e4b764fa9df0a30c467e7cec000920ea69dcc2ba8a9d0469ffbf1881a9614270
Port: 8443/TCP
Host Port: 0/TCP
Args:
--auto-generate-certificates
--token-ttl=5400
State: Running
Started: Wed, 16 Jan 2019 11:35:47 +0800
Ready: True
Restart Count: 0
Liveness: http-get https://:8443/ delay=30s timeout=30s period=10s #success=1 #failure=3
Environment: <none>
Mounts:
/certs from kubernetes-dashboard-certs (rw)
/tmp from tmp-volume (rw)
/var/run/secrets/kubernetes.io/serviceaccount from kubernetes-dashboard-token-zm8rg (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
kubernetes-dashboard-certs:
Type: HostPath (bare host directory volume)
Path: /etc/kubernetes/pki
HostPathType: Directory
tmp-volume:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
kubernetes-dashboard-token-zm8rg:
Type: Secret (a volume populated by a Secret)
SecretName: kubernetes-dashboard-token-zm8rg
Optional: false
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node-role.kubernetes.io/master:NoSchedule
node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events: <none>
可以看到实际上是node2在运行

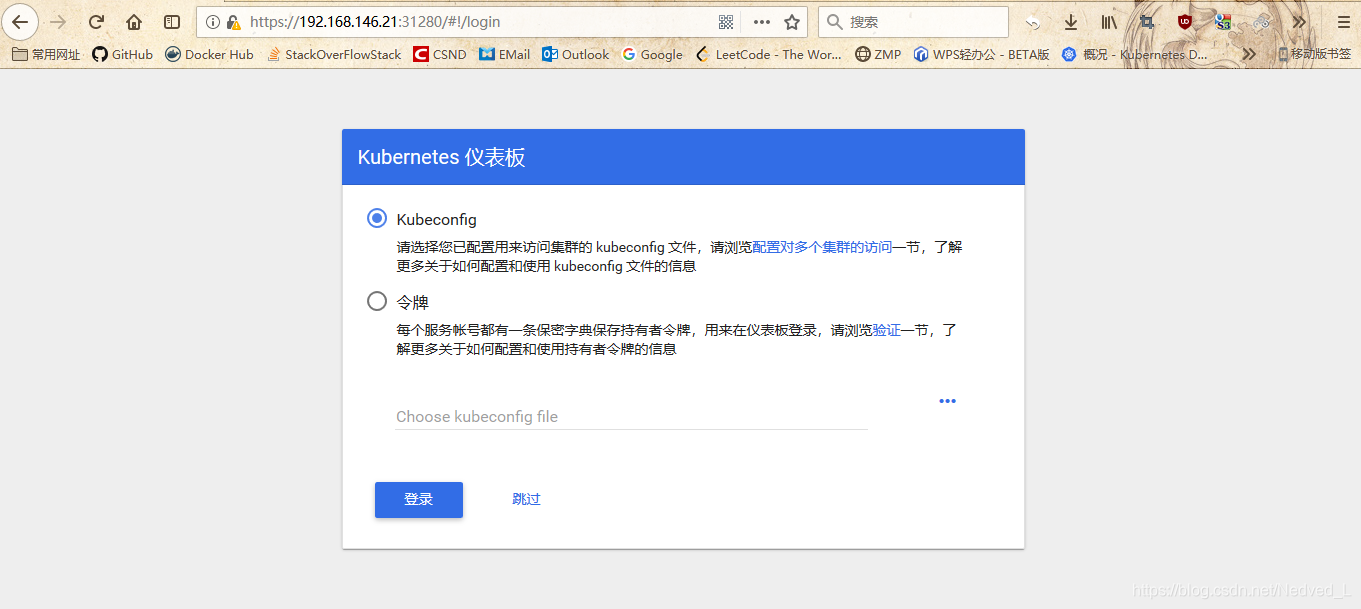

我们再用node2的ip访问，此时就看到久违的页面了
选择令牌。把10.7步骤中找到的token粘贴进去，登录dashboard
由于在正式环境中，并不推荐使用NodePort的方式来访问Dashboard
11、集成Heapster
Heapster是容器集群监控和性能分析工具，天然的支持Kubernetes和CoreOS。
11.1、准备相应的yaml文件
Heapster支持多种储存方式，
- heapster
- influxdb
- grafana
Git clone
git clone https://github.com/Nedved-liao/kubernetes.1.30_CN/tree/master/heapster官方 GitHub
https://github.com/kubernetes-retired/heapster
个人修改后GitHub
使用默认的yaml文件， 创建的pod日志一直报错如下：
E1028 07:39:05.011439 1 manager.go:101] Error in scraping containers from Kubelet:XX.XX.XX.XX:10255: failed to get all container stats from Kubelet URL "http://XX.XX.XX.XX:10255/stats/container/": Post http://XX.XX.XX.XX:10255/stats/container/: dial tcp XX.XX.XX.XX:10255:
getsockopt: connection refused经过googling后
https://brookbach.com/2018/10/29/Heapster-on-Kubernetes-1.11.3.html
参照里面的解析修改了部分官方给出的内容
heapster.yaml
- --source=kubernetes:https://kubernetes.default
- --source=kubernetes.summary_api:''?useServiceAccount=true&kubeletHttps=true&kubeletPort=10250&insecure=true
name: system:heapster
name: heapster
#并把
k8s.gcr.io修改为国内镜像。
并新增了 heapster-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: heapster
rules:
- apiGroups:
- ""
resources:
- pods
- nodes
- namespaces
verbs:
- get
- list
- watch
- apiGroups:
- extensions
resources:
- deployments
verbs:
- get
- list
- update
- watch
- apiGroups:
- ""
resources:
- nodes/stats
verbs:
- get
11.2、创建Pod
[root@K8s-master ~/kubernetes.1.30_CN/heapster]# ll
总用量 20
-rw-r--r-- 1 root root 2353 5月 1 2018 grafana.yaml
-rw-r--r-- 1 root root 269 1月 23 14:46 heapster-rbac.yaml
-rw-r--r-- 1 root root 368 1月 23 14:47 heapster-role.yaml
-rw-r--r-- 1 root root 1214 1月 23 14:45 heapster.yaml
-rw-r--r-- 1 root root 1005 5月 1 2018 influxdb.yaml
[root@K8s-master ~/kubernetes.1.30_CN/heapster]# kubectl create -f .

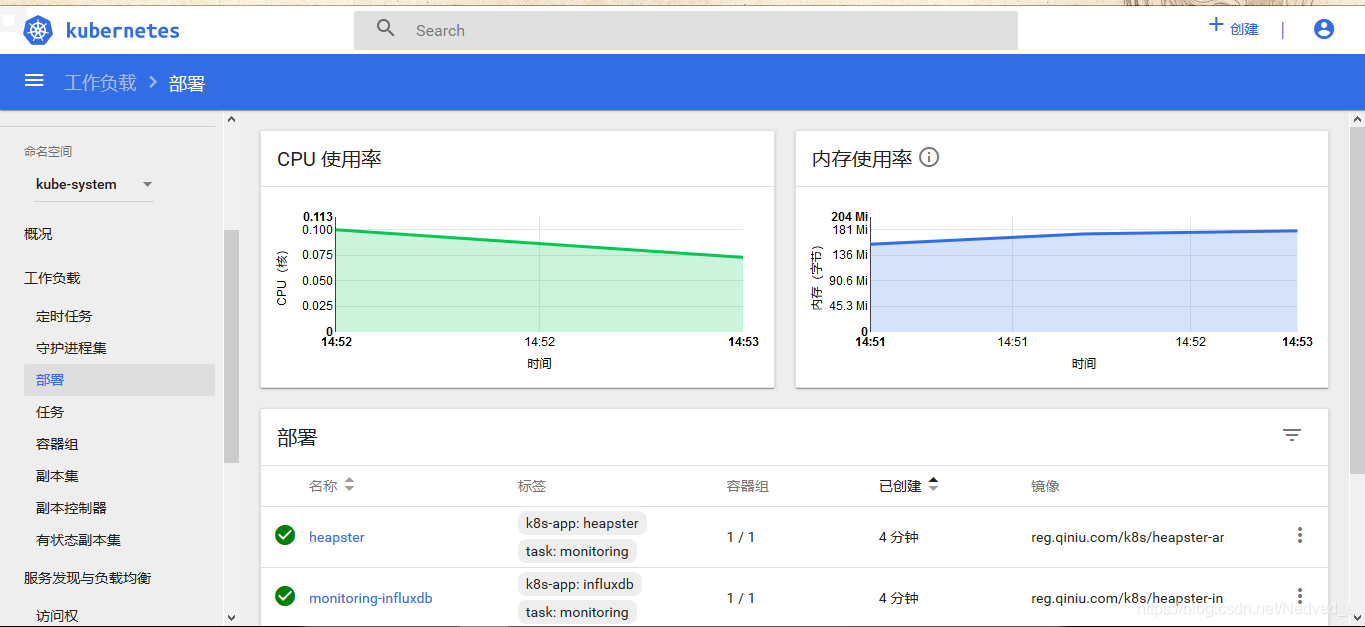

11.3、验证结果
稍等后，查看一下Pod的状态处于running：
[root@K8s-master ~/kubernetes.1.30_CN/heapster]# kubectl -n kube-system get po
NAME READY STATUS RESTARTS AGE
coredns-86c58d9df4-xrz2j 1/1 Running 8 7d4h
coredns-86c58d9df4-z2lcj 1/1 Running 8 7d4h
etcd-k8s-master 1/1 Running 3 7d4h
heapster-7c46fbf7cf-sffcg 1/1 Running 0 69m
kube-apiserver-k8s-master 1/1 Running 11 7d4h
kube-controller-manager-k8s-master 1/1 Running 14 7d4h
kube-flannel-ds-amd64-dwpcr 1/1 Running 12 7d4h
kube-flannel-ds-amd64-h2tm9 1/1 Running 10 7d4h
kube-flannel-ds-amd64-ssh2d 1/1 Running 10 7d4h
kube-proxy-4lr8q 1/1 Running 3 7d4h
kube-proxy-7b22t 1/1 Running 2 7d4h
kube-proxy-j6qkx 1/1 Running 2 7d4h
kube-scheduler-k8s-master 1/1 Running 15 7d4h
kubernetes-dashboard-98b7c88bb-2fzlw 1/1 Running 0 20h
monitoring-grafana-5f5c6c4c4b-zmhkf 1/1 Running 0 69m
monitoring-influxdb-68df588786-zz9h5 1/1 Running 0 69m
再查看日志，确保没有问题
#查看heapster的日志，若有报错进行相对应的修复。influxdb，grafana日志此处省略
[root@K8s-master ~/kubernetes.1.30_CN/heapster]# kubectl -n kube-system logs --tail=200 heapster-7c46fbf7cf-sffcg
I0123 06:50:51.635860 1 heapster.go:72] /heapster --source=kubernetes.summary_api:''?useServiceAccount=true&kubeletHttps=true&kubeletPort=10250&insecure=true --sink=influxdb:http://monitoring-influxdb.kube-system.svc:8086
I0123 06:50:51.636028 1 heapster.go:73] Heapster version v1.4.2
I0123 06:50:51.637662 1 configs.go:61] Using Kubernetes client with master "https://10.96.0.1:443" and version v1
I0123 06:50:51.637859 1 configs.go:62] Using kubelet port 10250
I0123 06:50:52.102425 1 influxdb.go:278] created influxdb sink with options: host:monitoring-influxdb.kube-system.svc:8086 user:root db:k8s
I0123 06:50:52.103093 1 heapster.go:196] Starting with InfluxDB Sink
I0123 06:50:52.103158 1 heapster.go:196] Starting with Metric Sink
I0123 06:50:53.072648 1 heapster.go:106] Starting heapster on port 8082
I0123 06:51:12.521512 1 influxdb.go:241] Created database "k8s" on influxDB server at "monitoring-influxdb.kube-system.svc:8086"确认无误后，刷新浏览器，查看到cpu使用率证明部署成功
12、集群拆卸
12.1、拆卸集群
首先处理各节点：
kubectl drain <node name> --delete-local-data --force --ignore-daemonsets
kubectl delete node <node name>
一旦节点移除之后，则可以执行如下命令来重置集群：
kubeadm reset
12.2、master处理节点
[root@K8s-master ~]# kubectl drain k8s-node1 --delete-local-data --force --ignore-daemonsets
node/k8s-node1 cordoned
WARNING: Ignoring DaemonSet-managed pods: kube-flannel-ds-amd64-r2qnb, kube-proxy-cvbbf
node/k8s-node1 drained
[root@K8s-master ~]# kubectl delete node k8s-node1
node "k8s-node1" deleted
12.3节点重置（node2省略）
[root@K8s-node1 ~]# kubeadm reset
[reset] WARNING: changes made to this host by 'kubeadm init' or 'kubeadm join' will be reverted.
[reset] are you sure you want to proceed? [y/N]: y
[preflight] running pre-flight checks
[reset] no etcd config found. Assuming external etcd
[reset] please manually reset etcd to prevent further issues
[reset] stopping the kubelet service
[reset] unmounting mounted directories in "/var/lib/kubelet"
[reset] deleting contents of stateful directories: [/var/lib/kubelet /etc/cni/net.d /var/lib/dockershim /var/run/kubernetes]
[reset] deleting contents of config directories: [/etc/kubernetes/manifests /etc/kubernetes/pki]
[reset] deleting files: [/etc/kubernetes/admin.conf /etc/kubernetes/kubelet.conf /etc/kubernetes/bootstrap-kubelet.conf /etc/kubernetes/controller-manager.conf /etc/kubernetes/scheduler.conf]
The reset process does not reset or clean up iptables rules or IPVS tables.
If you wish to reset iptables, you must do so manually.
For example:
iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
If your cluster was setup to utilize IPVS, run ipvsadm --clear (or similar)
to reset your system's IPVS tables.
[root@K8s-node1 ~]# iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
12.4、master重置
[root@K8s-master ~]# kubeadm reset
[reset] WARNING: changes made to this host by 'kubeadm init' or 'kubeadm join' will be reverted.
[reset] are you sure you want to proceed? [y/N]: y
[preflight] running pre-flight checks
[reset] no etcd config found. Assuming external etcd
[reset] please manually reset etcd to prevent further issues
[reset] stopping the kubelet service
[reset] unmounting mounted directories in "/var/lib/kubelet"
[reset] deleting contents of stateful directories: [/var/lib/kubelet /etc/cni/net.d /var/lib/dockershim /var/run/kubernetes]
[reset] deleting contents of config directories: [/etc/kubernetes/manifests /etc/kubernetes/pki]
[reset] deleting files: [/etc/kubernetes/admin.conf /etc/kubernetes/kubelet.conf /etc/kubernetes/bootstrap-kubelet.conf /etc/kubernetes/controller-manager.conf /etc/kubernetes/scheduler.conf]
The reset process does not reset or clean up iptables rules or IPVS tables.
If you wish to reset iptables, you must do so manually.
For example:
iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
[root@K8s-master ~]# iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
