C# TEKLA 二次开发，将exe整合到TEKLA界面中

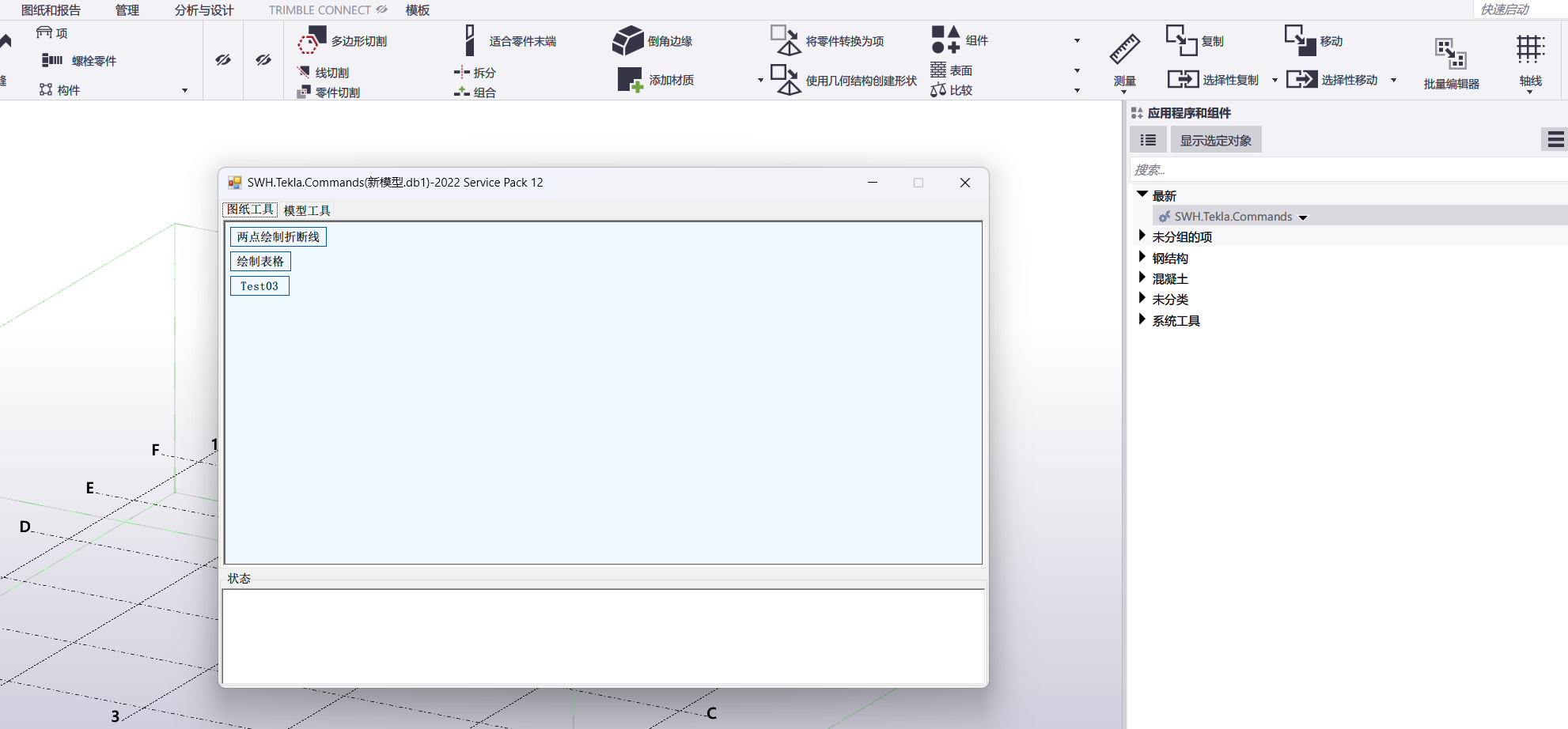

类似这种，避免每次去找exe文件.



流程，

1# 准备cs macro文件和图标文件

下面的是宏的内容

using System.Windows.Forms;
using System.IO;
using System.Diagnostics;
using Tekla.Structures.ModelInternal;
using Tekla.Structures.Internal;
using System;

namespace Tekla.Technology.Akit.UserScript
{
    public class Script
    {
        public static void Run(Tekla.Technology.Akit.IScript akit)
        {
            string exeProcessName = "SWH.Tekla.Commands";//exe的文件名称
            string exeFileDirName = Environment.GetEnvironmentVariable("OneDrive") +
                    "\\MyCodeHub\\SWH.Tekla.Commands\\bin\\Debug\\";//发布的exe的目录

            string exeNetDriveFileName = Path.Combine(exeFileDirName, exeProcessName + ".exe");//最新的exe的目录
            string exeLocalDriveFileName = Path.Combine(Path.GetTempPath(), exeProcessName + ".exe");//本机的exe的目录
            var pros = Process.GetProcessesByName(exeProcessName);
            if (pros.Length == 0)
            {
                Process NewProcess = new Process();
                if (File.Exists(exeNetDriveFileName))
                {
                    File.Copy(exeNetDriveFileName, exeLocalDriveFileName, true);
                    NewProcess.StartInfo.FileName = exeLocalDriveFileName;
                    try
                    {
                        NewProcess.Start();
                    }
                    catch
                    {
                        MessageBox.Show("Starting " + exeLocalDriveFileName + " failed.");
                    }
                }
                else MessageBox.Show(exeNetDriveFileName + " not found.");
            }
            else
            {
                MessageBox.Show(exeProcessName + "已开启，无需重复开启!");
            }
        }
    }
}

2#将cs文件和图标复制到对应的目录

下面的复制的脚本

echo off rem //C:\ProgramData\Trimble\Tekla Structures\2022.0\Environments\common\macros\modeling
rem //C:\ProgramData\Trimble\Tekla Structures\2022.0\Environments\common\macros\drawings
set modelingDir="C:\ProgramData\Trimble\Tekla Structures\2022.0\Environments\common\macros\modeling"
set drawingsDir="C:\ProgramData\Trimble\Tekla Structures\2022.0\Environments\common\macros\drawings"
echo

for %%a in (*.cs) do copy %%a %modelingDir%\%%a /y
for %%b in (*.bmp) do copy %%b %modelingDir%\%%b /y
for %%c in (*.cs) do copy %%c %drawingsDir%\%%c /y
for %%d in (*.bmp) do copy %%d %drawingsDir%\%%d /y


@pause

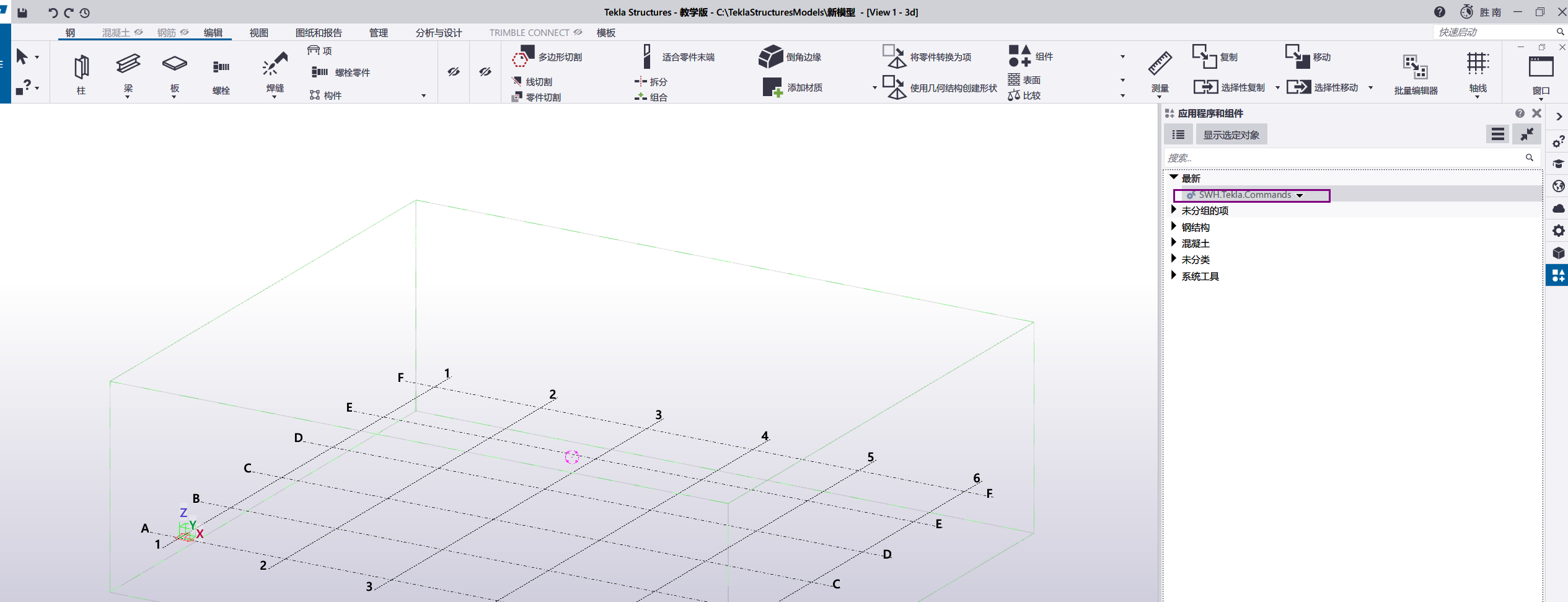

测试效果挺好
