28-2 MUX VLAN配置

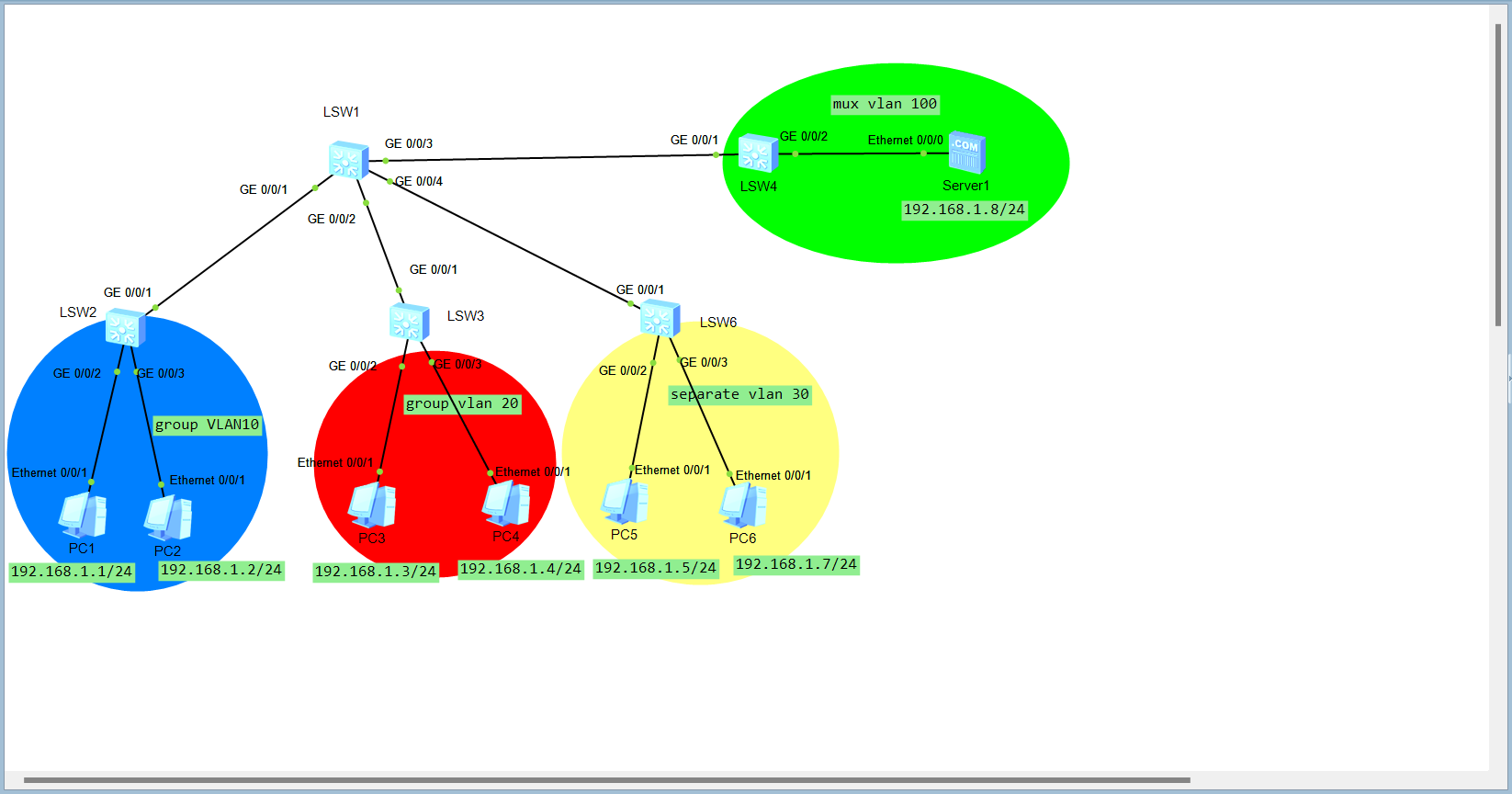

拓扑

使用MUX VLAN实现隔离业务流量和访客流量，VLAN10和VLAN20为业务流量，要求可以访问到服务器，访客VLAN30不允许访问服务器

配置

LSW2

#
vlan 100
 mux-vlan
 subordinate separate 30
 subordinate group 10 20
#
vlan 100
 mux-vlan
 subordinate separate 30
 subordinate group 10 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 10
 port mux-vlan enable
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 10
 port mux-vlan enable
#

LSW3

#
vlan batch 10 20 30 100
#
vlan 100
 mux-vlan
 subordinate separate 30
 subordinate group 10 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 20
 port mux-vlan enable
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 20
 port mux-vlan enable
#

LSW6

#
vlan batch 10 20 30 100
#
vlan 100
 mux-vlan
 subordinate separate 30
 subordinate group 10 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 30
 port mux-vlan enable
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 30
 port mux-vlan enable
#

LSW1

#
vlan batch 10 20 30 100
#
vlan 100
 mux-vlan
 subordinate separate 30
 subordinate group 10 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan all
#

LSW4

#
vlan batch 10 20 30 100
#
vlan 100
 mux-vlan
 subordinate separate 30
 subordinate group 10 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 100
 port mux-vlan enable
#

验证

GROUP VLAN 访问 principal VLAN

PC1 ping Server1

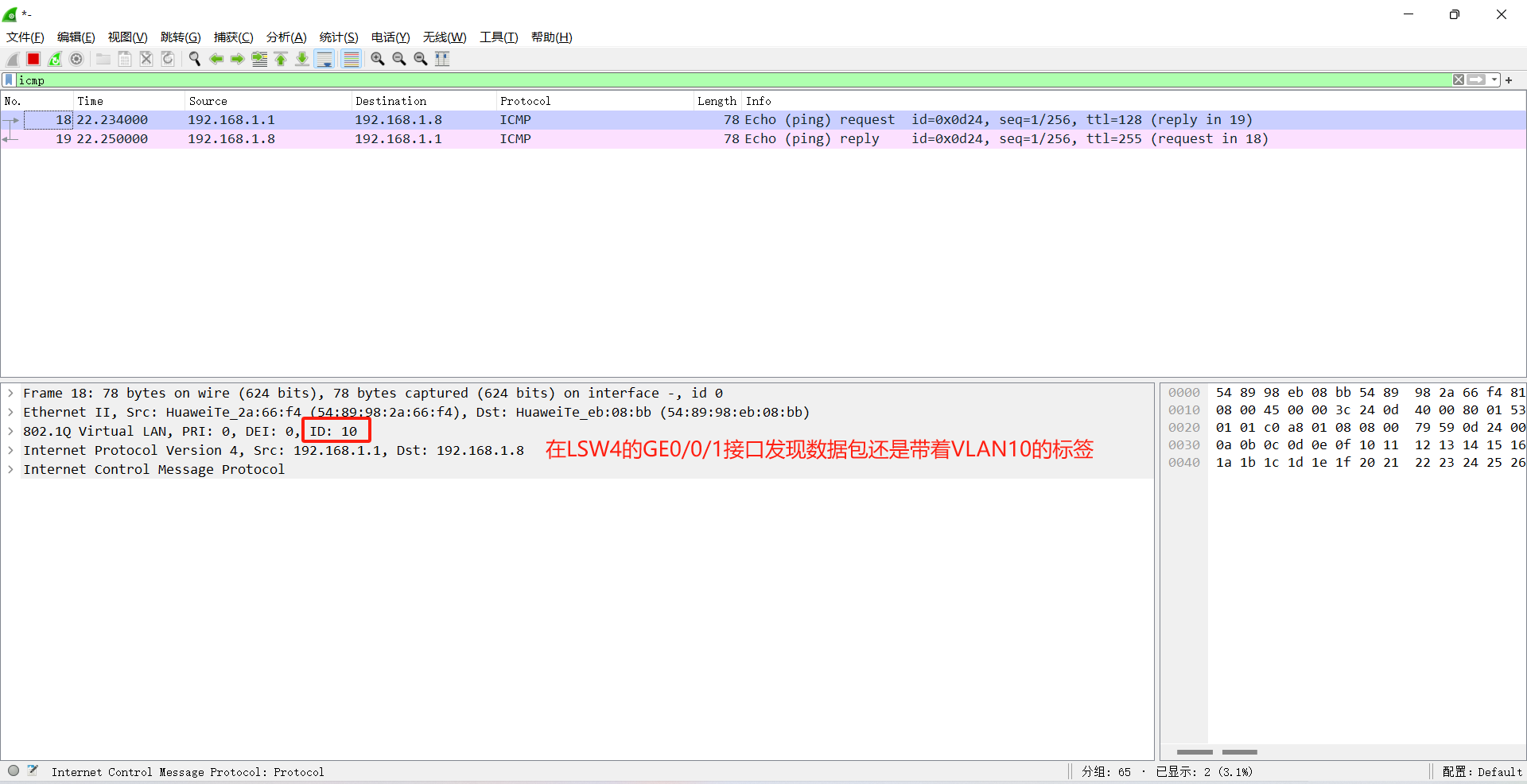

分别在LSW4的GE0/0/1和GE0/0/2抓包

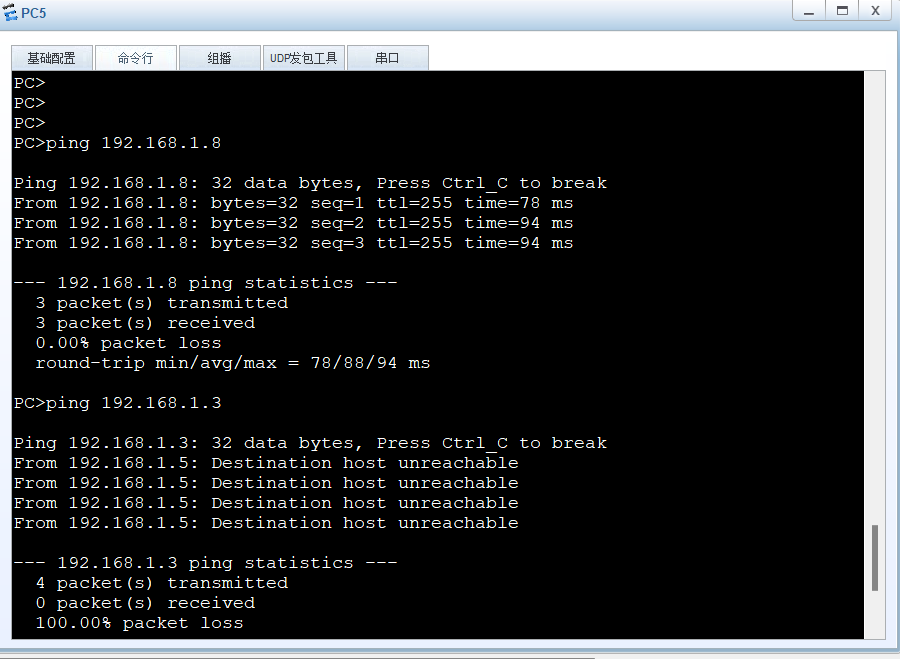

Separate VLAN 和 principal VLAN / GROUP VLAN通信

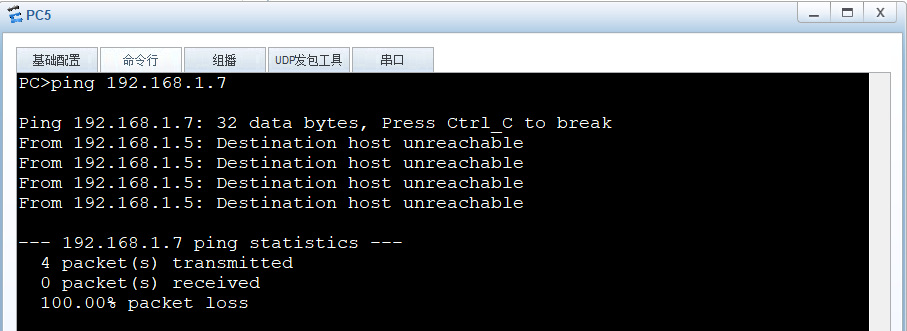

Separate VLAN内部通信

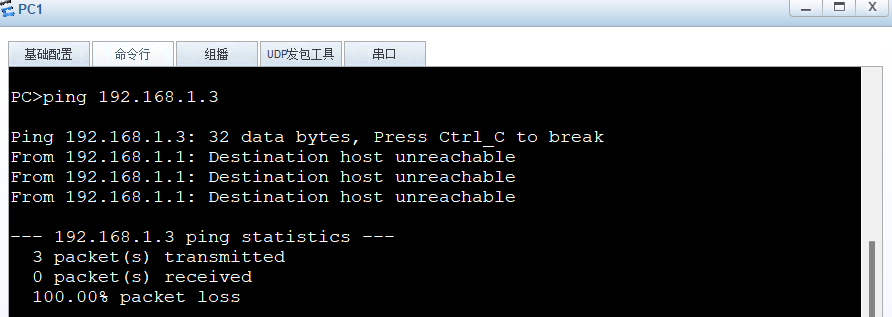

GROU VLAN之间通信
