pheatmap绘制“热图”,你需要的都在这

热图可以聚合大量的数据,并可以用一种渐进色来优雅地表现,可以很直观地展现数据的疏密程度或频率高低。

    本文利用R语言 pheatmap 包从头开始绘制各种漂亮的热图。参数像积木,拼凑出你最喜欢的热图即可,如下图:

     基因和样本都可以单独聚类,排序,聚类再分组,行列注释,配色调整,调整聚类线以及单元格的宽度和高度均可实现。



载入数据,R包



#R包
library(pheatmap)
# 构建测试数据
set.seed(1234)
test = matrix(rnorm(200), 20, 10)
test[1:10, seq(1, 10, 2)] = test[1:10, seq(1, 10, 2)] + 3
test[11:20, seq(2, 10, 2)] = test[11:20, seq(2, 10, 2)] + 2
test[15:20, seq(2, 10, 2)] = test[15:20, seq(2, 10, 2)] + 4
colnames(test) = paste("Test", 1:10, sep = "")
rownames(test) = paste("Gene", 1:20, sep = "")
head(test[,1:6])

绘制热图

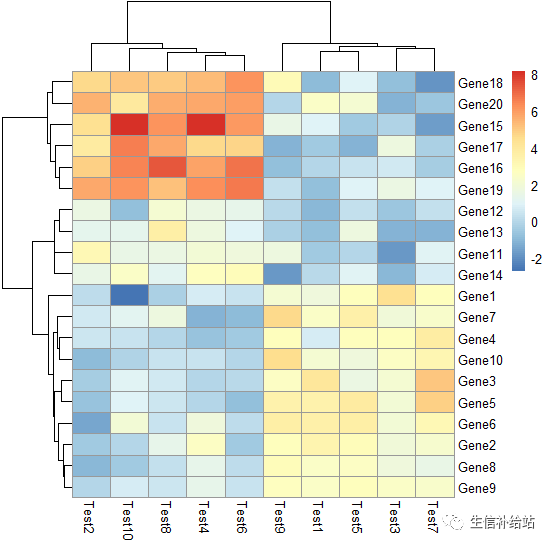

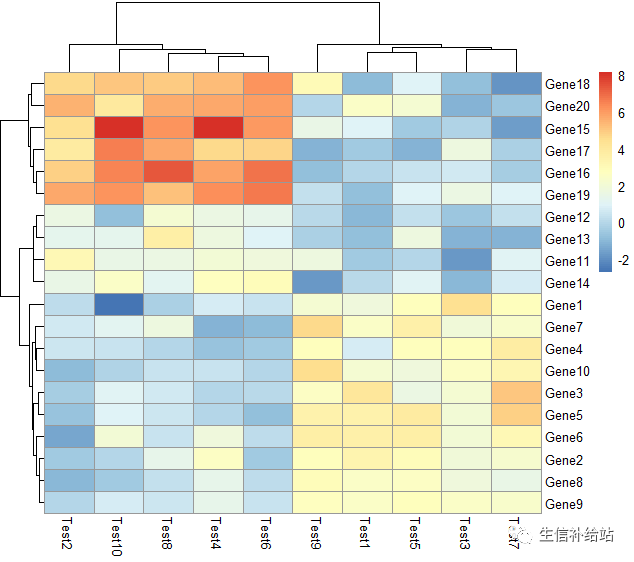

绘制默认热图



pheatmap(test)



基本参数

# scale = "row"参数对行进行归一化
# clustering_method参数设定不同聚类方法,默认为"complete",可以设定为'ward', 'ward.D', 'ward.D2', 'single', 'complete', 'average', 'mcquitty', 'median' or 'centroid'

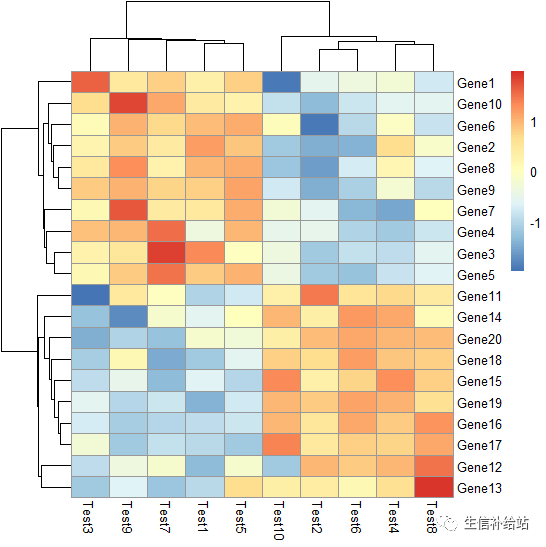

pheatmap(test,scale = "row", clustering_method = "average")





#表示行聚类使用皮尔森相关系数聚类,默认为欧氏距离"euclidean"

pheatmap(test, scale = "row", clustering_distance_rows = "correlation")

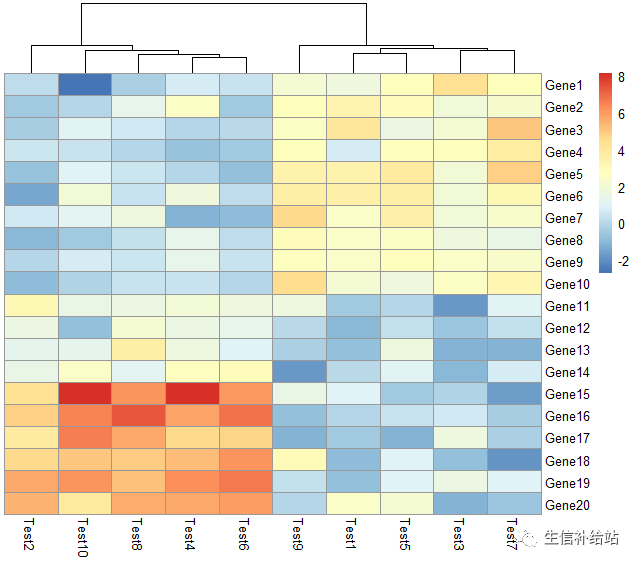

#行 列是否聚类,cluster_row ,cluster_col

pheatmap(test, cluster_row = FALSE,cluster_col = TRUE)





# treeheight_row和treeheight_col参数设定行和列聚类树的高度,默认为50

pheatmap(test, treeheight_row = 30, treeheight_col = 50)

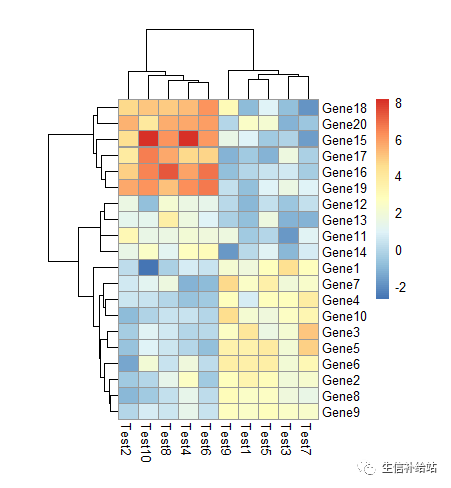

# 设定cell 的大小



pheatmap(test, cellwidth = 15, cellheight = 12, fontsize = 10)



设定 text

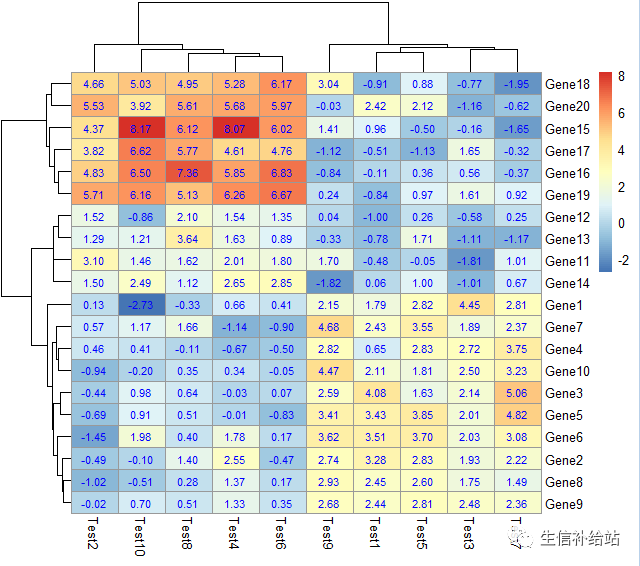

热图中展示数值

# display_numbers = TRUE参数设定在每个热图格子中显示相应的数值,#number_color参数设置数值字体的颜色

pheatmap(test, display_numbers = TRUE,number_color = "blue")





# 设定数值的显示格式

pheatmap(test, display_numbers = TRUE, number_format = "%.1e")

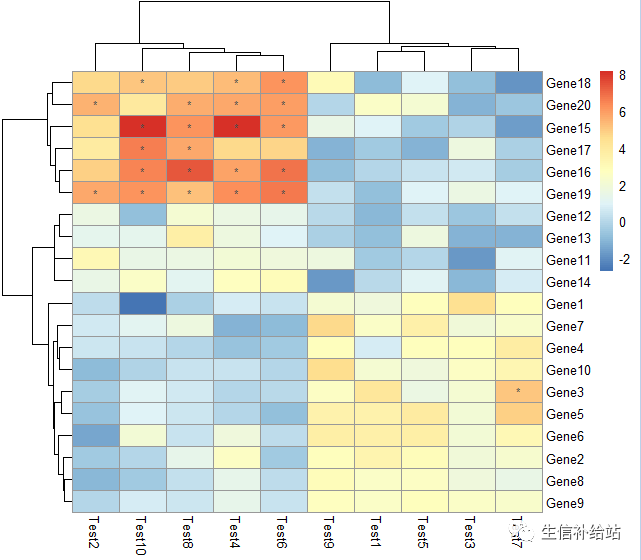

#设定条件式展示

pheatmap(test, display_numbers = matrix(ifelse(test > 5, "*", ""), nrow(test)))





设置 legend



设定legend展示的值
#legend_breaks参数设定图例显示范围,legend_labels参数添加图例标签

pheatmap(test, cluster_row = FALSE, legend_breaks = -1:4, legend_labels = c("0", "1e-4", "1e-3", "1e-2", "1e-1", "1"))



#去掉legend

pheatmap(test, legend = FALSE)



设定 color

自定义颜色

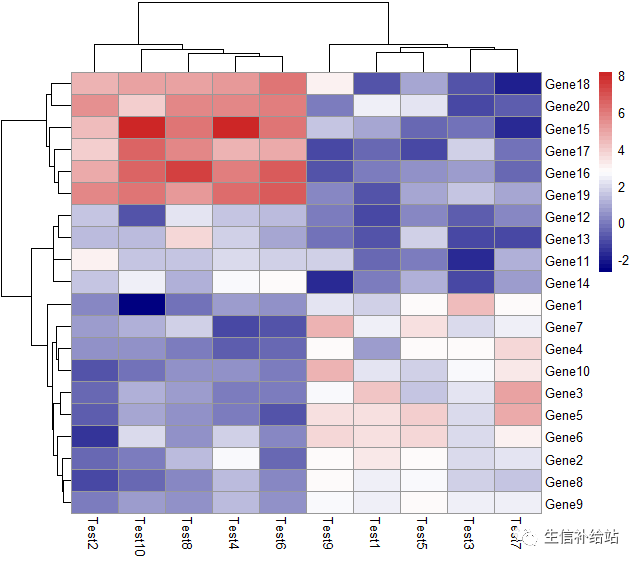

#colorRampPalette

pheatmap(test, color = colorRampPalette(c("navy", "white", "firebrick3"))(50))




# border_color参数设定每个热图格子的边框色

# border=TRIUE/FALSE参数是否要边框线



pheatmap(test, border_color = "red", border=TRUE)



设定 annotations

# 生成行 列的注释

annotation_col = data.frame( CellType = factor(rep(c("CT1", "CT2"), 5)), Time = 1:5 )
rownames(annotation_col) = paste("Test", 1:10, sep = "")
annotation_row = data.frame( GeneClass = factor(rep(c("Path1", "Path2", "Path3"), c(10, 4, 6))))
rownames(annotation_row) = paste("Gene", 1:20, sep = "")

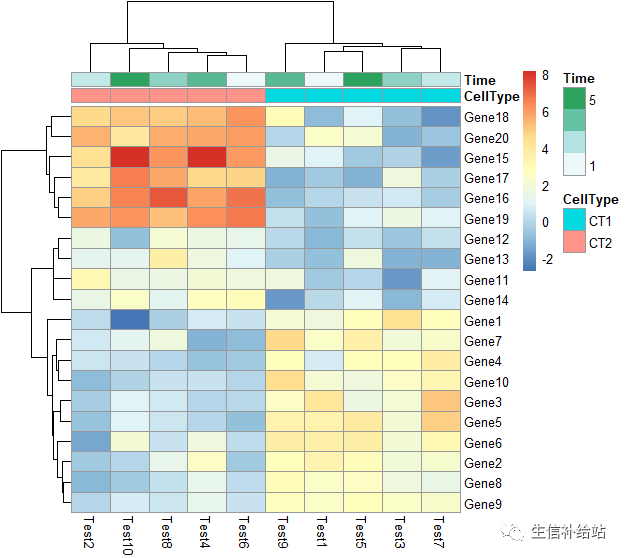

#添加列的注释

pheatmap(test, annotation_col = annotation_col)

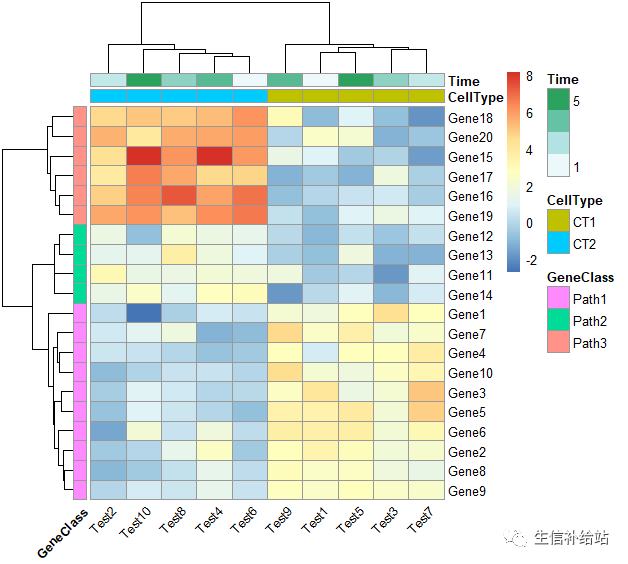

#添加行 列的注释

#angle_col 改变列标签的角度



pheatmap(test, annotation_col = annotation_col, annotation_row = annotation_row, angle_col = "45")

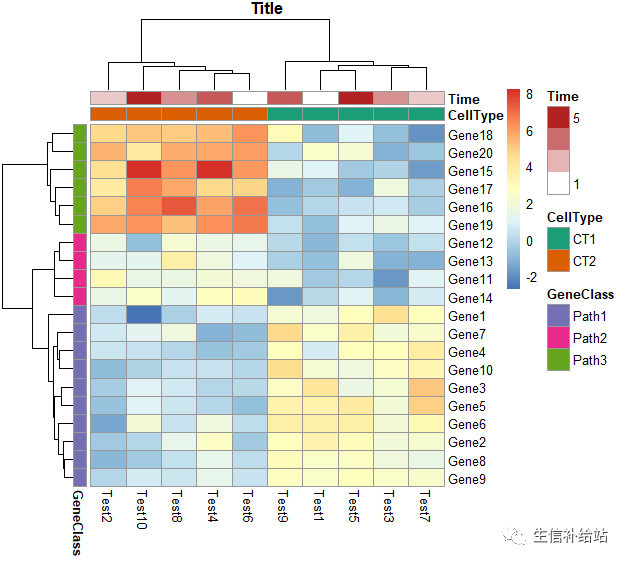

# 根据聚类结果,自定义注释分组及颜色

ann_colors = list( Time = c("white", "firebrick"), CellType = c(CT1 = "#1B9E77", CT2 = "#D95F02"), GeneClass = c(Path1 = "#7570B3", Path2 = "#E7298A", Path3 = "#66A61E") )
pheatmap(test, annotation_col = annotation_col,annotation_row=annotation_row, annotation_colors = ann_colors, main = "Title")



设定 gap

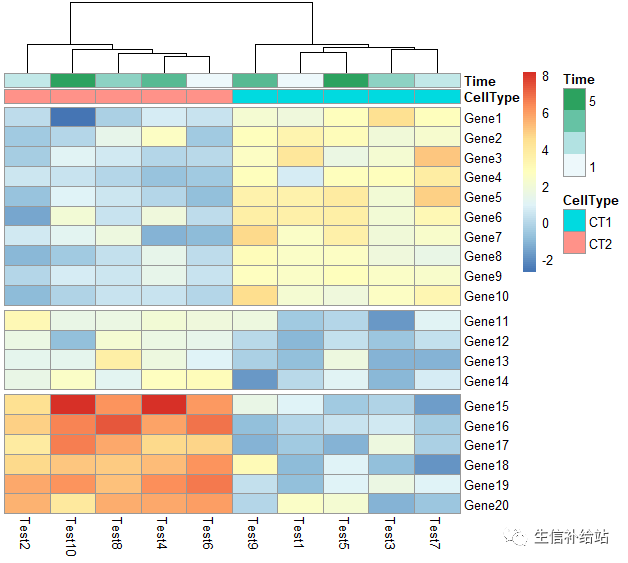

#根据聚类结果,设定行gap
pheatmap(test, annotation_col = annotation_col, cluster_rows = FALSE, gaps_row = c(10, 14))

#根据聚类结果,设定列gap

pheatmap(test,annotation_col = annotation_col, cluster_rows = FALSE,cutree_col = 2)

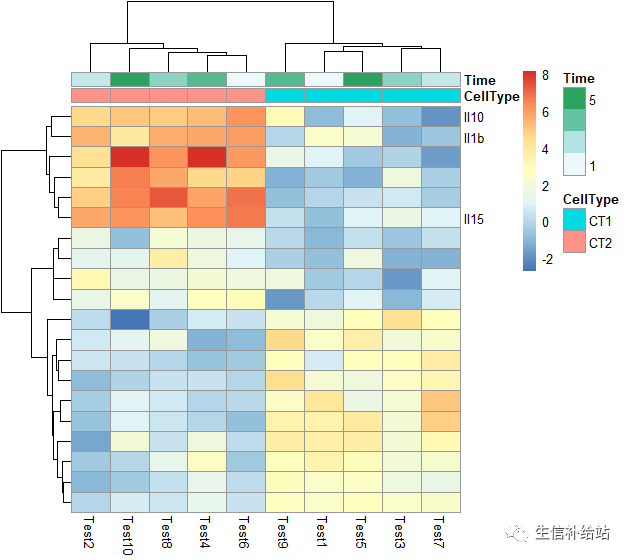

#展示行或者列的label
labels_row = c("", "", "", "", "", "", "", "", "", "", "", "", "", "", "", "", "", "Il10", "Il15", "Il1b")
pheatmap(test, annotation_col = annotation_col, labels_row = labels_row)

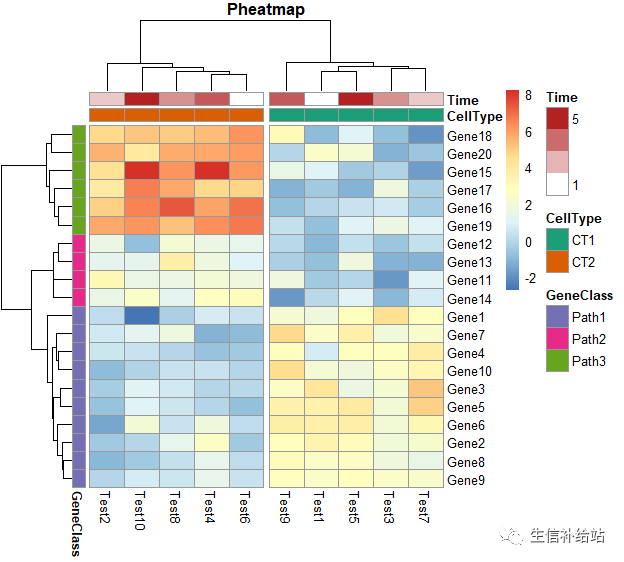

热图汇总

pheatmap(test, annotation_col = annotation_col, annotation_row = annotation_row, annotation_colors = ann_colors,gaps_row = c(1014),cutree_col = 2,main = "Pheatmap")



输出结果



A = pheatmap(test, annotation_col = annotation_col, annotation_row = annotation_row, annotation_colors = ann_colors,gaps_row = c(10, 14),cutree_col = 2,main = "Pheatmap") #记录热图的行排序

order_row = A$tree_row$order
 #记录热图的列排序
order_col = A$tree_col$order
# 按照热图的顺序,重新排原始数据
result = data.frame(test[order_row,order_col])
# 将行名加到表格数据中
result = data.frame(rownames(result),result,check.names =F)
colnames(result)[1] = "geneid"
#result结果按照热图中的顺序
write.table(result,file="reorder.txt",row.names=FALSE,quote = FALSE,sep='\t')



R的当前工作目录下即可查看热图的结果。



【公众号对话框,回复 R热图 即可获得上述热图R代码】



更多关于生信,R,Python的内容请扫码关注小号,谢谢。
