【ABAP】-上传文件压缩后下载

主要用到了xsting和binary之间的转换以及gui的操作

代码如下

*&---------------------------------------------------------------------*
*& Report zpr_zip_file
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zpr_zip_file.

START-OF-SELECTION.

  "选择文件
  DATA lv_file_table  TYPE filetable.
  DATA lv_rc  TYPE i.
  DATA lv_user_action  TYPE i.
  DATA lv_file_encoding  TYPE abap_encoding.

  cl_gui_frontend_services=>file_open_dialog( EXPORTING  window_title      = '选择一个Excel文件'
                                                         default_extension = 'xlsx'
                                                         file_filter       = cl_gui_frontend_services=>filetype_all
                                                         multiselection    = abap_false
                                              CHANGING   file_encoding     = lv_file_encoding
                                                         file_table        = lv_file_table
                                                         rc                = lv_rc
                                                         user_action       = lv_user_action
                                              EXCEPTIONS OTHERS            = 1 ).

  IF lv_rc = 1.
    DATA(lv_file) = lv_file_table[ 1 ].
  ENDIF.
  DATA lv_file_path TYPE string.
  DATA lv_file_name TYPE string.
  "拆分文件
  cl_bcs_utilities=>split_path(
    EXPORTING
      iv_path = lv_file
    IMPORTING
      ev_path = lv_file_path
      ev_name = lv_file_name ).
  "上传文件
  IF lv_file IS NOT INITIAL.
    DATA lv_fileLength TYPE i.
    DATA lv_fileheader TYPE xstring.
    DATA lv_file_data TYPE STANDARD TABLE OF solix.
    cl_gui_frontend_services=>gui_upload( EXPORTING filetype   = 'BIN'
                                                    filename   = CONV string( lv_file )
                                          IMPORTING filelength = lv_fileLength
                                                    header     = lv_fileheader
                                          CHANGING  data_tab   = lv_file_data ).
  ENDIF.

  DATA lv_file_xstring TYPE xstring.
  CALL FUNCTION 'SCMS_BINARY_TO_XSTRING'
    EXPORTING
      input_length = lv_fileLength
    IMPORTING
      buffer       = lv_file_xstring
    TABLES
      binary_tab   = lv_file_data
    EXCEPTIONS
      failed       = 1
      OTHERS       = 2.

  "压缩文件
  DATA(lo_zip) = NEW cl_abap_zip( ).
  lo_zip->support_unicode_names = abap_true."防止中文乱码
  lo_zip->add( name = lv_file_name content = lv_file_xstring ).
  DATA(lo_zip_file) = lo_zip->save( ).

  DATA: lv_len TYPE i.
  DATA lt_bin TYPE solix_tab.

  CALL FUNCTION 'SCMS_XSTRING_TO_BINARY'
    EXPORTING
      buffer        = lo_zip_file
    IMPORTING
      output_length = lv_len
    TABLES
      binary_tab    = lt_bin.

  DATA lv_save_filename TYPE string.
  DATA lv_save_filepath TYPE string.
  DATA lv_save_filefullPath TYPE string.
  DATA lv_save_action TYPE i.
  "打开保存窗口
  cl_gui_frontend_services=>file_save_dialog( EXPORTING  window_title              = '保存文件'
                                                         default_extension         = 'zip'
                                                         default_file_name         = 'test.zip'
                                                         file_filter               = cl_gui_frontend_services=>filetype_all
                                                         prompt_on_overwrite       = abap_true
                                              CHANGING   filename                  = lv_save_filename
                                                         path                      = lv_save_filepath
                                                         fullpath                  = lv_save_filefullPath
                                                         user_action               = lv_save_action
                                              EXCEPTIONS cntl_error                = 1                " Control error
                                                         error_no_gui              = 2                " No GUI available
                                                         not_supported_by_gui      = 3                " GUI does not support this
                                                         invalid_default_file_name = 4                " Invalid default file name
                                                         OTHERS                    = 5 ).
  IF lv_save_action = cl_gui_frontend_services=>action_ok.
    "下载
    cl_gui_frontend_services=>gui_download( EXPORTING filetype   = 'BIN'
                                                      filename   = lv_save_filefullPath
                                            IMPORTING filelength = lv_fileLength
                                            CHANGING  data_tab   = lt_bin ).
  ENDIF.



问题点：

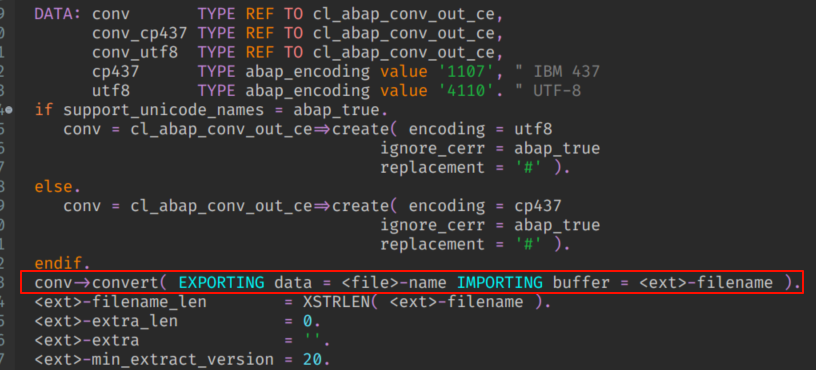

如果文件是中文文件名，则可能遇到乱码的问题，原因是cl_abap_zip类的add方法中对文件名进行了编码

 这里可以看到support_unicode_names默认是false,则进行的是CP437的编码，针对中文进行437编码时无法编码的字符责备替换为了#，所以我们在调用add方法时，需要将support_unicode_names设置为true,避免中文变为#号
