Consul 服务注册中心安装与配置
Docker 安装 Consul
8500 HTTP 端口
8600 DNS 端口
docker run -d -p 8500:8500 -p 8300:8300 -p 8301:8301 -p 8302:8302 -p 8600:8600/udp consul consul agent -dev -client=0.0.0.0
# 设置开机自启
docker container update --restart=always 容器名字/ID

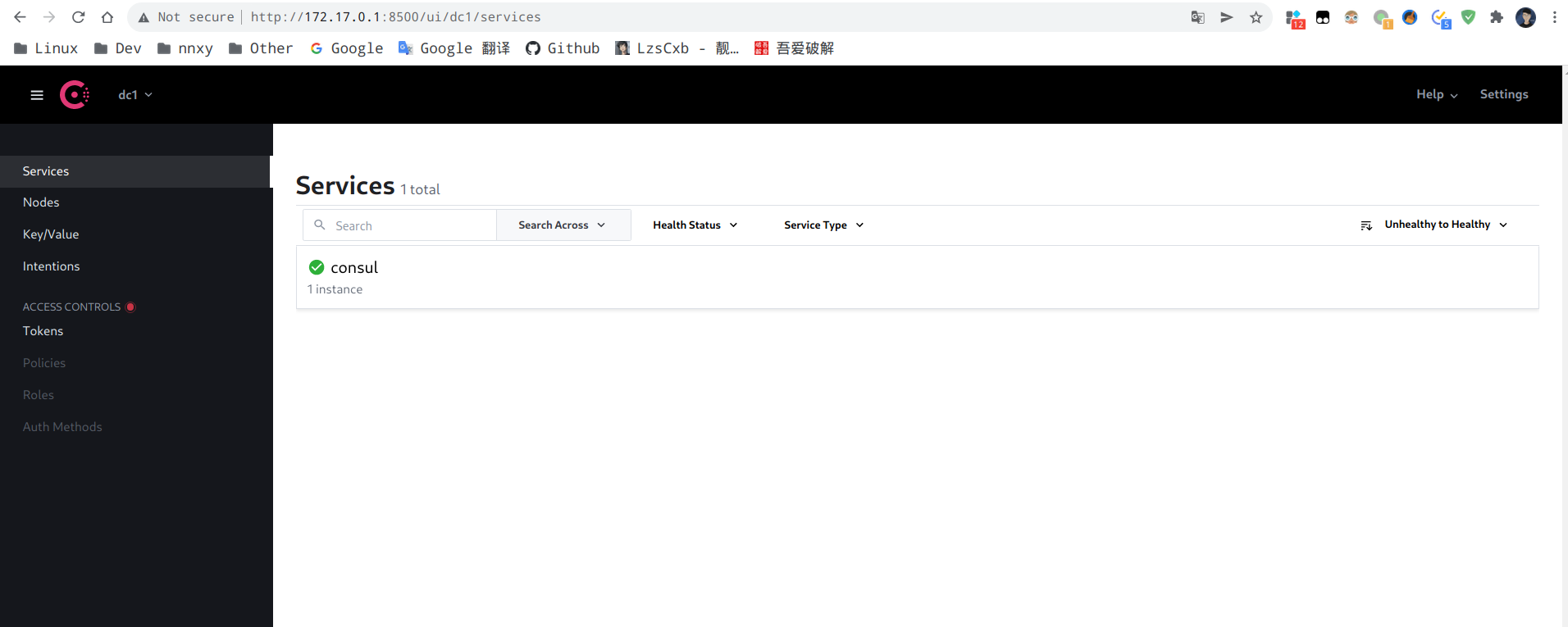

Consul Web
http:// [docker-ip]:8500

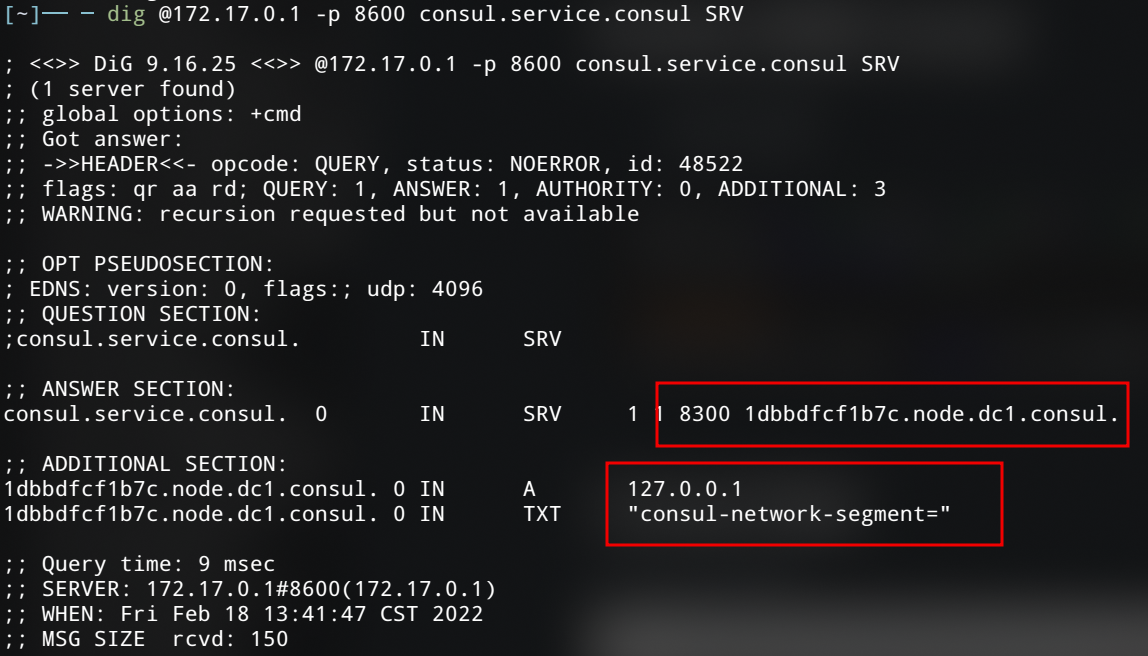

Consul DNS
Consul提供 DNS 功能，可以让我们通过， 可以通过dig命令行来测试，consul默认的dns端口是8600
Linux
yay -S bind
Windows
dig @172.17.0.1 -p 8600 consul.service.consul SRV
Consul APi
注册服务与健康检查
HTTP Golang
服务注册 https://www.consul.io/api-docs/agent/service#register-service
健康检查 https://www.consul.io/api-docs/agent/check
import (
"fmt"
"github.com/hashicorp/consul/api"
)
// 注册服务
func Register(id, name, address string, port int) {
// 默认配置
cfg := api.DefaultConfig()
cfg.Address = "172.17.0.1:8500"
client, err := api.NewClient(cfg)
if err != nil {
panic(err)
}
// 生成服务注册对象
registation := &api.AgentServiceRegistration{
ID: id,
Name: name,
Address: address,
Port: port,
Check: &api.AgentServiceCheck{
// 每个服务都要提供一个GET接口返回{code:200,success:true}
HTTP: func main() {
// 不能使用 127.0.0.1 因为 Consul 已经部署到 docker 不能识别
//deregister("mirco-shop-web")
} fmt.Sprintf("http://%s:%d/health", address, port),
Interval: "5s", // 定时检查
Timeout: "5s", // 超时时间
DeregisterCriticalServiceAfter: "1m", // 服务失效多少秒后注销
},
}
err = client.Agent().ServiceRegister(registation)
if err != nil {
panic(err)
}
fmt.Println("注册成功")
}
func main(){
// 不能使用 127.0.0.1 因为 Consul 已经部署到 docker 不能识别
.Register("mirco-shop-api", "mirco-shop-api", "192.168.200.110", 8021)
}
gRPC Python
Protobuf https://github.com/grpc/grpc/blob/master/doc/health-checking.md
Health.py https://grpc.github.io/grpc/python/_modules/grpc_health/v1/health.html
protobuf health.proto
不要修改任何内容
syntax = "proto3";
package grpc.health.v1;
message HealthCheckRequest {
string service = 1;
}
message HealthCheckResponse {
enum ServingStatus {
UNKNOWN = 0;
SERVING = 1;
NOT_SERVING = 2;
SERVICE_UNKNOWN = 3; // Used only by the Watch method.
}
ServingStatus status = 1;
}
service Health {
rpc Check(HealthCheckRequest) returns (HealthCheckResponse);
rpc Watch(HealthCheckRequest) returns (stream HealthCheckResponse);
}
生成代码
python -m grpc_tools.protoc --python_out=. --grpc_python_out=. -I. health.proto
- 实现Check和Watch方法 health.py 复制进去即可
https://grpc.github.io/grpc/python/_modules/grpc_health/v1/health.html
- 新建
_async.py复制以下内容
# Copyright 2020 The gRPC Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
"""Reference implementation for health checking in gRPC Python."""
import asyncio
import collections
from typing import MutableMapping
import grpc
from common.grpc_health.v1 import health_pb2 as _health_pb2
from common.grpc_health.v1 import health_pb2_grpc as _health_pb2_grpc
class HealthServicer(_health_pb2_grpc.HealthServicer):
"""An AsyncIO implementation of health checking servicer."""
_server_status: MutableMapping[
str, '_health_pb2.HealthCheckResponse.ServingStatus']
_server_watchers: MutableMapping[str, asyncio.Condition]
_gracefully_shutting_down: bool
def __init__(self) -> None:
self._server_status = {"": _health_pb2.HealthCheckResponse.SERVING}
self._server_watchers = collections.defaultdict(asyncio.Condition)
self._gracefully_shutting_down = False
async def Check(self, request: _health_pb2.HealthCheckRequest,
context) -> None:
status = self._server_status.get(request.service)
if status is None:
await context.abort(grpc.StatusCode.NOT_FOUND)
else:
return _health_pb2.HealthCheckResponse(status=status)
async def Watch(self, request: _health_pb2.HealthCheckRequest,
context) -> None:
condition = self._server_watchers[request.service]
last_status = None
try:
async with condition:
while True:
status = self._server_status.get(
request.service,
_health_pb2.HealthCheckResponse.SERVICE_UNKNOWN)
# NOTE(lidiz) If the observed status is the same, it means
# there are missing intermediate statuses. It's considered
# acceptable since peer only interested in eventual status.
if status != last_status:
# Responds with current health state
await context.write(
_health_pb2.HealthCheckResponse(status=status))
# Records the last sent status
last_status = status
# Polling on health state changes
await condition.wait()
finally:
if request.service in self._server_watchers:
del self._server_watchers[request.service]
async def _set(self, service: str,
status: _health_pb2.HealthCheckResponse.ServingStatus
) -> None:
if service in self._server_watchers:
condition = self._server_watchers.get(service)
async with condition:
self._server_status[service] = status
condition.notify_all()
else:
self._server_status[service] = status
async def set(self, service: str,
status: _health_pb2.HealthCheckResponse.ServingStatus
) -> None:
"""Sets the status of a service.
Args:
service: string, the name of the service.
status: HealthCheckResponse.status enum value indicating the status of
the service
"""
if self._gracefully_shutting_down:
return
else:
await self._set(service, status)
async def enter_graceful_shutdown(self) -> None:
"""Permanently sets the status of all services to NOT_SERVING.
This should be invoked when the server is entering a graceful shutdown
period. After this method is invoked, future attempts to set the status
of a service will be ignored.
"""
if self._gracefully_shutting_down:
return
else:
self._gracefully_shutting_down = True
for service in self._server_status:
await self._set(service,
_health_pb2.HealthCheckResponse.NOT_SERVING)

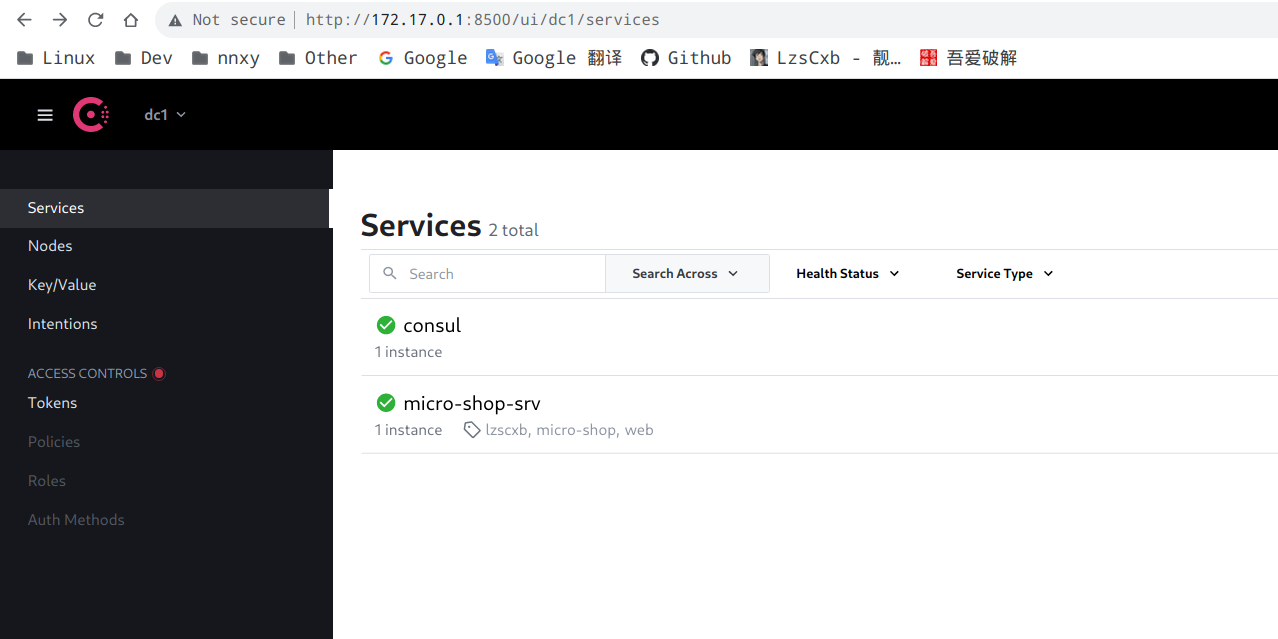

注册健康检查服务
请确使用Consul能访问的IP，特别是Consul使用Docker部署
import requests
headers = {
"Content-Type": "application/json"
}
def register(name, id, address, port):
url = "http://172.17.0.1:8500/v1/agent/service/register"
rsp = requests.put(url, headers=headers, json={
"ID": id, # ID 如果不设置则和Name保持一致
"Name": name,
"Address": address,
"Port": port,
"Tags": ["micro-shop", "lzscxb", "web"], # 标签
"Check": { # 健康检查
"GRPC": f"{address}:{port}",
"GRPCUseTLS": False,
"Timeout": "10s",
"Interval": "10s",
"DeregisterCriticalServiceAfter": "1m",
},
})
if rsp.status_code != 200:
print(f"注册失败:{rsp.status_code}")
print(rsp.text)
return
print("注册成功")
if __name__ == "__main__":
register("micro-shop-srv", "micro-shop-srv", "192.168.200.110", 50051)
注销服务
func Deregister(id string) {
// 默认配置
cfg := api.DefaultConfig()
cfg.Address = "172.17.0.1:8500"
client, err := api.NewClient(cfg)
if err != nil {
panic(err)
}
err = client.Agent().ServiceDeregister(id)
if err != nil {
panic(err)
}
fmt.Println("注销服务成功")
}// 注销服务
func deregister(id string) {
url := "http://172.17.0.1:8500/v1/agent/service/deregister/" + id
data := map[string]string{
"service_id": id,
}
dataJson, err := json.Marshal(data)
if err != nil {
panic(err)
}
body := bytes.NewReader(dataJson)
rsq, err := http.NewRequest("PUT", url, body)
if err != nil {
panic(err)
}
defer rsq.Body.Close()
rsq.Header.Add("Content-Type", "application/json")
rsp, err := http.DefaultClient.Do(rsq)
if err != nil {
panic(err)
}
if rsp.StatusCode != 200 {
fmt.Println("注销失败")
return
}
fmt.Println("注销成功")
}
获取服务
// 获取所有服务
func AllServices() {
// 默认配置
cfg := api.DefaultConfig()
cfg.Address = "172.17.0.1:8500"
client, err := api.NewClient(cfg)
if err != nil {
panic(err)
}
services, err := client.Agent().Services()
if err != nil {
return
}
fmt.Println(services)
}
// 过滤服务名称
func FilterService(name string) {
// 默认配置
cfg := api.DefaultConfig()
cfg.Address = "172.17.0.1:8500"
client, err := api.NewClient(cfg)
if err != nil {
panic(err)
}
services, err := client.Agent().ServicesWithFilter(fmt.Sprintf(`Service == "%s"`, name))
if err != nil {
return
}
fmt.Println(services)
}
