VGG神经网络与PyTorch神经网络初试

//vgg神经网络





?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
Created on Mon May  9 13:12:54 2022

@author: 12234
"""

import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers, regularizers
import numpy as np
import os
import cv2
import matplotlib.pyplot as plt


os.environ["CUDA_VISIBLE_DEVICES"] = "1"

resize = 224
path ="D:\\MyPython\\MyExp\\ExpWork\\train"

def load_data():
    imgs = os.listdir(path)
    num = len(imgs)
    train_data = np.empty((100, resize, resize, 3), dtype="int32")
    train_label = np.empty((100, ), dtype="int32")
    test_data = np.empty((100, resize, resize, 3), dtype="int32")
    test_label = np.empty((100, ), dtype="int32")
    for i in range(100):
        if i % 2:
            train_data[i] = cv2.resize(cv2.imread(path+'/'+ 'dog.' + str(i) + '.jpg'), (resize, resize))
            train_label[i] = 1
        else:
            train_data[i] = cv2.resize(cv2.imread(path+'/' + 'cat.' + str(i) + '.jpg'), (resize, resize))
            train_label[i] = 0
    for i in range(100, 200):
        if i % 2:
            test_data[i-100] = cv2.resize(cv2.imread(path+'/' + 'dog.' + str(i) + '.jpg'), (resize, resize))
            test_label[i-100] = 1
        else:
            test_data[i-100] = cv2.resize(cv2.imread(path+'/' + 'cat.' + str(i) + '.jpg'), (resize, resize))
            test_label[i-100] = 0
    return train_data, train_label, test_data, test_label


def vgg16():
    weight_decay = 0.0005
    nb_epoch = 100
    batch_size = 32

    # layer1
    model = keras.Sequential()
    model.add(layers.Conv2D(64, (3, 3), padding='same',
                     input_shape=(224, 224, 3), kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.3))
    # layer2
    model.add(layers.Conv2D(64, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.MaxPooling2D(pool_size=(2, 2)))
    # layer3
    model.add(layers.Conv2D(128, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer4
    model.add(layers.Conv2D(128, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.MaxPooling2D(pool_size=(2, 2)))
    # layer5
    model.add(layers.Conv2D(256, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer6
    model.add(layers.Conv2D(256, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer7
    model.add(layers.Conv2D(256, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.MaxPooling2D(pool_size=(2, 2)))
    # layer8
    model.add(layers.Conv2D(512, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer9
    model.add(layers.Conv2D(512, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer10
    model.add(layers.Conv2D(512, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.MaxPooling2D(pool_size=(2, 2)))
    # layer11
    model.add(layers.Conv2D(512, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer12
    model.add(layers.Conv2D(512, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.Dropout(0.4))
    # layer13
    model.add(layers.Conv2D(512, (3, 3), padding='same', kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    model.add(layers.MaxPooling2D(pool_size=(2, 2)))
    model.add(layers.Dropout(0.5))
    # layer14
    model.add(layers.Flatten())
    model.add(layers.Dense(512, kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    # layer15
    model.add(layers.Dense(512, kernel_regularizer=regularizers.l2(weight_decay)))
    model.add(layers.Activation('relu'))
    model.add(layers.BatchNormalization())
    # layer16
    model.add(layers.Dropout(0.5))
    model.add(layers.Dense(2))
    model.add(layers.Activation('softmax'))

    return model


#if __name__ == '__main__':
train_data, train_label, test_data, test_label = load_data()
train_data = train_data.astype('float32')
test_data = test_data.astype('float32')
train_label = keras.utils.to_categorical(train_label, 2)
test_label = keras.utils.to_categorical(test_label, 2)


#定义训练方法,超参数设置
model = vgg16()
sgd = tf.keras.optimizers.SGD(lr=0.01, decay=1e-6, momentum=0.9, nesterov=True) #设置优化器为SGD
model.compile(loss='categorical_crossentropy', optimizer=sgd, metrics=['accuracy'])
history = model.fit(train_data, train_label,
              batch_size=20,
              epochs=10,
              validation_split=0.2,  #把训练集中的五分之一作为验证集
              shuffle=True)
scores = model.evaluate(test_data,test_label,verbose=1)
print(scores)
model.save('model/vgg16dogcat.h5')

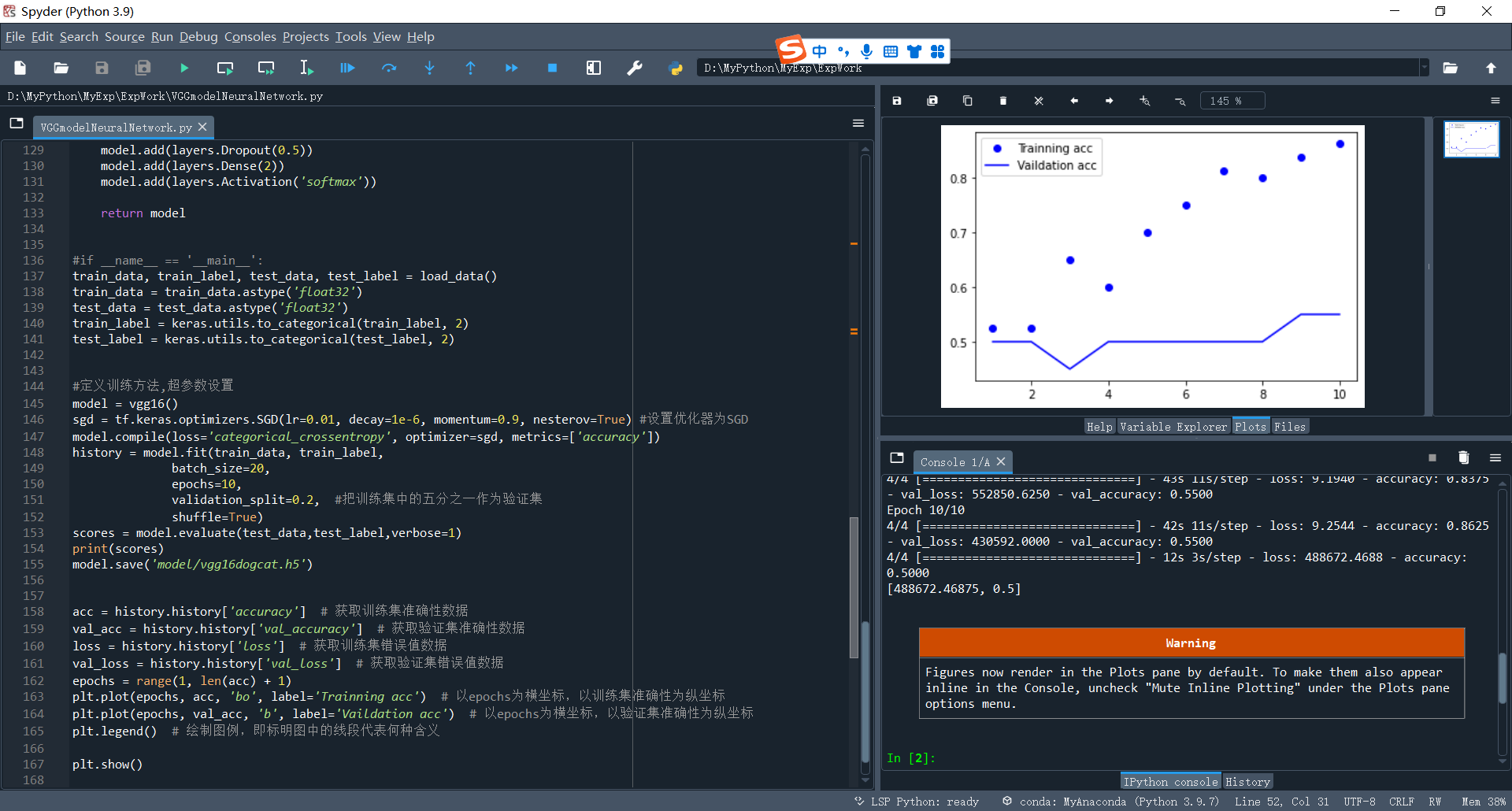

acc = history.history['accuracy']  # 获取训练集准确性数据
val_acc = history.history['val_accuracy']  # 获取验证集准确性数据
loss = history.history['loss']  # 获取训练集错误值数据
val_loss = history.history['val_loss']  # 获取验证集错误值数据
epochs = range(1, len(acc) + 1)
plt.plot(epochs, acc, 'bo', label='Trainning acc')  # 以epochs为横坐标，以训练集准确性为纵坐标
plt.plot(epochs, val_acc, 'b', label='Vaildation acc')  # 以epochs为横坐标，以验证集准确性为纵坐标
plt.legend()  # 绘制图例，即标明图中的线段代表何种含义

plt.show()

//PyTorch神经网络

复制代码
Created on Sun May 15 20:30:36 2022

@author: 12234
"""

import torch
import torch.nn as nn
import torch.nn.functional as F


class Net(nn.Module):

    def __init__(self):
        super(Net, self).__init__()
        # 1 input image channel, 6 output channels, 5x5 square convolution
        # kernel
        self.conv1 = nn.Conv2d(1, 6, 5)
        self.conv2 = nn.Conv2d(6, 16, 5)
        # an affine operation: y = Wx + b
        self.fc1 = nn.Linear(16 * 5 * 5, 120)
        self.fc2 = nn.Linear(120, 84)
        self.fc3 = nn.Linear(84, 10)

    def forward(self, x):
        # Max pooling over a (2, 2) window
        x = F.max_pool2d(F.relu(self.conv1(x)), (2, 2))
        # If the size is a square you can only specify a single number
        x = F.max_pool2d(F.relu(self.conv2(x)), 2)
        x = x.view(-1, self.num_flat_features(x))
        x = F.relu(self.fc1(x))
        x = F.relu(self.fc2(x))
        x = self.fc3(x)
        return x

    def num_flat_features(self, x):
        size = x.size()[1:]  # all dimensions except the batch dimension
        num_features = 1
        for s in size:
            num_features *= s
        return num_features

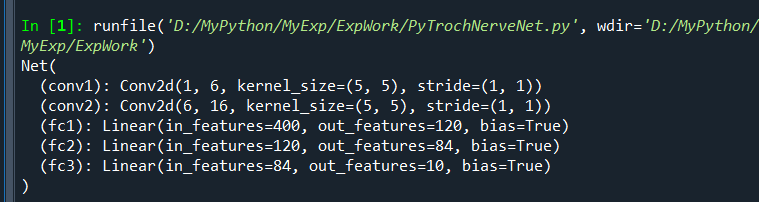

net = Net()
print(net)
复制代码





　　
