java IO(BIO)、NIO、AIO

IO

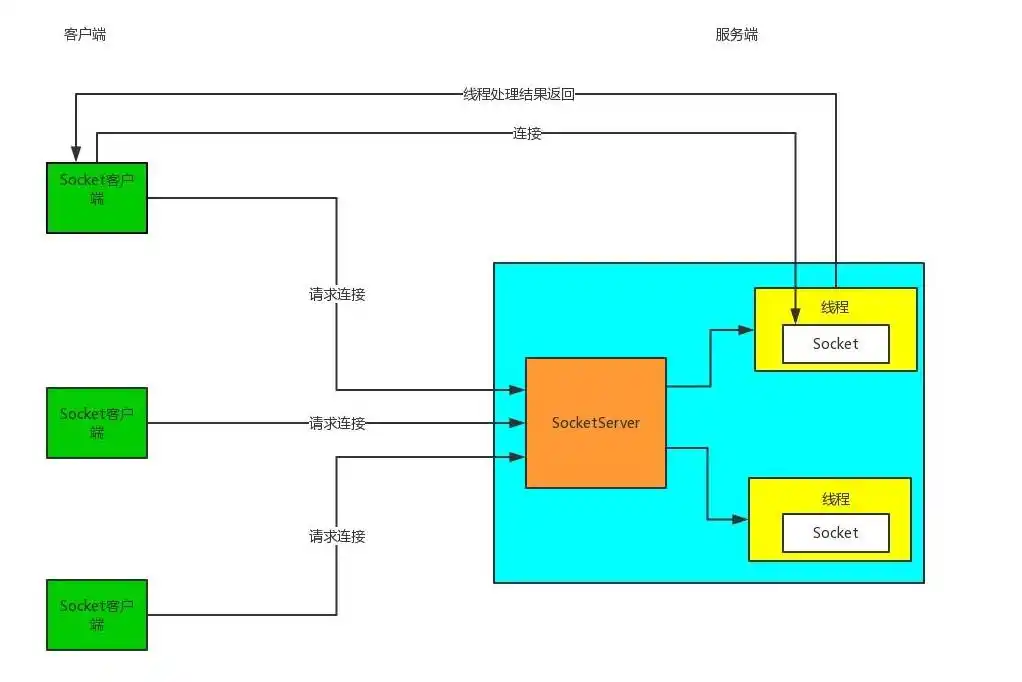

服务端ServerSocket 客户端Socket

缺点每次客户端建立连接都会另外启一个线程处理。读取和发送数据都是阻塞式的。

如果1000个客户端建立连接将会产生1000个线程

Server端

package bhz.bio.test;

import java.io.IOException;
import java.net.ServerSocket;
import java.net.Socket;


public class Server {
    private int port;
    private ServerSocket serverSocket;

    public Server(int port) {
        this.port = port;

    }

    public void start() throws IOException {
        try {
            serverSocket = new ServerSocket(port);
            while (true) {
               Socket socket = serverSocket.accept();// 阻塞等待客户端建立连接
               new Thread(new ServerHandler(socket)).start();//另外起一個線程處理客戶端的請求
            }
        } catch (IOException e) {
             e.printStackTrace();
            // TODO Auto-generated catch block
            System.out.println("服务器启动失败");
        }finally {
            if(serverSocket!=null) {
                serverSocket.close();//释放资源操作
            }


        }

    }
}

ServerHandler

package bhz.bio.test;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.Socket;

public class ServerHandler implements Runnable {
    private Socket socket;

    public ServerHandler(Socket socket) {
        this.socket = socket;
    }

    @Override
    public void run() {
        // TODO Auto-generated method stub

        BufferedReader in = null;
        PrintWriter out = null;
        try {
            while (true) {
                // 监听客户端的发送消息
                out = new PrintWriter(socket.getOutputStream(),true);
                in = new BufferedReader(new InputStreamReader(socket.getInputStream()));
                String content = in.readLine();

                System.out.println("接收到客户端发送的消息:" + content);//
                out.println("哈哈哈");
            }
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } finally {
            if(in != null){
                try {
                    in.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
            if(out != null){
                try {
                    out.close();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
            if(socket != null){
                try {
                    socket.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
            socket = null;
        }

    }

}

客户端

package bhz.bio.test;

import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.Socket;
import java.net.UnknownHostException;

public class Client {
    private String ip;
    private int port;
    private Socket socket;
    private PrintWriter out;
    private BufferedReader in;
    public Client(String ip, int port) {
        this.ip = ip;
        this.port = port;
    }

    public void connect() {
        try {
            socket = new Socket(ip, port);
            out = new PrintWriter(socket.getOutputStream(),true);
            in=new BufferedReader(new InputStreamReader(socket.getInputStream()));
        } catch (Exception e) {
            // TODO: handle exception
            System.out.println("建立連接失敗");
        }

    }

    public void send(String message) throws IOException {

         out.println(message);

         try {
             String content=in.readLine();
               System.out.println("接收到服务端的数据:"+content);
        } catch (Exception e) {
            // TODO: handle exception
            e.printStackTrace();
        }



    }
}

测试类

package bhz.bio.test;

import java.io.IOException;

public class mainTest {
  public static void main(String[] args) {
      //启动服务端
    new Thread(new Runnable() {

        @Override
        public void run() {
            // TODO Auto-generated method stub
            Server server=new Server(8089);
            try {
                server.start();
            } catch (IOException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }
            try {
                Thread.sleep(Integer.MAX_VALUE);
            } catch (InterruptedException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }

        }
    }).start();

    new Thread(new Runnable() {

        @Override
        public void run() {
            // TODO Auto-generated method stub
            Client client=new Client("127.0.0.1", 8089);
            client.connect();//与服务器建立连接
            try {
                client.send("你好呀");
                client.send("你好呀2");
            } catch (IOException e1) {
                // TODO Auto-generated catch block
                e1.printStackTrace();
            }
            try {
                Thread.sleep(Integer.MAX_VALUE);
            } catch (InterruptedException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }
        }
    }).start();
}
}

输出

接收到客户端发送的消息:你好呀
接收到服务端的数据:哈哈哈
接收到客户端发送的消息:你好呀2
接收到服务端的数据:哈哈哈

使用线程池限制客户端数量(伪异步)

public class Server {
    private int port;
    private ServerSocket serverSocket;

    private ExecutorService executorService;
    public Server(int port) {
        this.port = port;
        executorService=Executors.newFixedThreadPool(50);//限制同时在线客户端数量为10个

    }

    public void start() throws IOException {
        try {
            serverSocket = new ServerSocket(port);
            while (true) {
               Socket socket = serverSocket.accept();// 阻塞等待客户端建立连接
               executorService.execute(new ServerHandler(socket));//线程池处理
            }
        } catch (IOException e) {
             e.printStackTrace();
            // TODO Auto-generated catch block
            System.out.println("服务器启动失败");
        }finally {
            if(serverSocket!=null) {
                serverSocket.close();//释放资源操作
            }
        }

    }
}

Nio

nio改善了io一个客户端建立连接就创建一个线程监听请求的模型。

nio的核心概念

1.Channel( 负责读写数据可以channel读取数据到buffer也可以通过channel写入数据到channel)

FileChannel
DatagramChannel 能通过UDP读写网络中的数据
SocketChannel 能通过TCP读写网络中的数据。
ServerSocketChannel 可以监听新进来的TCP连接，像Web服务器那样。对每一个新进来的连接都会创建一个SocketChannel。

2.Buffers

ByteBuffer
CharBuffer
DoubleBuffer
FloatBuffer
IntBuffer
LongBuffer
ShortBuffer

存储数据的容器

3.Selectors

负责轮询Channel的状态进行对应的操作。发送消息和建立连接都需要往selectors注册channel (一个selectors可以监听无数个channel状态)

buffer的使用

建立一个指定大小的缓冲区

private ByteBuffer readBuf = ByteBuffer.allocate(1024);

往buffer容器添加数据内容position字段都会累加。

读取数据是根据position字段来读取

所以读取之前要记得重置position位置为0

readBuf.flip();

读取缓冲区里面数据

//根据缓冲区的数据长度创建相应大小的byte数组，接收缓冲区的数据
            byte[] bytes = new byte[this.readBuf.remaining()];
            / 接收缓冲区数据
            this.readBuf.get(bytes);
            //打印结果
            String body = new String(bytes).trim();

服務端

package bhz.nio.test;

import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;

public class Server {

    private int port;
    private ServerSocketChannel serverSocketChannel;
    private Selector selector;
    //2 建立缓冲区
    private ByteBuffer readBuf = ByteBuffer.allocate(1024);
    private ByteBuffer writeBuf = ByteBuffer.allocate(1024);
    public Server(int port) {
        this.port = port;
    }
    public void start() throws IOException {
        selector=Selector.open();//创建选择器
        serverSocketChannel=ServerSocketChannel.open();//创建监听通道
        serverSocketChannel.configureBlocking(false);//开启非阻塞模式
        serverSocketChannel.socket().bind(new InetSocketAddress(port));//绑定端口
        //把服务器通道注册到多路复用器上，并且监听阻塞事件
        serverSocketChannel.register(this.selector, SelectionKey.OP_ACCEPT);
        //轮询多路复用器
        new Thread(new Runnable() {

            @Override
            public void run() {
                // TODO Auto-generated method stub
                while (true) {
                      //阻塞,只有当至少一个注册的事件发生的时候才会继续.
                    try {
                        selector.select();
                    } catch (IOException e) {
                        // TODO Auto-generated catch block
                        e.printStackTrace();
                    }
                    // 返回多路复用器已经选择的结果集
                    Iterator<SelectionKey> selectionKeys=selector.selectedKeys().iterator();
                    //3 进行遍历
                    while(selectionKeys.hasNext()){
                        //4 获取一个选择的元素
                        SelectionKey key = selectionKeys.next();
                        //5 直接从容器中移除就可以了
                        selectionKeys.remove();
                        //6 如果是有效的
                        if(key.isValid()){
                            //7 如果为阻塞状态
                            if(key.isAcceptable()){
                                accept(key);
                            }
                            //8 如果为可读状态
                            if(key.isReadable()){
                                read(key);
                            }
                            //9 写数据
                            if(key.isWritable()){
                                //this.write(key); //ssc
                            }
                        }

                    }

                }

            }

        }).start();
    }

    private void accept(SelectionKey key) {
        try {
            //1 获取服务通道
            ServerSocketChannel ssc =  (ServerSocketChannel) key.channel();
            //2 执行阻塞方法
            SocketChannel sc = ssc.accept();
            //3 设置阻塞模式
            sc.configureBlocking(false);
            //4 注册到多路复用器上，并设置读取标识
            sc.register(this.selector, SelectionKey.OP_READ);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    private void read(SelectionKey key) {
        try {
            //1 清空缓冲区旧的数据
            this.readBuf.clear();
            //2 获取之前注册的socket通道对象
            SocketChannel sc = (SocketChannel) key.channel();
            //3 读取数据
            int count = sc.read(this.readBuf);
            //4 如果没有数据
            if(count == -1){
                key.channel().close();
                key.cancel();
                return;
            }
            //5 有数据则进行读取 读取之前需要进行复位方法(把position 和limit进行复位)
            this.readBuf.flip();
            //6 根据缓冲区的数据长度创建相应大小的byte数组，接收缓冲区的数据
            byte[] bytes = new byte[this.readBuf.remaining()];
            //7 接收缓冲区数据
            this.readBuf.get(bytes);
            //8 打印结果
            String body = new String(bytes).trim();
            System.out.println("Server : " + body);

            // 9..可以写回给客户端数据

        } catch (IOException e) {
            e.printStackTrace();
        }

    }

}

客戶端

package bhz.nio.test;

import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.SocketChannel;
import java.util.Iterator;

public class Client {

    private SocketChannel socketChannel;
    private ByteBuffer readBuf = ByteBuffer.allocate(1024);
    private ByteBuffer writeBuf = ByteBuffer.allocate(1024);
    private Selector selector;
    public void connect(String ip,int port) throws IOException {
        selector=Selector.open();//创建选择器

        socketChannel=SocketChannel.open();//创建连接

         if(socketChannel.connect(new InetSocketAddress(ip,port)));
         else socketChannel.register(selector, SelectionKey.OP_CONNECT);
         socketChannel.configureBlocking(false);
        socketChannel.register(selector, SelectionKey.OP_CONNECT); //注册到多路复用器
        new Thread(new Runnable() {

            @Override
            public void run() {
                // TODO Auto-generated method stub
                   SelectionKey key = null;
                while (true) {
                    try {
                        selector.select();
                    } catch (IOException e) {
                        // TODO Auto-generated catch block
                        e.printStackTrace();
                    }
                    Iterator<SelectionKey> selectionKeys=selector.selectedKeys().iterator();

                    while (selectionKeys.hasNext()) {
                        key=selectionKeys.next();
                        if(key.isReadable()) {

                        }

                    }

                }

            }
        }).start();
    }
    private void read(SelectionKey key) {
        try {
            //1 清空缓冲区旧的数据
            this.readBuf.clear();
            //2 获取之前注册的socket通道对象
            SocketChannel sc = (SocketChannel) key.channel();
            //3 读取数据
            int count = sc.read(this.readBuf);
            //4 如果没有数据
            if(count == -1){
                key.channel().close();
                key.cancel();
                return;
            }
            //5 有数据则进行读取 读取之前需要进行复位方法(把position 和limit进行复位)
            this.readBuf.flip();
            //6 根据缓冲区的数据长度创建相应大小的byte数组，接收缓冲区的数据
            byte[] bytes = new byte[this.readBuf.remaining()];
            //7 接收缓冲区数据
            this.readBuf.get(bytes);
            //8 打印结果
            String body = new String(bytes).trim();
            System.out.println("client : " + body);

            // 9..可以写回给客户端数据

        } catch (IOException e) {
            e.printStackTrace();
        }

    }

    public void write(String message) throws IOException {
        byte[] bytes =message.getBytes();


        //把数据放到缓冲区中
        writeBuf.put(bytes);
        //对缓冲区进行复位
        writeBuf.flip();
        //写出数据
        socketChannel.write(writeBuf);
        //清空缓冲区数据
        writeBuf.clear();
    }
}

測試類

package bhz.nio.test;

import java.io.IOException;

public class TestMain {
    public static void main(String[] args) throws InterruptedException {
        final Server server = new Server(8088);
        final Client client=new Client();

        new Thread(new Runnable() {

            @Override
            public void run() {
                // TODO Auto-generated method stub
                try {
                    server.start();
                } catch (IOException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                }
                try {
                    Thread.sleep(Integer.MAX_VALUE);
                } catch (InterruptedException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                }
            }

        }).start();
        Thread.sleep(2000);
        new Thread(new Runnable() {

            @Override
            public void run() {
                // TODO Auto-generated method stub
                try {
                    client.connect("127.0.0.1", 8088);
                    client.write("哈哈哈哈");
                } catch (IOException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                }

            }
        }).start();
    }
}

AIO

服務端類AsynchronousServerSocketChannel

客戶端類AsynchronousSocketChannel

服务端

public class Server {

    private int port;
    //服务器通道
     AsynchronousServerSocketChannel serverSocketChannel;
    //线程组
    private AsynchronousChannelGroup threadGroup;
    private ExecutorService executorService;
    public Server(int port) {
        this.port=port;

    }
    public void start() throws IOException {
        //创建线程池
        executorService=Executors.newCachedThreadPool();
        //创建线程组
        threadGroup = AsynchronousChannelGroup
                    .withThreadPool(executorService);
        //创建服务器通道
        serverSocketChannel = AsynchronousServerSocketChannel.open(threadGroup);
        //进行绑定
        serverSocketChannel.bind(new InetSocketAddress(port));

        serverSocketChannel.accept(this, new ServerHandler());
    }
}

异步读handle

/**
 * 客户端接收服务器数据回调
 * @author Administrator
 *
 */
public class ClientReadHandler implements CompletionHandler<Integer, ByteBuffer> {

    @Override
    public void completed(Integer result, ByteBuffer attachment) {
        // TODO Auto-generated method stub
        attachment.flip();//读模式 position设置为0
        byte[] datas=new byte[attachment.remaining()];
        attachment.get(datas);
        try {
            System.out.println("服务端响应"+new String(datas,"utf-8"));
        } catch (UnsupportedEncodingException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }

    }

    @Override
    public void failed(Throwable exc, ByteBuffer attachment) {
        // TODO Auto-generated method stub
        System.out.println("客户端读取失败");

    }

}

客户端

package bnz.aio.test;

import java.io.IOException;
import java.io.Writer;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.AsynchronousSocketChannel;
import java.nio.channels.CompletionHandler;

public class Client implements CompletionHandler<Void, Client> {
    private String ip;
    private int port;
    private AsynchronousSocketChannel asc;

    public Client(String ip, int port) {
        this.ip = ip;
        this.port = port;
    }

    public void connect() throws IOException {
        asc = AsynchronousSocketChannel.open();
        asc.connect(new InetSocketAddress(ip, port), this, this);
          //读取数据
        ByteBuffer readBuffer = ByteBuffer.allocate(1024);
         asc.read(readBuffer,readBuffer,new ClientReadHandler());//服务器写入数据回调
    }

    public void Writer(String message) {
        byte[] req = message.getBytes();
        ByteBuffer writeBuffer = ByteBuffer.allocate(req.length);
        writeBuffer.put(req);
        writeBuffer.flip();
        //异步写
        asc.write(writeBuffer,writeBuffer, new WriteHandler(asc));
    }
    //连接成功的回调

    @Override
    public void completed(Void result, Client attachment) {
        // TODO Auto-generated method stub
        System.out.println("建立连接成功");

    }

    //异常回调
    @Override
    public void failed(Throwable exc, Client attachment) {
        // TODO Auto-generated method stub
        System.out.println("建立连接失败");

    }
}

读handle

/**
 * 客户端接收服务器数据回调
 * @author Administrator
 *
 */
public class ClientReadHandler implements CompletionHandler<Integer, ByteBuffer> {

    @Override
    public void completed(Integer result, ByteBuffer attachment) {
        // TODO Auto-generated method stub
        attachment.flip();//读模式 position设置为0
        byte[] datas=new byte[attachment.remaining()];
        attachment.get(datas);
        try {
            System.out.println("服务端响应"+new String(datas,"utf-8"));
        } catch (UnsupportedEncodingException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }

    }

    @Override
    public void failed(Throwable exc, ByteBuffer attachment) {
        // TODO Auto-generated method stub
        System.out.println("客户端读取失败");

    }

}

写handle

/**
 * 客户端异步写回调
 * @author Administrator
 *
 */
public class WriteHandler implements CompletionHandler<Integer, ByteBuffer> {

    private AsynchronousSocketChannel channel;
     public WriteHandler(AsynchronousSocketChannel asynchronousSocketChannel) {
        // TODO Auto-generated constructor stub
         this.channel=asynchronousSocketChannel;
    }
    @Override
    public void completed(Integer result, ByteBuffer attachment) {
        // TODO Auto-generated method stub
        attachment.hasRemaining();
        channel.write(attachment,attachment,this);
    }

    @Override
    public void failed(Throwable exc, ByteBuffer attachment) {
        // TODO Auto-generated method stub
        System.out.println("数据写入失败");
    }

}

io nio aio比较

io 同步阻塞 jdk4以前的网络通信模型，io一个连接需要开启一个线程处理，在大量连接情况下服务器会创建N个线程。导致cpu线程调度频繁性能底下 (同步阻塞)

nio 同步非阻塞 jdk4之后的网络通信,主要是为了解决io模型下一个线程处理一个连接的性能问题，引入事件驱动。l客户端连接服务端注册到复用器，然后轮询复用器注册连接的状态。只需要一个线程处理 (同步非阻塞)

aio 异步非阻塞 jdk7推出的网络通信框架跟nio不同的是读写都是异步的(完全交给内核处理) 完成后通知应用程序

同步阻塞可以理解为买票排队。没买到票之前什么也不能做。

同步非阻塞可以理解为邮局。经常需要跑去邮局去询问有没有自己的邮件。

异步非阻塞可以理解为去饭店点餐然后回家饭店做好打包后送上门

应用场景

io可以应用在少量且固定连接的网络通信应为io的模型更简单容易理解

nio 在大量连接情况使用

aio在大量连接且读写数据非常大的情况下

posted @ 2018-05-09 21:16 意犹未尽阅读(501) 评论(0) 编辑收藏举报

刷新页面返回顶部

意犹未尽

只要在学习，则在进步。
