读写hudi表

 sparksql指南：https://hudi.apache.org/cn/docs/0.7.0/quick-start-guide

flinksql指南：https://hudi.apache.org/cn/docs/0.9.0/flink-quick-start-guide

FSpark读hudi表

set runner.support.reading-hudi=true;



 spark-shell客户端启动命令

spark-shell \
  --jars  /app/spark-3.2.1-bin-hadoop2.7/hudijars/hudi-spark3.2-bundle_2.12-0.12.0.jar \
  --conf 'spark.serializer=org.apache.spark.serializer.KryoSerializer' \
  --conf 'spark.sql.catalog.spark_catalog=org.apache.spark.sql.hudi.catalog.HoodieCatalog' \
  --conf 'spark.sql.extensions=org.apache.spark.sql.hudi.HoodieSparkSessionExtension'


 Scala终端



import org.apache.hudi.QuickstartUtils._
import scala.collection.JavaConversions._
import org.apache.spark.sql.SaveMode._
import org.apache.hudi.DataSourceReadOptions._
import org.apache.hudi.DataSourceWriteOptions._
import org.apache.hudi.config.HoodieWriteConfig._
import org.apache.hudi.common.model.HoodieRecord



val tableName = "hudi_mor_tbl"

val basePath="hdfs://test-cluster/user/hive/warehouse/sfsy/DM/dm_ezjc_gate/hudi_mor_tbl"
val dataGen = new DataGenerator

val roViewDF = spark.
    read.
    format("org.apache.hudi").
    load(basePath + "/*")
    //load(basePath) 如果使用 "/partitionKey=partitionValue" 文件夹命名格式，Spark将自动识别分区信息

roViewDF.registerTempTable("hudi_ro_table")
spark.sql("select _hoodie_commit_time, _hoodie_commit_seqno, _hoodie_record_key, _hoodie_partition_path, _hoodie_file_name, id, name, price, ts from  hudi_ro_table where price < 40.0").show()
spark.sql("select * from  hudi_ro_table").show()

val tripsSnapshotDF = spark.
  read.
  format("hudi").
  load(basePath)
tripsSnapshotDF.createOrReplaceTempView("hudi_trips_snapshot")

spark.sql("select * from  hudi_trips_snapshot  ").show()



--*******************
select * from dm_ezjc_gate.hudi_cow_pt_tbl;
-- 一定要知道旧记录的时间戳,支持不同时间格式
select * from dm_ezjc_gate.hudi_cow_pt_tbl timestamp as of '20221202172406232' where id = 1;
select * from dm_ezjc_gate.hudi_cow_pt_tbl timestamp as of '2022-12-02 17:24:06.232' where id = 1;

//val tableName = "hudi_cow_pt_tbl"

val basePath="hdfs://test-cluster/user/hive/warehouse/sfsy/DM/dm_ezjc_gate/hudi_cow_pt_tbl"
// val dataGen = new DataGenerator
val tripsSnapshotDF =spark.read.
  format("hudi").
  //option("as.of.instant", "20221202172406232").
  option("as.of.instant", "2022-12-02 17:24:06.232").
  load(basePath)

tripsSnapshotDF.createOrReplaceTempView("hudi_trips_snapshot")

spark.sql("select * from  hudi_trips_snapshot  ").show()

 Pyspark客户端

pyspark \
  --jars  /app/spark-3.2.1-bin-hadoop2.7/hudijars/hudi-spark3.2-bundle_2.12-0.12.0.jar \
  --conf 'spark.serializer=org.apache.spark.serializer.KryoSerializer' \
  --conf 'spark.sql.catalog.spark_catalog=org.apache.spark.sql.hudi.catalog.HoodieCatalog' \
  --conf 'spark.sql.extensions=org.apache.spark.sql.hudi.HoodieSparkSessionExtension'



basePath = "hdfs://test-cluster/user/hive/warehouse/sfsy/DM/dm_ezjc_gate/hudi_mor_tbl"
tripsSnapshotDF = spark. \
  read. \
  format("hudi"). \
  load(basePath)
# load(basePath) use "/partitionKey=partitionValue" folder structure for Spark auto partition discovery

tripsSnapshotDF.createOrReplaceTempView("hudi_trips_snapshot")

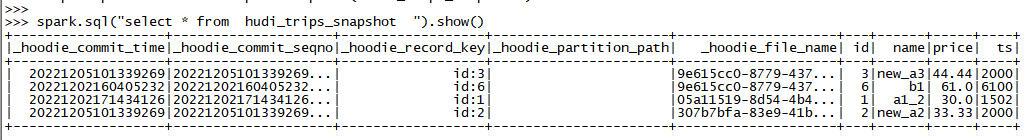

spark.sql("select * from  hudi_trips_snapshot  ").show()









spark-sql客户端启动命令

spark-sql \
  --jars  /app/spark-3.2.1-bin-hadoop2.7/hudijars/hudi-spark3.2-bundle_2.12-0.12.0.jar \
  --conf 'spark.serializer=org.apache.spark.serializer.KryoSerializer' \
  --conf 'spark.sql.extensions=org.apache.spark.sql.hudi.HoodieSparkSessionExtension' \
  --conf 'spark.sql.catalog.spark_catalog=org.apache.spark.sql.hudi.catalog.HoodieCatalog'



 无分区，示例【MOR】：创建、插入、更新、查询

create table dm_ezjc_gate.hudi_mor_tbl (
  id int,
  name string,
  price double,
  ts bigint
) using hudi
tblproperties (
  type = 'mor',
  primaryKey = 'id',
  preCombineField = 'ts'
);

insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a1', 20, 1000;
insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a1', 30, 1000;
insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a2', 30, 1500;
insert into dm_ezjc_gate.hudi_mor_tbl select 3, 'a1', 20, 1000;
insert into dm_ezjc_gate.hudi_mor_tbl select 6, 'b1', 60, 6000;
insert into dm_ezjc_gate.hudi_mor_tbl select 6, 'b1', 61, 6100;

select * from dm_ezjc_gate.hudi_mor_tbl;

_hoodie_commit_time	_hoodie_commit_seqno	_hoodie_record_key	_hoodie_partition_path	_hoodie_file_name	id	name	price	ts
20221202143737144	20221202143737144_0_2	id:1		9d8d67bf-3133-4c06-91c9-84b01945a366-0	1	a2	30	1500
20221202143741904	20221202143741904_0_0	id:3		2e4d1d10-01ef-43ef-a656-a4a62c4b1f97-0_0-164-5610_20221202143741904.parquet	3	a1	20	1000
20221202155854682	20221202155854682_0_1	id:6		2e4d1d10-01ef-43ef-a656-a4a62c4b1f97-0	2e4d1d10-01ef-43ef-a656-a4a62c4b1f97-0	b1	61	6100

 【示例】带分区【COW】：创建、插入、更新、查询

create table if not exists dm_ezjc_gate.hudi_cow_pt_tbl (
  id bigint,
  name string,
  price double,
  ts bigint,
  dt string,
  hh string
) using hudi
tblproperties (
  type = 'cow',
  primaryKey = 'id',
  preCombineField = 'ts'
 )
partitioned by (dt, hh);

 或者CTAS (Create Table As Select)

create table dm_ezjc_gate.hudi_cow_pt_tbl
using hudi
tblproperties (
  type = 'cow',
  primaryKey = 'id',
  preCombineField = 'ts'
 )
partitioned by (dt, hh)
as
select 1 as id, 'a1' as name, 10 as price, 1000 as ts, '2021-12-01' as dt,'15' as hh;

两种插入方式，动态分区和静态分区

insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 1 as id, 'a1' as name, 20.6 as price, 1000 as ts, '2021-12-09' as dt, '10' as hh;

insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 1 as id, 'a1' as name, 20.6 as price, 1000 as ts, '2021-12-01' as dt, '15' as hh;

insert into dm_ezjc_gate.hudi_cow_pt_tbl partition(dt = '2021-12-09', hh='11')
select 2, 'a2', 33.3, 1000;

_hoodie_commit_time	_hoodie_commit_seqno	_hoodie_record_key	_hoodie_partition_path	_hoodie_file_name	id	name	price	ts
20221202154718368	20221202154718368_0_0	id:1	dt=2021-12-01/hh=15	2a6a823b-e0e3-4c40-9c5c-c25cd9427ca8-0_0-19-914_20221202154718368.parquet	1	a1	20.6	1000
20221202154545238	20221202154545238_0_0	id:1	dt=2021-12-09/hh=10	833adf43-85b1-4cc5-90e6-9b6736285be5-0_0-125-3698_20221202154545238.parquet	1	a1	20.6	1000
20221202154808206	20221202154808206_0_0	id:2	dt=2021-12-09/hh=11	6fc96437-877e-4955-b260-3a43a078ba88-0_0-61-1862_20221202154808206.parquet	2	a2	33.3	1000



 COW和MOR两种模式的区别

-- cow支持单分区更新，不支持多分区

-- cow单分区内，更新数据对ts没有要求，直接用当前数据覆盖旧数据

-- cow多分区，select会异常



-- mor支持多分区写入，但不支持更新：

-- mor模式，不支持分区对数据进行更新，select时会导致报错

-- mor支持多分区写入，多分区写入可select查询

• mor模式，只支持非分区表的数据更新
• ts值一定要比旧数据大，才能完成mor

drop table  if  exists dm_ezjc_gate.hudi_cow_pt_tbl;
create table if not exists dm_ezjc_gate.hudi_cow_pt_tbl (
  id bigint,
  name string,
  price DECIMAL(3,1),
  ts bigint,
  dt string,
  hh string
) using hudi
tblproperties (
  type = 'cow',
  primaryKey = 'id',
  preCombineField = 'ts'
 )
partitioned by (dt, hh);

create table dm_ezjc_gate.hudi_cow_pt_tbl
using hudi
tblproperties (
  type = 'cow',
  primaryKey = 'id',
  preCombineField = 'ts'
 )
partitioned by (dt, hh)
as
select 1 as id, 'a1' as name, 10.6 as price, 1000 as ts, '2021-12-01' as dt, '15' as hh;


insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 1 as id, 'a1' as name, 20.6 as price, 1000 as ts, '2021-12-09' as dt, '10' as hh;

-- 更新数据对ts没有要求，直接用当前数据覆盖旧数据
insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 1 as id, 'a1_1' as name, 20.6 as price, 1001 as ts, '2021-12-09' as dt, '10' as hh;
-- 更新数据对ts没有要求，直接用当前数据覆盖旧数据
insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 1 as id, 'a1_0' as name, 20.6 as price, 1000 as ts, '2021-12-09' as dt, '10' as hh;
-- 更新数据对ts没有要求，直接用当前数据覆盖旧数据
insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 1 as id, 'a1_0_0' as name, 20.6 as price, 1000 as ts, '2021-12-09' as dt, '10' as hh;

-- cow支持更新，不支持多分区
insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 2 as id, 'a2' as name, 20.6 as price, 1000 as ts, '2021-12-09' as dt, '11' as hh;


select * from dm_ezjc_gate.hudi_cow_pt_tbl;

drop table  if  exists dm_ezjc_gate.hudi_mor_pt_tbl;
create table if not exists dm_ezjc_gate.hudi_mor_pt_tbl (
  id bigint,
  name string,
  price DECIMAL(3,1),
  ts bigint,
  dt string,
  hh string
) using hudi
tblproperties (
  type = 'mor',
  primaryKey = 'id',
  preCombineField = 'ts'
 )
partitioned by (dt, hh);

create table dm_ezjc_gate.hudi_mor_pt_tbl
using hudi
tblproperties (
  type = 'mor',
  primaryKey = 'id',
  preCombineField = 'ts'
 )
partitioned by (dt, hh)
as
select 1 as id, 'a1' as name, 10.6 as price, 1000 as ts, '2021-12-01' as dt, '15' as hh;

-- mor支持多分区，但不支持更新：
insert overwrite dm_ezjc_gate.hudi_mor_pt_tbl partition (dt, hh)
select 1 as id, 'a1' as name, 20.6 as price, 1000 as ts, '2021-12-09' as dt, '10' as hh;
-- mor模式，不支持分区对数据进行更新，select时会导致报错
insert into dm_ezjc_gate.hudi_mor_pt_tbl partition (dt, hh)
select 1 as id, 'a1_6' as name, 20.6 as price, 1006 as ts, '2021-12-09' as dt, '10' as hh;



-- mor模式，只支持非分区表的数据更新
create table dm_ezjc_gate.hudi_mor_tbl (
  id int,
  name string,
  price double,
  ts bigint
) using hudi
tblproperties (
  type = 'mor',
  primaryKey = 'id',
  preCombineField = 'ts'
);


insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a1', 20, 1000;

select * from dm_ezjc_gate.hudi_mor_tbl;

-- ts值一定要比旧数据大，才能完成mor
insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a1_1', 20, 1001;
-- ts值一定要比旧数据大，才能完成mor
insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a1_1', 30, 1501;
-- ts值一定要比旧数据大，才能完成mor
insert into dm_ezjc_gate.hudi_mor_tbl select 1, 'a1_2', 30, 1502;



merge into

create table dm_ezjc_gate.merge_source (id int, name string, price double, ts bigint) using hudi
tblproperties (primaryKey = 'id', preCombineField = 'ts');

insert into dm_ezjc_gate.merge_source values (1, "old_a1", 22.22, 900), (2, "new_a2", 33.33, 2000), (3, "new_a3", 44.44, 2000);

merge into dm_ezjc_gate.hudi_mor_tbl as target
using dm_ezjc_gate.merge_source as source
on target.id = source.id
when matched then update set *
when not matched then insert *
;

增、删、改（根据条件）

create table dm_ezjc_gate.merge_source2 (id int, name string, flag string, dt string, hh string) using parquet;

insert into dm_ezjc_gate.merge_source2 values (1, "new_a1", 'update', '2021-12-09', '10'), (2, "new_a2", 'delete', '2021-12-09', '11'), (3, "new_a3", 'insert', '2021-12-09', '12');

merge into dm_ezjc_gate.hudi_cow_pt_tbl as target
using (
  select id, name, '1000' as ts, flag, dt, hh from dm_ezjc_gate.merge_source2
) source
on target.id = source.id
when matched and flag != 'delete' then
 update set id = source.id, name = source.name, ts = source.ts, dt = source.dt, hh = source.hh
when matched and flag = 'delete' then delete
when not matched then
 insert (id, name, price, ts, dt, hh) values(source.id, source.name, 66.3,source.ts, source.dt, source.hh)
;



历史版本查询

select * from dm_ezjc_gate.hudi_cow_pt_tbl;
-- 一定要知道旧记录的时间戳,支持不同时间格式
select * from dm_ezjc_gate.hudi_cow_pt_tbl timestamp as of '20221202172406232' where id = 1;
select * from dm_ezjc_gate.hudi_cow_pt_tbl timestamp as of '2022-12-02 17:24:06.232' where id = 1;

update更新

insert into dm_ezjc_gate.hudi_cow_pt_tbl partition (dt, hh)
select 2 as id, 'a2' as name, 20.2 as price, 2000 as ts, '2021-12-09' as dt, '10' as hh;
--更新数据
update dm_ezjc_gate.hudi_cow_pt_tbl set name = 'a2_2', ts = 1001 where id = 2;
-- 支持其他条件
update dm_ezjc_gate.hudi_cow_pt_tbl set ts = 2001 where dt = '2021-12-09';





Overwrite

-- insert overwrite non-partitioned table
insert overwrite hudi_mor_tbl select 99, 'a99', 20.0, 900;
insert overwrite hudi_cow_nonpcf_tbl select 99, 'a99', 20.0;

-- insert overwrite partitioned table with dynamic partition
insert overwrite table hudi_cow_pt_tbl select 10, 'a10', 1100, '2021-12-09', '10';

-- insert overwrite partitioned table with static partition
insert overwrite hudi_cow_pt_tbl partition(dt = '2021-12-09', hh='12') select 13, 'a13', 1100;





#!/bin/sh
export HADOOP_USER_NAME=mario
startDate=`date -d '181 days ago' '+%Y%m%d'`
inc_day_1=`date -d '1 days ago' '+%Y%m%d'`
today=`date -d '0 days ago' '+%Y%m%d'`
inc_day=`date -d '1 days ago' '+%Y/%m/%d'`
inc_day_2=`date -d '2 days ago' '+%Y%m%d'`
inc_day_30=`date -d '30 days ago' '+%Y%m%d'`
###########################################################################
# Copyright 2022 sf-express.com Inc. All rights reserved.
# Purpose: 解析出xx数据并折算成rmb
# Ename: tmp_dwd.dwd_ssss_hudi_info_02
# HISTORY
# ###########################################################################
# ID DATE MODIFY REASON
# 1 2022-08-02 01396497 Create
###########################################################################

spark-sql --master yarn  --name tmp_dwd.xxxxxxx_kafka_hudi_tmp_03  \
--executor-memory 20g \
--num-executors 250 \
--executor-cores 10 \
--driver-cores 2 \
--driver-memory 8g \
--queue root.${queuename} \
--jars hdfs://sfbdp1/tmp/rt_dw/jars/hudi-spark-bundle_2.11-0.9.0-SNAPSHOT_c.jar \
--conf 'spark.sql.extensions=org.apache.spark.sql.hudi.HoodieSparkSessionExtension' \
--conf spark.driver.maxResultSize=2g \
--conf spark.rdd.compress=true \
--conf spark.defalut.parallelism=2000 \
--conf spark.kryoserializer.buffer.max=512m \
--conf spark.sql.hive.convertMetastoreParquet=false \
--conf spark.task.maxFailures=4 \
--conf spark.sql.shuffle.partitions=2000 \
--conf spark.dynamicAllocation.maxExecutors=800 \
--conf yarn.nodemanager.vmem-check-enable=false \
--conf spark.yarn.driver.memoryOverhead=1024 \
--conf spark.yarn.executor.memoryOverhead=5120 \
--conf spark.yarn.max.executor.failures=100 \
--conf spark.shuffle.service.enabled=false \
--conf spark.dynamicAllocation.enabled=false \
--conf spark.memory.fraction=0.4 \
--conf spark.memory.storageFraction=0.5 \
--conf spark.speculation=false \
--conf spark.speculation.quantile=0.8 \
--conf 'spark.serializer=org.apache.spark.serializer.KryoSerializer' \
--conf "spark.executor.extraJavaOptions=-XX:+UseG1GC -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+PrintGCDateStamps -XX:+PrintGCApplicationStoppedTime -XX:+PrintGCApplicationConcurrentTime -XX:+PrintTenuringDistribution -XX:+HeapDumpOnOutOfMemoryError" \
-e "
add jar hdfs://sfbdp1/tmp/udf/01368063/StringToJsonArray.jar;
create temporary function string_to_jsonarray as 'com.sf.bdp.function.StringToJsonArray';
drop table if exists tmp_dwd.xxxxxxx_kafka_hudi_tmp_03;
create table if not exists tmp_dwd.xxxxxxx_kafka_hudi_tmp_03 stored as parquet as
select a.ssss_no,
       round(sum(if(a.feeTypeCode = '5', 0, a.feeAmt) * (case when a.currency_Code = 'CNY' then 1 else b.rate end)), 3) as all_fee_rmb,
       round(sum(if(a.feeTypeCode = '1', a.feeAmt, 0) * (case when a.currency_Code = 'CNY' then 1 else b.rate end)), 3) as freight_rmb,
       round(sum(if(a.feeTypeCode = '5', a.feeAmt, 0) * (case when a.currency_Code = 'CNY' then 1 else b.rate end)), 3) as cod_fee_rmb,
       round(sum(if(a.feeTypeCode in ('3','17','23','27'), a.feeAmt, 0)), 3) as cons_fee,
       round(sum(nvl(a.feeAmtInd,0)* (case when a.currency_Code = 'CNY' then 1 else b.rate end)), 3) as fee_ind_rmd,
       max(case when feeTypeCode='1' then
        case when settlementTypeCode='1' and paymentTypeCode='1' then '寄付现结'
              when settlementTypeCode='2' and paymentTypeCode='1' then '寄付月结'
              when settlementTypeCode='1' and paymentTypeCode='2' then '到付现结'
              when settlementTypeCode='2' and paymentTypeCode='2' then '到付月结'
              when settlementTypeCode='1' and paymentTypeCode='3' and paymentChangeTypeCode='1' then '寄付转第三方现结'
              when settlementTypeCode='2' and paymentTypeCode='3' and paymentChangeTypeCode='1' then '寄付转第三方月结'
              when settlementTypeCode='1' and paymentTypeCode='3' and paymentChangeTypeCode='2' then '到付转第三方现结'
              when settlementTypeCode='2' and paymentTypeCode='3' and paymentChangeTypeCode='2' then '到付转第三方月结'
         end
       end) as comb_payment_type_code
  from (select ssssno as ssss_no,
               upper(get_json_object(t.operationssssFee, '$.currencyCode')) as currency_Code,
               get_json_object(t.operationssssFee, '$.feeTypeCode') as feeTypeCode,
               get_json_object(t.operationssssFee, '$.feeAmt') as feeAmt,
               get_json_object(t.operationssssFee, '$.paymentChangeTypeCode') as paymentChangeTypeCode,
               get_json_object(t.operationssssFee, '$.settlementTypeCode') as settlementTypeCode,
               get_json_object(t.operationssssFee, '$.paymentTypeCode') as paymentTypeCode,
               get_json_object(t.operationssssFee, '$.feeAmtInd') as feeAmtInd,
               substr(consignedTm, 1, 7) as rate_month
          from tmp_dwd.xxxxxxx_kafka_hudi_tmp_01 lateral view explode(string_to_jsonarray(operationssssFeeList)) t as operationssssFee) a
  left join tmp_dwd.currency_rate_month_hudi_tmp b
    on a.currency_Code = b.currency_code
   and a.rate_month = b.rate_month
 group by a.ssss_no;
"



flinksql指南：https://hudi.apache.org/cn/docs/0.9.0/flink-quick-start-guide

CREATE TABLE products (
id INT,
name STRING,
description STRING, PRIMARY KEY(id) NOT ENFORCED
) WITH (
'connector' = 'mysql-cdc',
'datasource-id' = '2**5',
'database-name' = 'hudi',
'table-name' = 'products',
'scan.startup.mode' = 'INITIAL'
);


CREATE TABLE hudi_products (
id INT,
name STRING,
description STRING,
PRIMARY KEY(id) NOT ENFORCED
)
WITH (
  'hive_sync.enable' = 'true',
  'hive.cluster' = 'bdp',
  'hive_sync.db' = 'dm_xx',
  'hive_sync.mode' = 'jdbc',
  'hive_sync.table' = 'dm_products',
  'connector' = 'hudi',
  'index.type' = 'BUCKET_INDEX',
  'compaction.async.enabled'='true',
   'compaction.schedule.enabled'='true',
   'compaction.trigger.strategy'='num_or_time',
   'compaction.delta_commits'='1',
   'compaction.delta_seconds'='30',
   'compaction.max_memory' = '500',
   'compaction.tasks'='64',
   'hoodie.logfile.max.size'='262144000',
  'table.type' = 'MERGE_ON_READ'
);

insert into hudi_products select * from products;
