群晖DS918+修改Harbor镜像仓库默认存储路径

一、描述

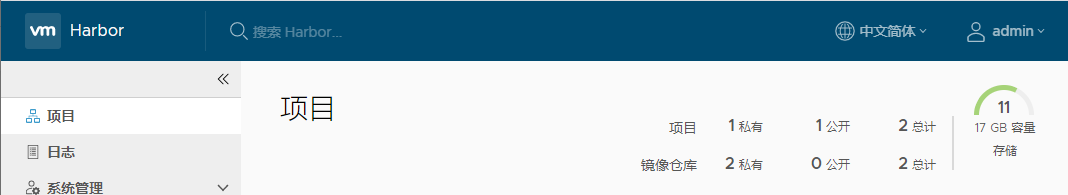

Harbor安装后的默认存储路径是/data/。在一般的实际部署中大概率有修改的需求。如下图所示，根据宿主机根目录磁盘不同，默认的容量可能不满足需求：

 二、修改Harbor默认存储路径

第一步：创建新的存储路径

mkdir -p /volume1/install/harbor

第二步：停止并移除整个project的所有services

# 进入安装目录
cd /harbor-1.10.3

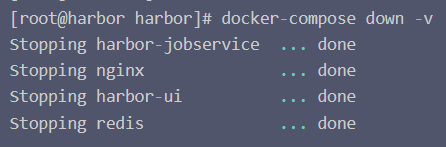

# 停止并移除整个project的所有services
docker-compose down -v

　

第三步：修改harbor.yml配置文件

# 修改/harober-1.10.3/harbor下面的harbor.yml配置文件
root@DiskStation:/harbor-1.10.3/harbor# vim harbor.yml
# 将路径改成新创建的数据路径
data_volume: /volume1/docker/harbor/data

第四步：修改docker-compose.yml文件

[root@DiskStation:/harbor-1.10.3/harbor]# vim docker-compose.yml

version: '2.3'
services:
  log:
    image: goharbor/harbor-log:v1.10.3
    container_name: harbor-log
    restart: always
    dns_search: .
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - DAC_OVERRIDE
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/logs/:/var/log/docker/:z # 修改docker-compose.yml文件
      - type: bind
        source: ./common/config/log/logrotate.conf
        target: /etc/logrotate.d/logrotate.conf
      - type: bind
        source: ./common/config/log/rsyslog_docker.conf
        target: /etc/rsyslog.d/rsyslog_docker.conf
    ports:
      - 127.0.0.1:1514:10514
    networks:
      - harbor
  registry:
    image: goharbor/registry-photon:v1.10.3
    container_name: registry
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/data/registry:/storage:z # 修改docker-compose.yml文件
      - ./common/config/registry/:/etc/registry/:z
      - type: bind
        source: /volume1/docker/harbor/data/secret/registry/root.crt # 修改docker-compose.yml文件
        target: /etc/registry/root.crt
    networks:
      - harbor
    dns_search: .
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "registry"
  registryctl:
    image: goharbor/harbor-registryctl:v1.10.3
    container_name: registryctl
    env_file:
      - ./common/config/registryctl/env
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/data/registry:/storage:z # 修改docker-compose.yml文件
      - ./common/config/registry/:/etc/registry/:z
      - type: bind
        source: ./common/config/registryctl/config.yml
        target: /etc/registryctl/config.yml
    networks:
      - harbor
    dns_search: .
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "registryctl"
  postgresql:
    image: goharbor/harbor-db:v1.10.3
    container_name: harbor-db
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - DAC_OVERRIDE
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/data/database:/var/lib/postgresql/data:z # 修改docker-compose.yml文件
    networks:
      harbor:
    dns_search: .
    env_file:
      - ./common/config/db/env
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "postgresql"
  core:
    image: goharbor/harbor-core:v1.10.3
    container_name: harbor-core
    env_file:
      - ./common/config/core/env
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/data/ca_download/:/etc/core/ca/:z # 修改docker-compose.yml文件
      - /volume1/docker/harbor/data/psc/:/etc/core/token/:z # 修改docker-compose.yml文件
      - /volume1/docker/harbor/data/:/data/:z # 修改docker-compose.yml文件
      - ./common/config/core/certificates/:/etc/core/certificates/:z
      - type: bind
        source: ./common/config/core/app.conf
        target: /etc/core/app.conf
      - type: bind
        source: /volume1/docker/harbor/data/secret/core/private_key.pem # 修改docker-compose.yml文件
        target: /etc/core/private_key.pem
      - type: bind
        source: /volume1/docker/harbor/data/secret/keys/secretkey # 修改docker-compose.yml文件
        target: /etc/core/key
    networks:
      harbor:
    dns_search: .
    depends_on:
      - log
      - registry
      - redis
      - postgresql
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "core"
  portal:
    image: goharbor/harbor-portal:v1.10.3
    container_name: harbor-portal
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
      - NET_BIND_SERVICE
    networks:
      - harbor
    dns_search: .
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "portal"

  jobservice:
    image: goharbor/harbor-jobservice:v1.10.3
    container_name: harbor-jobservice
    env_file:
      - ./common/config/jobservice/env
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/data/job_logs:/var/log/jobs:z # 修改docker-compose.yml文件
      - type: bind
        source: ./common/config/jobservice/config.yml
        target: /etc/jobservice/config.yml
    networks:
      - harbor
    dns_search: .
    depends_on:
      - core
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "jobservice"
  redis:
    image: goharbor/redis-photon:v1.10.3
    container_name: redis
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /volume1/docker/harbor/data/redis:/var/lib/redis # 修改docker-compose.yml文件
    networks:
      harbor:
    dns_search: .
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "redis"
  proxy:
    image: goharbor/nginx-photon:v1.10.3
    container_name: nginx
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
      - NET_BIND_SERVICE
    volumes:
      - ./common/config/nginx:/etc/nginx:z
    networks:
      - harbor
    dns_search: .
    ports:
      - 5006:8080
    depends_on:
      - registry
      - core
      - portal
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://127.0.0.1:1514"
        tag: "proxy"
networks:
  harbor:
    external: false

[root@DiskStation:/harbor-1.10.3/harbor]# ./prepare // 执行准备命令

[root@DiskStation:/harbor-1.10.3/harbor]# docker-compose up -d //构建（容器）并启动（容器）整个project的所有service

 三、访问&查看修改后的存储空间

访问地址：http://192.168.191.247:5006，账号：admin，密码：Harbor12345



可以看到存储空间大小已经修改成功

四、注意事项

在整个部署过程中，不要手动修改上述关联挂载路径下的内容。若要修改相关内容，一定要保证在容器完全移除（docker-compose down）的前提下进行。
