SpringBoot-RabbitMQ篇-消息可靠投递
一、发送者异常监控
1.1 发送者异常种类

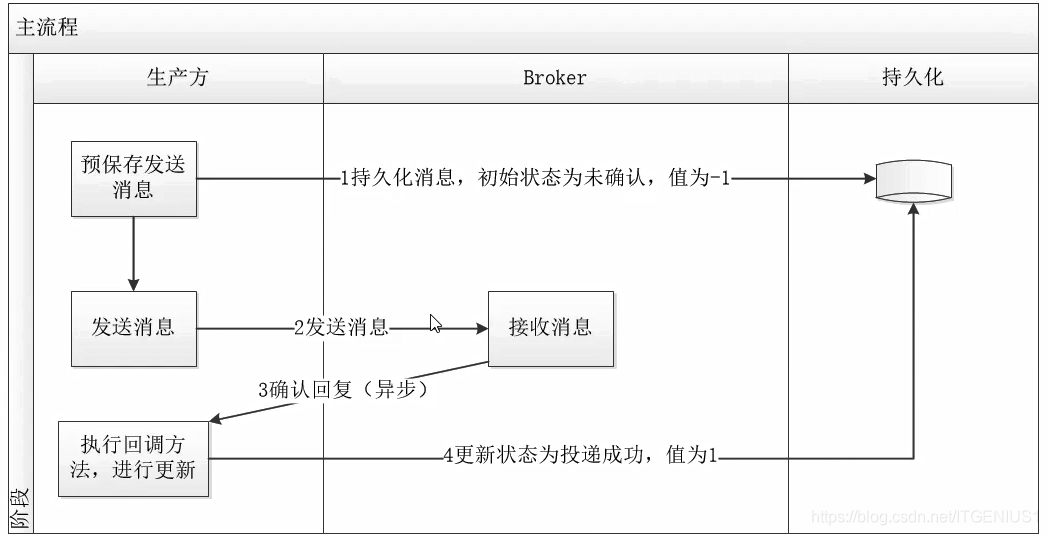

1.基本处理流程

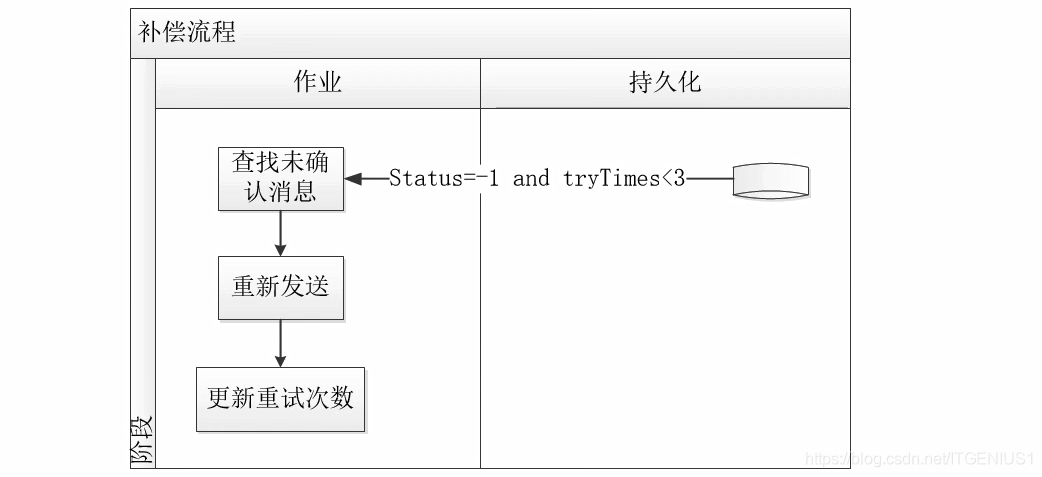

- 补偿(兜底)方案
2.模拟broker宕机：修改发送者端口如5673，然后启动，发送消息，端口不对无法连接主机 - 错误信息：java.net.ConnectException: Connection timed out: connect
- 补偿方案：加入异常处理，如果不可达则返回错误
- 这种错误在发送的时候就已经可以发现，直接将错误返回给调用方即可
@RequestMapping("/direct")
public Object sendEmail(String msg) {
try {
rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "queue.email.routing.key", msg);
return msg;
} catch (AmqpException e) {
System.out.println("发送出现异常：" + e.getMessage());
return "网络中断，请稍后再试";
}
}
3.模拟无交换器异常
- 错误信息
ERROR 4880 --- [.200.57.39:5672] o.s.a.r.c.CachingConnectionFactory : Channel shutdown: channel error; protocol method: #method<channel.close>(reply-code=404, reply-text=NOT_FOUND - no exchange 'noExchange' in vhost '/', class-id=60, method-id=40)
- 错误说明：如果没有交换器并不会报错，只会输出一条日志
- 补偿方案：需要采用发送回调来确认是否成功发送消息
4.模拟无路由异常
- 错误信息：无任何提示，消息直接被丢弃
- 补偿方案：需要采用发送回调来确认是否成功发送消息
1.2 消息发送回调
1. 因为消息是异步发送，所以需要确保消息能正确发送
2. 所以可配置RabbitTemplate然后指定回调信息
3. 步骤01：修改配置文件，配置回调参数
publisher-confirm-type
- org.springframework.boot.autoconfigure.amqp.RabbitProperties#publisherConfirmType
- org.springframework.amqp.rabbit.connection.CachingConnectionFactory.ConfirmType
spring:
rabbitmq:
host: 127.0.0.1
port: 5672
username: tianxin
password: tianxin
# 开启消息发broker回调
publisher-confirm-type: correlated
# 开启路由消息路由回调
publisher-returns: true
# 强制确认，也可以在代码中开启
template:
mandatory: true
/**
* The type of publisher confirms to use.
*/
public enum ConfirmType {
/**
* Use {@code RabbitTemplate#waitForConfirms()} (or {@code waitForConfirmsOrDie()}
* within scoped operations.
*/
SIMPLE,
/**
* Use with {@code CorrelationData} to correlate confirmations with sent
* messsages.
*/
CORRELATED,
/**
* Publisher confirms are disabled (default).
*/
NONE
}
4.步骤02：配置RabbitTemplate，设置交换器确认回调和路由回调
setConfirmCallback：无论成功与否都会调用
setReturnCallback：错误时才调用
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.Objects;
@Configuration
public class CustomRabbitTemplate {
@Bean
public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
RabbitTemplate rabbitTemplate = new RabbitTemplate();
// 开启mandatory为true才能触发回调方法，无论消息推送结果如何强制调用回调方法
rabbitTemplate.setMandatory(true);
// 设置连接工厂信息
rabbitTemplate.setConnectionFactory(connectionFactory);
// 消息发broker回调：发送者到broker的exchange是否正确找到
rabbitTemplate.setConfirmCallback((correlationData, ack, cause) -> {
System.out.println("setConfirmCallback 消息数据：" + correlationData);
if (Objects.nonNull(correlationData)) {
System.out.println("setConfirmCallback 消息数据：" + correlationData.getReturnedMessage());
}
System.out.println("setConfirmCallback 消息确认：" + ack);
System.out.println("setConfirmCallback 原因：" + cause);
System.out.println("-----------------------------------");
});
// 消息路由回调：从交换器路由到队列是否正确发送
rabbitTemplate.setReturnCallback((message, replyCode, replyText, exchange, routingKey) -> {
System.out.println("setReturnCallback 消息：" + message);
System.out.println("setReturnCallback 回应码：" + replyCode);
System.out.println("setReturnCallback 回应信息：" + replyText);
System.out.println("setReturnCallback 交换器：" + exchange);
System.out.println("setReturnCallback 路由键：" + routingKey);
System.out.println("-----------------------------------");
});
return rabbitTemplate;
}
}
- 路由回调和消息回调
/**
* A callback for publisher confirmations.
*
*/
@FunctionalInterface
public interface ConfirmCallback {
/**
* Confirmation callback.
* @param correlationData correlation data for the callback.
* @param ack true for ack, false for nack
* @param cause An optional cause, for nack, when available, otherwise null.
*/
void confirm(@Nullable CorrelationData correlationData, boolean ack, @Nullable String cause);
}
/**
* A callback for returned messages.
* */
@FunctionalInterface
public interface ReturnCallback {
/**
* Returned message callback.
* @param message the returned message.
* @param replyCode the reply code.
* @param replyText the reply text.
* @param exchange the exchange.
* @param routingKey the routing key.
*/
void returnedMessage(Message message, int replyCode, String replyText, String exchange, String routingKey);
}
5.步骤03：测试controller
- convertAndSend(String exchange, String routingKey, final Object
object, @Nullable CorrelationData correlationData)
指定CorrelationData(关联数据/对比数据)
- CorrelationData中可以指定消息id和回调消息
6.测试无交换器
找不到交换器：直接回调setConfirmCallback，不再继续调用
@RequestMapping("/noExchange")
public Object noExchange(String message) {
try {
// 连接不上路由，则消息直接丢弃
String id = UUID.randomUUID().toString();
rabbitTemplate.convertAndSend("noExchange", "springboot.email.routing.key", message, new CorrelationData(id));
return "ok";
} catch (AmqpException e) {
System.out.println(e.getMessage());
return e.getMessage();
}
}
setConfirmCallback 消息数据：CorrelationData [id=9aca9a83-5815-455b-acf0-71b0caed534c]
setConfirmCallback 消息数据：null
setConfirmCallback 消息确认：false
setConfirmCallback 原因：channel error; protocol method: #method<channel.close>(reply-code=404, reply-text=NOT_FOUND - no exchange 'noExchange' in vhost '/', class-id=60, method-id=40)
7.测试无路由
找不到路由：先回调setReturnCallback再回调setConfirmCallback
@RequestMapping("/noQueue")
public Object noQueue(String message) {
try {
// 发送不到队列 ，则消息直接丢弃
String id = UUID.randomUUID().toString();
rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "noQueue", message, new CorrelationData(id));
return "ok";
} catch (AmqpException e) {
System.out.println(e.getMessage());
return e.getMessage();
}
}
setReturnCallback 消息：(Body:'direct' MessageProperties [headers={spring_returned_message_correlation=a4b6e77c-4b13-48e4-9a2e-21bd6ef4a697}, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, receivedDeliveryMode=PERSISTENT, priority=0, deliveryTag=0])
setReturnCallback 回应码：312
setReturnCallback 回应信息：NO_ROUTE
setReturnCallback 交换器：exchange.direct.springboot.email
setReturnCallback 路由键：noQueue
-----------------------------------
setConfirmCallback 消息数据：CorrelationData [id=a4b6e77c-4b13-48e4-9a2e-21bd6ef4a697]
setConfirmCallback 消息数据：(Body:'direct' MessageProperties [headers={spring_listener_return_correlation=42813c45-b804-4303-b9f0-10a73dad71ca, spring_returned_message_correlation=a4b6e77c-4b13-48e4-9a2e-21bd6ef4a697}, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, receivedDeliveryMode=PERSISTENT, priority=0, redelivered=false, receivedExchange=exchange.direct.springboot.email, receivedRoutingKey=noQueue, deliveryTag=0])
setConfirmCallback 消息确认：true
setConfirmCallback 原因：null
8.测试消息正常发送
消息发送成功：只回调setConfirmCallback
@RequestMapping("/direct/confirm")
public Object directConfirm(String message) {
try {
String id = UUID.randomUUID().toString();
rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "springboot.email.routing.key", message, new CorrelationData(id));
return "ok";
} catch (AmqpException e) {
System.out.println(e.getMessage());
return "网络中断，请稍后再试~";
}
}
setConfirmCallback 消息数据：CorrelationData [id=9bb8a203-2345-4a7e-8bfd-8ad0226da4dc]
setConfirmCallback 消息数据：null
setConfirmCallback 消息确认：true
setConfirmCallback 原因：null
9.指定回调消息的id和消息数据
可以指定更多业务类型
org.springframework.amqp.core.Message
org.springframework.amqp.core.MessageProperties
@RequestMapping("/correlationData/message")
public Object correlationDataMessage(String msg) {
try {
String id = UUID.randomUUID().toString();
CorrelationData correlationData = new CorrelationData();
correlationData.setId(id);
// 指定回调更多信息
MessageProperties properties = new MessageProperties();
properties.setMessageId(id);
Message message = new Message(msg.getBytes(), properties);
correlationData.setReturnedMessage(message);
rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "springboot.email.routing.key", msg, correlationData);
return msg;
} catch (AmqpException e) {
System.out.println(e.getMessage());
return "网络中断，请稍后再试~";
}
}
setConfirmCallback 消息数据：CorrelationData [id=9f598758-4b0b-4e4a-981a-e7e04eab1335]
setConfirmCallback 消息数据：(Body:'[B@1465d3ea(byte[6])' MessageProperties [headers={}, messageId=9f598758-4b0b-4e4a-981a-e7e04eab1335, contentType=application/octet-stream, contentLength=0, deliveryMode=PERSISTENT, priority=0, deliveryTag=0])
setConfirmCallback 消息确认：true
setConfirmCallback 原因：null
二、消息持久化
2.1 持久化说明
消息在网络发送、网络传输、存盘等都有可能出现意外而导致消息丢失
例如如果队列、交换器、消息其中一个没有开启持久化，在broker重启后消息丢失
所以需要在消息发送前进行存盘，然后根据状态区分不同的消息种类，可以用来做重试等

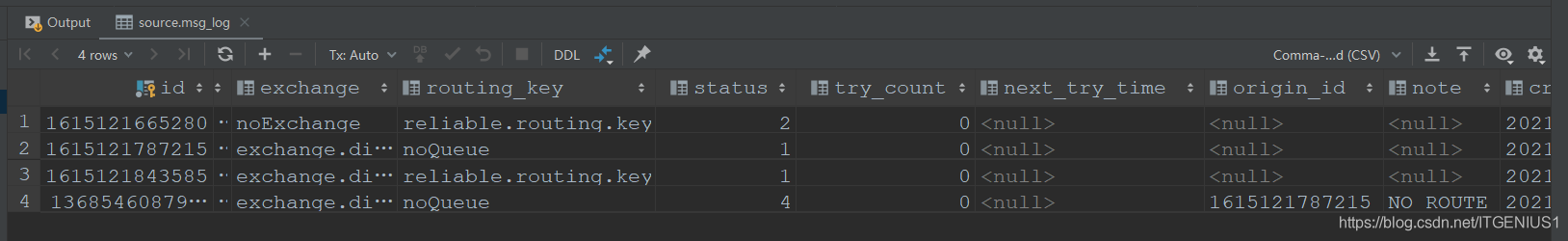

2.2 持久化表
持久化需要创建存储消息的表结构
create table msg_log
(
id bigint primary key comment '消息唯一标识',
msg text null comment '消息体, json格式化',
exchange varchar(255) default '' null comment '交换机',
routing_key varchar(255) default '' null comment '路由键',
status int default -1 null comment '状态: -1新建 0投递中 1投递成功 2投递失败 3已消费 4人工处理 5消费失败',
try_count int default 0 null comment '重试次数',
next_try_time datetime null comment '下一次重试时间',
origin_id varchar(32) null comment '原始id',
note varchar(500) null comment '错误信息',
create_time datetime null comment '创建时间',
update_time datetime null comment '更新时间',
) comment '消息投递日志';
2.3 持久化实现
使用MybatisPlus生成对应的service、mapper、domain信息，标准mybatis使用方式
首先需要配置rabbitTemplate配置回调信息
import com.alibaba.fastjson.JSONObject;
import com.codecoord.domain.MsgLog;
import com.codecoord.domain.MsgLogStatus;
import com.codecoord.serivce.MsgLogService;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import javax.annotation.Resource;
import java.time.LocalDateTime;
import java.util.Objects;
import java.util.UUID;
@Configuration
public class CustomRabbitTemplate {
@Resource
private MsgLogService msgLogService;
@Bean
public RabbitTemplate callbackRabbitTemplate(ConnectionFactory connectionFactory) {
RabbitTemplate template = new RabbitTemplate();
// 需要设置连接工程
template.setConnectionFactory(connectionFactory);
// 设置强制性
template.setMandatory(true);
// setConfirmCallback: 消息发送到 Broker 后触发回调(是否正确到达Exchange中)
// 需要在配置文件中开启 publisher-confirm-type: correlated 配置
template.setConfirmCallback((correlationData, ack, cause) -> {
if (Objects.nonNull(correlationData) && Objects.nonNull(correlationData.getId())) {
MsgLog updateLog = new MsgLog();
updateLog.setId(Long.parseLong(correlationData.getId()));
updateLog.setUpdateTime(LocalDateTime.now());
if (ack) {
updateLog.setStatus(MsgLogStatus.DELIVERY_SUCCESS);
} else {
updateLog.setStatus(MsgLogStatus.DELIVERY_FAIL);
}
msgLogService.updateById(updateLog);
} else {
System.out.println("消息异常处理");
}
// 根据ack判断是否投递成功
System.out.println("setConfirmCallback 消息数据：" + JSONObject.toJSONString(correlationData));
System.out.println("setConfirmCallback 消息确认：" + ack);
System.out.println("setConfirmCallback 原因：" + cause);
System.out.println("-----------------------------------");
});
// setReturnCallback: 启动消息失败返回，比如路由不到队列时触发回调
// 需要在配置文件中开启 publisher-returns: true 配置
template.setReturnCallback((message, replyCode, replyText, exchange, routingKey) -> {
// 消息无法投递到队列，新建消息人工处理，因为原始消息会在setConfirmCallback中被置为投递成功
MsgLog msgLog = new MsgLog();
msgLog.setMsg(message.toString());
msgLog.setExchange(exchange);
msgLog.setRoutingKey(routingKey);
msgLog.setStatus(MsgLogStatus.MANUAL_HANDLING);
msgLog.setTryCount(0);
LocalDateTime currentTime = LocalDateTime.now();
msgLog.setNote(replyText);
msgLog.setCreateTime(currentTime);
msgLog.setUpdateTime(currentTime);
// 处理原始id
MsgLog originLog = JSONObject.parseObject(new String(message.getBody()), MsgLog.class);
msgLog.setOriginId(originLog.getId().toString());
msgLogService.save(msgLog);
System.out.println("setReturnCallback 消息：" + message);
System.out.println("setReturnCallback 回应码：" + replyCode);
System.out.println("setReturnCallback 回应信息：" + replyText);
System.out.println("setReturnCallback 交换器：" + exchange);
System.out.println("setReturnCallback 路由键：" + routingKey);
System.out.println("-----------------------------------");
});
return template;
}
}
2.消息发送前对消息存盘，这里使用的rabbitTemplate为新配置的模板
1.http://localhost:8071/reliable?message=direct&exchange=noExchange&routingKey=reliable.routing.key
2.http://localhost:8071/reliable?message=direct&exchange=exchange.direct.reliable&routingKey=noQueue
3.http://localhost:8071/reliable?message=direct&exchange=exchange.direct.reliable&routingKey=reliable.routing.key
import com.alibaba.fastjson.JSONObject;
import com.codecoord.domain.MsgLog;
import com.codecoord.domain.MsgLogStatus;
import com.codecoord.serivce.MsgLogService;
import org.springframework.amqp.AmqpException;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.util.IdGenerator;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.time.LocalDateTime;
@RestController
public class RabbitReliableController {
@Resource
private RabbitTemplate callbackRabbitTemplate;
@Resource
private MsgLogService msgLogService;
@Resource
private IdGenerator idGenerator;
@RequestMapping("/reliable")
public Object direct(String exchange, String routingKey, String message) {
try {
// 先存盘再发送，如果存盘失败则没有必要继续发送
MsgLog msgLog = saveMessageLog(exchange, routingKey, message);
CorrelationData correlationData = new CorrelationData(msgLog.getId().toString());
callbackRabbitTemplate.convertAndSend(exchange, routingKey, JSONObject.toJSONString(msgLog), correlationData);
return msgLog;
} catch (AmqpException e) {
System.out.println(e.getMessage());
return "网络中断，请稍后再试~";
}
}
private MsgLog saveMessageLog(String exchange, String routingKey, String msg) {
MsgLog msgLog = new MsgLog();
// 测试，生产中使用id生成器
msgLog.setId(System.currentTimeMillis());
msgLog.setMsg(msg);
msgLog.setStatus(MsgLogStatus.CREATE);
msgLog.setExchange(exchange);
msgLog.setRoutingKey(routingKey);
msgLog.setTryCount(0);
LocalDateTime currentTime = LocalDateTime.now();
msgLog.setCreateTime(currentTime);
msgLog.setUpdateTime(currentTime);
msgLogService.save(msgLog);
return msgLog;
}
}
2.4补偿机制
1.可以使用补偿机制来将存盘的消息重新发送
2.使用springboot自带的定时任务
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.core.conditions.update.LambdaUpdateWrapper;
import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.codecoord.domain.MsgLog;
import com.codecoord.serivce.MsgLogService;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import java.time.LocalDateTime;
import java.util.List;
@Component
@EnableScheduling
public class RabbitMqJob {
@Resource
private MsgLogService msgLogService;
@Resource
private RabbitTemplate callbackRabbitTemplate;
@Scheduled(cron = "10/10 * * * * ?")
public void msgResend() {
// 每个消息最多重试三次
LambdaQueryWrapper<MsgLog> retryMsg = Wrappers.<MsgLog>lambdaQuery()
.eq(MsgLog::getStatus, -1)
.lt(MsgLog::getTryCount, 3);
List<MsgLog> msgLogList = msgLogService.list(retryMsg);
for (MsgLog msgLog : msgLogList) {
msgLog.setTryCount(msgLog.getTryCount() + 1);
msgLog.setUpdateTime(LocalDateTime.now());
LambdaUpdateWrapper<MsgLog> updateWrapper = Wrappers.<MsgLog>lambdaUpdate()
.eq(MsgLog::getId, msgLog.getId());
boolean update = msgLogService.update(msgLog, updateWrapper);
System.out.println("重试状态更新：" + update);
callbackRabbitTemplate.convertAndSend(msgLog.getExchange(), msgLog.getRoutingKey(), msgLog.getMsg(),
new CorrelationData(msgLog.getId().toString()));
}
}
}
2.5 消息测试
消息存盘之后效果如下
近日，经过一朋友的透露，Alibaba也首发了一份限量的“Java成长手册”，里面记载的知识点非常齐全，看完之后才知道，差距真的不止一点点！
手册主要是将Java程序员按照年限来进行分层，清晰的标注着Java程序员应该按照怎样的路线来提升自己，需要去学习哪些技术点。
0-1年入门：
- Java基础复盘 （面向对象+Java的超类+Java的反射机制+异常处理+集合+泛型+基础IO操作+多线程+网络编程+JDK新特性）
- Web编程初探 （Servlet+MySQL数据库+商品管理系统实战）
- SSM从入门到精通 （Spring+SpringMVC+Mybatis+商品管理系统实战-SSM版）
- SpringBoot快速上手 （SpringBoot+基于SpringBoot的商品管理系统实战）
- 零距离互联网项目实战 （Linux+Redis+双十一秒杀实战系统）
1-3年高工：
- 并发编程进阶 （并发工具类实战+CAS+显示锁解析+线程池内部机制+性能优化）
- JVM深度剖析 （理解运行时数据区+堆外内存解读+JDK+内存泄漏问题排查+Arthas+GC算法和垃圾回收器+类加载机制）
- MySQL深度进阶
- 深入Tomcat底层 （线程模型+性能调优）
3-5年资深：
- 数据库（调优+事务+锁+集群+主从+缓存等）
- Linux（命令+生产环境+日志等）
- 中间件&分布式 （dubbo+MQ/kafka、ElasticSearch、SpringCloud等组件）
5-7年架构：
- 开源框架 （Spring5源码+SpringMVC源码+Mybatis源码）
- 分布式架构 （Zk实战+RabbitMQ+RocketMQ+Kafka）
- 高效存储 （Redis+mongoDB+MySQL高可用+Mycat+Sharing-Sphere）
- 微服务架构(RPC+SpringBoot+SpringCloud+Netflix+SpringCloudAlibaba+docker+k8s）
注：含答案 ! 篇幅有限，已整理到网盘 ,添加助理微信，免费获取。
如果你觉得这些内容对你有帮助，可以加入csdn进阶交流群，领取资料
基础篇
JVM 篇
MySQL 篇
Redis 篇
由于篇幅限制，详解资料太全面，细节内容太多，所以只把部分知识点截图出来粗略的介绍，每个小节点里面都有更细化的内容!
如果你觉得这些内容对你有帮助，可以加入csdn进阶交流群，领取资料
