springboot-静态资源访问

springboot-静态资源访问

简介

springboot静态资源加载默认是从/static(或/public或/resources或/META-INF/resources) 目录下加载静态资源。

加载的优选级别:/META-INF/resources》/resources》/public》/static

静态资源的加载

源码分析(WebMvcAutoConfiguration类)

首先从WebMvcAutoConfiguration.class自动配置类部分代码来看:

//添加静态资源规则
public void addResourceHandlers(ResourceHandlerRegistry registry) {
            if (!this.resourceProperties.isAddMappings()) {
                logger.debug("Default resource handling disabled");
            } else {
                Duration cachePeriod = this.resourceProperties.getCache().getPeriod();
                CacheControl cacheControl = this.resourceProperties.getCache().getCachecontrol().toHttpCacheControl();
                //webjars依赖映射规则
                if (!registry.hasMappingForPattern("/webjars/**")) {
                    this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{"/webjars/**"}).addResourceLocations(new String[]{"classpath:/META-INF/resources/webjars/"}).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl));
                }
				//本地配置的映射规则
                //this.resourceProperties.getStaticLocations() 从ResourceProperties中加载静态路径
                String staticPathPattern = this.mvcProperties.getStaticPathPattern();
                if (!registry.hasMappingForPattern(staticPathPattern)) {
                    this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{staticPathPattern}).addResourceLocations(WebMvcAutoConfiguration.getResourceLocations                       this.resourceProperties.getStaticLocations())).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl));
                }

            }
        }

ResourceProperties类部分源码

@ConfigurationProperties(
    prefix = "spring.resources",
    ignoreUnknownFields = false
)
public class ResourceProperties {
    //springboot默认的加载路径
    private static final String[] CLASSPATH_RESOURCE_LOCATIONS = new String[]{"classpath:/META-INF/resources/", "classpath:/resources/", "classpath:/static/", "classpath:/public/"};
    private String[] staticLocations;
    private boolean addMappings;
    private final ResourceProperties.Chain chain;
    private final ResourceProperties.Cache cache;

映射规则总结

在springboot静态资源加载规则中,除了”标准“静态资源位置之外,还有一个较为特殊的WebJars

“标准”静态资源映射规则

​ 所有的“/**”的请求,如果没有对应的处理,那么就去默认映射的静态资源目录下去找,如下所示:

  1. "classpath:/META-INF/resources/"
  2. "classpath:/resources/"
  3. "classpath:/static/",
  4. "classpath:/public/"
  5. “/**”

webjars

所有的webjars的请求都会去 ”classpath:/META-INF/resources/webjars/**“去资源

(如果 以jar包的方式来引入jquery包)

在pom.xml中引入依赖

  <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>jquery</artifactId>
            <version>3.3.1-2</version>
        </dependency>

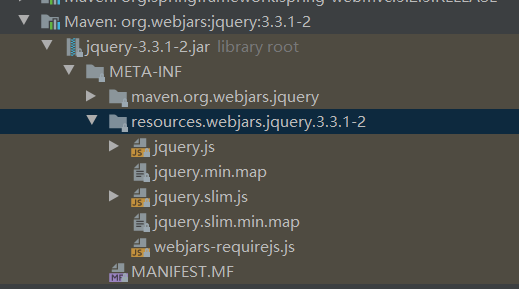

从引入的包目录来看

springboot默认欢迎页面

自动去加载默认目录下的index.html;如static/index.html

自定义配置静态资源目录

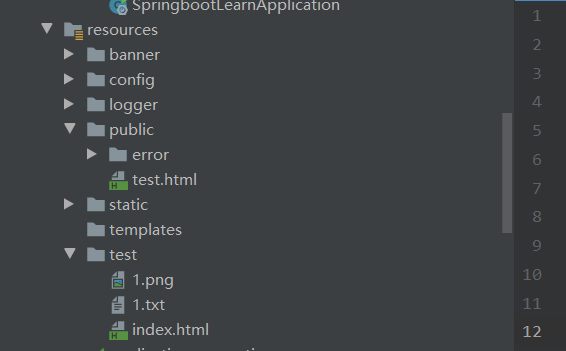

在application.properties文件中去配置

//配置test为静态资源目录
spring.resources.static-locations=classpath:/test/

遇到的坑

在配置了静态资源目录的时候,跳转到的页面路径不能写绝对路径,

比如:spring.resources.static-locations=classpath:/test/ 我配置test为静态资源的加载位置,在访问的时候不需要写test

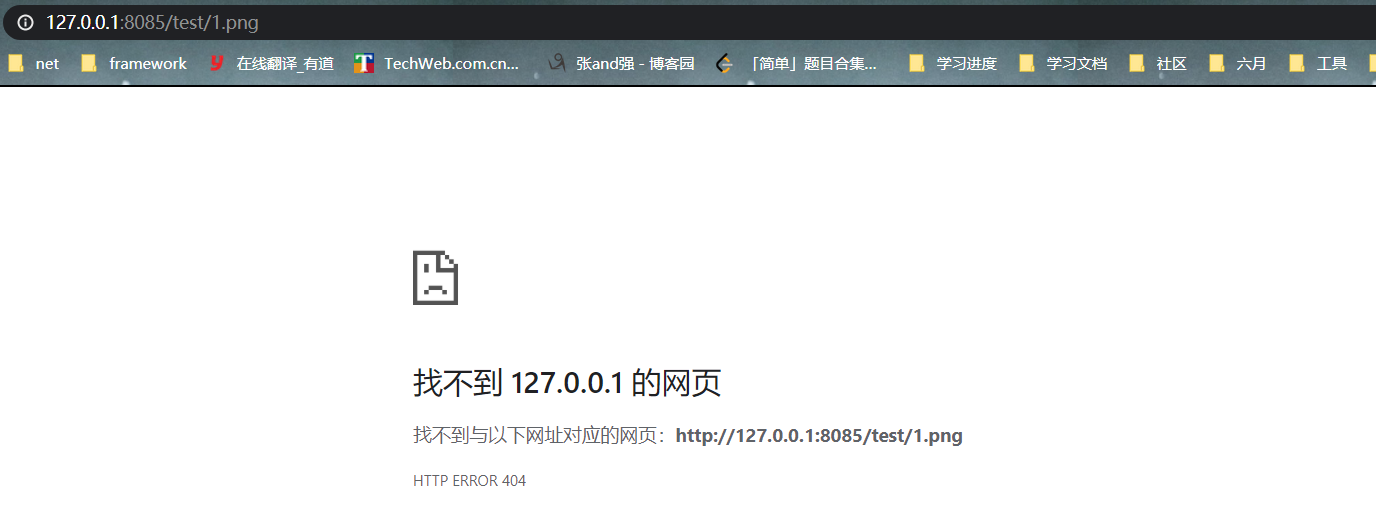

请求:http://127.0.0.1:8085/test/1.png

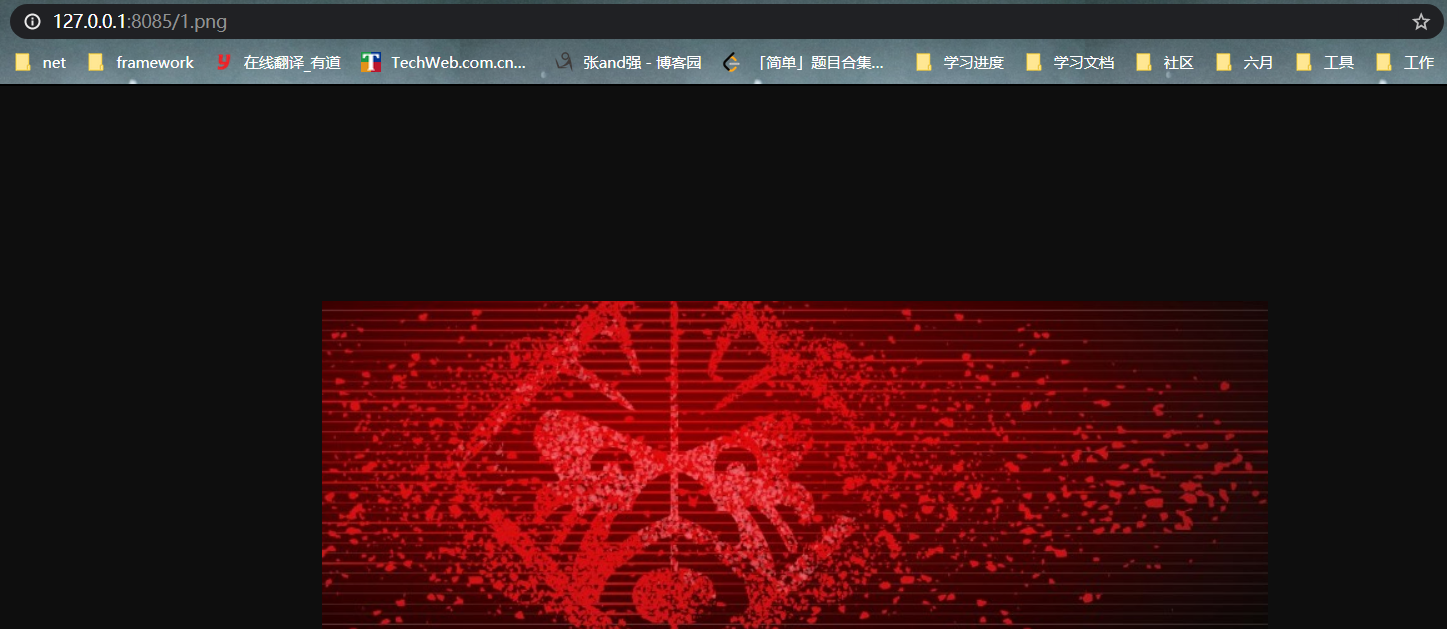

请求:http://127.0.0.1:8085/1.png
