学习记录21

　　本次学习学习了Spark的Streaming的一些外来输入源进行操作的形式

文件流

创建一个文件

[atguigu@hadoop102 ~]$ cd /usr/local/spark/mycode/
[atguigu@hadoop102 mycode]$ mkdir streaming
[atguigu@hadoop102 mycode]$ cd streaming
[atguigu@hadoop102 streaming]$ mkdir logfile
[atguigu@hadoop102 streaming]$ cd logfile

spark-shell创建文件流。请另外打开一个终端窗口，启动进入spark-shell

scala> import org.apache.spark.streaming._
import org.apache.spark.streaming._

scala> val ssc = new StreamingContext(sc, Seconds(20))
ssc: org.apache.spark.streaming.StreamingContext = org.apache.spark.streaming.StreamingContext@162bc9e8

scala> val lines = ssc.textFileStream("file:///usr/local/spark/mycode/streaming/logfile")
lines: org.apache.spark.streaming.dstream.DStream[String] = org.apache.spark.streaming.dstream.MappedDStream@78ad7d17

scala> val lines = ssc.textFileStream("file:///usr/local/spark/mycode/streaming/logfile")
lines: org.apache.spark.streaming.dstream.DStream[String] = org.apache.spark.streaming.dstream.MappedDStream@48187168

scala> val words = lines.flatMap(_.split(" "))
words: org.apache.spark.streaming.dstream.DStream[String] = org.apache.spark.streaming.dstream.FlatMappedDStream@1f32fb77

scala> val wordCounts = words.map(x => (x, 1)).reduceByKey(_ + _)
wordCounts: org.apache.spark.streaming.dstream.DStream[(String, Int)] = org.apache.spark.streaming.dstream.ShuffledDStream@17dee9f9

scala> wordCounts.print()

scala> ssc.start()

scala> ssc.awaitTermination()
-------------------------------------------
Time: 1706013700000 ms
-------------------------------------------

-------------------------------------------
Time: 1706013720000 ms
-------------------------------------------

在目录结构下进行添加文件的操作，这里就可以进行显示

添加一个a.txt

[atguigu@hadoop102 logfile]$ vim a.txt
[atguigu@hadoop102 logfile]$ cat a.txt
Hadoop
Spark
Flink

会变为：每二十秒进行一次计算

-------------------------------------------
Time: 1706013700000 ms
-------------------------------------------

-------------------------------------------
Time: 1706013720000 ms
-------------------------------------------

-------------------------------------------
Time: 1706013740000 ms
-------------------------------------------
(Flink,1)
(Spark,1)
(Hadoop,1)

-------------------------------------------
Time: 1706013760000 ms
-------------------------------------------

-------------------------------------------
Time: 1706013780000 ms
-------------------------------------------

-------------------------------------------
Time: 1706013800000 ms
-------------------------------------------

-------------------------------------------
Time: 1706013820000 ms
-------------------------------------------

独立文件进行编写：

cd /usr/local/spark/mycode
mkdir streaming
cd streaming
mkdir -p src/main/scala
cd src/main/scala
vim TestStreaming.scala

用vim编辑器新建一个TestStreaming.scala代码文件，请在里面输入以下代码

import org.apache.spark._
import org.apache.spark.streaming._
object WordCountStreaming {
  def main(args: Array[String]) {
    val sparkConf = new SparkConf().setAppName("WordCountStreaming").setMaster("local[2]")//设置为本地运行模式，2个线程，一个监听，另一个处理数据
    val ssc = new StreamingContext(sparkConf, Seconds(2))// 时间间隔为2秒
    val lines = ssc.textFileStream("file:///usr/local/spark/mycode/streaming/logfile")  //这里采用本地文件，当然你也可以采用HDFS文件
    val words = lines.flatMap(_.split(" "))
    val wordCounts = words.map(x => (x, 1)).reduceByKey(_ + _)
    wordCounts.print()
    ssc.start()
    ssc.awaitTermination()
  }
}

创建simple.sbt

cd /usr/local/spark/mycode/streaming
vim simple.sbt

name := "Simple Project"
version := "1.0"
scalaVersion := "2.12.15"
libraryDependencies += "org.apache.spark" %% "spark-core" % "3.2.0"
libraryDependencies += "org.apache.spark" % "spark-streaming_2.12" % "3.2.0" % "provided"

执行sbt打包编译的命令如下：

cd /usr/local/spark/mycode/streaming
/usr/local/sbt/sbt package

运行：

/usr/local/spark/bin/spark-submit --class "WordCountStreaming" /usr/local/spark/mycode/streaming/target/scala-2.12/simple-project_2.12-1.0.jar

修改file:///usr/local/spark/mycode/streaming/logfile的文件，控制台就可显示

[atguigu@hadoop102 logfile]$ cat log2.txt
HADOOP
SPARK
HBASE
HIVE

显示结果：

....
-------------------------------------------
Time: 1706014916000 ms
-------------------------------------------
(HIVE,1)
(SPARK,1)
(HADOOP,1)
(HBASE,1)
.....

套接字流

编写程序

[atguigu@hadoop102 spark]$ cd /usr/local/spark/mycode
[atguigu@hadoop102 mycode]$ cd streaming/
[atguigu@hadoop102 streaming]$ mkdir  socket
[atguigu@hadoop102 streaming]$ cd socket/
[atguigu@hadoop102 socket]$ mkdir  -p  src/main/scala
[atguigu@hadoop102 socket]$ cd  /usr/local/spark/mycode/streaming/socket/src/main/scala
[atguigu@hadoop102 scala]$ vim  NetworkWordCount.scala

import org.apache.spark._
import org.apache.spark.streaming._
object NetworkWordCount {
  def main(args: Array[String]) {
    if (args.length < 2) {
      System.err.println("Usage: NetworkWordCount <hostname> <port>")
      System.exit(1)
    }
    val sparkConf = new SparkConf().setAppName("NetworkWordCount").setMaster("local[2]")
    val sc = new SparkContext(sparkConf)
    sc.setLogLevel("ERROR")
    val ssc = new StreamingContext(sc, Seconds(1))
    val lines = ssc.socketTextStream(args(0), args(1).toInt)
    val words = lines.flatMap(_.split(" "))
    val wordCounts = words.map(x => (x, 1)).reduceByKey(_ + _)
    wordCounts.print()
    ssc.start()
    ssc.awaitTermination()
  }
}

在src同级目录下创建simple.sbt

[atguigu@hadoop102 socket]$ vim simple.sbt

name := "Simple Project"
version := "1.0"
scalaVersion := "2.12.15"
libraryDependencies += "org.apache.spark" %% "spark-core" % "3.2.0"
libraryDependencies += "org.apache.spark" % "spark-streaming_2.12" % "3.2.0" % "provided

进行打包

[atguigu@hadoop102 streaming]$ cd socket/
[atguigu@hadoop102 socket]$ /usr/local/sbt/sbt package
[atguigu@hadoop102 socket]$ /usr/local/spark/bin/spark-submit --class "NetworkWordCount" /usr/local/spark/mycode/streaming/socket/target/scala-2.12/simple-project_2.12-1.0.jar localhost 9999

开启进程

[atguigu@hadoop102 ~]$ nc -lk 9999
hadoop
hive
habse

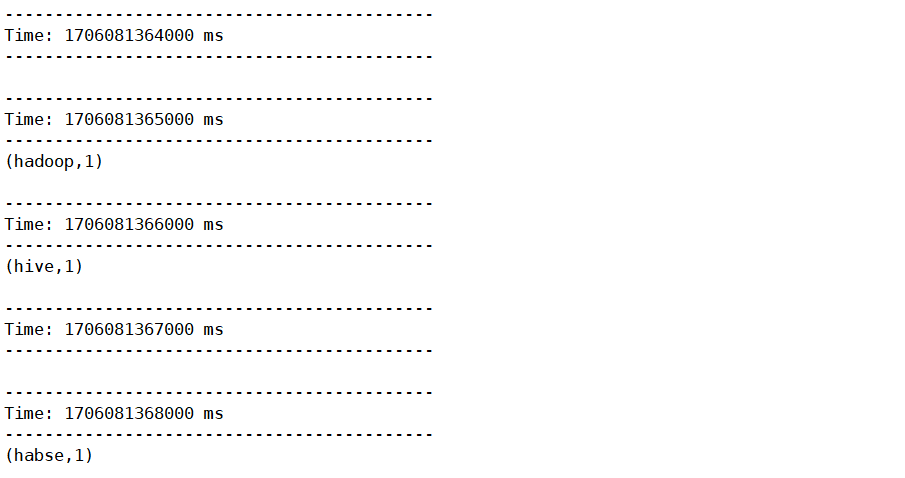

实时监测：



使用Socket编程实现自定义数据源

下面我们再前进一步，把数据源头的产生方式修改一下，不要使用nc程序，而是采用自己编写的程序产生Socket数据源

[atguigu@hadoop102 ~]$ cd  /usr/local/spark/mycode/streaming/socket/src/main/scala
[atguigu@hadoop102 scala]$ vim  DataSourceSocket.scala

import  java.io.{PrintWriter}
import  java.net.ServerSocket
import  scala.io.Source
object DataSourceSocket {
  def index(length: Int) = { //返回位于0到length-1之间的一个随机数
    val rdm = new java.util.Random
    rdm.nextInt(length)
  }
  def main(args: Array[String]) {
    if (args.length != 3) {
      System.err.println("Usage: <filename> <port> <millisecond>")
      System.exit(1)
    }
    val fileName = args(0)  //获取文件路径
    val lines = Source.fromFile(fileName).getLines.toList  //读取文件中的所有行的内容
    val rowCount = lines.length  //计算出文件的行数
    val listener = new ServerSocket(args(1).toInt)  //创建监听特定端口的ServerSocket对象
    while (true) {
      val socket = listener.accept()
      new Thread() {
        override def run = {
          println("Got client connected from: " + socket.getInetAddress)
          val out = new PrintWriter(socket.getOutputStream(), true)
          while (true) {
            Thread.sleep(args(2).toLong)  //每隔多长时间发送一次数据
            val content = lines(index(rowCount))  //从lines列表中取出一个元素
            println(content)
            out.write(content + '\n')  //写入要发送给客户端的数据
            out.flush()  //发送数据给客户端
          }
          socket.close()
        }
      }.start()
    }
  }
}

执行sbt打包编译：

[atguigu@hadoop102 scala]$ cd  /usr/local/spark/mycode/streaming/socket
[atguigu@hadoop102 socket]$ /usr/local/sbt/sbt  package

DataSourceSocket程序需要把一个文本文件作为输入参数，所以，在启动这个程序之前，需要首先创建一个文本文件word.txt并随便输入几行内容：/usr/local/spark/mycode/streaming/socket/word.txt

[atguigu@hadoop102 socket]$ vim word.txt
[atguigu@hadoop102 socket]$ cat word.txt
HADOOP
HBASE
HIVE
FLINK

启动DataSourceSocket程序：

/usr/local/spark/bin/spark-submit --class "DataSourceSocket" ./target/scala-2.12/simple-project_2.12-1.0.jar ./word.txt 9999 1000

下面就可以启动客户端，即NetworkWordCount程序。新建一个终端（这里称为“流计算终端”），输入以下命令启动NetworkWordCount程序：

[atguigu@hadoop102 socket]$ /usr/local/spark/bin/spark-submit --class "NetworkWordCount" /usr/local/spark/mycode/streaming/socket/target/scala-2.12/simple-project_2.12-1.0.jar localhost 9999
