抽象工厂模式

软件设计                  石家庄铁道大学信息学院



实验4：抽象工厂模式

本次实验属于模仿型实验，通过本次实验学生将掌握以下内容：

1、理解抽象工厂模式的动机，掌握该模式的结构；

2、能够利用抽象工厂模式解决实际问题。



[实验任务一]：人与肤色

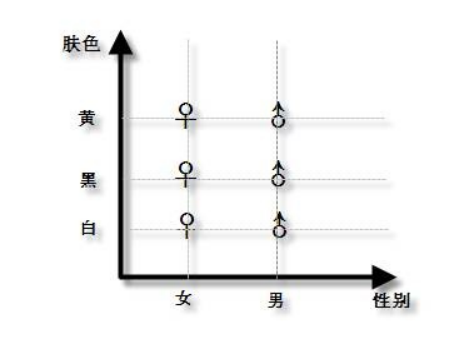

使用抽象工厂模式，完成下述产品等级结构：





实验要求：

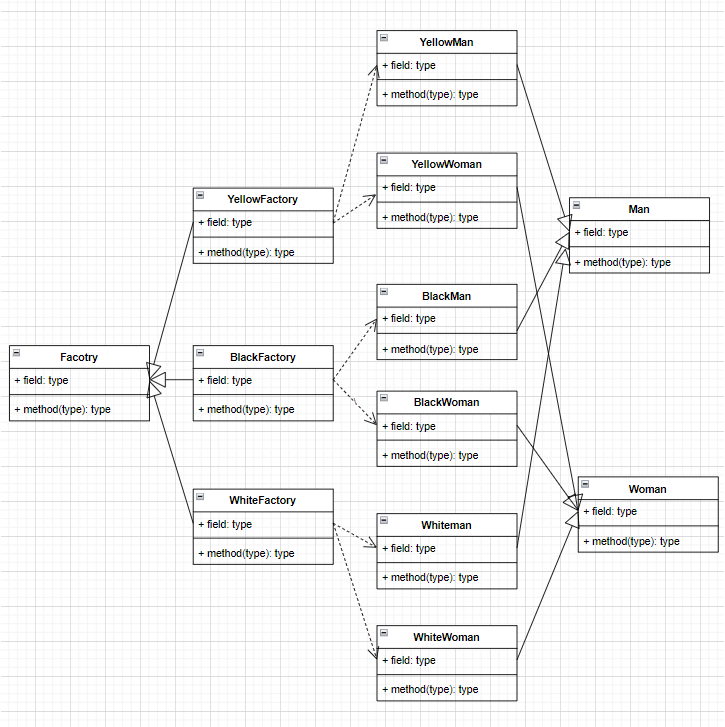

1. 画出对应的类图；





2. 提交源代码；

BlackFactory

package abstractFactory;

public class BlackFactory extends Factory {
    @Override
    public Man produceMan() {
        return new BlackMan();
    }

    @Override
    public Woman produceWoman() {
        return new BlackWoman();
    }
}

BlackMan

package abstractFactory;

public class BlackMan extends Man{
    @Override
    public void manProduce() {
        System.out.println("生产一个黑色皮肤男人");
    }
}

BlackWoman

package abstractFactory;

public class BlackWoman extends Woman{
    @Override
    public void womanProduce() {
        System.out.println("生产一个黑色皮肤的女人");
    }
}

Client

package abstractFactory;

import java.util.Scanner;

public class Client {

    public static void main(String[] args) {
        System.out.println("请选择生产的人种：1：黄皮肤男人、2：黄皮肤女人、3：黑皮肤男人、4：黑皮肤女人、5：白皮肤男人、6：白皮肤女人");
        Scanner sc = new Scanner(System.in);
        int choice = sc.nextInt();
        Factory factory;
        Man man;
        Woman woman;
        if(choice == 1) {
           factory = new YellowFactory();
           man = factory.produceMan();
           man.manProduce();
        } else if (choice == 2) {
            factory = new YellowFactory();
            woman = factory.produceWoman();
            woman.womanProduce();
        }else if (choice == 3){
            factory = new BlackFactory();
            man = factory.produceMan();
            man.manProduce();
        }else if (choice == 4){
            factory = new BlackFactory();
            woman = factory.produceWoman();
            woman.womanProduce();
        }else if (choice == 5){
            factory = new WhiteFactory();
            man = factory.produceMan();
            man.manProduce();
        }else if(choice == 6){
            factory = new WhiteFactory();
            woman = factory.produceWoman();
            woman.womanProduce();
        }
    }
}

Factory

package abstractFactory;

public abstract class Factory {
    public abstract Man produceMan();
    public abstract Woman produceWoman();
}

Man

package abstractFactory;

public abstract class Man {
    public abstract void manProduce();
}

WhiteFactory

package abstractFactory;

public class WhiteFactory extends Factory{
    @Override
    public Man produceMan() {
        return new WhiteMan();
    }

    @Override
    public Woman produceWoman() {
        return new WhiteWoman();
    }
}

WhiteMan

package abstractFactory;

public class WhiteMan extends Man{
    @Override
    public void manProduce() {
        System.out.println("生产一个白色皮肤男人");
    }
}

WhiteWoman

package abstractFactory;

public class WhiteWoman extends Woman{
    @Override
    public void womanProduce() {
        System.out.println("生产一个白色皮肤的女人");
    }
}

Woman

package abstractFactory;

public abstract class Woman {
    public abstract void womanProduce();
}

YellowFactory

package abstractFactory;

public class YellowFactory extends Factory{
    @Override
    public Man produceMan() {
        return new YellowMan();
    }

    @Override
    public Woman produceWoman() {
        return new YellowWoman();
    }
}

YellowMan

package abstractFactory;

public class YellowMan extends Man{
    @Override
    public void manProduce() {
        System.out.println("生产一个黄色皮肤男人");
    }
}

YellowWoman

package abstractFactory;

public class YellowWoman extends Woman{
    @Override
    public void womanProduce() {
        System.out.println("生产一个黄色皮肤的女人");
    }
}



3.注意编程规范。
