Springboot 整合Swagger 2框架让接口查看及调试更加优雅

先是pom.xml文件添加依赖：

		<!--swagger2-->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.8.0</version>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.8.0</version>
		</dependency>

application.yml不需要做配置

接着是Swagger2的配置类 Swagger2Config.java：

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * @Author：JCccc
 * @Description：
 * @Date： created in 20:50 2019/5/25
 */
@Configuration
@EnableSwagger2
public class Swagger2Config extends WebMvcConfigurationSupport {

    /**
     * 因为 Swagger2的资源文件都是在jar包里面，如果不在此处配置加载静态资源，
     * 会导致请求http://localhost:8081/swagger-ui.html失败
     *  <!--swagger资源配置-->
     *  <mvc:resources location="classpath:/META-INF/resources/" mapping="swagger-ui.html"/>
     *  <mvc:resources location="classpath:/META-INF/resources/webjars/" mapping="/webjars/**"/>
     *
     * @param registry
     */
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("swagger-ui.html")
                .addResourceLocations("classpath:/META-INF/resources/");

        registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.soelegant.elegantdemo.controller"))
                .paths(PathSelectors.any())
                .build()
                //不需要时，或者生产环境可以在此处关闭
                .enable(true);

    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("JCccc springboot整合Swagger2项目 ")
                .description("描述：测试使用Swagger2！")
                //服务条款网址
                .termsOfServiceUrl("https://blog.csdn.net/qq_35387940")
                .contact("JCccc")
                .version("1.0")
                .build();
    }



}

然后是写一个Controller ，整合Swagger2框架注解 Swagger2TestController.java：

import com.alibaba.fastjson.JSONObject;
import com.soelegant.elegantdemo.pojo.UserInfo;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.*;

/**
 * @Author：JCccc
 * @Description：
 * @Date： created in 20:54 2019/5/25
 */
@Api(value = "测试各种方法", tags = {"测试使用Controller"})
@RestController
public class Swagger2TestController {

    @ApiOperation(value = "测试Swagger2接口", notes = "传入编号！")
    @ApiImplicitParam(name = "id", value = "id", required = true)
    @RequestMapping(value = "/swaTest2/{id}", method = RequestMethod.GET)
    public String TestSwa2(@PathVariable("id") Integer id) {
        System.out.println("swaTest！");
        //  Optional<UserInfo> user = userRepository.findById(id);
        UserInfo userInfo = new UserInfo();
        userInfo.setUsername("test");
        userInfo.setState(1);
        userInfo.setPassword("123456");
        userInfo.setNickName("testNickName");
        userInfo.setIsDeleted(id);
        userInfo.setIds(null);
        userInfo.setIdList(null);
        return userInfo.toString();
    }


    @ApiOperation(value = "swaTest3", notes = "测试GET！")
    @ApiImplicitParam(name = "name", value = "用户name")
    @RequestMapping(value = "/swaTest3", method = RequestMethod.GET)
    public String TestSwa3(@RequestParam("name") String name) {
        System.out.println("swaTest！");


        return name;
    }


    @ApiOperation(value = "swaTest4", notes = "测试POST！")
    @RequestMapping(value = "/swaTest4", method = RequestMethod.POST)
    public String TestSwa4(@RequestBody JSONObject jsonObject) {
        System.out.println("swaTest4！" + jsonObject.toString());

        String str = jsonObject.toString();
        return str;
    }



    @ApiOperation(value = "swaTest5", notes = "测试对象传值！")
    @RequestMapping(value = "/swaTest5", method = RequestMethod.POST)
    public String TestSwa5(UserInfo userInfo) {

        return userInfo.toString();
    }

}

可以看到上面的第一个接口用到了UserInfo实体类，那么我们也将这个跟接口有关的类也结合Swagger2注解 UserInfo.java：

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

import java.io.Serializable;
import java.util.List;

/**
 * @Author：JCccc
 * @Description：
 * @Date： created in 20:57 2019/5/25
 */
@Data
@ApiModel(value = "userInfo 对象",description = "用户对象user")
public class UserInfo implements Serializable {
    private static final long serialVersionUID = 1L;
    @ApiModelProperty(value="用户名",name="username",example="lx")
    private String username;
    @ApiModelProperty(value="状态",name="state",required=true)
    private Integer state;
    private String password;
    private String nickName;
    private Integer isDeleted;

    @ApiModelProperty(value="id数组",hidden=true)
    private String[] ids;
    private List<String> idList;



}

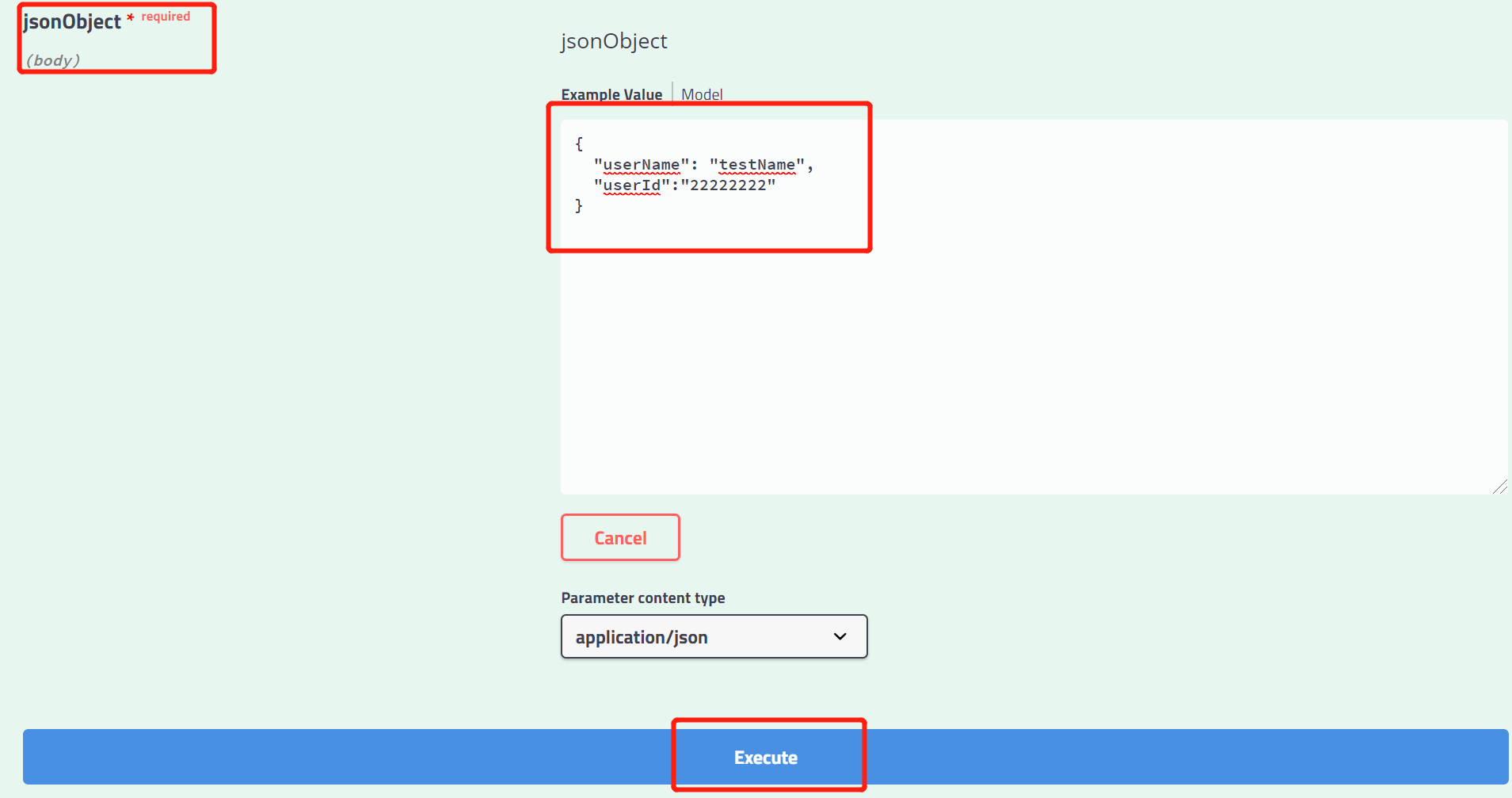

那么到此，我们整合Swagger2基本已经完毕，接下来看看效果：

运行项目后，进入Swagger2的接口页面：http://localhost:8099/swagger-ui.html# （端口就是自己项目的端口，我自己的是8099）
