HTML页面 加载播放RTMP协议流和HLS协议流直播视频

主要内容让rtmp或hls的协议流直播视频能在html页面正常显示(这里也是综合参考了网上其余的资料,最终放出下面这些实测可用的方案)。



 首先是HLS协议流, 这种是播放m3u8格式的视频。



解决方案:

新建html页面,   testHls.html   (里面的视频地址我已经改了,请替换成自己的地址):

<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <title>前端播放m3u8格式视频</title>
    <link rel="stylesheet" href="videoplayer/video-js.css">
    <script src="videoplayer/video.js"></script>
</head>
<body>
<video id="myVideo" class="video-js vjs-default-skin vjs-big-play-centered" controls preload="auto" width="1080" height="708" data-setup='{}'>
    <source src="http://pili-live-hlsxxxxxxxxx.m3u8" type="application/x-mpegURL">
</video>
</body>
<script>
    var myVideo = videojs('myVideo',{
        bigPlayButton : true,
        textTrackDisplay : false,
        posterImage: false,
        errorDisplay : false,
    })
    myVideo.play() // 视频播放
    myVideo.pause() // 视频暂停
</script>
</html>

注意静态资源的加载路径,我是用了个springboot项目作为测试,我的路径是:

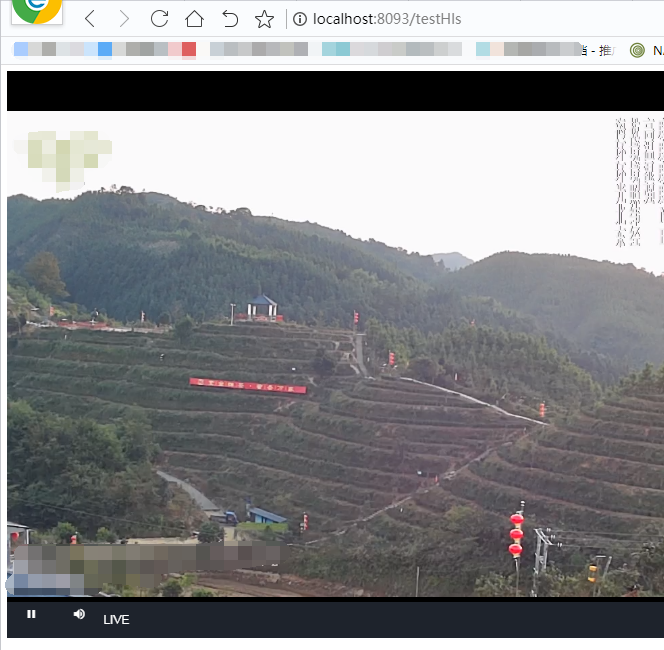

然后随便写个接口跳转到该页面,展示效果,视频正常播放:



接下来是 RTMP协议流直播视频。

解决方案:

使用的是静态资源:

新建html页面,testPlayer.html:

<!DOCTYPE html>
<html>
<head>
<script type="text/javascript" src="rtmpplayer/flowplayer-3.2.8.min.js"></script>
<title>FlowPlayer</title>
</head>


<body>
    <!-- this A tag is where your Flowplayer will be placed. it can be anywhere -->
    <a
         href="#"
         style="display:block;width:1040px;height:660px"
         id="player">
    </a>
    <!-- this will install flowplayer inside previous A- tag. -->
    <script>
    var urls = "rtmp://pilxxxxxxxx0xxxxx";
    flowplayer("player", "rtmpplayer/flowplayer-3.2.18.swf",{
        clip: {
          url: urls,
          provider: 'rtmp',
          live: true,
        },
        plugins: {
           rtmp: {
             url: 'rtmpplayer/flowplayer.rtmp-3.2.8.swf',
             netConnectionUrl: urls
           }
       }
    });
    </script>
</body>
</html>

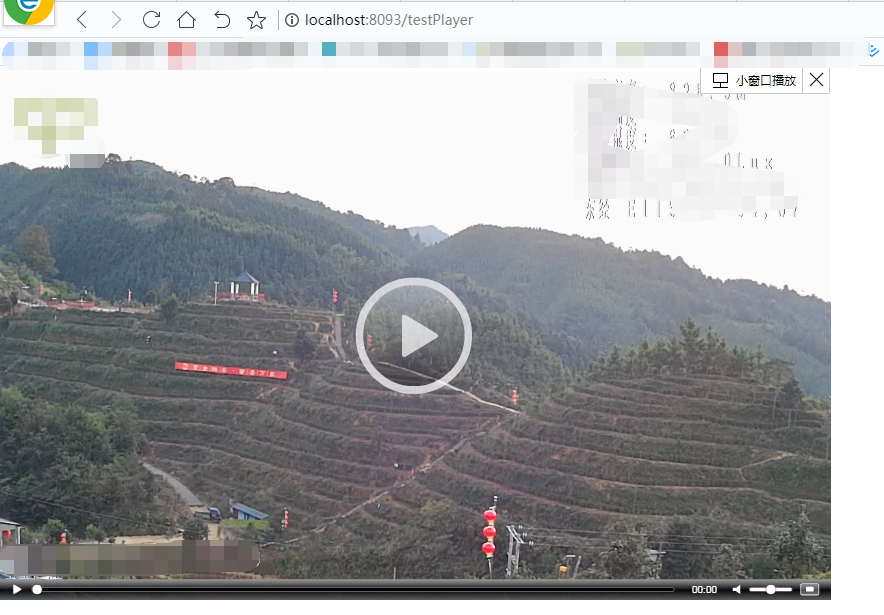

然后随便写个接口跳转到该页面,展示效果,视频正常播放:



好,到此。
