GRPC JAVA IDEA 根据proto文件生成代码步骤

GRPC JAVA IDEA 代码生成

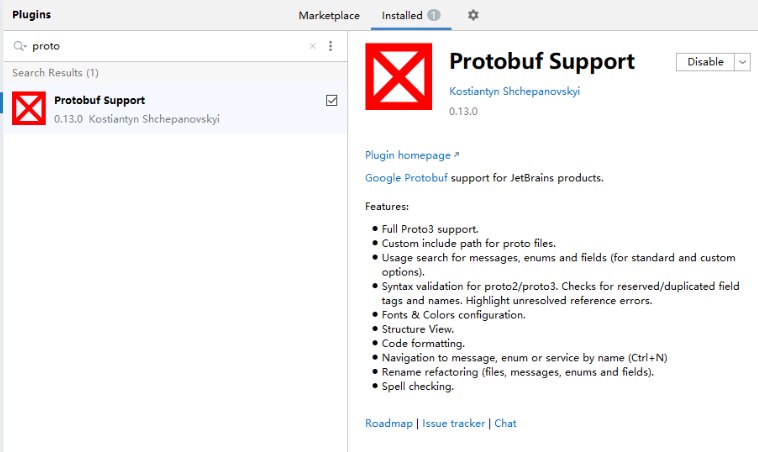

• 安装Protobuf Support插件


• 创建maven项目，编辑pom.xml

   <dependency>
       <groupId>com.google.protobuf</groupId>
       <artifactId>protobuf-java</artifactId>
       <version>3.5.1</version>
  </dependency>
  <dependency>
      <groupId>io.grpc</groupId>
      <artifactId>grpc-all</artifactId>
      <version>1.12.0</version>
  </dependency>


  <build>
      <extensions>
          <extension>
              <groupId>kr.motd.maven</groupId>
              <artifactId>os-maven-plugin</artifactId>
              <version>1.4.1.Final</version>
          </extension>
      </extensions>
      <plugins>
          <plugin>
              <groupId>org.xolstice.maven.plugins</groupId>
              <artifactId>protobuf-maven-plugin</artifactId>
              <version>0.5.0</version>
              <configuration>
                  <protocArtifact>com.google.protobuf:protoc:3.0.0:exe:${os.detected.classifier}</protocArtifact>
                  <pluginId>grpc-java</pluginId>
                  <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.0.0:exe:${os.detected.classifier}</pluginArtifact>
              </configuration>
              <executions>
                  <execution>
                      <goals>
                          <goal>compile</goal>
                          <goal>compile-custom</goal>
                      </goals>
                  </execution>
              </executions>
          </plugin>
          <plugin>
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-maven-plugin</artifactId>
          </plugin>
      </plugins>
  </build>


• 在main目录下创建proto文件夹，将proto文件放入该文件夹下

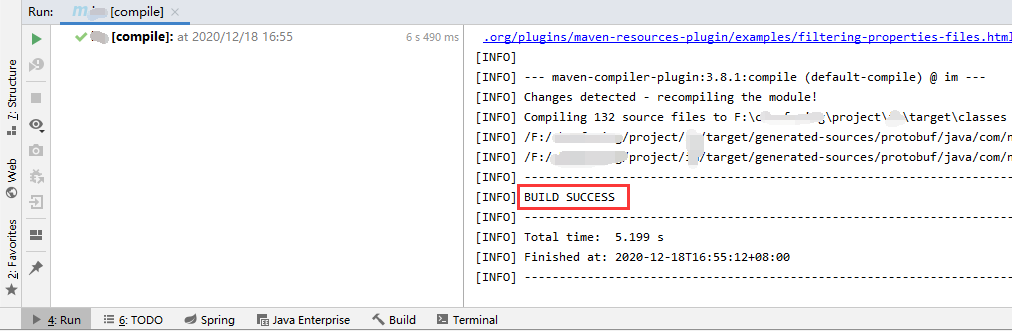

• 点击右侧侧边栏的maven，点击lifecycle的compile即可生成代码（位于target下）
