软件定义网络（SDN）之“POX负载均衡实验”

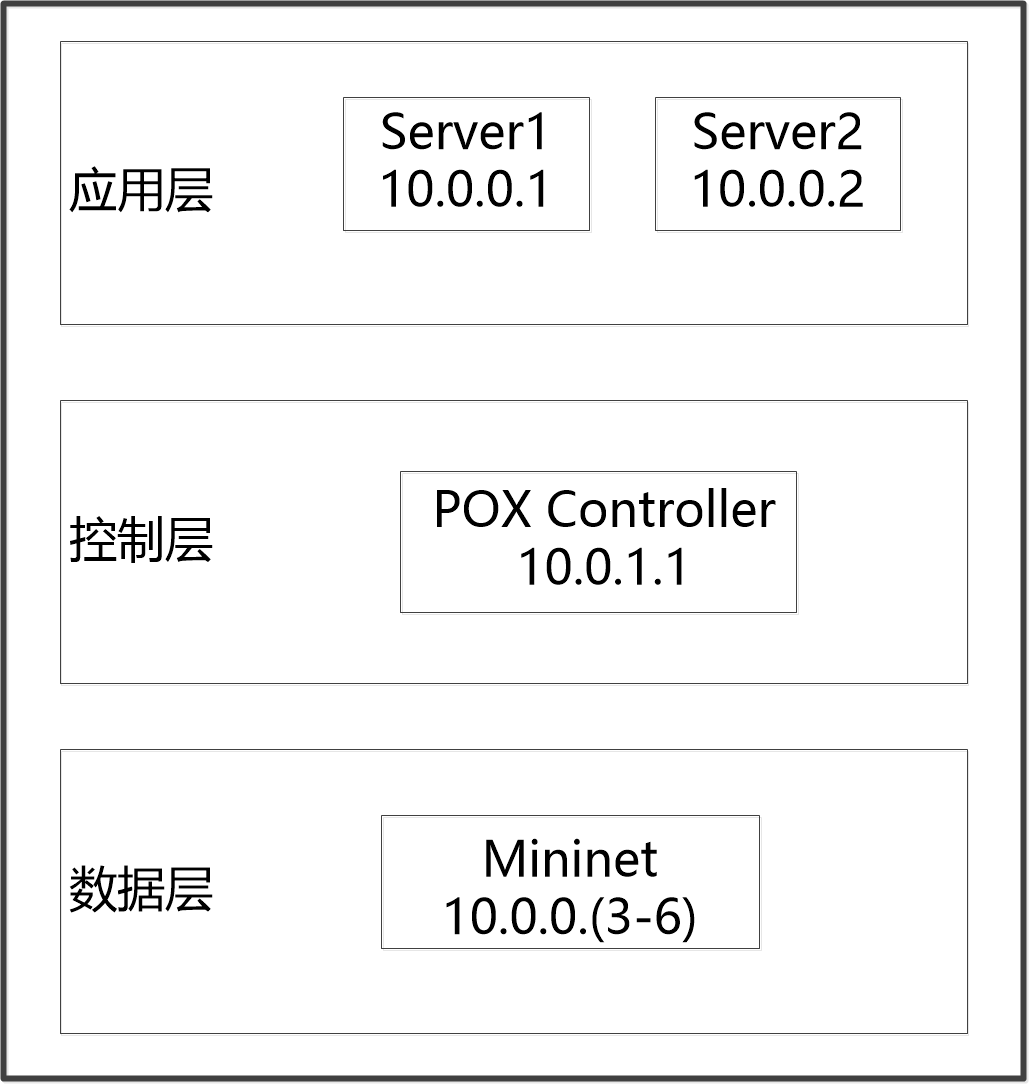

负载均衡架构

实验环境

SDNHub_tutorial_VM_64镜像；POX控制器；Mininet；python创建简易的HTTP服务器。

实验步骤

1.创建拓扑：

sudo mn --switch ovsk,protocols=OpenFlow13 --topo single,6 --controller=remote,ip=127.0.0.1,port=6633

2.由于POX还不支持OpenFlow 1.3，所以最好静态地设置OVS的OpenFlow版本：

sudo ovs-vsctl set bridge s1 protocols=OpenFlow10

3.打开服务器：

1)通过xterm[host]打开主机h1和h2，h1和h2作为服务器。

mininet> xterm h1 & h2

2)实验中对服务器的要求不是那么高，所以服务器选用python的server模块中的SimpleHTTPServer作为HTTP服务器来响应请求包，HTTP服务器端口设置为80。

root@sdnhubvm:~$ python -m SimpleHTTPServer 80

服务器建立成功

Serving HTTP on 0.0.0.0 port 80 ...

4.控制器与负载均衡策略

开启pox控制器，开启官方自带策略loadbalancer 并且指定ip和服务器的ip运行。

cd /home/ubuntu/pox

sudo ./pox.py log.level --DEBUG forwarding.tutorial_l2_hub misc.ip_loadbalancer --ip=10.0.1.1 --servers=10.0.0.1,10.0.0.2

输出如下，表示成功

POX 0.5.0 (eel) / Copyright 2011-2014 James McCauley, et al.
Module not found: ip=127.0.0.1
ubuntu@sdnhubvm:~/pox[01:42] (eel)$ sudo ./pox.py log.level --DEBUG forwarding.tutorial_l2_hub misc.ip_loadbalancer --ip=10.0.1.1 --servers=10.0.0.1,10.0.0.2
POX 0.5.0 (eel) / Copyright 2011-2014 James McCauley, et al.
DEBUG:core:POX 0.5.0 (eel) going up...
DEBUG:core:Running on CPython (2.7.6/Jun 22 2015 17:58:13)
DEBUG:core:Platform is Linux-3.13.0-24-generic-x86_64-with-Ubuntu-14.04-trusty
INFO:core:POX 0.5.0 (eel) is up.
DEBUG:openflow.of_01:Listening on 0.0.0.0:6633
INFO:openflow.of_01:[00-00-00-00-00-01 1] connected
INFO:iplb:IP Load Balancer Ready.
INFO:iplb:Load Balancing on [00-00-00-00-00-01 1]
INFO:iplb.00-00-00-00-00-01:Server 10.0.0.1 up
INFO:iplb.00-00-00-00-00-01:Server 10.0.0.2 up

5.检查mininet网络拓扑中的主机是否可以相互访问。

mininet> pingall

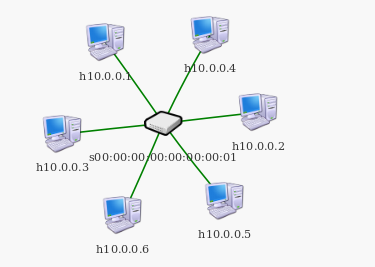

实验拓扑如图所示，由六台主机地址为10.0.0.x（1-6）和交换机组成，POX控制器连接交换机。

6.然后用h3 4 5 6主机的控制台去访问服务器。

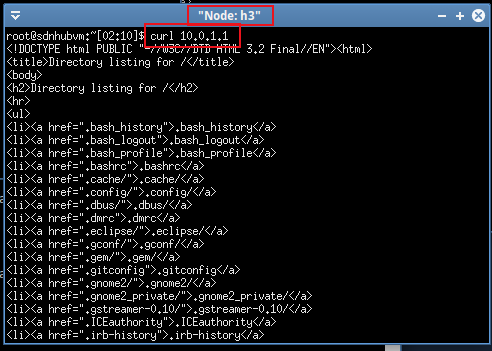

打开其他的主机，作为发送请求的主机，通过curl指令，对服务器server1和server2发起METHOD为GET的请求，发送一个Request packet。请求成功，服务器会回送一个网页信息。

curl 10.0.1.1

同时使用多台主机，重复请求控制器多次，观察POX的流量路径走向。分析流量，可以观察到多台主机请求控制器，最终请求到的服务器不一样，流量的走向也不一样。

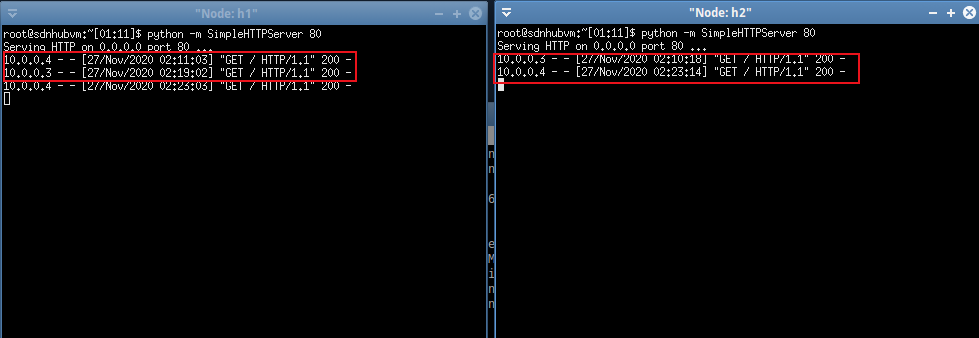

在服务器端，h1和h2上可以对收到的包进行拆包处理，在GET请求的这些过程中，h1和h2并行工作，并且每次同样的请求不会在同一台服务器模拟上进行处理。

如上图所示，在h3（或h4）上连续两次Request packet包请求，如果包请求第一次在h1上处理，则第二次在h2上处理。

官方随机算法

#Copyright 2013,2014 James McCauley
#
#Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
#You may obtain a copy of the License at:
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
#Unless required by applicable law or agreed to in writing, software
#distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#See the License for the specific language governing permissions and
#limitations under the License.
"""

A very sloppy IP load balancer.


Run it with --ip= --servers=IP1,IP2,...


By default, it will do load balancing on the first switch that connects.  If

you want, you can add --dpid= to specify a particular switch.


Please submit improvements. 😃

"""


from pox.core import core

import pox

log = core.getLogger("iplb")


from pox.lib.packet.ethernet import ethernet, ETHER_BROADCAST

from pox.lib.packet.ipv4 import ipv4

from pox.lib.packet.arp import arp

from pox.lib.addresses import IPAddr, EthAddr

from pox.lib.util import str_to_bool, dpid_to_str, str_to_dpid


import pox.openflow.libopenflow_01 as of


import time

import random


FLOW_IDLE_TIMEOUT = 10

FLOW_MEMORY_TIMEOUT = 60 * 5


class MemoryEntry (object):

"""

Record for flows we are balancing


Table entries in the switch "remember" flows for a period of time, but

rather than set their expirations to some long value (potentially leading

to lots of rules for dead connections), we let them expire from the

switch relatively quickly and remember them here in the controller for

longer.


Another tactic would be to increase the timeouts on the switch and use

the Nicira extension which can match packets with FIN set to remove them

when the connection closes.

"""

def init (self, server, first_packet, client_port):

self.server = server

self.first_packet = first_packet

self.client_port = client_port

self.refresh()


def refresh (self):

self.timeout = time.time() + FLOW_MEMORY_TIMEOUT


@property

def is_expired (self):

return time.time() > self.timeout


@property

def key1 (self):

ethp = self.first_packet

ipp = ethp.find('ipv4')

tcpp = ethp.find('tcp')


return ipp.srcip,ipp.dstip,tcpp.srcport,tcpp.dstport

@property

def key2 (self):

ethp = self.first_packet

ipp = ethp.find('ipv4')

tcpp = ethp.find('tcp')


return self.server,ipp.srcip,tcpp.dstport,tcpp.srcport

class iplb (object):

"""

A simple IP load balancer


Give it a service_ip and a list of server IP addresses.  New TCP flows

to service_ip will be randomly redirected to one of the servers.


We probe the servers to see if they're alive by sending them ARPs.

"""

def init (self, connection, service_ip, servers = []):

self.service_ip = IPAddr(service_ip)

self.servers = [IPAddr(a) for a in servers]

self.con = connection

self.mac = self.con.eth_addr

self.live_servers = {} # IP -> MAC,port


try:
  self.log = log.getChild(dpid_to_str(self.con.dpid))
except:
  # Be nice to Python 2.6 (ugh)
  self.log = log

self.outstanding_probes = {} # IP -> expire_time

# How quickly do we probe?
self.probe_cycle_time = 5

# How long do we wait for an ARP reply before we consider a server dead?
self.arp_timeout = 3

# We remember where we directed flows so that if they start up again,
# we can send them to the same server if it's still up.  Alternate
# approach: hashing.
self.memory = {} # (srcip,dstip,srcport,dstport) -> MemoryEntry

self._do_probe() # Kick off the probing

# As part of a gross hack, we now do this from elsewhere
#self.con.addListeners(self)

def _do_expire (self):

"""

Expire probes and "memorized" flows


Each of these should only have a limited lifetime.
"""
t = time.time()

# Expire probes
for ip,expire_at in self.outstanding_probes.items():
  if t > expire_at:
    self.outstanding_probes.pop(ip, None)
    if ip in self.live_servers:
      self.log.warn("Server %s down", ip)
      del self.live_servers[ip]

# Expire old flows
c = len(self.memory)
self.memory = {k:v for k,v in self.memory.items()
               if not v.is_expired}
if len(self.memory) != c:
  self.log.debug("Expired %i flows", c-len(self.memory))

def _do_probe (self):

"""

Send an ARP to a server to see if it's still up

"""

self._do_expire()


server = self.servers.pop(0)
self.servers.append(server)

r = arp()
r.hwtype = r.HW_TYPE_ETHERNET
r.prototype = r.PROTO_TYPE_IP
r.opcode = r.REQUEST
r.hwdst = ETHER_BROADCAST
r.protodst = server
r.hwsrc = self.mac
r.protosrc = self.service_ip
e = ethernet(type=ethernet.ARP_TYPE, src=self.mac,
             dst=ETHER_BROADCAST)
e.set_payload(r)
#self.log.debug("ARPing for %s", server)
msg = of.ofp_packet_out()
msg.data = e.pack()
msg.actions.append(of.ofp_action_output(port = of.OFPP_FLOOD))
msg.in_port = of.OFPP_NONE
self.con.send(msg)

self.outstanding_probes[server] = time.time() + self.arp_timeout

core.callDelayed(self._probe_wait_time, self._do_probe)

@property

def _probe_wait_time (self):

"""

Time to wait between probes

"""

r = self.probe_cycle_time / float(len(self.servers))

r = max(.25, r) # Cap it at four per second

return r


def _pick_server (self, key, inport):

"""

Pick a server for a (hopefully) new connection

"""

return random.choice(self.live_servers.keys())


def _handle_PacketIn (self, event):

inport = event.port

packet = event.parsed


def drop ():
  if event.ofp.buffer_id is not None:
    # Kill the buffer
    msg = of.ofp_packet_out(data = event.ofp)
    self.con.send(msg)
  return None

tcpp = packet.find('tcp')
if not tcpp:
  arpp = packet.find('arp')
  if arpp:
    # Handle replies to our server-liveness probes
    if arpp.opcode == arpp.REPLY:
      if arpp.protosrc in self.outstanding_probes:
        # A server is (still?) up; cool.
        del self.outstanding_probes[arpp.protosrc]
        if (self.live_servers.get(arpp.protosrc, (None,None))
            == (arpp.hwsrc,inport)):
          # Ah, nothing new here.
          pass
        else:
          # Ooh, new server.
          self.live_servers[arpp.protosrc] = arpp.hwsrc,inport
          self.log.info("Server %s up", arpp.protosrc)
    return

  # Not TCP and not ARP.  Don't know what to do with this.  Drop it.
  return drop()

# It's TCP.

ipp = packet.find('ipv4')

if ipp.srcip in self.servers:
  # It's FROM one of our balanced servers.
  # Rewrite it BACK to the client

  key = ipp.srcip,ipp.dstip,tcpp.srcport,tcpp.dstport
  entry = self.memory.get(key)

  if entry is None:
    # We either didn't install it, or we forgot about it.
    self.log.debug("No client for %s", key)
    return drop()

  # Refresh time timeout and reinstall.
  entry.refresh()

  #self.log.debug("Install reverse flow for %s", key)

  # Install reverse table entry
  mac,port = self.live_servers[entry.server]

  actions = []
  actions.append(of.ofp_action_dl_addr.set_src(self.mac))
  actions.append(of.ofp_action_nw_addr.set_src(self.service_ip))
  actions.append(of.ofp_action_output(port = entry.client_port))
  match = of.ofp_match.from_packet(packet, inport)

  msg = of.ofp_flow_mod(command=of.OFPFC_ADD,
                        idle_timeout=FLOW_IDLE_TIMEOUT,
                        hard_timeout=of.OFP_FLOW_PERMANENT,
                        data=event.ofp,
                        actions=actions,
                        match=match)
  self.con.send(msg)

elif ipp.dstip == self.service_ip:
  # Ah, it's for our service IP and needs to be load balanced

  # Do we already know this flow?
  key = ipp.srcip,ipp.dstip,tcpp.srcport,tcpp.dstport
  entry = self.memory.get(key)
  if entry is None or entry.server not in self.live_servers:
    # Don't know it (hopefully it's new!)
    if len(self.live_servers) == 0:
      self.log.warn("No servers!")
      return drop()

    # Pick a server for this flow
    server = self._pick_server(key, inport)
    self.log.debug("Directing traffic to %s", server)
    entry = MemoryEntry(server, packet, inport)
    self.memory[entry.key1] = entry
    self.memory[entry.key2] = entry

  # Update timestamp
  entry.refresh()

  # Set up table entry towards selected server
  mac,port = self.live_servers[entry.server]

  actions = []
  actions.append(of.ofp_action_dl_addr.set_dst(mac))
  actions.append(of.ofp_action_nw_addr.set_dst(entry.server))
  actions.append(of.ofp_action_output(port = port))
  match = of.ofp_match.from_packet(packet, inport)

  msg = of.ofp_flow_mod(command=of.OFPFC_ADD,
                        idle_timeout=FLOW_IDLE_TIMEOUT,
                        hard_timeout=of.OFP_FLOW_PERMANENT,
                        data=event.ofp,
                        actions=actions,
                        match=match)
  self.con.send(msg)


_dpid = None


def launch (ip, servers, dpid = None):

global _dpid

if dpid is not None:

_dpid = str_to_dpid(dpid)


servers = servers.replace(","," ").split()

servers = [IPAddr(x) for x in servers]

ip = IPAddr(ip)




from proto.arp_responder import ARPResponder

old_pi = ARPResponder._handle_PacketIn

def new_pi (self, event):

if event.dpid == _dpid:

#Yes, the packet-in is on the right switch

return old_pi(self, event)

ARPResponder._handle_PacketIn = new_pi



from proto.arp_responder import launch as arp_launch

arp_launch(eat_packets=False,**{str(ip):True})

import logging

logging.getLogger("proto.arp_responder").setLevel(logging.WARN)


def _handle_ConnectionUp (event):

global _dpid

if _dpid is None:

_dpid = event.dpid


if _dpid != event.dpid:
  log.warn("Ignoring switch %s", event.connection)
else:
  if not core.hasComponent('iplb'):
    # Need to initialize first...
    core.registerNew(iplb, event.connection, IPAddr(ip), servers)
    log.info("IP Load Balancer Ready.")
  log.info("Load Balancing on %s", event.connection)

  # Gross hack
  core.iplb.con = event.connection
  event.connection.addListeners(core.iplb)

core.openflow.addListenerByName("ConnectionUp", _handle_ConnectionUp)
