spring redis 注解开发 单片机 集群 主从复制

失败记录 ，虽然最终没有成功，但是原理还是知道的



1、spring reids简单实现注解


http://blog.csdn.net/fighterandknight/article/details/53432276/



1、导入相应依赖



<dependency>

            <groupId>redis.clients</groupId>

            <artifactId>jedis</artifactId>

            <version>2.8.1</version>

        </dependency>

        <dependency>

            <groupId>org.springframework.data</groupId>

            <artifactId>spring-data-redis</artifactId>

            <version>1.7.2.RELEASE</version>

        </dependency>





2、redis配置信息properties



redis.host=127.0.0.1

redis.port=6379

redis.password=

redis.maxIdle=100

redis.maxActive=300

redis.maxWait=1000

redis.testOnBorrow=true

redis.timeout=10000





3、spring redis 配置文件



1、poolConfig ，导入reids信息，注意新旧版本参数名字不一样哦



2、JedisConnectionFactory，redis连接工厂，将poolConfig导入，并配置host，port，ip password等



3、redis处理类 JedisTemplate,将连接工厂导入进来，（spring boot中用来处理key的序列化）



4、缓存管理器，配置cache（这个时候，需要自己写一个RedisCach类，将JedisTemplate 导入，并设置缓存位置名称name，（这里就是相当于Ehcache 管理管理工厂）这个时候还可以配置多个redis缓存名称）



<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xmlns:cache="http://www.springframework.org/schema/cache"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.2.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.2.xsd

http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd

http://www.springframework.org/schema/cache

http://www.springframework.org/schema/cache/spring-cache-4.2.xsd">



<context:property-placeholder location="classpath:redis-config.properties" />



<!-- 启用缓存注解功能，这个是必须的，否则注解不会生效，另外，该注解一定要声明在spring主配置文件中才会生效 -->

<cache:annotation-driven cache-manager="cacheManager" />



<!-- redis 相关配置 -->

<bean id="poolConfig" class="redis.clients.jedis.JedisPoolConfig">

<property name="maxIdle" value="${redis.maxIdle}" />

<property name="maxWaitMillis" value="${redis.maxWait}" />

<property name="testOnBorrow" value="${redis.testOnBorrow}" />

</bean>



<bean id="JedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory"

p:host-name="${redis.host}"

p:port="${redis.port}"

p:password="${redis.pass}"

p:pool-config-ref="poolConfig"/>



<bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">

<property name="connectionFactory" ref="JedisConnectionFactory" />

</bean>



<!-- spring自己的缓存管理器，这里定义了缓存位置名称 ，即注解中的value 名称和Ehcache有点像，是吧，哈哈-->

<bean id="cacheManager" class="org.springframework.cache.support.SimpleCacheManager">

<property name="caches">

<set>

<!-- 这里可以配置多个redis -->

<bean class="com.cn.util.RedisCache">

<property name="redisTemplate" ref="redisTemplate" />

<property name="name" value="default"/>

</bean>

<bean class="com.cn.util.RedisCache">

<property name="redisTemplate" ref="redisTemplate" />

<property name="name" value="common"/>

<!-- common名称要在类或方法的注解中使用 -->

</bean>

</set>

</property>

</bean>



</beans>





4、RedisCache为使用注解开发，缓存类





public class RedisCache implements Cache{



    private RedisTemplate<String, Object> redisTemplate;

private String name;

public RedisTemplate<String, Object> getRedisTemplate() {

     return redisTemplate;

    }



    public void setRedisTemplate(RedisTemplate<String, Object> redisTemplate) {

     this.redisTemplate = redisTemplate;

    }



    public void setName(String name) {

     this.name = name;

}



@Override

public String getName() {



return this.name;

}



@Override

public Object getNativeCache() {



return this.redisTemplate;

}



@Override

public ValueWrapper get(Object key) {

System.out.println("get key");

final String keyf = key.toString();

Object object = null;

object = redisTemplate.execute(new RedisCallback<Object>() {

public Object doInRedis(RedisConnection connection)

throws DataAccessException {

byte[] key = keyf.getBytes();

byte[] value = connection.get(key);

if (value == null) {

return null;

}

return toObject(value);

}

});

return (object != null ? new SimpleValueWrapper(object) : null);

}



@Override

public void put(Object key, Object value) {

System.out.println("put key");

final String keyf = key.toString();

final Object valuef = value;

final long liveTime = 86400;

redisTemplate.execute(new RedisCallback<Long>() {

public Long doInRedis(RedisConnection connection)

throws DataAccessException {

byte[] keyb = keyf.getBytes();

     byte[] valueb = toByteArray(valuef);

     connection.set(keyb, valueb);

     if (liveTime > 0) {

     connection.expire(keyb, liveTime);

}

return 1L;

}

});

}



private byte[] toByteArray(Object obj) {

byte[] bytes = null;

ByteArrayOutputStream bos = new ByteArrayOutputStream();

try {

ObjectOutputStream oos = new ObjectOutputStream(bos);

oos.writeObject(obj);

oos.flush();

bytes = bos.toByteArray();

oos.close();

bos.close();

     }catch (IOException ex) {

     ex.printStackTrace();

     }

     return bytes;

     }



     private Object toObject(byte[] bytes) {

Object obj = null;

     try {

     ByteArrayInputStream bis = new ByteArrayInputStream(bytes);

     ObjectInputStream ois = new ObjectInputStream(bis);

     obj = ois.readObject();

     ois.close();

     bis.close();

     } catch (IOException ex) {

     ex.printStackTrace();

     } catch (ClassNotFoundException ex) {

     ex.printStackTrace();

     }

     return obj;

}



@Override

public void evict(Object key) {

     System.out.println("del key");

final String keyf = key.toString();

redisTemplate.execute(new RedisCallback<Long>() {

public Long doInRedis(RedisConnection connection)

throws DataAccessException {

return connection.del(keyf.getBytes());

}

});

}



     @Override

     public void clear() {

         System.out.println("clear key");

     redisTemplate.execute(new RedisCallback<String>() {

     public String doInRedis(RedisConnection connection)

     throws DataAccessException {

     connection.flushDb();

     return "ok";

     }

     });

     }



        public <T> T get(Object key, Class<T> type) {

            return null;

        }



        public ValueWrapper putIfAbsent(Object key, Object value) {

            return null;

        }



}





5、service 使用注解开发





@Service

public class PersonService{



    @Autowired

    public PersonMapper personMapper;



    @Cacheable(value="common",key="'id_'+#id")

    public Person selectByPrimaryKey(long id) {

        System.out.println("======================");

        System.out.println("======================");

        System.out.println("======================");

        return personMapper.selectByPrimaryKey(id);

    }





    @CachePut(value="common",key="#person.getName()")

    public void insertSelective(Person person) {

        personMapper.insertSelective(person);

        System.out.println("########################");

        System.out.println("########################");

        System.out.println("########################");

    }



    @CacheEvict(value="common",key="'id_'+#id")

    public void deleteByPrimaryKey(long id) {

        personMapper.deleteByPrimaryKey(id);

        System.out.println("******************************");

        System.out.println("******************************");

        System.out.println("******************************");

    }



}

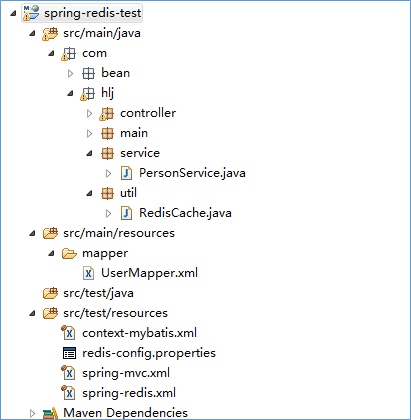

6、代码位置





2、spring 集群 注解



1、导入依赖包



2、集群 信息 redis-cluster.properties



redis.host0=192.168.1.235

redis.port0=7000

redis.host1=192.168.1.235

redis.port1=7001

redis.host2=192.168.1.235

redis.port2=7002

redis.host3=192.168.1.235

redis.port3=7003

redis.host4=192.168.1.235

redis.port4=7004

redis.host5=192.168.1.235

redis.port5=7005





redis.maxRedirects=3

redis.maxIdle=30

redis.maxTotal=100

redis.minIdle=5

redis.maxWaitMillis=30000

redis.testOnBorrow=true

redis.testOnReturn=true

redis.testWhileIdle=true

redis.timeout=3000









3、编辑spring redis 配置文件



1、 相当于jedis连接工厂中添加的是一个集群信息，其他的和单片机其实是一样的



<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xmlns:cache="http://www.springframework.org/schema/cache"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.2.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.2.xsd

http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd

http://www.springframework.org/schema/cache

http://www.springframework.org/schema/cache/spring-cache-4.2.xsd">



    <!-- 引入配置文件 -->

<bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">

<property name="location" value="classpath:properties/redis-cluster.properties" />

</bean>



    <!-- 启用缓存注解功能，这个是必须的，否则注解不会生效，另外，该注解一定要声明在spring主配置文件中才会生效 -->

<cache:annotation-driven cache-manager="cacheManager" />



    <bean id="jedisPoolConfig" class="redis.clients.jedis.JedisPoolConfig">

        <property name="maxTotal" value="${redis.maxTotal}" />

<!--最大空闲数-->

<property name="maxIdle" value="${redis.maxIdle}" />

<!--最大建立连接等待时间-->

<property name="maxWaitMillis" value="${redis.maxWaitMillis}" />

<!--是否在从池中取出连接前进行检验,如果检验失败,则从池中去除连接并尝试取出另一个-->

<property name="testOnBorrow" value="${redis.testOnBorrow}" />

</bean>





     <bean id="redisClusterConfiguration" class="org.springframework.data.redis.connection.RedisClusterConfiguration">

        <property name="maxRedirects" value="${redis.maxRedirects}"></property>

        <property name="clusterNodes">

            <set>

             <bean class="org.springframework.data.redis.connection.RedisNode">

             <constructor-arg name="host"

value="${redis.host0}">

</constructor-arg>

                 <constructor-arg name="port"

value="${redis.port0}">

</constructor-arg>

             </bean>

                <bean class="org.springframework.data.redis.connection.RedisNode">

             <constructor-arg name="host"

value="${redis.host1}">

</constructor-arg>

                 <constructor-arg name="port"

value="${redis.port1}">

</constructor-arg>

             </bean>

>

                <bean class="org.springframework.data.redis.connection.RedisNode">

             <constructor-arg name="host"

value="${redis.host2}">

</constructor-arg>

                 <constructor-arg name="port"

value="${redis.port2}">

</constructor-arg>

             </bean>

            <bean class="org.springframework.data.redis.connection.RedisNode">

             <constructor-arg name="host"

value="${redis.host2}">

</constructor-arg>

                 <constructor-arg name="port"

value="${redis.port2}">

</constructor-arg>

             </bean>

                <bean class="org.springframework.data.redis.connection.RedisNode">

             <constructor-arg name="host"

value="${redis.host3}">

</constructor-arg>

                 <constructor-arg name="port"

value="${redis.port3}">

</constructor-arg>

             </bean>

                <bean class="org.springframework.data.redis.connection.RedisNode">

             <constructor-arg name="host"

value="${redis.host4}">

</constructor-arg>

                 <constructor-arg name="port"

value="${redis.port5}">

</constructor-arg>

             </bean>

            </set>

        </property>

    </bean>







<bean id="jeidsConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory" >

        <constructor-arg name="clusterConfig" ref="redisClusterConfiguration"/>

<constructor-arg name="poolConfig" ref="jedisPoolConfig"/>

<property name="password" value="${redis.password}" />

<property name="timeout" value="${redis.timeout}" />

    </bean>





    <bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">

     <!-- 如果不配置Serializer，那么存储的时候缺省使用String，

如果用User类型存储，那么会提示错误User can't cast to String！！ -->

<property name="connectionFactory" ref="jeidsConnectionFactory" />



<property name="keySerializer" >

<bean class="org.springframework.data.redis.serializer.StringRedisSerializer" />

</property>

<property name="valueSerializer" >

<bean class="org.springframework.data.redis.serializer.JdkSerializationRedisSerializer" />

</property>

<property name="hashKeySerializer">

<bean class="org.springframework.data.redis.serializer.StringRedisSerializer"/>

</property>

<property name="hashValueSerializer">

<bean class="org.springframework.data.redis.serializer.JdkSerializationRedisSerializer"/>

</property>



<!-- spring自己的缓存管理器，这里定义了缓存位置名称 ，即注解中的value -->

<bean id="cacheManager" class="org.springframework.cache.support.SimpleCacheManager">

<property name="caches">

<set>

<!-- 这里可以配置多个redis -->

<bean class="com.redis.redis.RedisCache">

<property name="redisTemplate" ref="redisTemplate" />

<property name="name" value="defaultCache"/>

</bean>

</set>

</property>

</bean>



</beans>





4、代码位置





3、主从复制，哨兵模式





1.、主从复制配置文件 （这里是添加了两个redis ，一个是主，一个是slave，下面的mymaster 具体看主从复制那个教程）



# Redis settings

#sentinel1的IP和端口

sentinel1.host=192.168.1.233

sentinel1.port=26379

#sentinel2的IP和端口

sentinel2.host=192.168.1.233

sentinel2.port=26378



im.hs.server.redis.maxIdle=500

#最大连接数，超过此连接时操作redis会报错

im.hs.server.redis.maxTotal=5000

im.hs.server.redis.maxWaitTime=1000

im.hs.server.redis.testOnBorrow=true

#最小闲置连接数，spring启动的时候自动建立该数目的连接供应用程序使用，不够的时候会申请。

im.hs.server.redis.minIdle=300

im.hs.server.redis.sentinel.masterName=mymaster





2、spring redis 配置文件（这里没有添加缓存管理器）



<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xmlns:tx="http://www.springframework.org/schema/tx"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.0.xsd

http://www.springframework.org/schema/tx

http://www.springframework.org/schema/tx/spring-tx-4.0.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.0.xsd

http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">







<bean id="poolConfig" class="redis.clients.jedis.JedisPoolConfig">

         <property name="maxTotal" value="${im.hs.server.redis.maxTotal}" />

         <property name="minIdle" value="${im.hs.server.redis.minIdle}" />

         <property name="maxWaitMillis" value="${im.hs.server.redis.maxWaitTime}" />

         <property name="maxIdle" value="${im.hs.server.redis.maxIdle}" />

         <property name="testOnBorrow" value="${im.hs.server.redis.testOnBorrow}" />

         <property name="testOnReturn" value="true" />

         <property name="testWhileIdle" value="true" />

         </bean>



<bean id="redisSentinelConfiguration" class="org.springframework.data.redis.connection.RedisSentinelConfiguration">

         <property name="master">

         <bean class="org.springframework.data.redis.connection.RedisNode">

         <property name="name" value="${im.hs.server.redis.sentinel.masterName}"/>

         </bean>

         </property>

         <property name="sentinels">

         <set>

         <bean class="org.springframework.data.redis.connection.RedisNode">

         <constructor-arg name="host" value="${sentinel1.host}"></constructor-arg>

         <constructor-arg name="port" value="${sentinel1.port}"></constructor-arg>

         </bean>

         <bean class="org.springframework.data.redis.connection.RedisNode">

         <constructor-arg name="host" value="${sentinel2.host}"></constructor-arg>

         <constructor-arg name="port" value="${sentinel2.port}"></constructor-arg>

         </bean>

         </set>

         </property>

     </bean>



        <bean id="jeidsConnectionFactory"

            class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">

<constructor-arg name="sentinelConfig"

ref="redisSentinelConfiguration">

</constructor-arg>

<constructor-arg name="poolConfig" ref="poolConfig"></constructor-arg>

        </bean>





        <bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">

         <property name="connectionFactory" ref="jeidsConnectionFactory"/>

        </bean>









</beans>

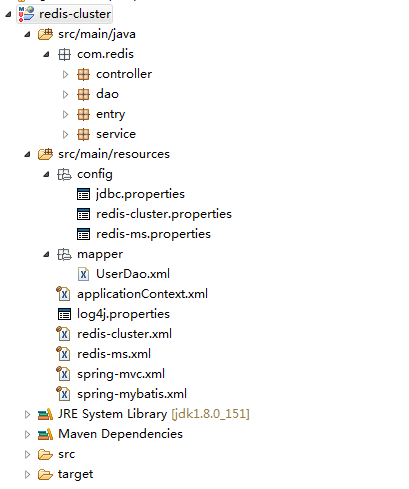

3、代码位置





posted @ 2017-12-11 09:22  HealerJean  阅读(241)  评论(0)  编辑  收藏  举报
