SpringCloud Hoxton版 + SpringCloud alibaba学习笔记（7）-- SpringCloud Sleuth分布式请求链路追踪

上一篇：SpringCloud Hoxton版 + SpringCloud alibaba学习笔记（6）-- SpringCloud Stream消息驱动

一、概述

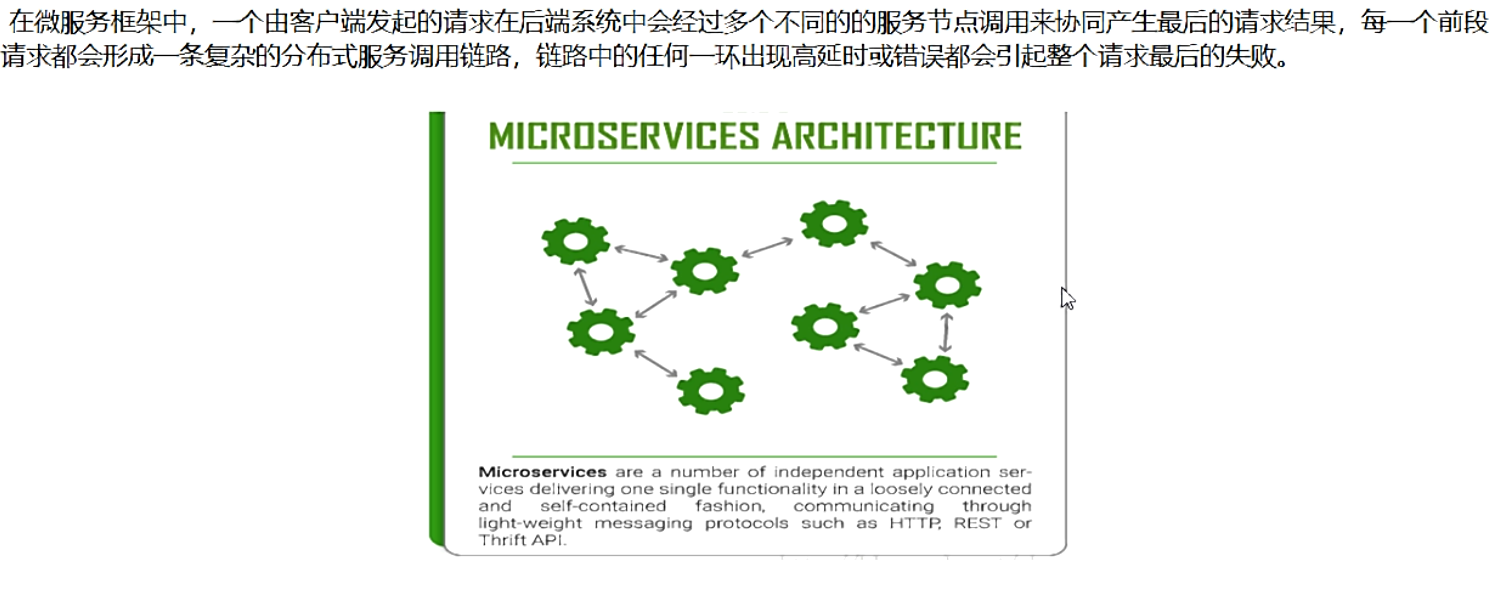

1、为什么会出现这个技术？需要解决哪些问题？

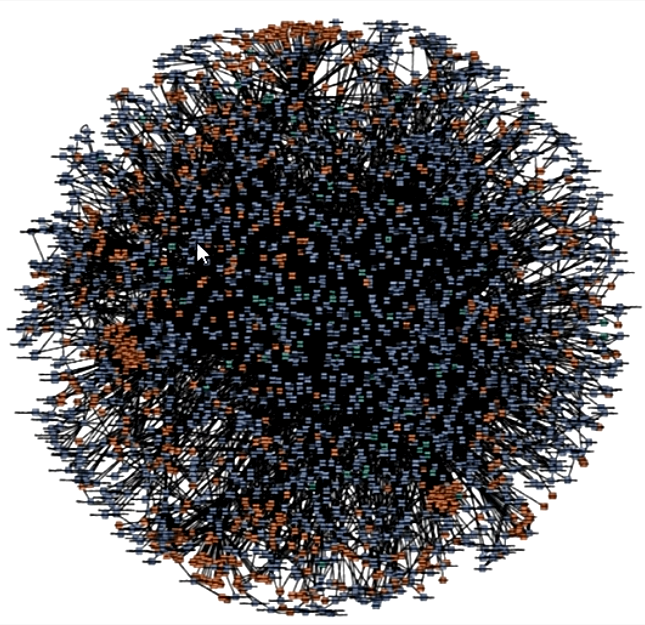

问题

2、是什么

①、https://github.com/spring-cloud/spring-cloud-sleuth

②、Spring Cloud Sleuth提供了一套完整的服务跟踪的解决方案

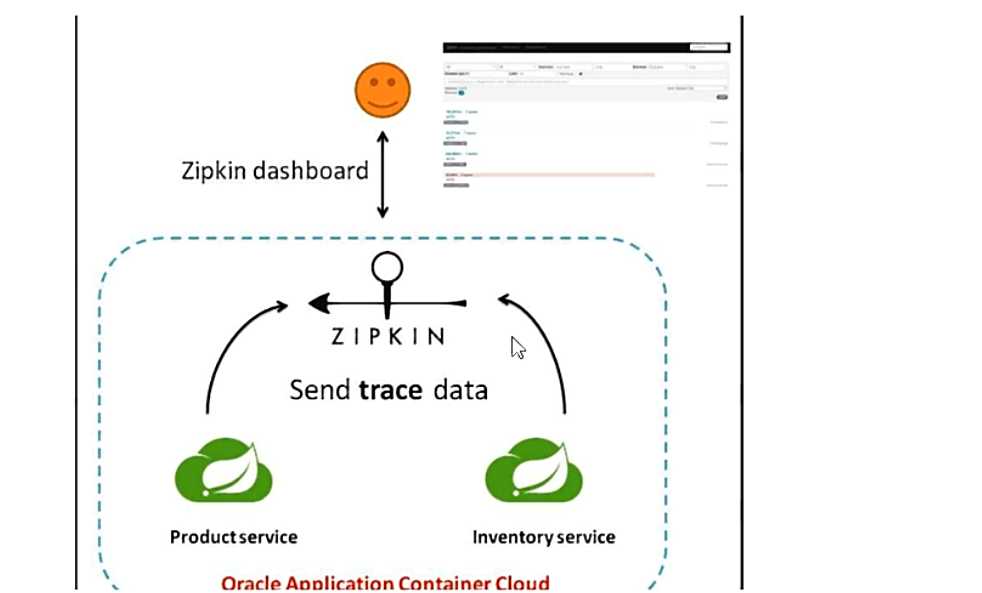

③、在分布式系统中提供追踪解决方案并且兼容支持了zipkin

3、解决

二、搭建链路监控步骤

1、zipkin

①、下载

SpringCloud从F版起已不需要自己构建Zipkin server了，只需要调用jar包即可
https://dl.bintray.com/openzipkin/maven/io/zipkin/java/zipkin-server/
zipkin-server-2.12.9.exec.jar

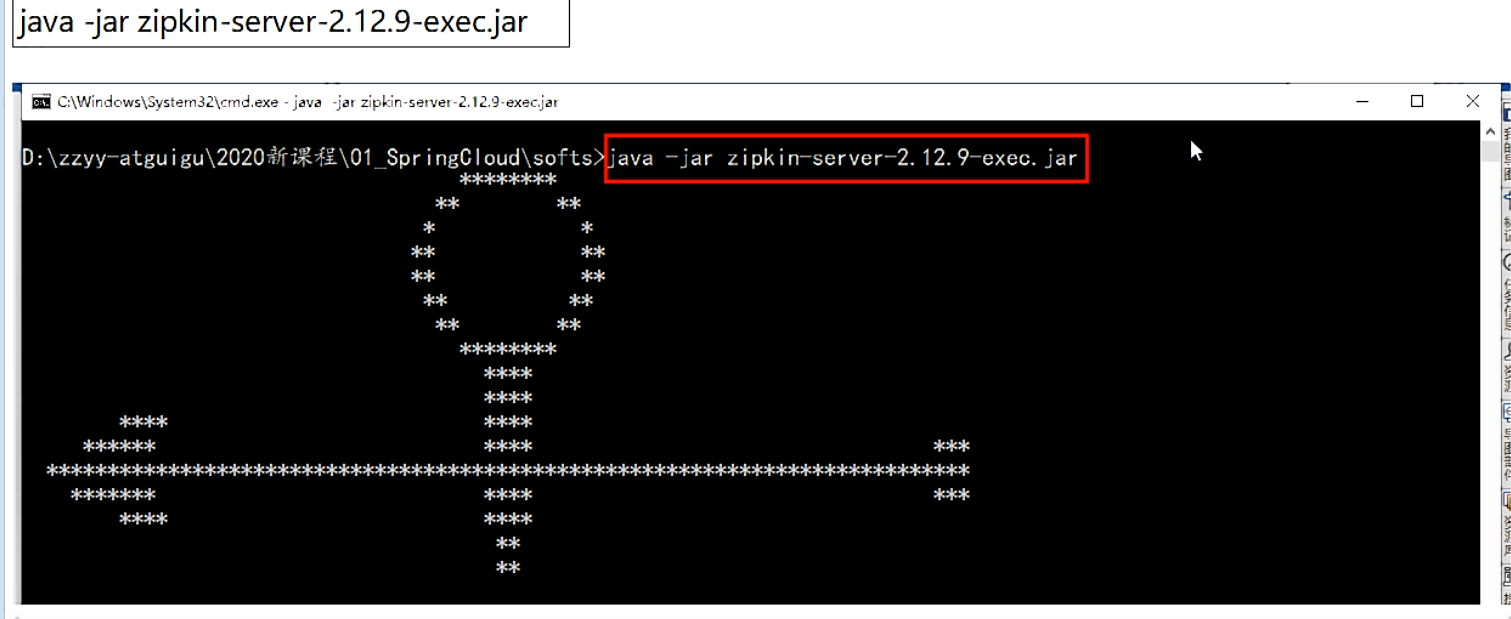

②、运行jar

java -jar zipkin-server-2.12.9-exec.jar

③、运行控制台

http://localhost:9411/zipkin/

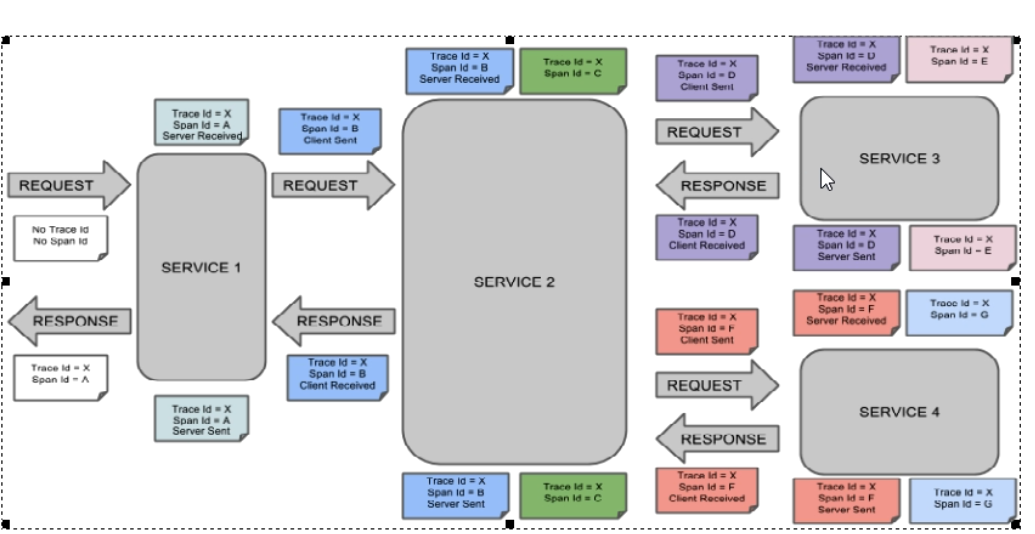

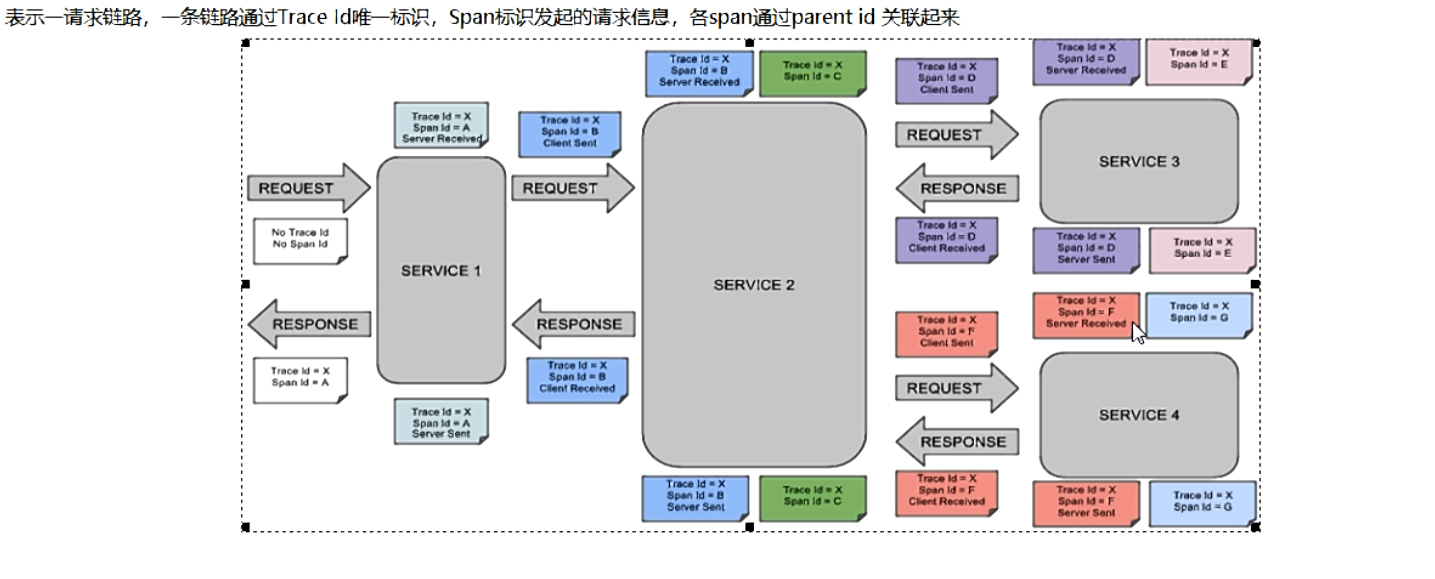

完整的调用链路


Trace:类似于树结构的Span集合，表示一条调用链路，存在唯一标识
span:表示调用链路来源，通俗的理解span就是一次请求信息

2、服务提供者

①、cloud-provider-payment8001

②、POM

<!--包含了sleuth+zipkin-->
<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-zipkin</artifactId>
</dependency>

③、YML

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  zipkin:
    base-url: http://localhost:9411
  sleuth:
    sampler:
    probability: 1
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url:
    username: root
    password:

mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: com.atguigu.springcloud.entities


eureka:
  client:
    register-with-eureka: true
    fetchRegistry: true
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  #集群版
  instance:
    instance-id: payment8001
    prefer-ip-address: true

④、业务类PaymentController

package com.atguigu.springcloud.controller;

import com.atguigu.springcloud.entities.CommonResult;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.web.bind.annotation.*;
import org.springframework.cloud.client.discovery.DiscoveryClient;

import javax.annotation.Resource;
import java.util.List;
import java.util.concurrent.TimeUnit;


@RestController
@Slf4j
public class PaymentController
{
    @Resource
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;

    @Resource
    private DiscoveryClient discoveryClient;

    @PostMapping(value = "/payment/create")
    public CommonResult create(@RequestBody Payment payment)
    {
        int result = paymentService.create(payment);
        log.info("*****插入结果："+result);

        if(result > 0)
        {
            return new CommonResult(200,"插入数据库成功,serverPort: "+serverPort,result);
        }else{
            return new CommonResult(444,"插入数据库失败",null);
        }
    }

    @GetMapping(value = "/payment/get/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id)
    {
        Payment payment = paymentService.getPaymentById(id);

        if(payment != null)
        {
            return new CommonResult(200,"查询成功,serverPort:  "+serverPort,payment);
        }else{
            return new CommonResult(444,"没有对应记录,查询ID: "+id,null);
        }
    }

    @GetMapping(value = "/payment/discovery")
    public Object discovery()
    {
        List<String> services = discoveryClient.getServices();
        for (String element : services) {
            log.info("*****element: "+element);
        }

        List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
        for (ServiceInstance instance : instances) {
            log.info(instance.getServiceId()+"\t"+instance.getHost()+"\t"+instance.getPort()+"\t"+instance.getUri());
        }

        return this.discoveryClient;
    }

    @GetMapping(value = "/payment/lb")
    public String getPaymentLB()
    {
        return serverPort;
    }

    @GetMapping(value = "/payment/feign/timeout")
    public String paymentFeignTimeout()
    {
        // 业务逻辑处理正确，但是需要耗费3秒钟
        try { TimeUnit.SECONDS.sleep(3); } catch (InterruptedException e) { e.printStackTrace(); }
        return serverPort;
    }

    @GetMapping("/payment/zipkin")
    public String paymentZipkin()
    {
        return "hi ,i'am paymentzipkin server fall back，welcome to atguigu，O(∩_∩)O哈哈~";
    }
}

3、服务消费者（调用方）

<!--包含了sleuth+zipkin-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-zipkin</artifactId>
</dependency>

①、cloud-consumer-order80

②、POM

 <!--包含了sleuth+zipkin-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zipkin</artifactId>
        </dependency>

③、YML

server:
  port: 80

spring:
    application:
        name: cloud-order-service
    zipkin:
      base-url: http://localhost:9411
    sleuth:
      sampler:
        probability: 1

eureka:
  client:
    #表示是否将自己注册进EurekaServer默认为true。
    register-with-eureka: false
    #是否从EurekaServer抓取已有的注册信息，默认为true。单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡
    fetchRegistry: true
    service-url:
      #单机
      #defaultZone: http://localhost:7001/eureka
      # 集群
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版

④、业务类OrderController

 // ====================> zipkin+sleuth
    @GetMapping("/consumer/payment/zipkin")
    public String paymentZipkin()
    {
        String result = restTemplate.getForObject("http://localhost:8001"+"/payment/zipkin/", String.class);
        return result;
    }

4、依次启动eureka7001/8001/80

80调用8001几次测试下

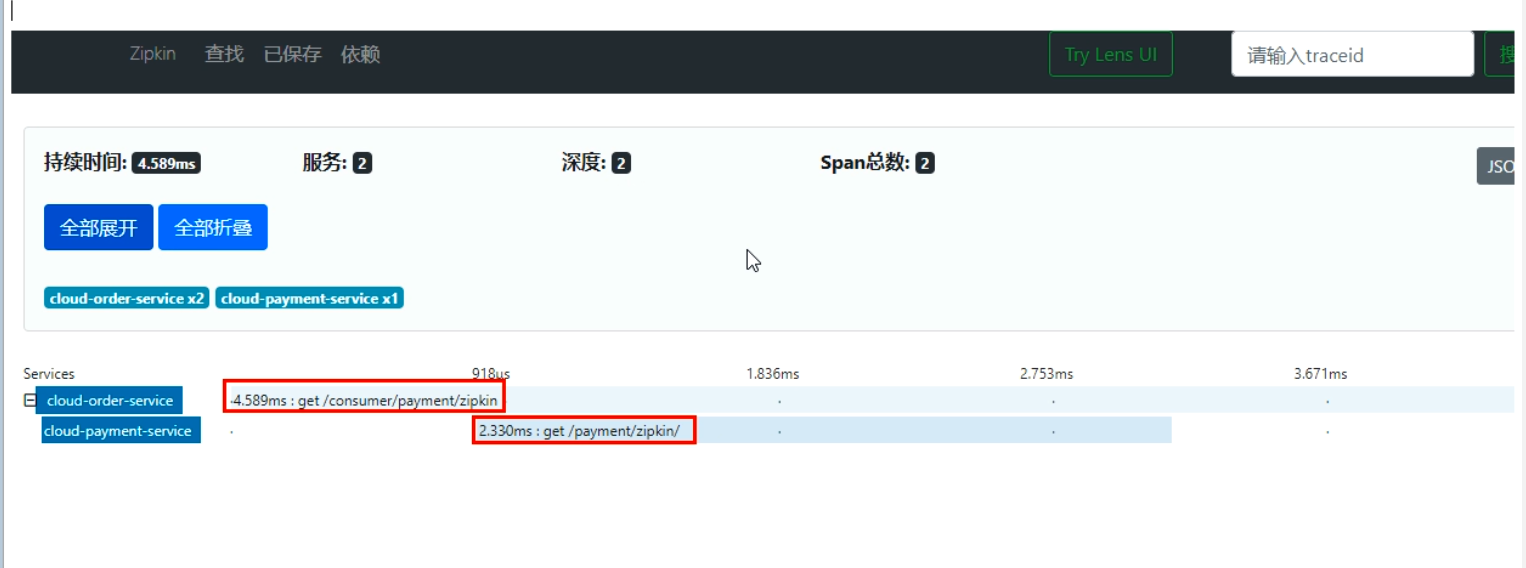

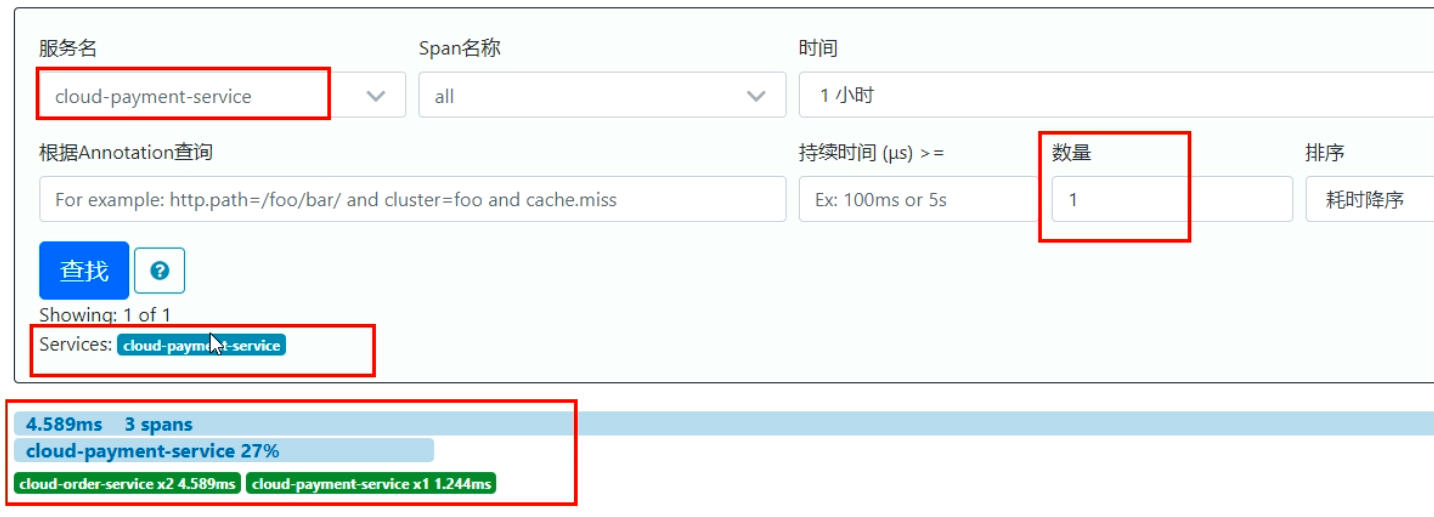

5、打开浏览器访问:http:localhost:9411

会出现以下界面

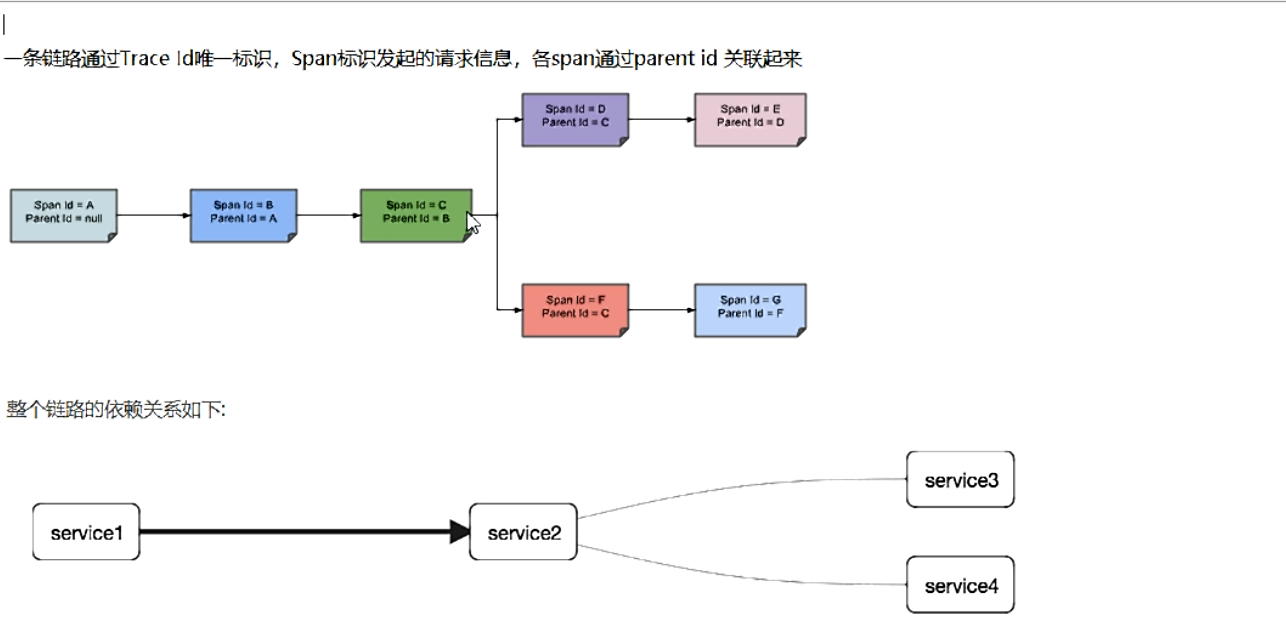

查看依赖关系
原理
