SpringCloud Hoxton版 + SpringCloud alibaba学习笔记（12）-- SpringCloud Alibaba Sentinel @SentinelResource

一、按资源名称限流+后续处理

1、启动Nacos成功

2、启动Sentinel成功

3、Module

①、cloudalibaba-sentinel-service8401

②、POM

<dependency>
    <groupId>com.atguigu.springcloud</groupId>
    <artifactId>cloud-api-commons</artifactId>
    <version>${project.version}</version>
</dependency>

③、YML

server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:8080
        port: 8719  #默认8719，假如被占用了会自动从8719开始依次+1扫描。直至找到未被占用的端口

management:
  endpoints:
    web:
      exposure:
        include: '*'

④、业务类RateLimitController

package com.atguigu.springcloud.alibaba.controller;

import com.alibaba.csp.sentinel.annotation.SentinelResource;
import com.alibaba.csp.sentinel.slots.block.BlockException;

import com.atguigu.springcloud.entities.*;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;


@RestController
public class RateLimitController
{
    @GetMapping("/byResource")
    @SentinelResource(value = "byResource",blockHandler = "handleException")
    public CommonResult byResource()
    {
        return new CommonResult(200,"按资源名称限流测试OK",new Payment(2020L,"serial001"));
    }
    public CommonResult handleException(BlockException exception)
    {
        return new CommonResult(444,exception.getClass().getCanonicalName()+"\t 服务不可用");
    }


⑤、主启动

package com.atguigu.springcloud.alibaba;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;


@EnableDiscoveryClient
@SpringBootApplication
public class MainApp8401
{
    public static void main(String[] args) {
        SpringApplication.run(MainApp8401.class, args);
    }

}

4、配置流控规则

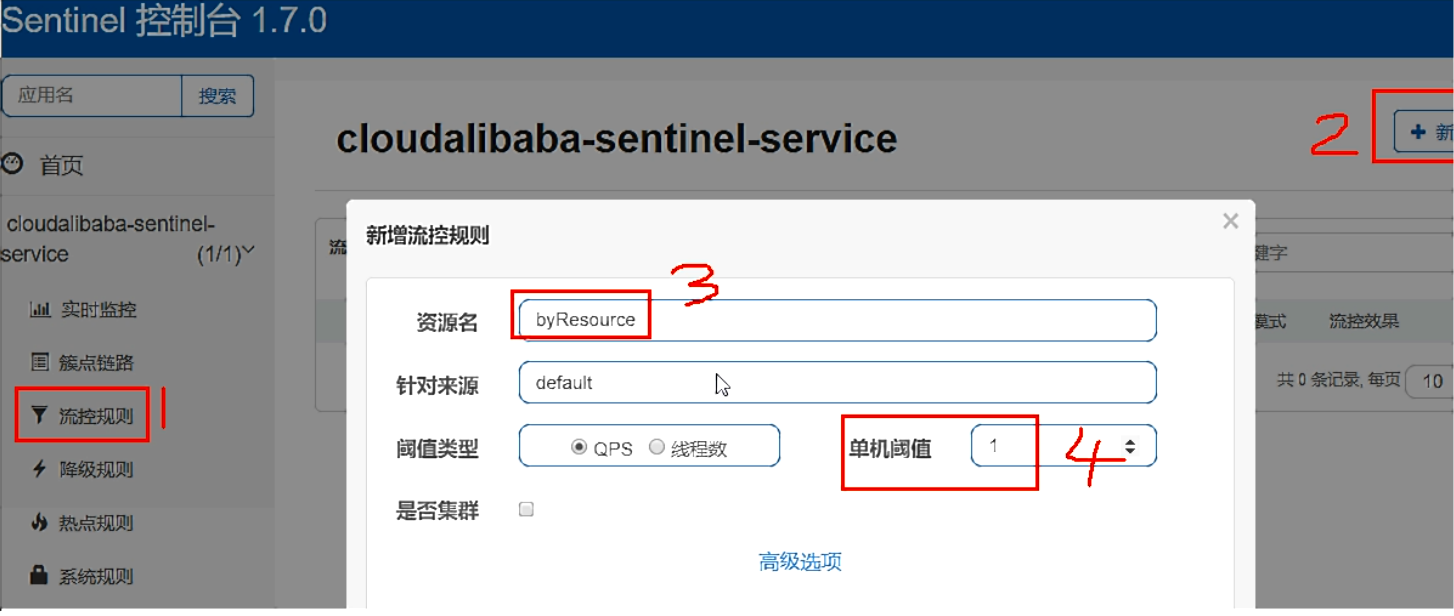

①、配置步骤

②、图形配置和代码关系

③、表示1秒钟内查询次数大于1，就跑到我们自定义的处流，限流

5、测试

1秒钟点击1下，OK
超过上述问题，疯狂点击，返回了自己定义的限流处理信息，限流发送

6、额外问题

此时关闭微服务8401看看
Sentinel控制台，流控规则消失了？？？？？
临时/持久？

二、按照Url地址限流+后续处理

1、通过访问的URL来限流，会返回Sentinel自带默认的限流处理信息

2、业务类RateLimitController

@GetMapping("/rateLimit/byUrl")
@SentinelResource(value = "byUrl")
public CommonResult byUrl()
{
    return new CommonResult(200,"按url限流测试OK",new Payment(2020L,"serial002"));
}

3、访问一次

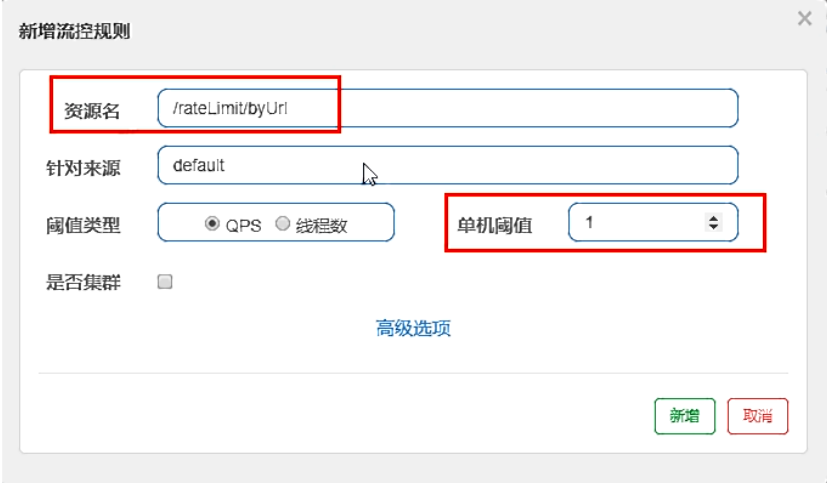

4、Sentinel控制台配置

5、测试

疯狂点击http://localhost:8401/rateLimit/byUrl

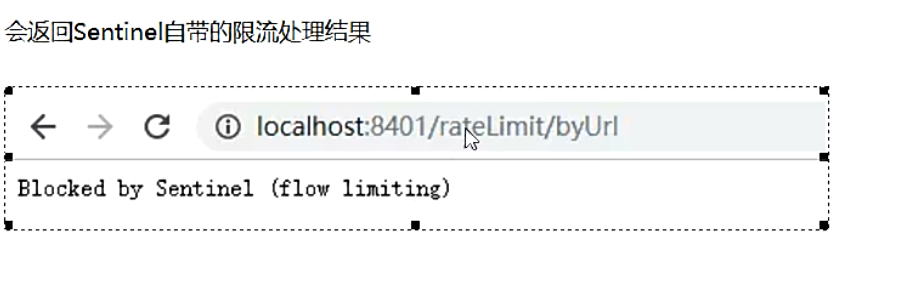

结果

三、上面兜底方法面临的问题

四、客户自定义限流处理逻辑

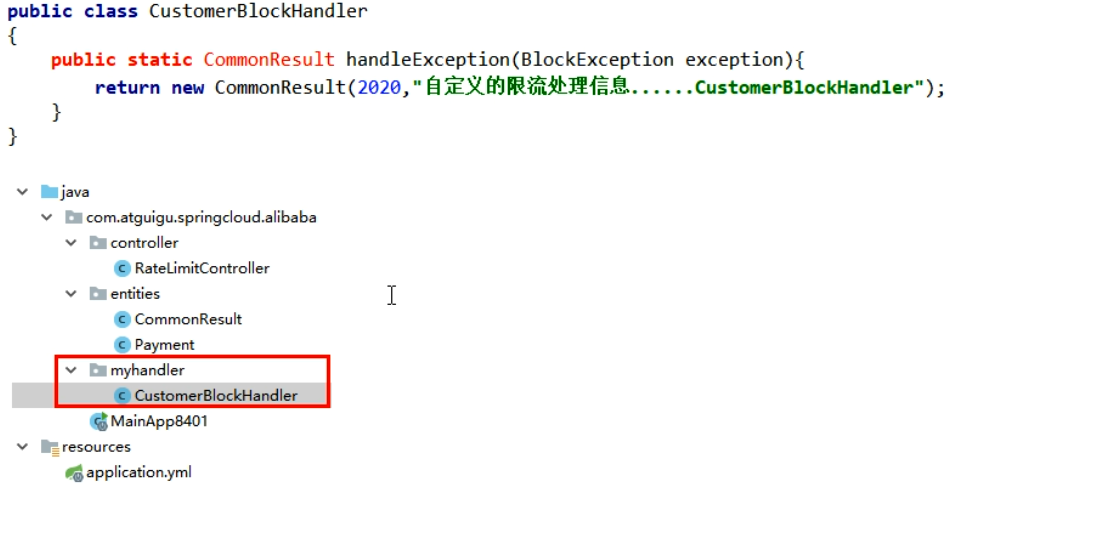

1、创建customerBlockHandler类用于自定义限流处理逻辑

2、自定义限流处理类

CustomerBlockHandler

package com.atguigu.springcloud.alibaba.myhandler;

import com.alibaba.csp.sentinel.slots.block.BlockException;
import com.atguigu.springcloud.entities.*;

public class CustomerBlockHandler {

    public static CommonResult handleException(BlockException exception) {
        return new CommonResult(2020, "自定义限流处理信息....CustomerBlockHandler");

    }
}

3、RateLimitController

@GetMapping("/rateLimit/customerBlockHandler")
@SentinelResource(value = "customerBlockHandler",
        blockHandlerClass = CustomerBlockHandler.class,
        blockHandler = "handlerException2")
public CommonResult customerBlockHandler()
{
    return new CommonResult(200,"按客戶自定义",new Payment(2020L,"serial003"));
}

4、启动微服务后先调用一次

http://localhost:8401/rateLimit/customerBlockHandler

5、Sentinel控制台配置

6、测试后我们自定义的出来了

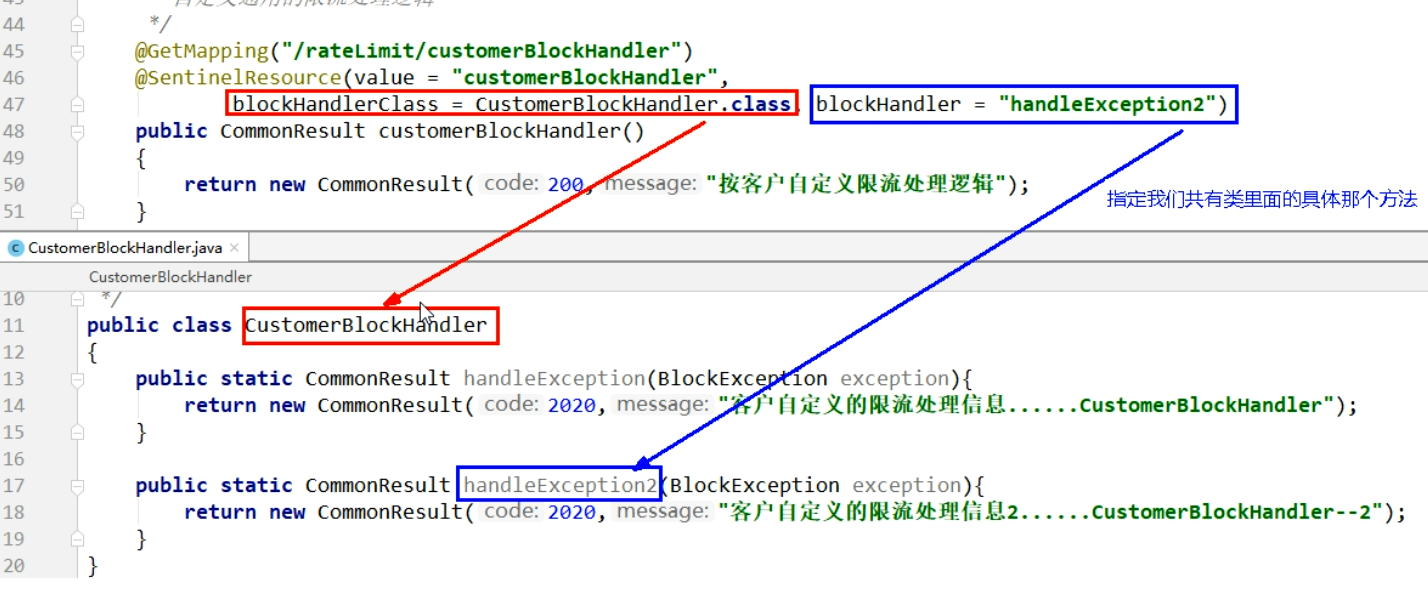

7、进一步说明

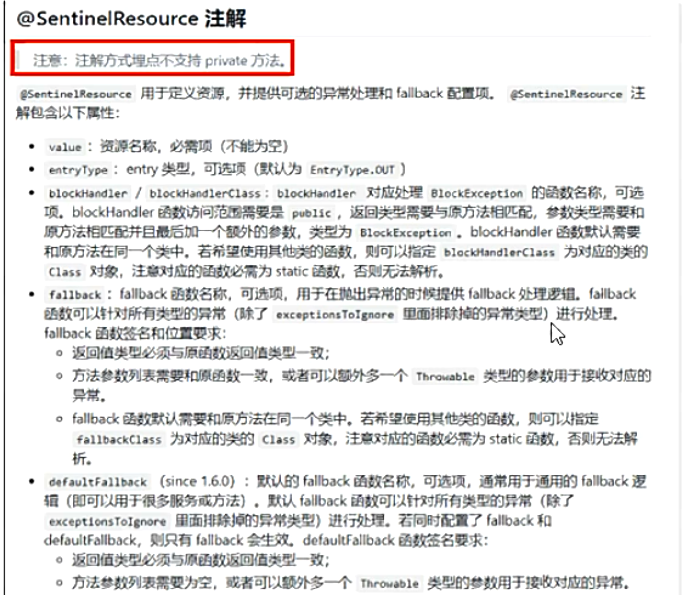

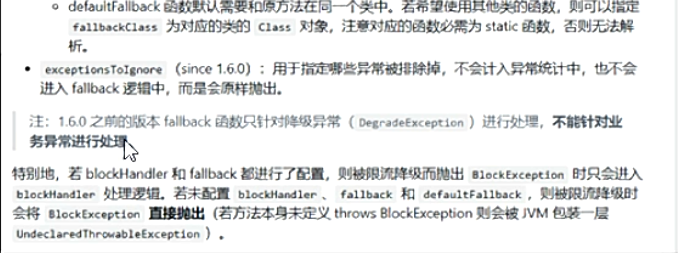

五、更多注解属性说明

1、多说一句

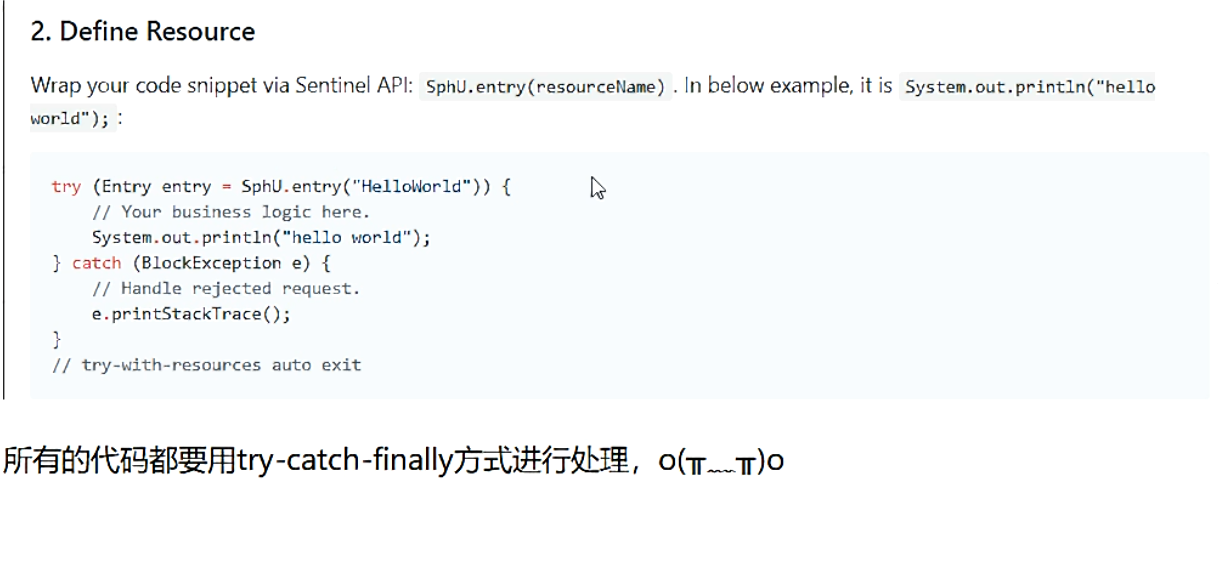

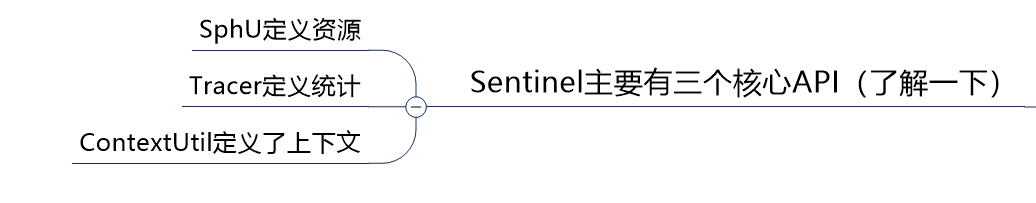

2、Sentinel主要有三个核心API（了解一下）
