SpringCloud 架构搭建

创建maven聚合项目

pom.xml 配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cloud-test</groupId>
    <artifactId>cloud-test</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>
    <name>父工程</name>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.6.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Finchley.SR2</spring-cloud.version>
        <mybatis.starter.version>1.3.2</mybatis.starter.version>
        <mapper.starter.version>2.0.2</mapper.starter.version>
        <druid.starter.version>1.1.9</druid.starter.version>
        <mysql.version>5.1.32</mysql.version>
        <pageHelper.starter.version>1.2.3</pageHelper.starter.version>
        <leyou.latest.version>1.0.0-SNAPSHOT</leyou.latest.version>
        <fastDFS.client.version>1.26.1-RELEASE</fastDFS.client.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!-- springCloud -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- mybatis启动器 -->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.starter.version}</version>
            </dependency>
            <!-- 通用Mapper启动器 -->
            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper-spring-boot-starter</artifactId>
                <version>${mapper.starter.version}</version>
            </dependency>
            <!-- 分页助手启动器 -->
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper-spring-boot-starter</artifactId>
                <version>${pageHelper.starter.version}</version>
            </dependency>
            <!-- mysql驱动 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!--FastDFS客户端-->
            <dependency>
                <groupId>com.github.tobato</groupId>
                <artifactId>fastdfs-client</artifactId>
                <version>${fastDFS.client.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>



创建Eureka服务注册模块

pom.xml 配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud-test</artifactId>
        <groupId>cloud-test</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <name>eureka注册中心</name>
    <artifactId>eureka-server</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
    </dependencies>

</project>



application.yml配置

server:
  port: 8761
eureka:
  instance:
    hostname: localhost  # 设置当前实例的主机名称
  client:
    registerWithEureka: false
    fetchRegistry: false
    serviceUrl:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/



启动类配置

@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(EurekaServerApplication.class);
    }
}

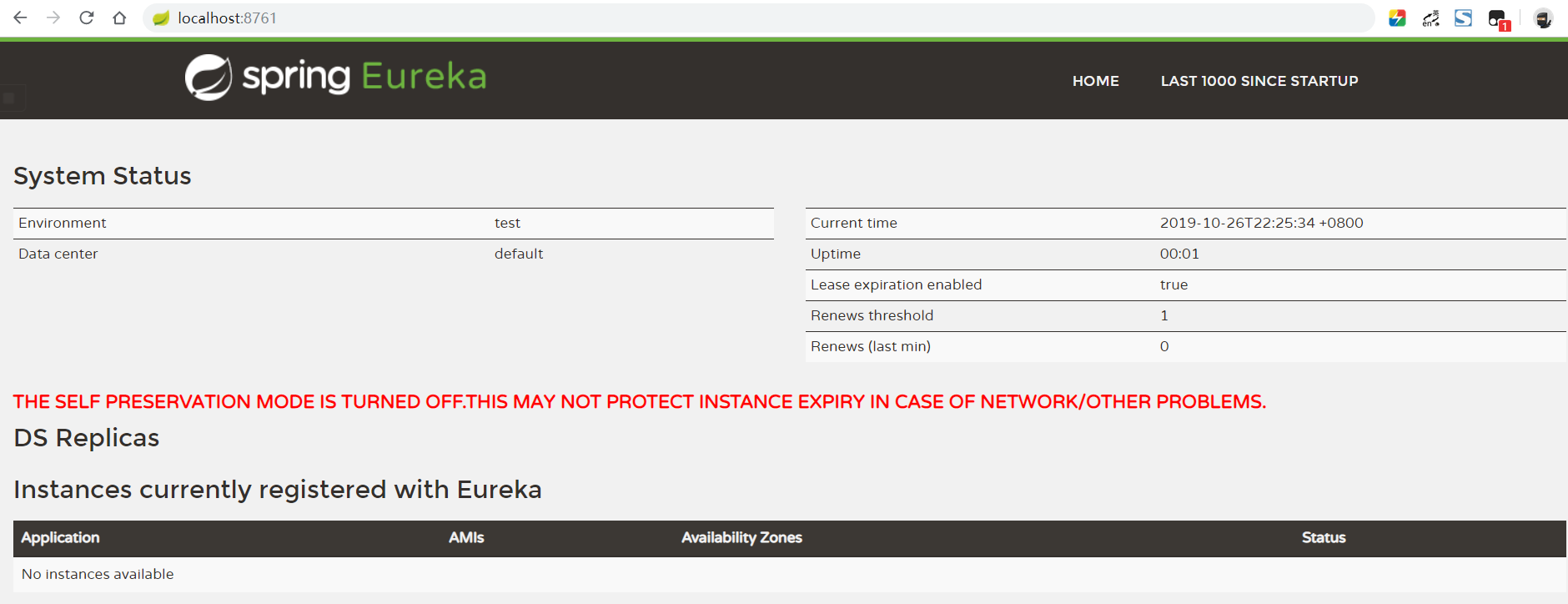

效果测试

成功但是还没有实例注册到eureka







创建生产者微服务

pom.xml配置文件

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!-- 热部署 -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
    </dependency>
    <!-- eureka客户端  -->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
</dependencies>



application.yml配置文件

server:
  port: 1000
spring:
  application:
    name: provider-1000
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/



启动类配置

@SpringBootApplication
@EnableDiscoveryClient
public class Provider1000 {
    public static void main(String[] args) {
        SpringApplication.run(Provider1000.class);
    }
}



测试效果

生产者微服务成功注册进了Eureka服务中



Ribbon 负载均衡

创建消费者微服务

pom.xml配置文件

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
    </dependency>
</dependencies>



application.yml配置文件

server:
  port: 2000
spring:
  application:
    name: consumer-ribbon-2000
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/



启动类配置

@SpringBootApplication
@EnableDiscoveryClient
public class ServiceRibbonApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServiceRibbonApplication.class);
    }

    @Bean
    @LoadBalanced /*添加负载均衡,默认会轮询调用提供者*/
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }

}



消费者微服务 Controller 层

@RestController
public class ConsumerController {

    @Resource
    RestTemplate restTemplate;

    @RequestMapping("/helloRibbon")
    public Map helloRibbon() {
        return restTemplate.getForObject("http://PROVIDER/hello", Map.class);
    }

}



两个生产者微服务application.yml配置文件

为了测试负载均衡将生产者的服务名改成相同的。

spring:
  application:
    name: provider



效果如下：

两个生产者微服务的 Controller 层

@RestController
public class ProviderController {

    @RequestMapping("/hello")
    public Map<String, Object> hello() {
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("name", "provider-1001");
        return map;
    }

}
@RestController
public class ProviderController {

    @RequestMapping("/hello")
    public Map<String, Object> hello() {
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("name", "provider-1002");
        return map;
    }

}



测试效果

默认以轮询的方式访问生产者。



Feign 负载均衡

创建消费者微服务

pom.xml配置文件

<dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-feign</artifactId>
            <version>1.4.2.RELEASE</version>
        </dependency>
</dependencies>



application.yml配置文件

server:
  port: 2000
spring:
  application:
    name: consumer-ribbon-2000
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/



启动类配置

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class ServiceRibbonApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServiceRibbonApplication.class);
    }
}



Controller

@RestController
public class ConsumerController {

    @Resource
    IService iService;

    @GetMapping("/helloFeign")
    public Map helloFeign() {
        return iService.helloFeign();
    }

}



接口

@FeignClient(value = "PROVIDER")/**通过value绑定微服务的名字来指定调用哪个服务*/
public interface IService {

    @GetMapping("/hello")/**调用PROVIDER微服务的@GetMapping("/toProvider/hello")*/
    public Map<String,Object> hello();

}



测试效果

和Ribbon 一样以轮询的方式实现了负载均衡。



Hystrix 熔断器

Netflix 熔断器是安装在服务消费者上的。所以我们需要做的就是在服务消费者上开启熔断器并配置。

Ribbon + Hystrix

pom.xml配置文件

<dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
        </dependency>

</dependencies>



application.yml配置文件

server:
  port: 2000
spring:
  application:
    name: consumer-ribbon-2000
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/



启动类

@SpringBootApplication
@EnableDiscoveryClient
@EnableHystrix
public class ServiceRibbonApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServiceRibbonApplication.class);
    }



控制层

    //断路器配置，当无法调用如下方法时，就会调用自定义的errorMethod方法
    @HystrixCommand(fallbackMethod = "errorMethod")
    @RequestMapping("/toRibbonHystrix/hello")
    public Map helloRibbonHystrix() {
        // 故意写错访问路径
        return restTemplate.getForObject("http://PROVIDER1/hello", Map.class);
    }

    public Map<String, Object> errorMethod() {
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("ribon", "ribon出错啦");
        return map;
    }



测试效果

---

Feign + Hystrix

pom.xml配置文件

Feign中已经引入了Hystrix 所以不需要依赖了。

<dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-feign</artifactId>
            <version>1.4.2.RELEASE</version>
        </dependency>

</dependencies>



application.yml配置文件

server:
  port: 2000
spring:
  application:
    name: consumer-ribbon-2000
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/
feign:
  hystrix:
    enabled: true # 开启hystrix熔断器



控制层

    @Resource
    IServiceHystrix iServiceHystrix;

    @GetMapping("/toFeignHystrix/hello")
    public Map helloFeignHystrix() {
        return iServiceHystrix.helloFeignHystrix();
    }



接口

/**故意写错访问路径*/
@FeignClient(value = "PROVIDER1",fallback = IServiceHystrixImpl.class)
public interface IServiceHystrix {

    @GetMapping("/hello")/**调用PROVIDER微服务的@GetMapping("/toProvider/hello")*/
    public Map<String,Object> helloFeignHystrix();
}



实现类

@Service
public class IServiceHystrixImpl implements IServiceHystrix {

    @Override
    public Map<String, Object> helloFeignHystrix() {
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("feign", "feign出错啦");
        return map;
    }
}



启动类

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class ServiceFeignApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServiceFeignApplication .class);
    }
}



测试效果



zuul路由网关配置

pom.xml配置文件

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
    </dependency>
</dependencies>



application.yml配置文件

server:
  port: 6001

#服务的名称
spring:
  application:
    name: zuul-gateway

#指定注册中心地址
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/



启动类

@EnableZuulProxy //开启网关路由
@EnableDiscoveryClient //Eureka客户端
@SpringBootApplication
public class GatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
    }
}



首先在消费者微服务（端口号2000）中添加一个接口：

@GetMapping("/login")
    public String login(){
        return "hello zuul";
    }



启动网关微服务（端口号6001）

访问 http://localhost:6001/consumer-ribbon-2000/login
注意： 默认路由规则 = 域名 + 端口 + 对应服务名(spring.application.name) + 接口地址

访问成功，证明网关微服务已启动成功。

自定义路由规则

#自定义路由映射
zuul:
  routes:
    my-route: # 标识 代表一组 路由名称 随便起一个就好了 没有任何意义,如果没有配置 和service-id是一样的
      service-id: consumer-ribbon-2000 # 微服务的名字 要被路由的微服务
      path: /zuuls/** # url地址



访问自定义路由规则路径：http://localhost:6001/zuuls/login

通过网关路由，在浏览器网址中访问网关项目的域名+端口号+路由规则，即可访问到不同域名+端口号下的各个微服务了。
