.Net6简单使用AspNetCoreRateLimit来限流

1：nuget包install

2:主要code

using AspNetCoreRateLimit;
using Autofac;
using Autofac.Core;
using Autofac.Extensions.DependencyInjection;
using Jason.TestDemo.WebApi;
using Microsoft.AspNetCore.WebSockets;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Options;
using Microsoft.OpenApi.Models;
using Swashbuckle.AspNetCore.Filters;

var builder = WebApplication.CreateBuilder(args);
// Add services to the container.


builder.Services.AddControllers().AddNewtonsoftJson(setupAction =>
{
    //AddNewtonsoftJson 导入Microsoft.aspnetcore.Mvc.NewtonsoftJson来加入的
    setupAction.UseCamelCasing(true);
    setupAction.SerializerSettings.DateFormatString = "yyyy-MM-dd HH:mm:ss";
});


// 存储IP计数器及配置规则
builder.Services.AddMemoryCache();
//load general configuration from appsettings.json
builder.Services.Configure<IpRateLimitOptions>(builder.Configuration.GetSection("IpRateLimiting"));
//load ip rules from appsettings.json
builder.Services.Configure<IpRateLimitPolicies>(builder.Configuration.GetSection("IpRateLimitPolicies"));
builder.Services.AddInMemoryRateLimiting();
//这两个不要忘记注入
builder.Services.AddScoped<IHttpContextAccessor, HttpContextAccessor>();
builder.Services.AddSingleton<IRateLimitConfiguration, RateLimitConfiguration>();

//builder.Services.AddDistributedRateLimiting().AddDistributedSqlServerCache(options =>
//{
//    //TrustServerCertificate=true  加入这个是由于下面，
//    //SqlException: A connection was successfully established with the server, but then an error occurred during the login process. (provider: SSL Provider, error: 0 - 证书链是由不受信任的颁发机构颁发的。)
//    options.ConnectionString = "Server=XB-202209190018; Database=testdb; user=zrf; password=zrf123456@;TrustServerCertificate=true ";
//    options.SchemaName = "dbo";
//    options.DefaultSlidingExpiration = TimeSpan.FromSeconds(30);
//    options.ExpiredItemsDeletionInterval = TimeSpan.FromMinutes(30);
//   // options.TableName = "iplimittab";

//});


builder.Services.AddWebSockets(config =>
{
    config.KeepAliveInterval = TimeSpan.FromMinutes(5);
});

// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen(op =>
{

    op.SwaggerDoc("v1", new OpenApiInfo { Title = "Jason Soft", Version = "v1", Description = "Json综合管理平台WebApi V1" });

    string basePath = AppDomain.CurrentDomain.BaseDirectory;
    string[] files = Directory.GetFiles(Path.Combine(basePath, "SwaggerXml"), "*.xml");
    foreach (string file in files)
        op.IncludeXmlComments(file);

    //../Jason.TestDemo.WebApi/SwaggerXml/JasonModels.xml
    op.OperationFilter<SecurityRequirementsOperationFilter>();
    //region Token绑定到ConfigureServices，swagger右上角显示Token输入框
    op.AddSecurityDefinition("oauth2", new OpenApiSecurityScheme
    {
        Description = "JWT授权(数据将在请求头中进行传输) 直接在下框中输入Bearer {token}（注意两者之间是一个空格）\"",
        Name = "Authorization",//jwt默认的参数名称
        In = ParameterLocation.Header,//jwt默认存放Authorization信息的位置(请求头中)
        Type = SecuritySchemeType.ApiKey
    });
});

builder.Host.UseServiceProviderFactory(new AutofacServiceProviderFactory()).ConfigureContainer<ContainerBuilder>(builder =>
{
    builder.RegisterModule<AutoFacContainerInit>();
});

var app = builder.Build();


//使用Ip限流中间件
app.UseIpRateLimiting();
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}
app.UseWebSockets();
//app.UseHttpsRedirection();
app.UseAuthentication();
app.UseAuthorization();
app.MapControllers();
app.Run();

3：appsetting中配置

  "IpRateLimiting": {
    //false则全局将应用限制，并且仅应用具有作为端点的规则* 。 true则限制将应用于每个端点，如{HTTP_Verb}{PATH}
    "EnableEndpointRateLimiting": false,
    //false则拒绝的API调用不会添加到调用次数计数器上
    "StackBlockedRequests": false, //注意这个配置，表示获取用户端的真实IP，我们的线上经过负载后是 X-Forwarded-For，而测试服务器没有，所以是X-Real-IP
    "RealIpHeader": "X-Real-IP",
    "ClientIdHeader": "X-ClientId",
    "HttpStatusCode": 200,
    "QuotaExceededResponse": {

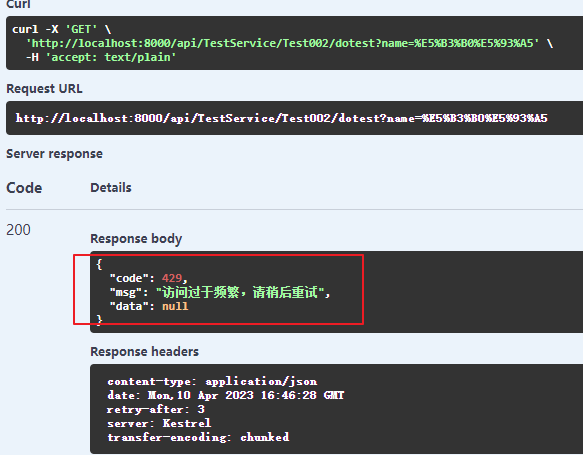

      "Content": "{{\"code\":429,\"msg\":\"访问过于频繁，请稍后重试\",\"data\":null}}",
      "ContentType": "application/json",
      "StatusCode": 200
    },
    "IpWhitelist": [],
    "EndpointWhitelist": [],
    "ClientWhitelist": [],
    "GeneralRules": [
      {
        "Endpoint": "*",//*
        "Period": "5s",
        "Limit": 3
      }
    ]
  },

  "IpRateLimitPolicies": { //特点Ip限制规则设置
    //ip规则
    "IpRules": [
      {
        //IP
        "Ip": "84.247.85.224",
        //规则内容
        "Rules": [
          //1s请求10次
          {
            "Endpoint": "*",
            "Period": "1s",
            "Limit": 10
          },
          //15分钟请求200次
          {
            "Endpoint": "*",
            "Period": "15m",
            "Limit": 200
          }
        ]
      },
      {
        //ip支持设置多个
        "Ip": "192.168.3.22/25",
        "Rules": [
          //1秒请求5次
          {
            "Endpoint": "*",
            "Period": "1s",
            "Limit": 5
          },
          //15分钟请求150次
          {
            "Endpoint": "*",
            "Period": "15m",
            "Limit": 150
          },
          //12小时请求500次
          {
            "Endpoint": "*",
            "Period": "12h",
            "Limit": 500
          }
        ]
      }
    ]
  }
