EIGRP与OSPF的双点双向重分布

合集 - Routing%Switching(1)
1.EIGRP与OSPF的双点双向重分布
收起
  1. 概述
    双点双向路由重分布的本质问题是不同协议的高低AD值导致次优路径，以及双点双向重分布带来的路由回馈，本次实验将用route-map来解决这个问题
    2.拓扑

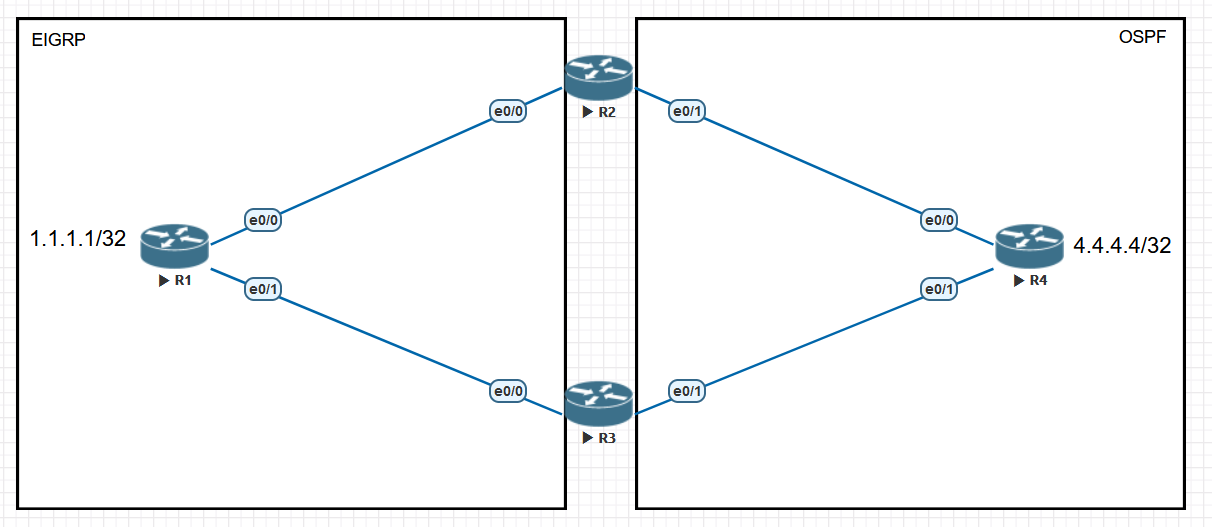

    R1在EIGRP中引入直连1.1.1.1/32，R2和R3分别把OSPF引入EIGRP，EIGRP引入OSPF中，当1.1.1.1由R1传给R3，R3引入到OSPF中，AD由170变为110，通过5类LSA传给R4，R4再把这条5类LSA传给R2，对于R2来说，它从两个方向都学习到了1.1.1.1，但是根据AD值，它优选了OSPF的110，下一跳为24.1.1.4，显然。出现了次优路径
  2. 配置
点击查看代码
R2：
R2(config)#router ospf 110
R2(config-router)#redistribute eigrp 90 subnets
R2(config)#router eigrp 90
R2(config-router)#redistribute ospf 110 metric 10000 100 255 1 1500
R3：
R3(config)#router ospf 110
R3(config-router)#redistribute eigrp 90 subnets
R3(config)#router eigrp 90
R3(config-router)#redistribute ospf 110 metric 10000 100 255 1 1500
此时出现了次优路径的情况
点击查看代码
R2#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is not set

      1.0.0.0/32 is subnetted, 1 subnets
O E2     1.1.1.1 [110/20] via 24.1.1.4, 00:00:03, Ethernet0/1
      4.0.0.0/32 is subnetted, 1 subnets
O        4.4.4.4 [110/11] via 24.1.1.4, 00:09:49, Ethernet0/1
      12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        12.1.1.0/24 is directly connected, Ethernet0/0
L        12.1.1.2/32 is directly connected, Ethernet0/0
      13.0.0.0/24 is subnetted, 1 subnets
D        13.1.1.0 [90/307200] via 12.1.1.1, 00:11:21, Ethernet0/0
      24.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        24.1.1.0/24 is directly connected, Ethernet0/1
L        24.1.1.2/32 is directly connected, Ethernet0/1
      34.0.0.0/24 is subnetted, 1 subnets
O        34.1.1.0 [110/20] via 24.1.1.4, 00:09:49, Ethernet0/1
在R2上1.1.1.1下一跳为24.1.1.4。用route-map可以很好的解决这个问题，以及路由回馈的问题
点击查看代码
R2：
R2(config)#route-map  eigrptoospf deny 10
R2(config-route-map)#match tag 170
R2(config)#route-map eigrptoospf permit 20
R2(config-route-map)#set tag 110
R2(config)#route-map ospftoeigrp deny 10
R2(config-route-map)#match tag 110
R2(config)#route-map ospftoeigrp permit 20
R2(config-route-map)#set tag 170
R2(config-router)#  router ospf 110
R2(config-router)#redistribute eigrp 90 subnets route-map ospftoeigrp
R2(config)# ip access-list standard R4
R2(config-std-nacl)# permit 1.1.1.1
R2(config)#route-map R4 deny 10
R2(config-route-map)# match ip address R4
R2(config-route-map)#route-map R4 permit 20
R2(config)#router ospf 110
R2(config-router)#distribute-list route-map R4 in

R3：
R3(config)#route-map  eigrptoospf deny 10
R3(config-route-map)#match tag 170
R3(config)#route-map eigrptoospf permit 20
R3(config-route-map)#set tag 110
R3(config)#route-map ospftoeigrp deny 10
R3(config-route-map)#match tag 110
R3(config)#route-map ospftoeigrp permit 20
R3(config-route-map)#set tag 170
R3(config-router)#  router ospf 110
R3(config-router)#redistribute eigrp 90 subnets route-map ospftoeigrp
##用route-map匹配和打上tag值，在路由重分布时调用。给EIGRP传到OSPF的路由打上tag110且拒绝带tag170的，OSPF传到EIGRP的路由打上tag170且拒绝带tag110的
R3(config)# ip access-list standard R4
R3(config-std-nacl)# permit 1.1.1.1
R3(config)#route-map R4 deny 10
R3(config-route-map)# match ip address R4
R3(config-route-map)#route-map R4 permit 20
R3(config)#router ospf 110
R3(config-router)#distribute-list route-map R4 in
##在OSPF分发列表处调用，方向是IN方向
用route-map匹配和打上tag值，在路由重分布时调用。给EIGRP传到OSPF的路由打上tag110且拒绝带tag170的，OSPF传到EIGRP的路由打上tag170且拒绝带tag110的。如此解决了路由回馈，用ACL抓取1.1.1.1，用route-map去执行，在OSPF分发列表处调用，如此解决了次优路径的问题。
点击查看代码
R2#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is not set

      1.0.0.0/32 is subnetted, 1 subnets
D EX     1.1.1.1 [170/409600] via 12.1.1.1, 00:17:22, Ethernet0/0
      4.0.0.0/32 is subnetted, 1 subnets
O        4.4.4.4 [110/11] via 24.1.1.4, 00:27:13, Ethernet0/1
      12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        12.1.1.0/24 is directly connected, Ethernet0/0
L        12.1.1.2/32 is directly connected, Ethernet0/0
      13.0.0.0/24 is subnetted, 1 subnets
D        13.1.1.0 [90/307200] via 12.1.1.1, 00:28:45, Ethernet0/0
      24.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        24.1.1.0/24 is directly connected, Ethernet0/1
L        24.1.1.2/32 is directly connected, Ethernet0/1
      34.0.0.0/24 is subnetted, 1 subnets
O        34.1.1.0 [110/20] via 24.1.1.4, 00:27:13, Ethernet0/1
点击查看代码
R1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is not set

      1.0.0.0/32 is subnetted, 1 subnets
C        1.1.1.1 is directly connected, Loopback0
      4.0.0.0/32 is subnetted, 1 subnets
D EX     4.4.4.4 [170/307200] via 13.1.1.3, 00:26:37, Ethernet0/1
                 [170/307200] via 12.1.1.2, 00:26:37, Ethernet0/0
      12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        12.1.1.0/24 is directly connected, Ethernet0/0
L        12.1.1.1/32 is directly connected, Ethernet0/0
      13.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        13.1.1.0/24 is directly connected, Ethernet0/1
L        13.1.1.1/32 is directly connected, Ethernet0/1
      24.0.0.0/24 is subnetted, 1 subnets
D EX     24.1.1.0 [170/307200] via 13.1.1.3, 00:26:37, Ethernet0/1
                  [170/307200] via 12.1.1.2, 00:26:37, Ethernet0/0
      34.0.0.0/24 is subnetted, 1 subnets
D EX     34.1.1.0 [170/307200] via 13.1.1.3, 00:26:37, Ethernet0/1
                  [170/307200] via 12.1.1.2, 00:26:37, Ethernet0/0
点击查看代码
R4#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is not set

      1.0.0.0/32 is subnetted, 1 subnets
O E2     1.1.1.1 [110/20] via 24.1.1.2, 00:18:14, Ethernet0/0
      4.0.0.0/32 is subnetted, 1 subnets
C        4.4.4.4 is directly connected, Loopback0
      12.0.0.0/24 is subnetted, 1 subnets
O E2     12.1.1.0 [110/20] via 34.1.1.3, 00:26:58, Ethernet0/1
                  [110/20] via 24.1.1.2, 00:27:10, Ethernet0/0
      13.0.0.0/24 is subnetted, 1 subnets
O E2     13.1.1.0 [110/20] via 34.1.1.3, 00:26:58, Ethernet0/1
                  [110/20] via 24.1.1.2, 00:27:10, Ethernet0/0
      24.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        24.1.1.0/24 is directly connected, Ethernet0/0
L        24.1.1.4/32 is directly connected, Ethernet0/0
      34.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        34.1.1.0/24 is directly connected, Ethernet0/1
L        34.1.1.4/32 is directly connected, Ethernet0/1
