作业

作业：
1、修改此前部署的Wordpress和MySQL中的环境变量的配置方式，其数据要引用自同一个Secret对象；

#Secret文件
apiVersion: v1
data:
  db.name: d3BkYg==
  db.pass: bWFnZWR1LmNvbQ==
  db.user: d3B1c2Vy
  root.pass: bWFnZWR1
kind: Secret
metadata:
  creationTimestamp: "2024-09-02T10:50:46Z"
  name: mysql-login
  namespace: default
  resourceVersion: "107951"
  uid: be4a97f9-0e6f-4136-a8d1-e2d62cc94503
type: Opaque

#mysql文件
[root@k8s-master01 ~]#cat mysql.yaml
apiVersion: v1
kind: Pod
metadata:
  name: mysql
  namespace: default
  labels:
    app: mysql
spec:
  containers:
  - name: mysql
    image: mysql:8.0
    env:
    - name: MYSQL_ROOT_PASSWORD
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: root.pass
    - name: MYSQL_DATABASE
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: db.name
    - name: MYSQL_USER
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: db.user
    - name: MYSQL_PASSWORD
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: db.pass
    volumeMounts:
    - mountPath: /var/lib/mysql
      name: mysqldata
  volumes:
  - name: mysqldata
    persistentVolumeClaim:
      claimName: pvc-nfs-dynamic-mysql

#wordpress文件
[root@k8s-master01 ~]#cat wordpress.yaml
apiVersion: v1
kind: Pod
metadata:
  name: wordpress
  namespace: default
  labels:
    app: wordpress
spec:
  initContainers:
  - name: init-user-setup
    image: ikubernetes/admin-box:latest
    command: ['sh', '-c', 'chown -R 33:33 /var/www/html']
    volumeMounts:
    - mountPath: /var/www/html
      name: wordpressdata
  containers:
  - name: wordpress
    image: wordpress:5.7
    resources:
      requests:
        memory: "512Mi"
        cpu: "300m"
      limits:
        memory: "512Mi"
        cpu: "400m"

    env:
    - name: WORDPRESS_DB_HOST
      value: mysql-service
    - name: WORDPRESS_DB_NAME
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: db.name
    - name: WORDPRESS_DB_USER
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: db.user
    - name: WORDPRESS_DB_PASSWORD
      valueFrom:
        secretKeyRef:
          name: mysql-login
          key: db.pass
    volumeMounts:
    - mountPath: /var/www/html
      name: wordpressdata
  volumes:
    - name: wordpressdata
      persistentVolumeClaim:
        claimName: pvc-nfs-dynamic

2、修改此前部署的Wordpress和MySQL中的数据存储位置，要求：
(1) 基于PVC卷存储数据，且PVC卷关联的PV通过动态置备完成；

#部署NFS SERVER
#创建nfs名称空间，应用配置文件，配置文件中pod和service的名称空间为default，需要手动修改配置文件为nfs
kubectl create namespace nfs
kubectl apply -f https://raw.githubusercontent.com/kubernetes-csi/csi-driver-nfs/master/deploy/example/nfs-provisioner/nfs-server.yaml --namespace nfs

安装NFS CSI Driver到kubernetes cluster
git clone https://github.com/iKubernetes/learning-k8s.git
cd learning-k8s
kubectl apply -f csi-driver-nfs/deploy/03-csi-driver-nfs-4.2/

#创建StorageClas
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: nfs-csi
  annotations:   #注释将该存储类设置为默认存储类，意味着如果在创建 PVC 时未指定存储类，Kubernetes 将自动使用这个存储类
    storageclass.kubernetes.io/is-default-class: "true"
provisioner: nfs.csi.k8s.io   #指定了由哪个nfs.csi.k8s.io CSI驱动程序来管理存储卷
parameters:    #指定NFS服务器的地址，nfs-server.nfs.svc.cluster.local是 Kubernetes 集群内的DNS名称
  #server: nfs-server.default.svc.cluster.local
  server: nfs-server.nfs.svc.cluster.local
  #server: nfs.magedu.com
  share: /   #nfs导出共享目录的根路径，非nfs的根目录，本例中为/exports目录
  #share: /data
reclaimPolicy: Delete   #回收策略为删除，当 PVC 被删除时，关联的 PV 也会被自动删除。生产中建议设置为Retain
volumeBindingMode: Immediate   #表示卷的绑定操作会在 PVC 创建时立即发生，而不是等到 Pod 实际调度时再进行。这通常用于对延迟要求较低的场景。
#mountOptions:   #挂载选项
#  - hard       #挂载方式硬挂载
#  - nfsvers=4.1  #指定NFS协议版本4.1

#为wordpress和mysql分别创建pvc文件
[root@k8s-master01 ~]#cat nfs-pvc-dynamic.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-nfs-dynamic
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  storageClassName: nfs-csi

[root@k8s-master01 ~]#cat nfs-pvc-dynamic-mysql.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-nfs-dynamic-mysql
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  storageClassName: nfs-csi

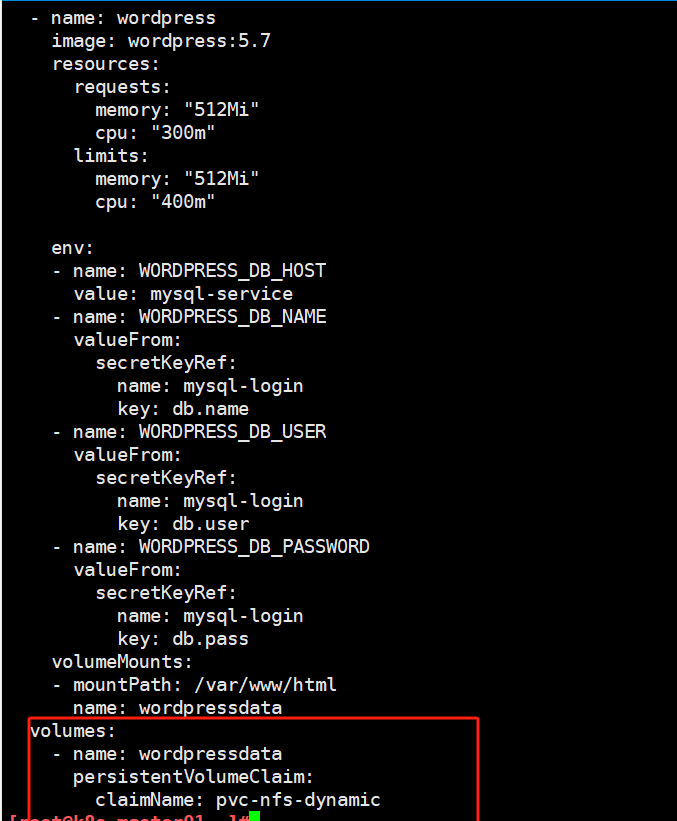

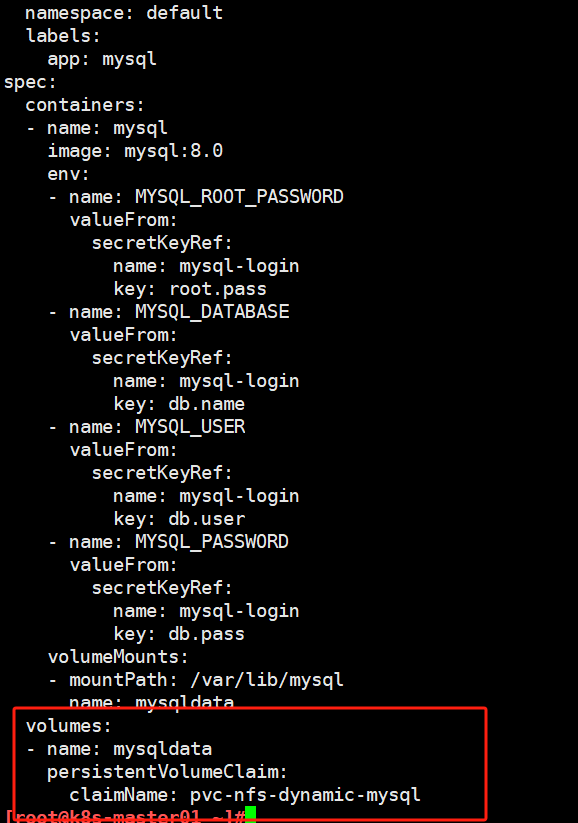

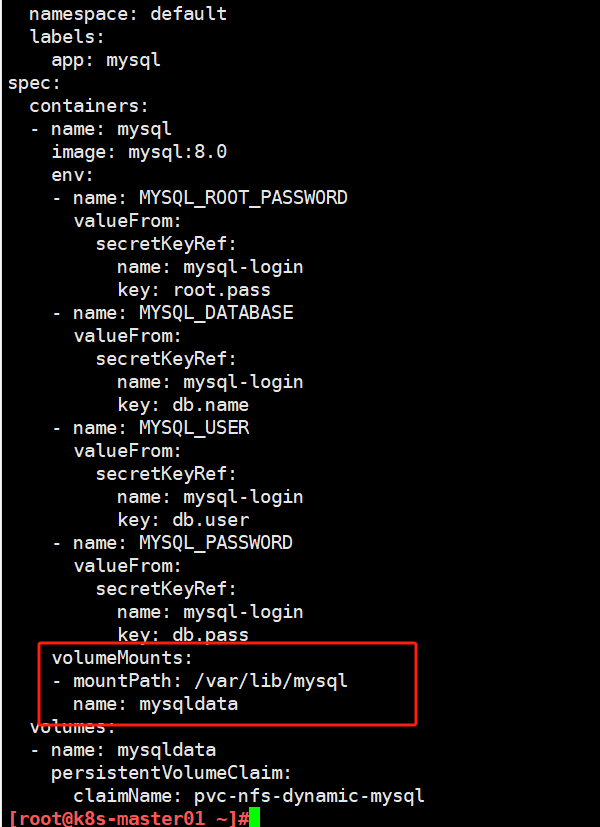

#wordpress和mysql的pod文件引用pvc，参考前面的配置文件

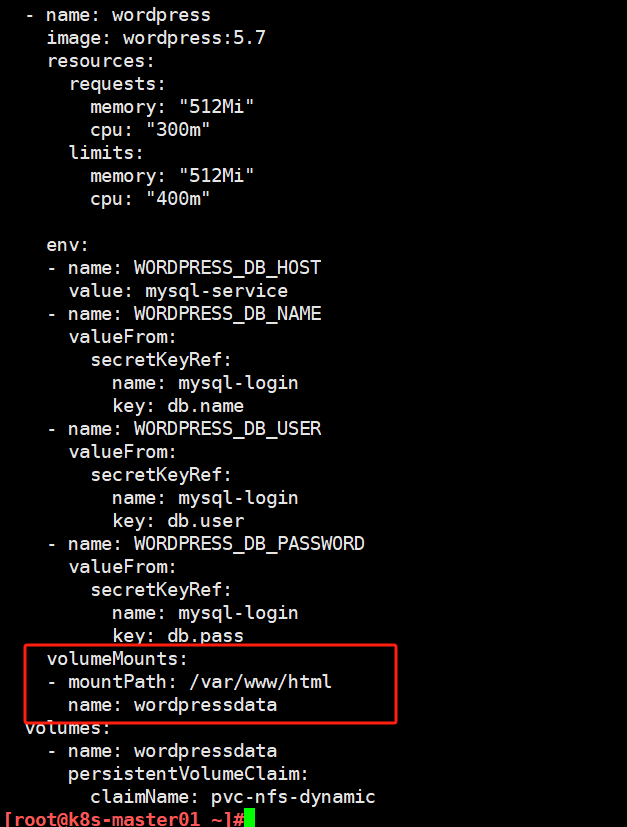

(2) MySQL：/var/lib/mysql， Wordpress: /var/www/html

(3) 扩展作业：设定Wordpress中的应用以非管理员身份运行，注意监听的端口和挂载点文件系统的访问权限；

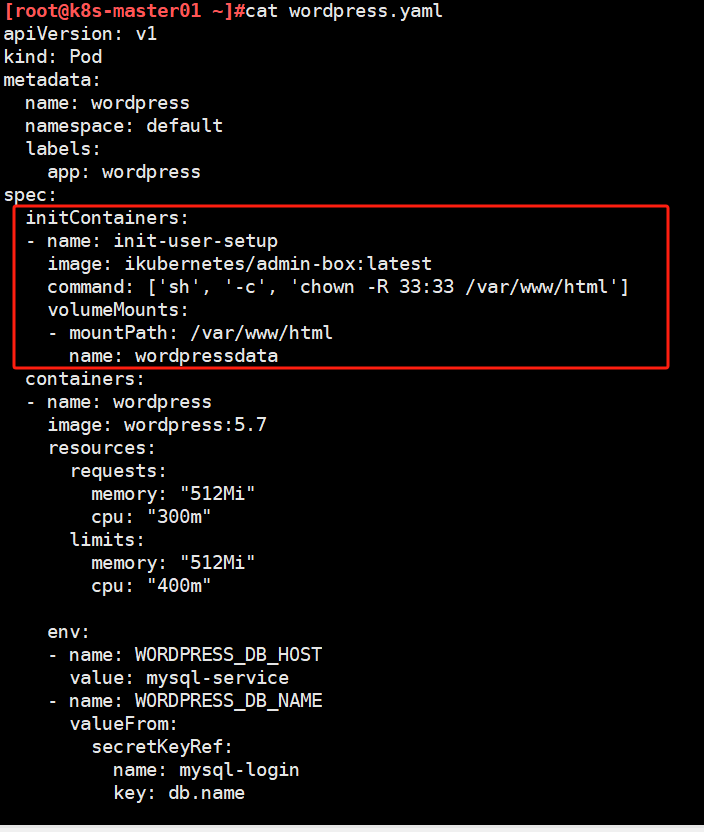

参考wordpress配置文件，初始化容器配置

(4) 扩展作业：试着为Wordpress和MySQL设定资源需求和资源限制，以及LivenessProbe和ReadinessProbe；

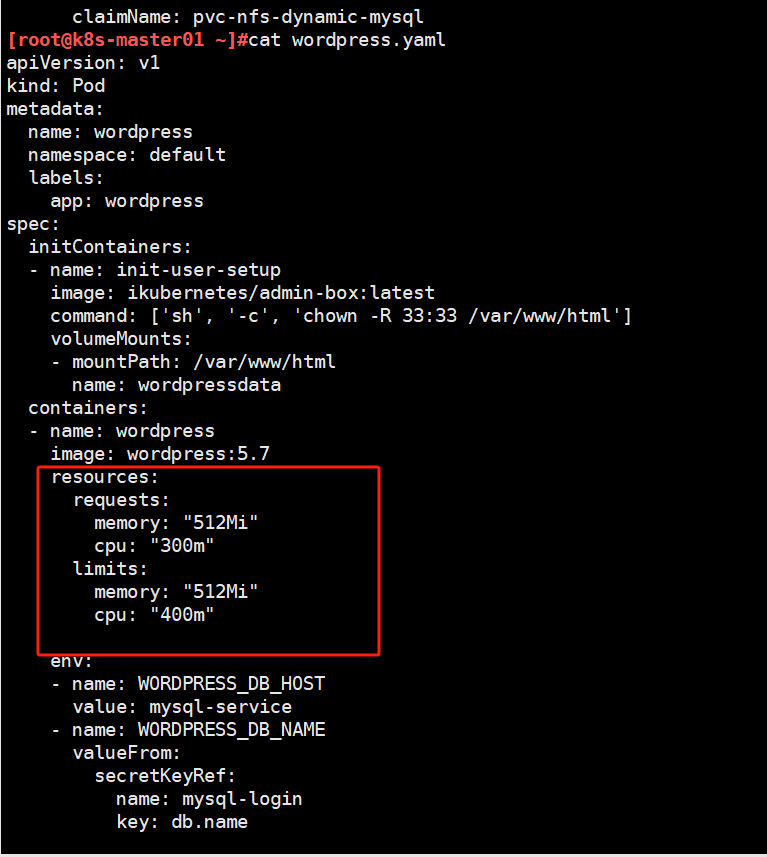

参考wordpress配置文件资源需求和资源限制

3、设定一个nginx服务器，为Wordpress提供反向代理，而且要求虚拟主机同时提供http和https服务，而强制http跳转至https；

准备证书和nginx配置文件，创建secert和configmap
[root@k8s-master01 ~]#ls certs/
nginx.crt  nginx.key

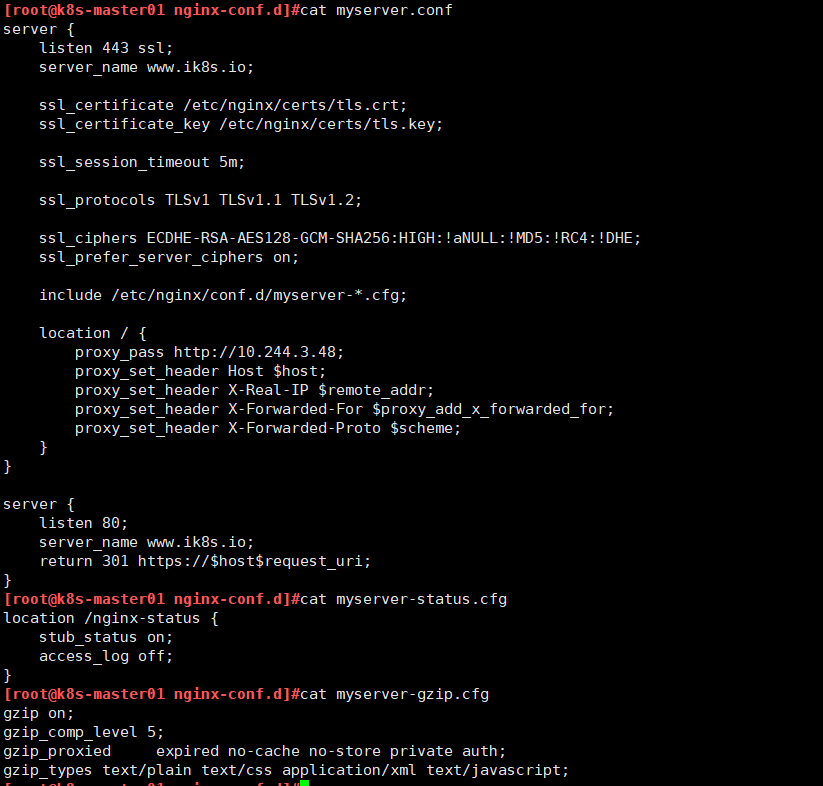

[root@k8s-master01 ~]#ls nginx-conf.d/
myserver-gzip.cfg  myserver-status.cfg  myserver.conf

kubectl create secret tls nginx-wordpress --cert=./certs/nginx.crt --key=./certs/nginx.key
kubectl create configmap  nginx-sslvhosts-confs-wordpress --from-file=./nginx-conf.d

准备nginx pod文件
[root@k8s-master01 ~]#cat nginx-wordpress.yaml
# Maintainer: MageEdu <mage@magedu.com>
# URL: http://www.magedu.com
---
apiVersion: v1
kind: Pod
metadata:
  name: nginx-wordpress
  labels:
    app: nginx-proxy
  namespace: default
spec:
  containers:
  - image: nginx:alpine
    name: ngxserver
    volumeMounts:
    - name: nginxcerts
      mountPath: /etc/nginx/certs/
      readOnly: true
    - name: nginxconfs
      mountPath: /etc/nginx/conf.d/
      readOnly: true
  volumes:
  - name: nginxcerts
    secret:
      secretName: nginx-wordpress
  - name: nginxconfs
    configMap:
      name: nginx-sslvhosts-confs-wordpress
      optional: false
