继续发布VS2005下DataGridView 的多种样式列控件

版权声明：如有转载，下载源码者如转到第三方网站必须注明博客园随风飘散否则作者有追究法律责任的权利。
VS2005已经发布好久了，但对DataGridView 的使用,在网上的资料还比较少,DataGridView 无论是美观与功能方面都是DataGrid所不能比的,应该说DataGridView 不是DataGrid的升级,因为DataGridView 使用了一套全新的构建方式,引入了DataGridViewCell ,DataGridViewColumn,DataGridViewRow,等,新的概念,也使编程更容易了,它提供了
DataGridViewTextBoxColumn,DataGridViewImageColumn,DataGridLinkColumn,DataGridViewComboBoxColumn,DataGrid
ViewButtonColumn,DataGridViewCheckBoxColumn,等样式列
但我们常用的远不只这些样式列,所以我不想把所有的样式列都给大家做出来,我只是想抛砖引玉通过我自己做的四个样式列来让大家掌握自定义DataGridView样式列的方法．由于时间仓促功能不是很完善，望大家见谅，好了大家先看看4个控件的效果．

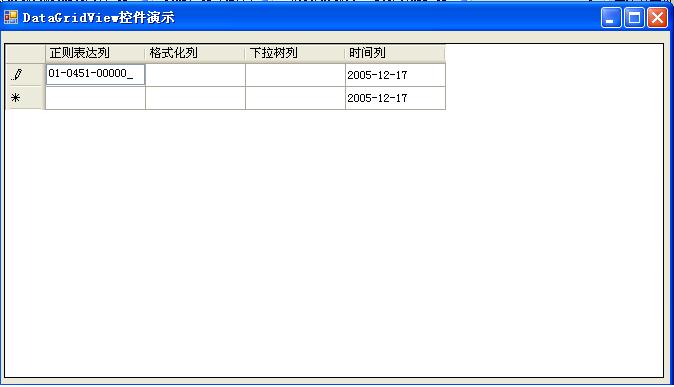

一：DataGridViewMaskedTextBoxColumn(正则表达式样式列)

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Text;
using System.Windows.Forms;
using System.Drawing.Design;

namespace WindowsApplication23
{
    //Cell编辑类，实现IDataGridViewEditingControl接口,可参照ComboBoxEditingControl的写法
    public class DataGridViewMaskedTextBoxEditingControl:MaskedTextBox,IDataGridViewEditingControl
    {
        protected int rowIndex;
        protected DataGridView dataGridView;
        protected bool valueChanged = false;

        public DataGridViewMaskedTextBoxEditingControl()
        {
            base.TabStop = false;
        }
        //重写基类(MakedTextBox)的OnTextChanged方法
        protected override void OnTextChanged(EventArgs e)
        {
            base.OnTextChanged(e);
            NotifyDataGridViewOfValueChange();
        }
        //  当text值发生变化时，通知DataGridView
        private void NotifyDataGridViewOfValueChange()
        {
            valueChanged = true;
            dataGridView.NotifyCurrentCellDirty(true);
        }
        /**//// <summary>
        /// 设置对齐方式
        /// </summary>
        /// <param name="align"></param>
        /// <returns></returns>
        private static HorizontalAlignment translateAlignment(DataGridViewContentAlignment align)
        {
            switch (align)
            {
                case DataGridViewContentAlignment.TopLeft:
                case DataGridViewContentAlignment.MiddleLeft:
                case DataGridViewContentAlignment.BottomLeft:
                    return HorizontalAlignment.Left;

                case DataGridViewContentAlignment.TopCenter:
                case DataGridViewContentAlignment.MiddleCenter:
                case DataGridViewContentAlignment.BottomCenter:
                    return HorizontalAlignment.Center;

                case DataGridViewContentAlignment.TopRight:
                case DataGridViewContentAlignment.MiddleRight:
                case DataGridViewContentAlignment.BottomRight:
                    return HorizontalAlignment.Right;
            }

             return HorizontalAlignment.Left;
        }

        /**//// <summary>
        /// 在Cell被编辑的时候光标显示
        /// </summary>
        public Cursor EditingPanelCursor
        {
            get
            {
                return Cursors.IBeam;
            }
        }
        /**//// <summary>
        /// 获取或设置所在的DataGridView
        /// </summary>
        public DataGridView EditingControlDataGridView
        {
            get
            {
                return dataGridView;
            }

            set
            {
                dataGridView = value;
            }
        }

        /**//// <summary>
        /// 获取或设置格式化后的值
        /// </summary>
        public object EditingControlFormattedValue
        {
            set
            {
                Text = value.ToString();
                NotifyDataGridViewOfValueChange();
            }
            get
            {
                return this.Text;
            }

        }
        /**//// <summary>
        /// 获取控件的Text值
        /// </summary>
        /// <param name="context">错误上下文</param>
        /// <returns></returns>
        public virtual object GetEditingControlFormattedValue(DataGridViewDataErrorContexts context)
        {
            return Text;
        }

        /**//// <summary>
        /// 编辑键盘
        /// </summary>
        /// <param name="keyData"></param>
        /// <param name="dataGridViewWantsInputKey"></param>
        /// <returns></returns>
        public bool EditingControlWantsInputKey(Keys keyData, bool dataGridViewWantsInputKey)
        {
            switch (keyData & Keys.KeyCode)
            {
                case Keys.Right:
                    if (!(this.SelectionLength == 0
                          && this.SelectionStart == this.ToString().Length))
                    {
                        return true;
                    }
                    break;

                case Keys.Left:
                    if (!(this.SelectionLength == 0
                          && this.SelectionStart == 0))
                    {
                        return true;
                    }
                    break;

                case Keys.Home:
                case Keys.End:
                    if (this.SelectionLength != this.ToString().Length)
                    {
                        return true;
                    }
                    break;

                case Keys.Prior:
                case Keys.Next:
                    if (this.valueChanged)
                    {
                        return true;
                    }
                    break;

                case Keys.Delete:
                    if (this.SelectionLength > 0 || this.SelectionStart < this.ToString().Length)
                    {
                        return true;
                    }
                    break;
            }
            return !dataGridViewWantsInputKey;
        }

        public void PrepareEditingControlForEdit(bool selectAll)
        {
            if (selectAll)
            {
                SelectAll();
            }
            else
            {
                this.SelectionStart = this.ToString().Length;
            }
        }
        public virtual bool RepositionEditingControlOnValueChange
        {
            get
            {
                return false;
            }
        }
        /**//// <summary>
        /// 控件所在行
        /// </summary>
        public int EditingControlRowIndex
        {
            get
            {
                return this.rowIndex;
            }

            set
            {
                this.rowIndex = value;
            }
        }
        /**//// <summary>
        /// 设置样式
        /// </summary>
        /// <param name="dataGridViewCellStyle"></param>
        public void ApplyCellStyleToEditingControl(DataGridViewCellStyle dataGridViewCellStyle)
        {
            this.Font = dataGridViewCellStyle.Font;
            this.ForeColor = dataGridViewCellStyle.ForeColor;
            this.BackColor = dataGridViewCellStyle.BackColor;
            this.TextAlign = translateAlignment(dataGridViewCellStyle.Alignment);
        }


        /**//// <summary>
        /// 是否值发生了变化
        /// </summary>
        public bool EditingControlValueChanged
        {
            get
            {
                return valueChanged;
            }

            set
            {
                this.valueChanged = value;
            }
        }
    }
}

(二)DataGridViewFormat(可以获取格式的列，如N2 ,1234,11)

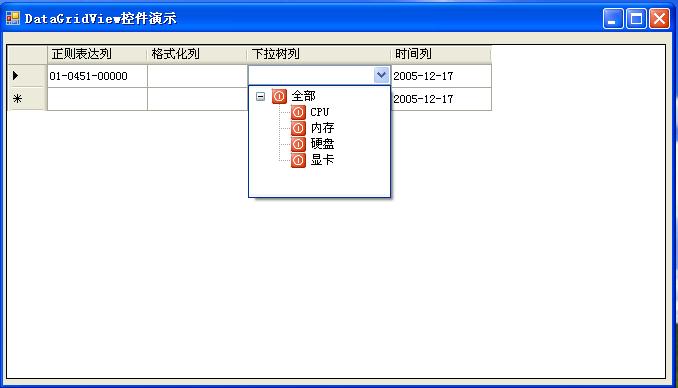

(三)DataGridViewTreeViewColumn(下拉列表树控件)

(四)DataGridViewDateTimeColumn(日期选择列控件)

控件源码下载
/Files/CodeAnyWhere/WindowsApplication23.rar
