Program Honda WR-V ID47 Key by Xhorse VVDI Key Tool Plus
Xhorse VVDI Key Tool Plus Pad supports to program a new Honda WR-V ID47 smart key by OBD success.
Following I’m gonna show the programming procedure:
Connect VVDI Key Tool Plus with OBD, put Honda Universal Remote Key into slot.
- Program Remote

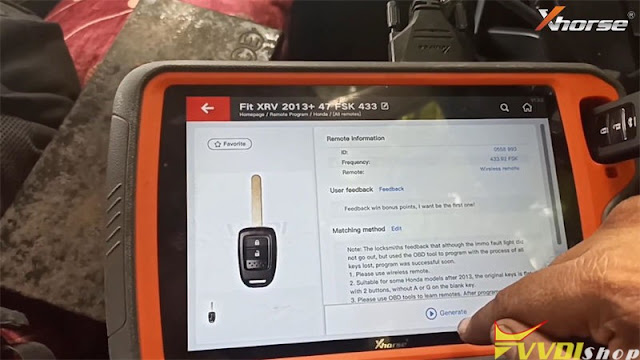

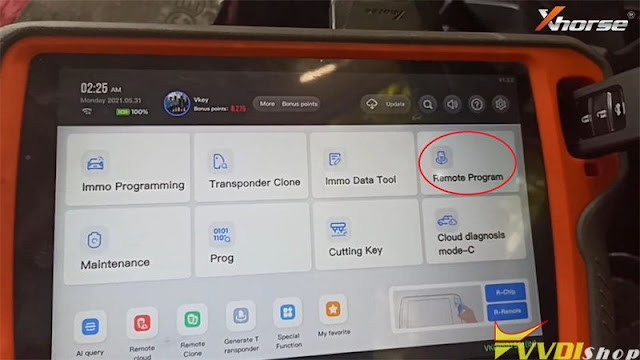

Remote program >> Honda >> All remote >> Fit XRV 2013+ ID47 FSK 433 >> Generate
Writing data… wait until 100%

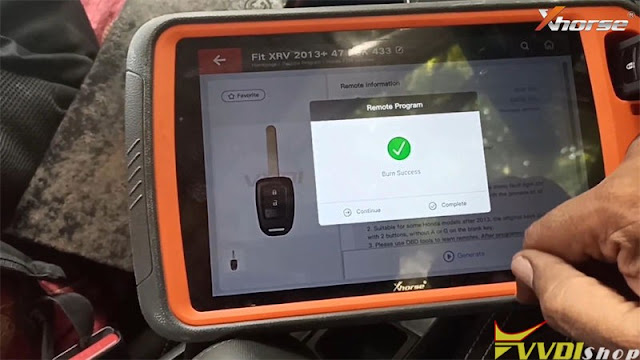

Burn success.
- Program IMMO

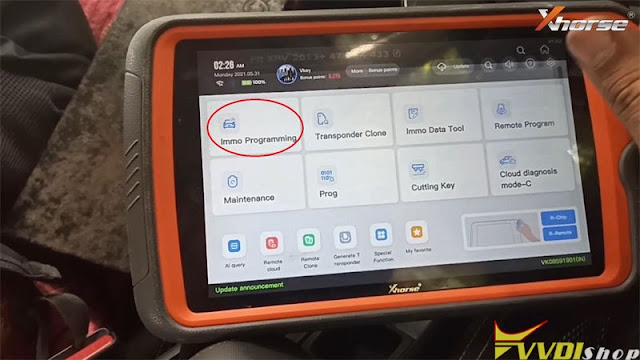

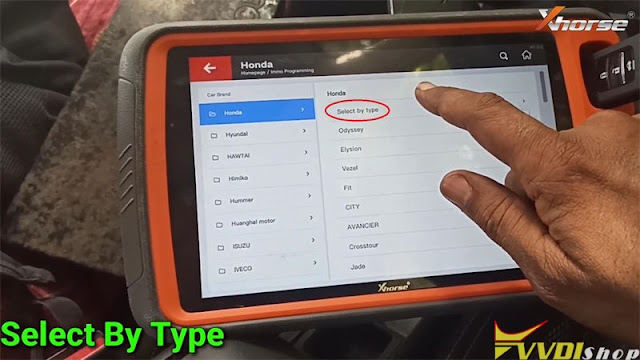

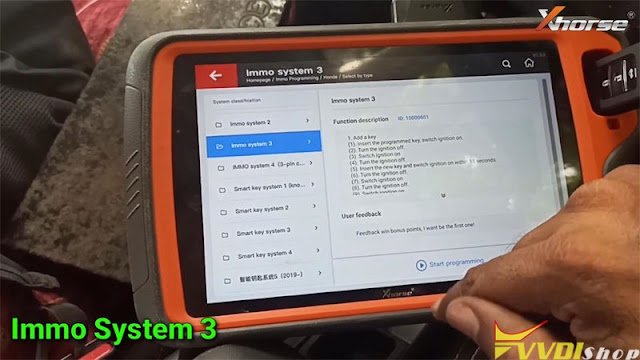

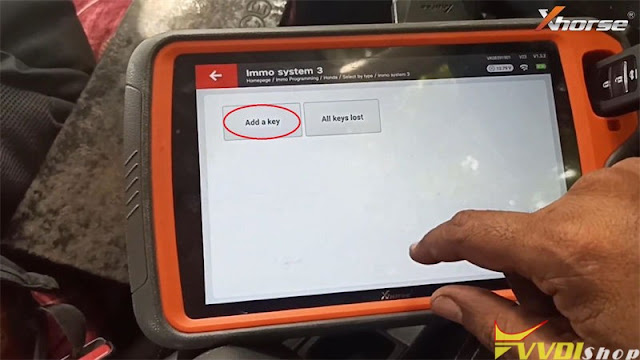

Immo programming >> Honda >> Select by type >> Immo system 3 >> Start programming >> Adds a key
Follow the prompts to operate:
Turn off ignition switch.
Insert the programmed working key, switch ignition on.
Turn off ignition switch.
Turn on the ignition switch.
If no response within 10s, please turn off/on the ignition switch again.
Turn off ignition switch.

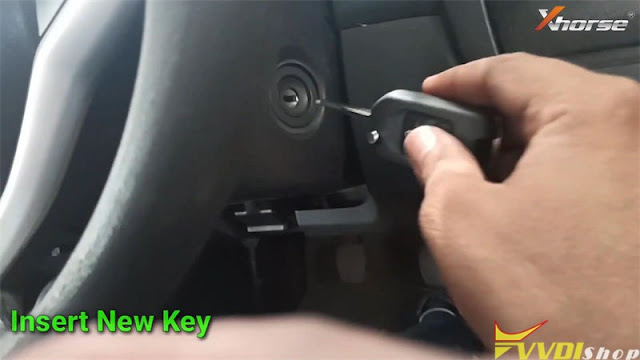

Insert the new key and switch ignition on within 15s.
Turn off ignition switch.
Switch ignition on.
Turn off ignition switch.
Switch ignition on.
Whether IMMO indicator light is out? Yes
Turn off ignition switch.
Switch ignition on.
Operation completed, please check if the key function is normal.

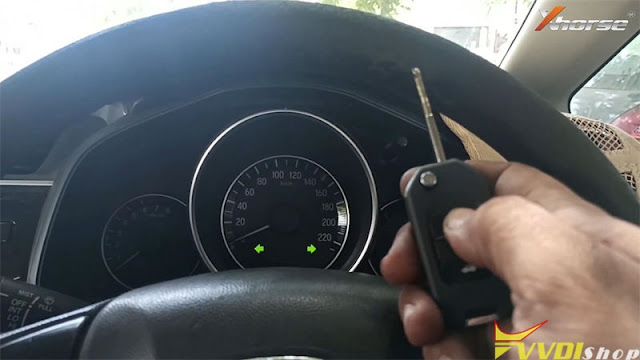

Test the new key, it can start the engine, and its remote works well.
Done!
This is using VVDI Key Tool Plus Programmer to add a ID47 key for Honda WR-V via OBD.
