How to use Xhorse Mini OBD Tool to Program 2020 Kia Sportage Key?
Xhorse VVDI Key Tool Max + Mini OBD Tool support to program a new remote for 2020 Kia Sportage success. This key isn’t a transponder key, a regular lxp90 blade is able to crank it. Now I’m about to show its procedure.
Plug VVDI Mini OBD Tool into OBD2 port, connect it with Key Tool Max via Bluetooth.

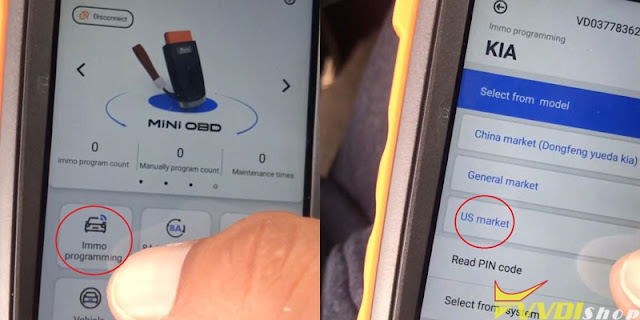

Immo programming >> Kia >> Select from model >> US market >> Sportage >> Remote key adaptation >> Start execution

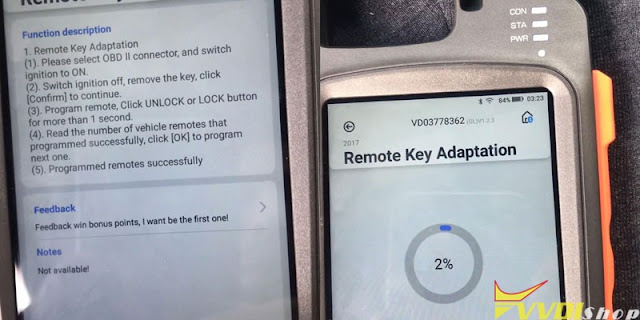

Wait loading until 100%…
Please choose OBDII interface and turn on the ignition switch to ON.
Press “OK”.
Switch ignition off, remove the key, press “OK”.

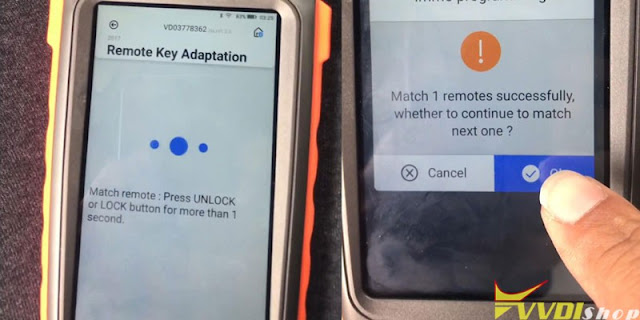

Press UNLOCK or LOCK button for more than 1 second.
Match 1 remote successfully.
Press “OK” to program next one, press “Cancel” to complete.
You’ll hear a beep when match completed.
Remote match completely.
Press “OK”.
Let’s test the key, all are workable.
Key programming was done!
This is using VVDI Key Tool Max & Mini OBD Tool to add a remote for 2020 Kia Sportage. This key doesn’t have a chip so I only programmed the remote to vehicle.
