AWS学习笔记（九）：RDS, Aurora, ElastiCache

RDS Backups

• Backups are automatically enabled in RDS
• Automated backups:
  • Daily full backup of the database (during the maintenance window)
  • Transaction logs are backed-up by RDS every 5 minutes
  • => ability to restore to any point in time (from oldest backup to 5 minutes ago)
  • 7 days retention (can be increased to 35 days)
• DB Snapshots:
  • Manually triggered by the user
  • Retention of backup for as long as you want

RDS – Storage Auto Scaling

• Helps you increase storage on your RDS DB instance dynamically
• When RDS detects you are running out of free database storage, it scales automatically
• Avoid manually scaling your database storage
• You have to set Maximum Storage Threshold (maximum limit for DB storage)
• Automatically modify storage if:
  • Free storage is less than 10% of allocated storage
  • Low-storage lasts at least 5 minutes
  • 6 hours have passed since last modification
• Useful for applications with unpredictable workloads
• Supports all RDS database engines (MariaDB, MySQL, PostgreSQL, SQL Server, Oracle)

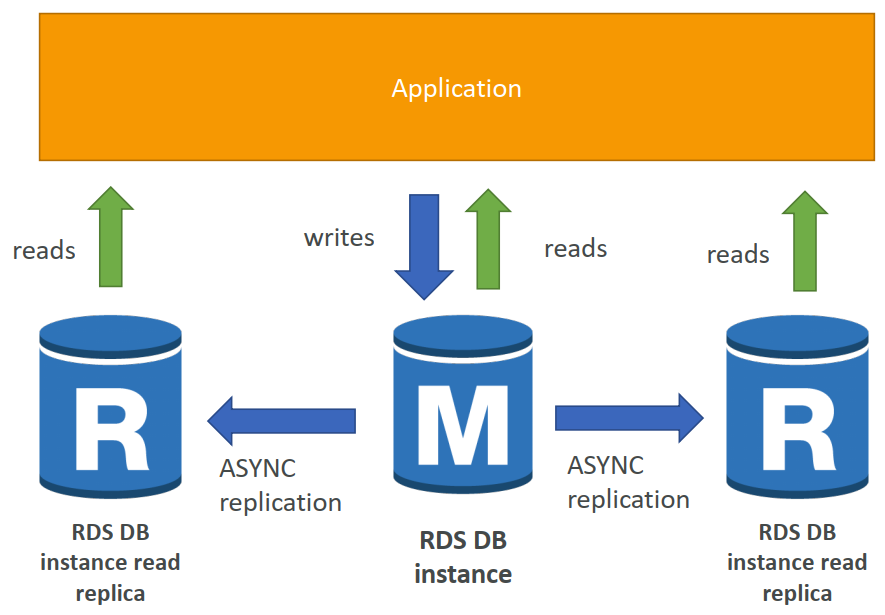

RDS Read Replicas for read scalability

• Up to 5 Read Replicas
• Within AZ, Cross AZ or Cross Region
• Replication is ASYNC, so reads are eventually consistent
• Replicas can be promoted to their own DB
• Applications must update the connection string to leverage read replicas

RDS Read Replicas – Network Cost

• In AWS there's a network cost when data goes from one AZ to another
• For RDS Read Replicas within the same region, you don't pay that fee

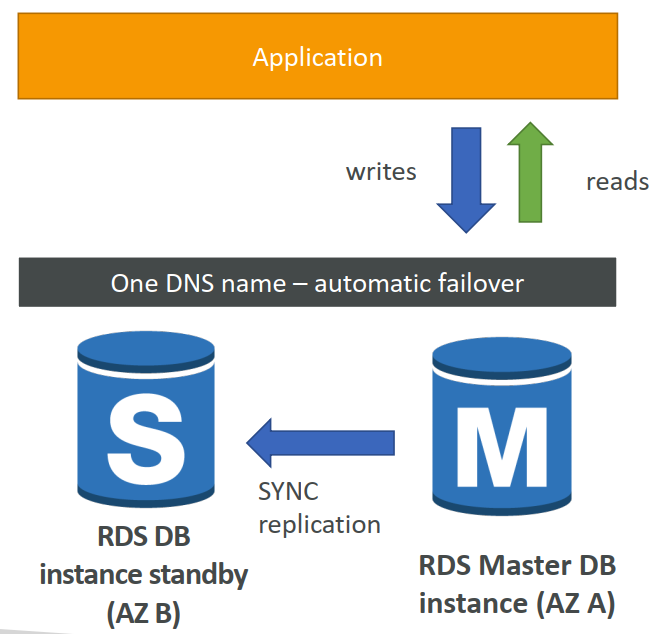

RDS Multi AZ (Disaster Recovery)

• SYNC replication, Increase availability

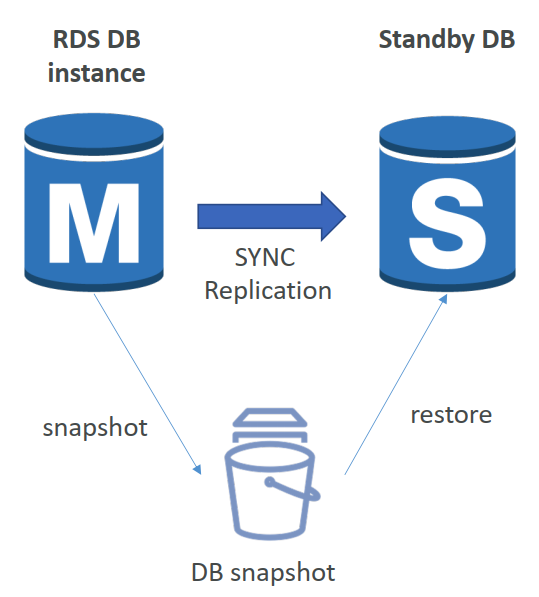

RDS – From Single-AZ to Multi-AZ

• Zero downtime operation (no need to stop the DB)
• Just click on "modify" for the database
• The following happens internally:
  • A snapshot is taken
  • A new DB is restored from the snapshot in a new AZ
  • Synchronization is established between the two databases

RDS Security - Encryption

• At rest encryption
  • Possibility to encrypt the master & read replicas with AWS KMS - AES-256 encryption
  • Encryption has to be defined at launch time
  • If the master is not encrypted, the read replicas cannot be encrypted
  • Transparent Data Encryption (TDE) available for Oracle and SQL Server
• In-flight encryption
  • SSL certificates to encrypt data to RDS in flight
  • Provide SSL options with trust certificate when connecting to database
  • To enforce SSL:
    • PostgreSQL: rds.force_ssl=1 in the AWS RDS Console (Parameter Groups)
    • MySQL: Within the DB:
      GRANT USAGE ON . TO 'mysqluser'@'%' REQUIRE SSL;

RDS Security – IAM

• Access Management
  • IAM policies help control who can manage AWS RDS (through the RDS API)
  • Traditional Username and Password can be used to login into the database
  • IAM-based authentication can be used to login into RDS MySQL & PostgreSQL

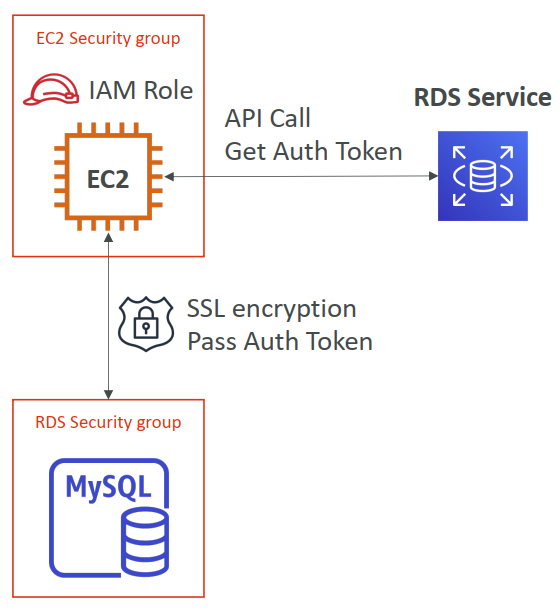

RDS - IAM Authentication

• IAM database authentication works with MySQL and PostgreSQL
• You don’t need a password, just an authentication token obtained through IAM & RDS API calls
• Auth token has a lifetime of 15 minutes
• Benefits:
  • Network in/out must be encrypted using SSL
  • IAM to centrally manage users instead of DB
  • Can leverage IAM Roles and EC2 Instance profiles for easy integration

Amazon Aurora

• Aurora is a proprietary technology from AWS (not open sourced)
• Postgres and MySQL are both supported as Aurora DB (that means your drivers will work as if Aurora was a Postgres or MySQL database)
• Aurora is “AWS cloud optimized” and claims 5x performance improvement over MySQL on RDS, over 3x the performance of Postgres on RDS
• Aurora storage automatically grows in increments of 10GB, up to 128 TB.
• Aurora can have 15 replicas while MySQL has 5, and the replication process is faster (sub 10 ms replica lag)
• Failover in Aurora is instantaneous. It’s HA (High Availability) native.
• Aurora costs more than RDS (20% more) – but is more efficient

Aurora High Availability and Read Scaling

• 6 copies of your data across 3 AZ:
  • 4 copies out of 6 needed for writes
  • 3 copies out of 6 need for reads
  • Self healing with peer-to-peer replication
  • Storage is striped across 100s of volumes
• One Aurora Instance takes writes (master)
• Automated failover for master in less than 30 seconds
• Master + up to 15 Aurora Read Replicas serve reads
• Support for Cross Region Replication

Aurora – Custom Endpoints

• Define a subset of Aurora Instances as a Custom Endpoint
• Example: Run analytical queries on specific replicas
• The Reader Endpoint is generally not used after defining Custom Endpoints

Global Aurora

• Aurora Cross Region Read Replicas:
  • Useful for disaster recovery
  • Simple to put in place
• Aurora Global Database (recommended):
  • 1 Primary Region (read / write)
  • Up to 5 secondary (read-only) regions, replication lag is less than 1 second
  • Up to 16 Read Replicas per secondary region
  • Helps for decreasing latency
  • Promoting another region (for disaster recovery) has an RTO of < 1 minute

ElastiCache – Redis vs Memcached

REDIS

• Multi AZ with Auto-Failover
• Read Replicas to scale reads and have high availability
• Data Durability using AOF persistence
• Backup and restore features

MEMCACHED

• Multi-node for partitioning of data (sharding)
• No high availability (replication)
• Non persistent
• No backup and restore
• Multi-threaded architecture

ElastiCache – Cache Security

• All caches in ElastiCache:
  • Do not support IAM authentication
  • IAM policies on ElastiCache are only used for AWS API-level security
• Redis AUTH
  • You can set a "password/token" when you create a Redis cluster
  • This is an extra level of security for your cache (on top of security groups)
  • Support SSL in flight encryption
• Memcached
  • Supports SASL-based authentication (advanced)

Patterns for ElastiCache

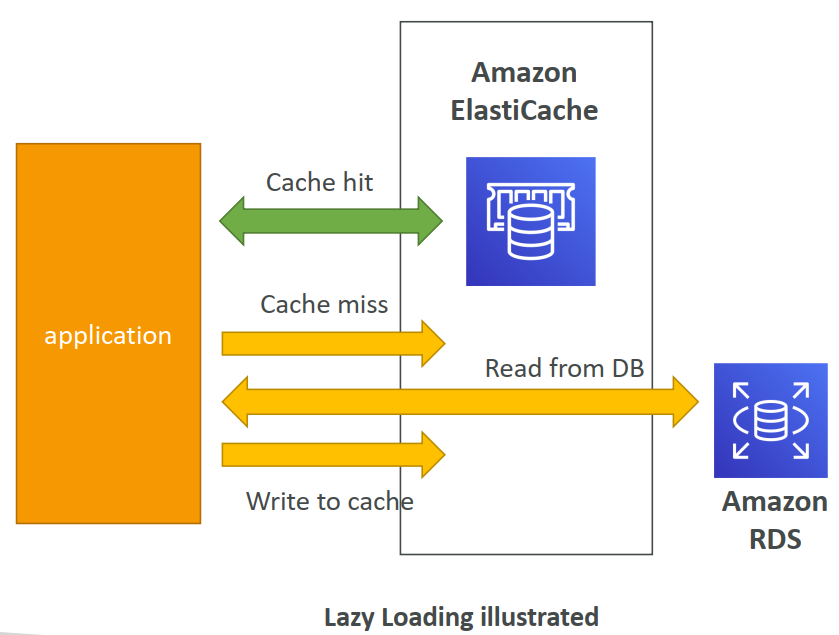

• Lazy Loading: all the read data is cached, data can become stale in cache
• Write Through: Adds or update data in the cache when written to a DB (no stale data)
• Session Store: store temporary session data in a cache (using TTL features)

Quote: There are only two hard things in Computer Science: cache invalidation 缓存失效 and naming things

ElastiCache – Redis Use Case

• 游戏排行榜的复杂计算
• Redis排序集保证了唯一性和元素顺序
• 每次添加新元素时，都会对其进行实时排名，然后添加到正确的顺序
