Mybatis Mapper 动态代理

Mybatis中使用了JDK反射机制和CGLIB代理

反射机制，通过 Class.forName 加载类，通过方法的 invoke 反射调用方法

JDK动态代理#

MyBatis的 Mapper 采用的就是 JDK 动态代理

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;

public class ProxyService implements InvocationHandler {

    private Object target;

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        return method.invoke(proxy, args);
    }

    public Object bind(Object target){
        this.target = target;
        return Proxy.newProxyInstance(target.getClass().getClassLoader(), target.getClass().getInterfaces(), this);
    }
}

CGLIB 动态代理#

JDK 动态代理缺陷：必须提供接口才可以使用

package net.sf.cglib.samples;

import net.sf.cglib.proxy.*;

public class CglibService implements MethodInterceptor {

    private Object target;

    public Object newInstance(Object target){
        try{
            this.target = target;
            Enhancer e = new Enhancer();
            e.setSuperclass(this.target.getClass());
            // 回调
            e.setCallback(this);
            // 创建代理对象
            return e.create();
        }catch( Throwable e ){
            e.printStackTrace();
            throw new Error(e.getMessage());
        }
    }

    public Object intercept(Object obj, java.lang.reflect.Method method, Object[] args,
                            MethodProxy proxy) throws Throwable {
        return proxy.invokeSuper(obj, args);
    }
}

构建 SqlSessionFactory 过程#

通过 SqlSesionFactoryBuilder 去构建

1. 通过 org.apache.ibatis.builder.xml.XMLConfigBuilder 解析配置的 XML 文件，读出配置参数，将数据存入 org.apache.ibatis.session.Configuration 类
2. 使用 Configuration 对象创建 SqlSessionFactory，这是一个接口，默认实现类是 org.apache.ibatis.session.defaults.DefaultSqlSessionFactory

构建 Configuration#

• 读入配置文件，包括基础配置的 XML 文件和映射器的 XML 文件
• 初始化基础配置和重要类对象，插件、映射器、ObjectFactory 和 typeHandler 对象
• 提供单例，为后续创建 SessionFactory 服务并提供配置的参数
• 执行重要的对象方法，初始化配置信息

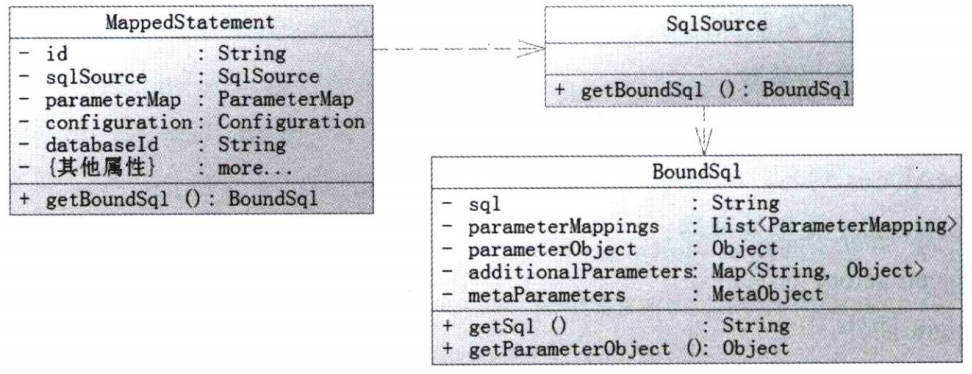

映射器的内部组成#

MappedStatement，保存映射器的一个节点（select|insert|delete|update），包括SQL的id、缓存、resultMap、parameterType、resultType、languageDriver等

SqlSource，提供 BoundSql 对象的地方，是 MappedStatement 的一个属性

BoundSql，建立SQL和参数的地方，3个常用属性：SQL、parameterObject、paramteterMappings

BoundSql 会提供3个主要的属性#

• parameterMappings，这个是参数本身，可以传递简单对象、POJO、Map 或者 @Param 参数
• 传递简单对象（int、String、float、double），传递时将原始数据类型转换为包装数据类型
• 如果没有 @Param 注解，parameterObject 变为一个 Map<String, Object>对象，使用#{param1}或者#{1}去引用参数
• 如果使用 @Param 注解，parameterObject 变为一个 Map<String, Object>对象，使用指定的key获取值
• parameterMappings，是一个List，每一个元素都是 ParameterMapping 对象

映射器动态代理（代码 + 解析）#

MapperProxyFactory

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package org.apache.ibatis.binding;

import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import org.apache.ibatis.binding.MapperProxy.MapperMethodInvoker;
import org.apache.ibatis.session.SqlSession;

public class MapperProxyFactory<T> {
    private final Class<T> mapperInterface;
    private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap();

    // 3.5.5版本的 mybatis, 对在配置 mapper-locations 下的 xml 格式的 mapper 都会依次生成对应的工厂
    public MapperProxyFactory(Class<T> mapperInterface) {
        this.mapperInterface = mapperInterface;
    }

    public Class<T> getMapperInterface() {
        return this.mapperInterface;
    }

    public Map<Method, MapperMethodInvoker> getMethodCache() {
        return this.methodCache;
    }

    protected T newInstance(MapperProxy<T> mapperProxy) {
        return Proxy.newProxyInstance(this.mapperInterface.getClassLoader(), new Class[]{this.mapperInterface}, mapperProxy);
    }
    // 当 xml 格式的 mapper 对应的 dao 在 service 中 @Autowired 或者 @Resource 调用该方法
    public T newInstance(SqlSession sqlSession) {
        MapperProxy<T> mapperProxy = new MapperProxy(sqlSession, this.mapperInterface, this.methodCache);
        return this.newInstance(mapperProxy);
    }
}

MapperProxy

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package org.apache.ibatis.binding;

import java.io.Serializable;
import java.lang.invoke.MethodHandle;
import java.lang.invoke.MethodHandles;
import java.lang.invoke.MethodType;
import java.lang.invoke.MethodHandles.Lookup;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.Map;
import org.apache.ibatis.reflection.ExceptionUtil;
import org.apache.ibatis.session.SqlSession;

public class MapperProxy<T> implements InvocationHandler, Serializable {
    private static final long serialVersionUID = -4724728412955527868L;
    private static final int ALLOWED_MODES = 15;
    private static final Constructor<Lookup> lookupConstructor;
    private static final Method privateLookupInMethod;
    private final SqlSession sqlSession;
    private final Class<T> mapperInterface;
    private final Map<Method, MapperProxy.MapperMethodInvoker> methodCache;

    public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperProxy.MapperMethodInvoker> methodCache) {
        this.sqlSession = sqlSession;
        this.mapperInterface = mapperInterface;
        this.methodCache = methodCache;
    }

    // 当调用 dao 中的方法时，调用该方法判断是类还是接口, 如果是类直接执行方法, 如果是接口, 调用 cachedInvoker 执行接口中的方法
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        try {
            return Object.class.equals(method.getDeclaringClass()) ? method.invoke(this, args) : this.cachedInvoker(method).invoke(proxy, method, args, this.sqlSession);
        } catch (Throwable var5) {
            throw ExceptionUtil.unwrapThrowable(var5);
        }
    }

    // 这里的 method 就是调用的 dao 中的方法
    private MapperProxy.MapperMethodInvoker cachedInvoker(Method method) throws Throwable {
        try {
            // 从 methodCache 中获取 invoker, 即第一次调用之后可以复用
            MapperProxy.MapperMethodInvoker invoker = (MapperProxy.MapperMethodInvoker)this.methodCache.get(method);
            return invoker != null ? invoker : (MapperProxy.MapperMethodInvoker)this.methodCache.computeIfAbsent(method, (m) -> {
                // lamda 表达式, m 就是 method, 判断是否是 default 方法
                if (m.isDefault()) {
                    // 如果是 default 方法, 调用 DefaultMethodInvoker 方法
                    try {
                        return privateLookupInMethod == null ? new MapperProxy.DefaultMethodInvoker(this.getMethodHandleJava8(method)) : new MapperProxy.DefaultMethodInvoker(this.getMethodHandleJava9(method));
                    } catch (InstantiationException | InvocationTargetException | NoSuchMethodException | IllegalAccessException var4) {
                        throw new RuntimeException(var4);
                    }
                } else {
                    // 如果不是 default 方法，调用 PlainMethodInvoker 方法
                    return new MapperProxy.PlainMethodInvoker(new MapperMethod(this.mapperInterface, method, this.sqlSession.getConfiguration()));
                }
            });
        } catch (RuntimeException var4) {
            Throwable cause = var4.getCause();
            throw (Throwable)(cause == null ? var4 : cause);
        }
    }

    private MethodHandle getMethodHandleJava9(Method method) throws NoSuchMethodException, IllegalAccessException, InvocationTargetException {
        Class<?> declaringClass = method.getDeclaringClass();
        return ((Lookup)privateLookupInMethod.invoke((Object)null, declaringClass, MethodHandles.lookup())).findSpecial(declaringClass, method.getName(), MethodType.methodType(method.getReturnType(), method.getParameterTypes()), declaringClass);
    }

    private MethodHandle getMethodHandleJava8(Method method) throws IllegalAccessException, InstantiationException, InvocationTargetException {
        Class<?> declaringClass = method.getDeclaringClass();
        return ((Lookup)lookupConstructor.newInstance(declaringClass, 15)).unreflectSpecial(method, declaringClass);
    }

    static {
        Method privateLookupIn;
        try {
            privateLookupIn = MethodHandles.class.getMethod("privateLookupIn", Class.class, Lookup.class);
        } catch (NoSuchMethodException var5) {
            privateLookupIn = null;
        }

        privateLookupInMethod = privateLookupIn;
        Constructor<Lookup> lookup = null;
        if (privateLookupInMethod == null) {
            try {
                lookup = Lookup.class.getDeclaredConstructor(Class.class, Integer.TYPE);
                lookup.setAccessible(true);
            } catch (NoSuchMethodException var3) {
                throw new IllegalStateException("There is neither 'privateLookupIn(Class, Lookup)' nor 'Lookup(Class, int)' method in java.lang.invoke.MethodHandles.", var3);
            } catch (Exception var4) {
                lookup = null;
            }
        }

        lookupConstructor = lookup;
    }

    private static class DefaultMethodInvoker implements MapperProxy.MapperMethodInvoker {
        private final MethodHandle methodHandle;

        public DefaultMethodInvoker(MethodHandle methodHandle) {
            this.methodHandle = methodHandle;
        }

        public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
            return this.methodHandle.bindTo(proxy).invokeWithArguments(args);
        }
    }

    private static class PlainMethodInvoker implements MapperProxy.MapperMethodInvoker {
        private final MapperMethod mapperMethod;

        public PlainMethodInvoker(MapperMethod mapperMethod) {
            this.mapperMethod = mapperMethod;
        }

        // 执行 dao 中的方法时, 调用 mapperMethod 的 execute 方法, 传入 sql会话 和 参数
        public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
            return this.mapperMethod.execute(sqlSession, args);
        }
    }

    interface MapperMethodInvoker {
        Object invoke(Object var1, Method var2, Object[] var3, SqlSession var4) throws Throwable;
    }
}

MapperMethod

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package org.apache.ibatis.binding;

import java.lang.reflect.Array;
import java.lang.reflect.Method;
import java.lang.reflect.ParameterizedType;
import java.lang.reflect.Type;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Optional;
import org.apache.ibatis.annotations.Flush;
import org.apache.ibatis.annotations.MapKey;
import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ResultMap;
import org.apache.ibatis.mapping.SqlCommandType;
import org.apache.ibatis.mapping.StatementType;
import org.apache.ibatis.reflection.MetaObject;
import org.apache.ibatis.reflection.ParamNameResolver;
import org.apache.ibatis.reflection.TypeParameterResolver;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.session.SqlSession;

public class MapperMethod {
    private final MapperMethod.SqlCommand command;
    private final MapperMethod.MethodSignature method;

    public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
        this.command = new MapperMethod.SqlCommand(config, mapperInterface, method);
        this.method = new MapperMethod.MethodSignature(config, mapperInterface, method);
    }

    // 具体的 Sql 语句对应的执行过程在这里
    public Object execute(SqlSession sqlSession, Object[] args) {
        Object result;
        Object param;
        // 这里的类型在第一次调用 dao 生成 MapperMethod 时已经注入, 后面都是复用
        // 根据不同类型, SqlSession 调用不同的方法
        switch(this.command.getType()) {
        case INSERT:
            param = this.method.convertArgsToSqlCommandParam(args);
            result = this.rowCountResult(sqlSession.insert(this.command.getName(), param));
            break;
        case UPDATE:
            param = this.method.convertArgsToSqlCommandParam(args);
            result = this.rowCountResult(sqlSession.update(this.command.getName(), param));
            break;
        case DELETE:
            param = this.method.convertArgsToSqlCommandParam(args);
            result = this.rowCountResult(sqlSession.delete(this.command.getName(), param));
            break;
        // 插入、更新、删除都是返回影响的行数, 查询根据返回类型调用不同的查询方法
        case SELECT:
            if (this.method.returnsVoid() && this.method.hasResultHandler()) {
                this.executeWithResultHandler(sqlSession, args);
                result = null;
            } else if (this.method.returnsMany()) {
                result = this.executeForMany(sqlSession, args);
            } else if (this.method.returnsMap()) {
                result = this.executeForMap(sqlSession, args);
            } else if (this.method.returnsCursor()) {
                result = this.executeForCursor(sqlSession, args);
            } else {
                param = this.method.convertArgsToSqlCommandParam(args);
                result = sqlSession.selectOne(this.command.getName(), param);
                if (this.method.returnsOptional() && (result == null || !this.method.getReturnType().equals(result.getClass()))) {
                    result = Optional.ofNullable(result);
                }
            }
            break;
        case FLUSH:
            result = sqlSession.flushStatements();
            break;
        default:
            throw new BindingException("Unknown execution method for: " + this.command.getName());
        }

        if (result == null && this.method.getReturnType().isPrimitive() && !this.method.returnsVoid()) {
            throw new BindingException("Mapper method '" + this.command.getName() + " attempted to return null from a method with a primitive return type (" + this.method.getReturnType() + ").");
        } else {
            return result;
        }
    }

    private Object rowCountResult(int rowCount) {
        Object result;
        if (this.method.returnsVoid()) {
            result = null;
        } else if (!Integer.class.equals(this.method.getReturnType()) && !Integer.TYPE.equals(this.method.getReturnType())) {
            if (!Long.class.equals(this.method.getReturnType()) && !Long.TYPE.equals(this.method.getReturnType())) {
                if (!Boolean.class.equals(this.method.getReturnType()) && !Boolean.TYPE.equals(this.method.getReturnType())) {
                    throw new BindingException("Mapper method '" + this.command.getName() + "' has an unsupported return type: " + this.method.getReturnType());
                }

                result = rowCount > 0;
            } else {
                result = (long)rowCount;
            }
        } else {
            result = rowCount;
        }

        return result;
    }

    private void executeWithResultHandler(SqlSession sqlSession, Object[] args) {
        MappedStatement ms = sqlSession.getConfiguration().getMappedStatement(this.command.getName());
        if (!StatementType.CALLABLE.equals(ms.getStatementType()) && Void.TYPE.equals(((ResultMap)ms.getResultMaps().get(0)).getType())) {
            throw new BindingException("method " + this.command.getName() + " needs either a @ResultMap annotation, a @ResultType annotation, or a resultType attribute in XML so a ResultHandler can be used as a parameter.");
        } else {
            Object param = this.method.convertArgsToSqlCommandParam(args);
            if (this.method.hasRowBounds()) {
                RowBounds rowBounds = this.method.extractRowBounds(args);
                sqlSession.select(this.command.getName(), param, rowBounds, this.method.extractResultHandler(args));
            } else {
                sqlSession.select(this.command.getName(), param, this.method.extractResultHandler(args));
            }

        }
    }

    private <E> Object executeForMany(SqlSession sqlSession, Object[] args) {
        Object param = this.method.convertArgsToSqlCommandParam(args);
        List result;
        if (this.method.hasRowBounds()) {
            RowBounds rowBounds = this.method.extractRowBounds(args);
            result = sqlSession.selectList(this.command.getName(), param, rowBounds);
        } else {
            result = sqlSession.selectList(this.command.getName(), param);
        }

        if (!this.method.getReturnType().isAssignableFrom(result.getClass())) {
            return this.method.getReturnType().isArray() ? this.convertToArray(result) : this.convertToDeclaredCollection(sqlSession.getConfiguration(), result);
        } else {
            return result;
        }
    }

    private <T> Cursor<T> executeForCursor(SqlSession sqlSession, Object[] args) {
        Object param = this.method.convertArgsToSqlCommandParam(args);
        Cursor result;
        if (this.method.hasRowBounds()) {
            RowBounds rowBounds = this.method.extractRowBounds(args);
            result = sqlSession.selectCursor(this.command.getName(), param, rowBounds);
        } else {
            result = sqlSession.selectCursor(this.command.getName(), param);
        }

        return result;
    }

    private <E> Object convertToDeclaredCollection(Configuration config, List<E> list) {
        Object collection = config.getObjectFactory().create(this.method.getReturnType());
        MetaObject metaObject = config.newMetaObject(collection);
        metaObject.addAll(list);
        return collection;
    }

    private <E> Object convertToArray(List<E> list) {
        Class<?> arrayComponentType = this.method.getReturnType().getComponentType();
        Object array = Array.newInstance(arrayComponentType, list.size());
        if (!arrayComponentType.isPrimitive()) {
            return list.toArray((Object[])((Object[])array));
        } else {
            for(int i = 0; i < list.size(); ++i) {
                Array.set(array, i, list.get(i));
            }

            return array;
        }
    }

    private <K, V> Map<K, V> executeForMap(SqlSession sqlSession, Object[] args) {
        Object param = this.method.convertArgsToSqlCommandParam(args);
        Map result;
        if (this.method.hasRowBounds()) {
            RowBounds rowBounds = this.method.extractRowBounds(args);
            result = sqlSession.selectMap(this.command.getName(), param, this.method.getMapKey(), rowBounds);
        } else {
            result = sqlSession.selectMap(this.command.getName(), param, this.method.getMapKey());
        }

        return result;
    }

    public static class MethodSignature {
        private final boolean returnsMany;
        private final boolean returnsMap;
        private final boolean returnsVoid;
        private final boolean returnsCursor;
        private final boolean returnsOptional;
        private final Class<?> returnType;
        private final String mapKey;
        private final Integer resultHandlerIndex;
        private final Integer rowBoundsIndex;
        private final ParamNameResolver paramNameResolver;

        public MethodSignature(Configuration configuration, Class<?> mapperInterface, Method method) {
            Type resolvedReturnType = TypeParameterResolver.resolveReturnType(method, mapperInterface);
            if (resolvedReturnType instanceof Class) {
                this.returnType = (Class)resolvedReturnType;
            } else if (resolvedReturnType instanceof ParameterizedType) {
                this.returnType = (Class)((ParameterizedType)resolvedReturnType).getRawType();
            } else {
                this.returnType = method.getReturnType();
            }

            this.returnsVoid = Void.TYPE.equals(this.returnType);
            this.returnsMany = configuration.getObjectFactory().isCollection(this.returnType) || this.returnType.isArray();
            this.returnsCursor = Cursor.class.equals(this.returnType);
            this.returnsOptional = Optional.class.equals(this.returnType);
            this.mapKey = this.getMapKey(method);
            this.returnsMap = this.mapKey != null;
            this.rowBoundsIndex = this.getUniqueParamIndex(method, RowBounds.class);
            this.resultHandlerIndex = this.getUniqueParamIndex(method, ResultHandler.class);
            this.paramNameResolver = new ParamNameResolver(configuration, method);
        }

        public Object convertArgsToSqlCommandParam(Object[] args) {
            return this.paramNameResolver.getNamedParams(args);
        }

        public boolean hasRowBounds() {
            return this.rowBoundsIndex != null;
        }

        public RowBounds extractRowBounds(Object[] args) {
            return this.hasRowBounds() ? (RowBounds)args[this.rowBoundsIndex] : null;
        }

        public boolean hasResultHandler() {
            return this.resultHandlerIndex != null;
        }

        public ResultHandler extractResultHandler(Object[] args) {
            return this.hasResultHandler() ? (ResultHandler)args[this.resultHandlerIndex] : null;
        }

        public Class<?> getReturnType() {
            return this.returnType;
        }

        public boolean returnsMany() {
            return this.returnsMany;
        }

        public boolean returnsMap() {
            return this.returnsMap;
        }

        public boolean returnsVoid() {
            return this.returnsVoid;
        }

        public boolean returnsCursor() {
            return this.returnsCursor;
        }

        public boolean returnsOptional() {
            return this.returnsOptional;
        }

        private Integer getUniqueParamIndex(Method method, Class<?> paramType) {
            Integer index = null;
            Class<?>[] argTypes = method.getParameterTypes();

            for(int i = 0; i < argTypes.length; ++i) {
                if (paramType.isAssignableFrom(argTypes[i])) {
                    if (index != null) {
                        throw new BindingException(method.getName() + " cannot have multiple " + paramType.getSimpleName() + " parameters");
                    }

                    index = i;
                }
            }

            return index;
        }

        public String getMapKey() {
            return this.mapKey;
        }

        private String getMapKey(Method method) {
            String mapKey = null;
            if (Map.class.isAssignableFrom(method.getReturnType())) {
                MapKey mapKeyAnnotation = (MapKey)method.getAnnotation(MapKey.class);
                if (mapKeyAnnotation != null) {
                    mapKey = mapKeyAnnotation.value();
                }
            }

            return mapKey;
        }
    }

    public static class SqlCommand {
        private final String name;
        private final SqlCommandType type;

        public SqlCommand(Configuration configuration, Class<?> mapperInterface, Method method) {
            String methodName = method.getName();
            Class<?> declaringClass = method.getDeclaringClass();
            MappedStatement ms = this.resolveMappedStatement(mapperInterface, methodName, declaringClass, configuration);
            if (ms == null) {
                if (method.getAnnotation(Flush.class) == null) {
                    throw new BindingException("Invalid bound statement (not found): " + mapperInterface.getName() + "." + methodName);
                }

                this.name = null;
                this.type = SqlCommandType.FLUSH;
            } else {
                this.name = ms.getId();
                this.type = ms.getSqlCommandType();
                if (this.type == SqlCommandType.UNKNOWN) {
                    throw new BindingException("Unknown execution method for: " + this.name);
                }
            }

        }

        public String getName() {
            return this.name;
        }

        public SqlCommandType getType() {
            return this.type;
        }

        private MappedStatement resolveMappedStatement(Class<?> mapperInterface, String methodName, Class<?> declaringClass, Configuration configuration) {
            String statementId = mapperInterface.getName() + "." + methodName;
            if (configuration.hasStatement(statementId)) {
                return configuration.getMappedStatement(statementId);
            } else if (mapperInterface.equals(declaringClass)) {
                return null;
            } else {
                Class[] var6 = mapperInterface.getInterfaces();
                int var7 = var6.length;

                for(int var8 = 0; var8 < var7; ++var8) {
                    Class<?> superInterface = var6[var8];
                    if (declaringClass.isAssignableFrom(superInterface)) {
                        MappedStatement ms = this.resolveMappedStatement(superInterface, methodName, declaringClass, configuration);
                        if (ms != null) {
                            return ms;
                        }
                    }
                }

                return null;
            }
        }
    }

    public static class ParamMap<V> extends HashMap<String, V> {
        private static final long serialVersionUID = -2212268410512043556L;

        public ParamMap() {
        }

        public V get(Object key) {
            if (!super.containsKey(key)) {
                throw new BindingException("Parameter '" + key + "' not found. Available parameters are " + this.keySet());
            } else {
                return super.get(key);
            }
        }
    }
}
