滴水 2.28 进程创建 终止 继承

一、进程的创建过程：

当系统启动后，创建一个进程：Explorer.exe 也就是桌面进程.
当用户双击某一个EXE时，Explorer 进程使用CreateProcess函数创建被双击的EXE,也就是说，我们在桌面上双击创建的进程都是Explorer进程的子进程.
父进程挂了 子进程不会挂 进程不能单独创建

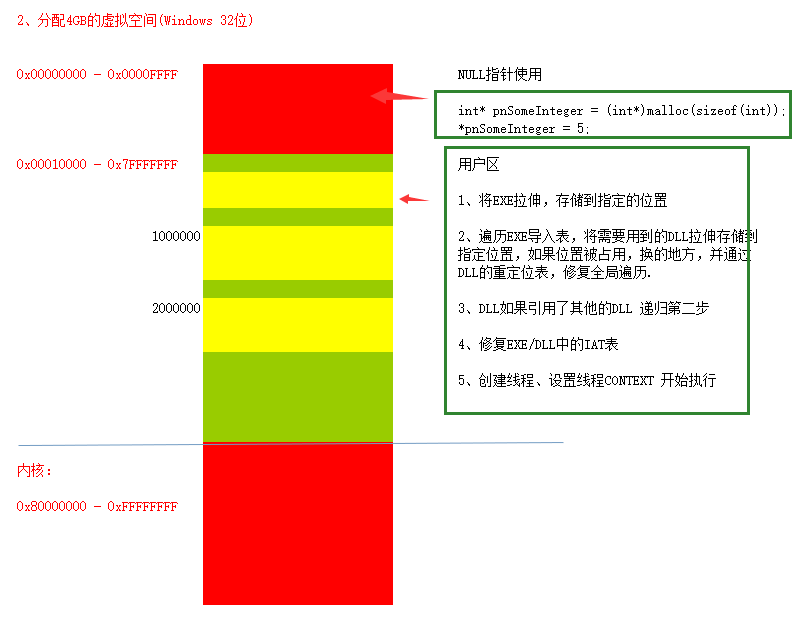

2.CreateProcess 创建进程过程

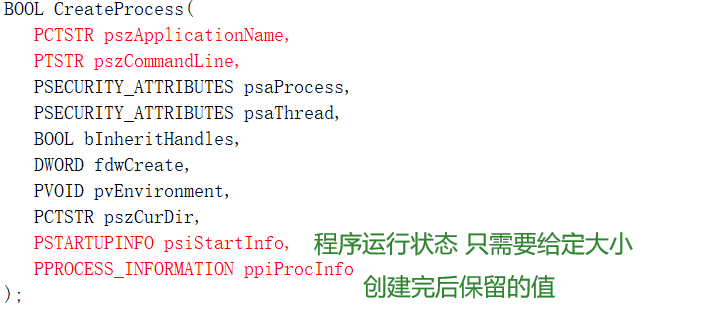

3.CreateProcess实操-参数介绍

用自己写的软件 创建进程

第一个参数传递

#include "stdafx.h"
#include <windows.h>

	VOID TestCreateProcessByAPPName()
	{
		STARTUPINFO si = {0};
	    	PROCESS_INFORMATION pi;

		si.cb = sizeof(si);

		TCHAR szApplicationName[] =TEXT("C:\\Program Files\\PCHunter32.exe");

		BOOL res = CreateProcess(
			szApplicationName,
			NULL,
			NULL,
			NULL,
			FALSE,
			CREATE_NEW_CONSOLE,
			NULL,
			NULL, &si, &pi);

	}

参数2打开

#include "stdafx.h"
#include <windows.h>
	VOID TestCreateProcessByCmdline()
	{
		STARTUPINFO si = {0};
	    PROCESS_INFORMATION pi;

		si.cb = sizeof(si);

		TCHAR szCmdline[] =TEXT("C:\\Documents and Settings\\Administrator\\Local Settings\\Application Data\\360Chrome\\Chrome\\Application\\360chrome.exe http://www.ifeng.com");


		BOOL res = CreateProcess(
			NULL,
			szCmdline,
			NULL,
			NULL,
			FALSE,
			CREATE_NEW_CONSOLE,
			NULL,
			NULL, &si, &pi);
	}


参数1 参数2 合并打开

	VOID TestCreateProcess()
	{
		STARTUPINFO si = {0};
	    	PROCESS_INFORMATION pi;

		si.cb = sizeof(si);

		TCHAR szCmdline[] =TEXT(" http://www.ifeng.com");

		BOOL res = CreateProcess(
			TEXT("c://program files//internet explorer//iexplore.exe"),
			szCmdline,
			NULL,
			NULL,
			FALSE,
			CREATE_NEW_CONSOLE,
			NULL,
			NULL, &si, &pi);
	}

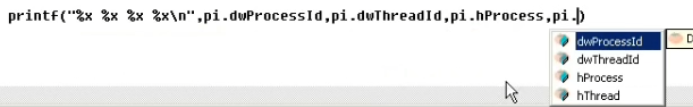

ppiProcInfo指向一个PROCESS_INFORMATION,该结构体包含新创建的进程和线程内核对象的句柄以及id

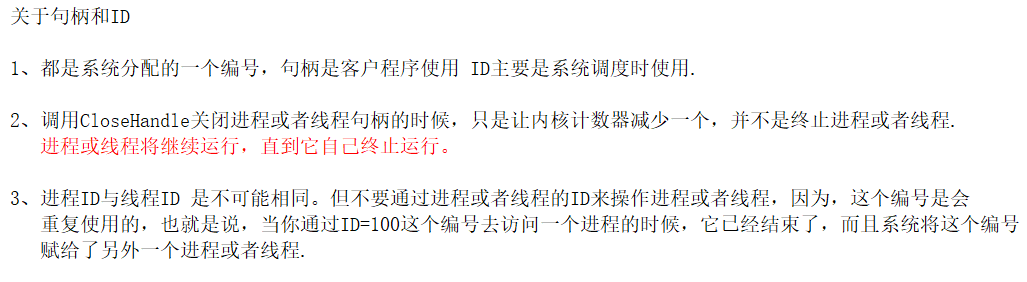

3.句柄和ID--进程销毁

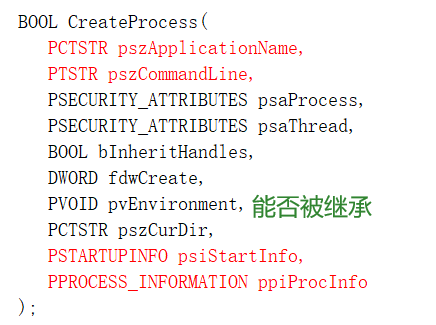

4.句柄继承

进程1

// ZZZZ.cpp : Defines the entry point for the console application.
//

#include "stdafx.h"
#include <stdio.h>
#include <windows.h>
	VOID TestCreateProcessByCmdline()
	{
		char szBuffer[256] = {0};
	char szHandle[8] = {0};
	//若要创建能继承的句柄，父进程必须指定一个SECURITY_ATTRIBUTES结构并对它进行初始化
	//三个成员的意义：大小、默认安全属性、是否可以继承
	SECURITY_ATTRIBUTES sa;
	sa.nLength = sizeof(sa);
	sa.lpSecurityDescriptor = NULL;
	sa.bInheritHandle = TRUE;
	//创建一个可以被继承的内核对象
	HANDLE g_hEvent = CreateEvent(&sa, TRUE, FALSE, NULL);

	//组织命令行参数
	sprintf(szHandle,"%x",g_hEvent);
	sprintf(szBuffer,"C:/z2.exe %s",szHandle);

	//定义创建进程需要用的结构体
	STARTUPINFO si = {0};
	PROCESS_INFORMATION pi;
	si.cb = sizeof(si);

		BOOL res = CreateProcess(
		NULL,
		szBuffer,
		NULL,
		NULL,
		TRUE,
		CREATE_NEW_CONSOLE,
		NULL,
		NULL, &si, &pi);

	//设置事件为已通知
	SetEvent(g_hEvent);

	//关闭句柄 内核对象是否会被销毁？
	CloseHandle(g_hEvent);



	}



int main(int argc, char* argv[])
{
	TestCreateProcessByCmdline();
	printf("Hello World!\n");
	getchar();
	return 0;
}

进程2

| char szBuffer[256] = {0};                |
| ---------------------------------------- |
| memcpy(szBuffer,argv[1],8);              |
|                                          |
| DWORD dwHandle = 0;                      |
|                                          |
| sscanf(szBuffer,"%x",&dwHandle);         |
|                                          |
| printf("%s\n",argv[0]);                  |
|                                          |
| printf("%x\n",dwHandle);                 |
|                                          |
| HANDLE g_hEvent = (HANDLE)dwHandle;      |
|                                          |
|                                          |
| printf("开始等待.....\n");                   |
| //当事件变成已通知时                              |
| WaitForSingleObject(g_hEvent, INFINITE); |
|                                          |
| DWORD dwCode = GetLastError();           |
|                                          |
| printf("等到消息.....%x\n",dwCode);          |
|                                          |
| getchar();                               |
