Unity3d开发“类三消”游戏

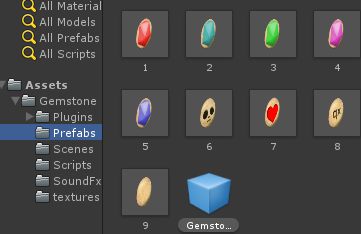

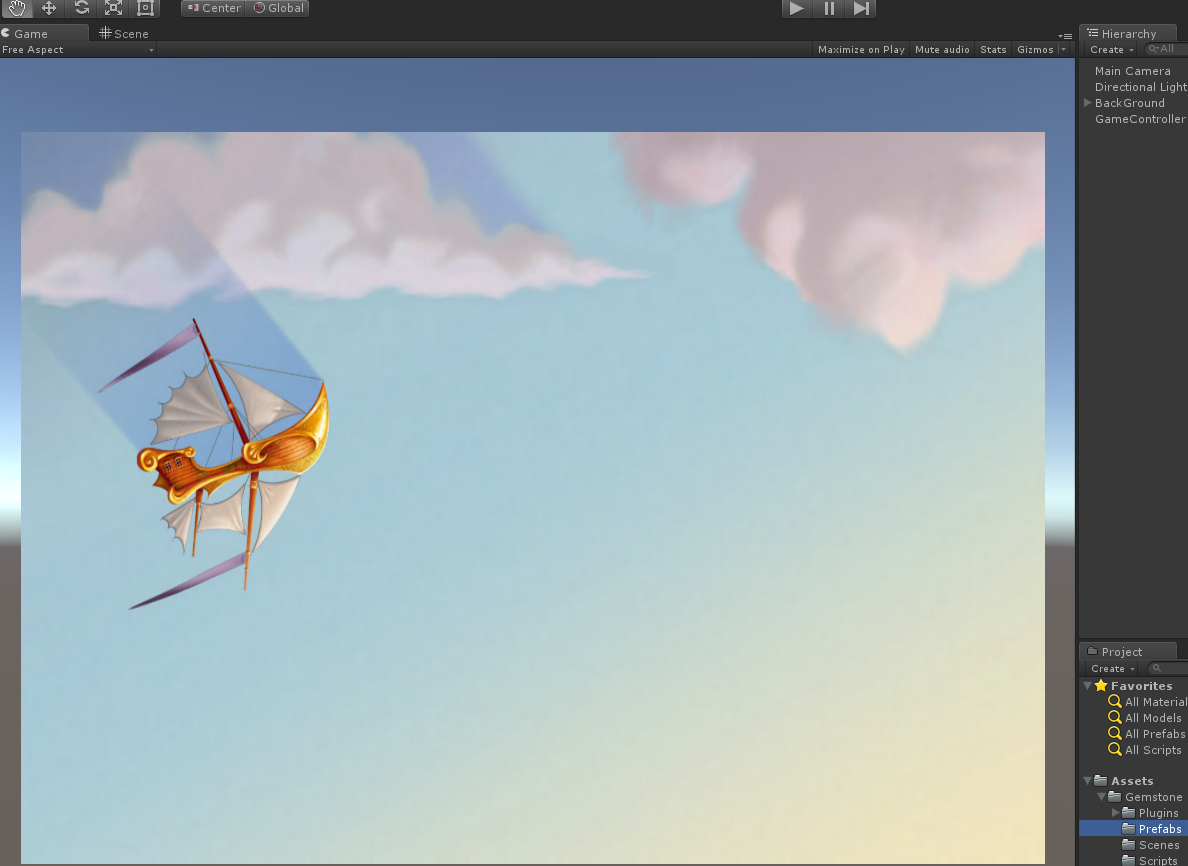

新建一个Project，导入图片素材和声音文件，把图片的Texture Type都修改为Sprite(2D and UI)【1】。新建一个命名为Background的GameObject，为之添加背景素材图片【2】。再新建一个命名为GameController的GameObject，为之添加GameController脚本和AudioSource组件。把消除素材图片都做成预设体(Prefabs)【3】，顺便再Copy多一个预设体，重命名为Gemstone，把Sprite设为空(None)，为之添加Gemstone脚本和BoxCollider组件。

    【1】                                             【3】

【2】

GameController.sc脚本

  1 using System.Collections;
  2
  3 public class GameController : MonoBehaviour {
  4     public Gemstone gemstone;
  5     public int rowNum=7;//宝石列数
  6     public int columNum=10;//宝石行数
  7     public ArrayList gemstoneList;//定义列表
  8     private Gemstone currentGemstone;
  9     private ArrayList matchesGemstone;
 10     public AudioClip match3Clip;
 11     public AudioClip swapClip;
 12     public AudioClip erroeClip;
 13     // Use this for initialization
 14     void Start () {
 15         gemstoneList = new ArrayList ();//新建列表
 16         matchesGemstone = new ArrayList ();
 17         for (int rowIndex=0; rowIndex<rowNum; rowIndex++) {
 18             ArrayList temp=new ArrayList();
 19             for(int columIndex=0;columIndex<columNum;columIndex++){
 20                 Gemstone c=AddGemstone(rowIndex,columIndex);
 21                 temp.Add(c);
 22
 23             }
 24             gemstoneList.Add(temp);
 25         }
 26         if (CheckHorizontalMatches () || CheckVerticalMatches ()) {//开始检测匹配消除
 27             RemoveMatches();
 28         }
 29     }
 30     public Gemstone AddGemstone(int rowIndex,int columIndex){//生成宝石
 31         Gemstone c = Instantiate (gemstone)as Gemstone;
 32         c.transform.parent = this.transform;//生成宝石为GameController子物体
 33         c.GetComponent<Gemstone>().RandomCreateGemstoneBg();
 34         c.GetComponent<Gemstone>().UpdatePosition(rowIndex,columIndex);
 35         return c;
 36     }
 37
 38     // Update is called once per frame
 39     void Update () {
 40
 41     }
 42     public void Select(Gemstone c){
 43         //Destroy (c.gameObject);
 44         if (currentGemstone == null) {
 45             currentGemstone = c;
 46             currentGemstone.isSelected=true;
 47             return;
 48         } else {
 49             if(Mathf.Abs(currentGemstone.rowIndex-c.rowIndex)+Mathf.Abs(currentGemstone.columIndex-c.columIndex)==1){
 50                 //ExangeAndMatches(currentGemstone,c);
 51                 StartCoroutine(ExangeAndMatches(currentGemstone,c));
 52             }else{
 53                 this.gameObject.GetComponent<AudioSource>().PlayOneShot(erroeClip);
 54             }
 55             currentGemstone.isSelected=false;
 56             currentGemstone=null;
 57         }
 58     }
 59     IEnumerator ExangeAndMatches(Gemstone c1,Gemstone c2){//实现宝石交换并且检测匹配消除
 60         Exchange(c1,c2);
 61         yield return new WaitForSeconds (0.5f);
 62         if (CheckHorizontalMatches () || CheckVerticalMatches ()) {
 63             RemoveMatches ();
 64         } else {
 65         Exchange(c1,c2);
 66         }
 67     }
 68     bool CheckHorizontalMatches(){//实现检测水平方向的匹配
 69         bool isMatches = false;
 70         for (int rowIndex=0; rowIndex<rowNum; rowIndex++) {
 71             for (int columIndex=0; columIndex<columNum-2; columIndex++) {
 72                 if ((GetGemstone (rowIndex, columIndex).gemstoneType == GetGemstone (rowIndex, columIndex + 1).gemstoneType) && (GetGemstone (rowIndex, columIndex).gemstoneType == GetGemstone (rowIndex, columIndex + 2).gemstoneType)) {
 73                     //Debug.Log ("发现行相同的宝石");
 74                     AddMatches(GetGemstone(rowIndex,columIndex));
 75                     AddMatches(GetGemstone(rowIndex,columIndex+1));
 76                     AddMatches(GetGemstone(rowIndex,columIndex+2));
 77                     isMatches = true;
 78                 }
 79             }
 80         }
 81         return isMatches;
 82     }
 83     bool CheckVerticalMatches(){//实现检测垂直方向的匹配
 84         bool isMatches = false;
 85         for (int columIndex=0; columIndex<columNum; columIndex++) {
 86             for (int rowIndex=0; rowIndex<rowNum-2; rowIndex++) {
 87                 if ((GetGemstone (rowIndex, columIndex).gemstoneType == GetGemstone (rowIndex + 1, columIndex).gemstoneType) && (GetGemstone (rowIndex, columIndex).gemstoneType == GetGemstone (rowIndex + 2, columIndex).gemstoneType)) {
 88                     //Debug.Log("发现列相同的宝石");
 89                     AddMatches(GetGemstone(rowIndex,columIndex));
 90                     AddMatches(GetGemstone(rowIndex+1,columIndex));
 91                     AddMatches(GetGemstone(rowIndex+2,columIndex));
 92                     isMatches=true;
 93                 }
 94             }
 95         }
 96         return isMatches;
 97     }
 98     void AddMatches(Gemstone c){
 99         if (matchesGemstone == null)
100             matchesGemstone = new ArrayList ();
101         int Index = matchesGemstone.IndexOf (c);//检测宝石是否已在数组当中
102         if (Index == -1) {
103             matchesGemstone.Add(c);
104         }
105     }
106     void RemoveMatches(){//删除匹配的宝石
107         for (int i=0; i<matchesGemstone.Count; i++) {
108             Gemstone c=matchesGemstone[i]as Gemstone;
109             RemoveGemstone(c);
110         }
111         matchesGemstone = new ArrayList ();
112         StartCoroutine (WaitForCheckMatchesAgain ());
113     }
114     IEnumerator WaitForCheckMatchesAgain(){//连续检测匹配消除
115         yield return new WaitForSeconds (0.5f);
116         if (CheckHorizontalMatches () || CheckVerticalMatches ()) {
117             RemoveMatches();
118         }
119     }
120     void RemoveGemstone(Gemstone c){//删除宝石
121         //Debug.Log("删除宝石");
122         c.Dispose ();
123         this.gameObject.GetComponent<AudioSource> ().PlayOneShot (match3Clip);
124         for (int i=c.rowIndex+1; i<rowNum; i++) {
125             Gemstone temGemstone=GetGemstone(i,c.columIndex);
126             temGemstone.rowIndex--;
127             SetGemstone(temGemstone.rowIndex,temGemstone.columIndex,temGemstone);
128             //temGemstone.UpdatePosition(temGemstone.rowIndex,temGemstone.columIndex);
129             temGemstone.TweenToPostion(temGemstone.rowIndex,temGemstone.columIndex);
130         }
131         Gemstone newGemstone = AddGemstone (rowNum, c.columIndex);
132         newGemstone.rowIndex--;
133         SetGemstone (newGemstone.rowIndex, newGemstone.columIndex, newGemstone);
134         //newGemstone.UpdatePosition (newGemstone.rowIndex, newGemstone.columIndex);
135         newGemstone.TweenToPostion (newGemstone.rowIndex, newGemstone.columIndex);
136     }
137     public Gemstone GetGemstone(int rowIndex,int columIndex){//通过行号和列号，获取对应位置的宝石
138         ArrayList temp = gemstoneList [rowIndex]as ArrayList;
139         Gemstone c = temp [columIndex]as Gemstone;
140         return c;
141     }
142     public void SetGemstone(int rowIndex,int columIndex,Gemstone c){//设置所对应行号和列号的宝石
143         ArrayList temp = gemstoneList [rowIndex]as ArrayList;
144         temp [columIndex] = c;
145     }
146     public void Exchange(Gemstone c1,Gemstone c2){//实现宝石交换位置
147         this.gameObject.GetComponent<AudioSource> ().PlayOneShot (swapClip);
148         SetGemstone (c1.rowIndex, c1.columIndex, c2);
149         SetGemstone (c2.rowIndex, c2.columIndex, c1);
150         //交换c1，c2的行号
151         int tempRowIndex;
152         tempRowIndex = c1.rowIndex;
153         c1.rowIndex = c2.rowIndex;
154         c2.rowIndex = tempRowIndex;
155         //交换c1，c2的列号
156         int tempColumIndex;
157         tempColumIndex = c1.columIndex;
158         c1.columIndex = c2.columIndex;
159         c2.columIndex = tempColumIndex;
160
161         //c1.UpdatePosition (c1.rowIndex, c1.columIndex);
162         //c2.UpdatePosition (c2.rowIndex, c2.columIndex);
163         c1.TweenToPostion (c1.rowIndex, c1.columIndex);
164         c2.TweenToPostion (c2.rowIndex, c2.columIndex);
165     }

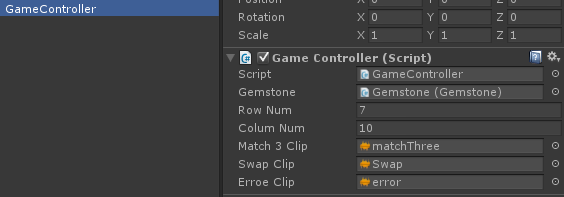

为GameController添加声音源文件和Gemstone脚本



Gemstone.cs脚本

 1 using System.Collections;
 2
 3 public class Gemstone : MonoBehaviour {
 4
 5     public float xOffset = -4.5f;//x方向的偏移
 6     public float yOffset = -2.0f;//y方向的偏移
 7     public int rowIndex = 0;
 8     public int columIndex = 0;
 9     public GameObject[] gemstoneBgs;//宝石数组
10     public int gemstoneType;//宝石类型
11     private GameObject gemstoneBg;
12     private GameController gameController;
13     private SpriteRenderer spriteRenderer;
14     public bool isSelected{
15         set{
16             if(value){
17                 spriteRenderer.color=Color.red;
18             }else{
19                 spriteRenderer.color=Color.white;
20             }
21         }
22     }
23     // Use this for initialization
24     void Start () {
25         gameController = GameObject.Find ("GameController").GetComponent<GameController> ();
26         spriteRenderer = gemstoneBg.GetComponent<SpriteRenderer> ();
27     }
28
29     // Update is called once per frame
30     void Update () {
31
32     }
33     public void UpdatePosition(int _rowIndex,int _columIndex){//宝石的位置
34         rowIndex = _rowIndex;
35         columIndex = _columIndex;
36         this.transform.position = new Vector3 (columIndex + xOffset, rowIndex + yOffset, 0);
37     }
38     public void TweenToPostion(int _rowIndex,int _columIndex){//调用iTween插件实现宝石滑动效果
39         rowIndex = _rowIndex;
40         columIndex = _columIndex;
41         iTween.MoveTo (this.gameObject, iTween.Hash ("x", columIndex + xOffset, "y", rowIndex + yOffset, "time", 0.5f));
42     }
43     public void RandomCreateGemstoneBg(){//随机的宝石类型
44         if (gemstoneBg != null)
45             return;
46         gemstoneType = Random.Range (0, gemstoneBgs.Length);
47         gemstoneBg = Instantiate (gemstoneBgs [gemstoneType])as GameObject;
48         gemstoneBg.transform.parent = this.transform;
49     }
50     public void OnMouseDown(){
51         gameController.Select (this);
52     }
53     public void Dispose(){
54         Destroy (this.gameObject);
55         Destroy (gemstoneBg.gameObject);
56         gameController = null;
57     }

为Gemstone预设体添加消除素材图片



最后在MainCamera添加AudioSource组件来播放背景音乐

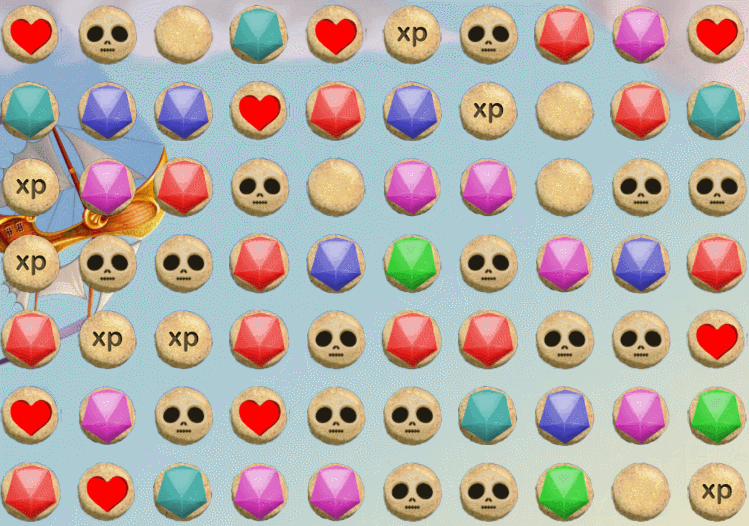

运行效果
