LVS+Keepalive

DR+keepalived模式

 https://blog.csdn.net/weixin_42342456/article/details/86100090

IP	角色	主机名	用户名/密码
172.16.102.38	Nginx web	node1	root/1
172.16.102.39	Nginx web	node2	root/1
172.16.0.52	lvs+keepalived	LVS1	root/123456
172.16.0.53	lvs+keepalived	LVS2	root/123456



（1）配置后端web服务器 Web_Server1 基本配置：

 yum -y install epel-release
 //安装Nginx源
 yum -y install nginx    //安装Nginx
 systemctl start nginx     //启动Nginx服务
 systemctl enable nginx     //加入开机自启
 mv /usr/share/nginx/html/index.html /usr/share/nginx/html/index.html_bak     //备份原有默认页面
 vi /usr/share/nginx/html/index.html     //测试页面
 This is Server 111111    //测试页面内容
 为了便于实验验证，关闭防火墙和selinux
 systemctl stop firewalld
 setenforce 0





（2）配置LVS LVS1

 yum -y install keepalived* ipvsadm
 # 安装keepalived和lvs管理工具
 modprobe ip_vs    //加载内核模块
 mv /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf_bak    //备份配置文件



主端

vim /etc/keepalived/keepalived.conf //配置keepalived和DR



vi /etc/keepalived/keepalived.conf    //配置keepalived和DR
global_defs {
    router_id LVS_TEST    #服务器名字
}

vrrp_instance VI_1 {
    state MASTER    #配置主备，备用机此配置项为BACKUP
    interface ens33    #指定接口
    virtual_router_id 51    #指定路由ID，主备必须一样
    priority 101    #设置优先级，主略高于备份
    advert_int 1    #设置检查时间
    authentication {
        auth_type PASS    #设置验证加密方式
        auth_type 1234    #设置验证密码
    }
    virtual_ipaddress {
        192.168.1.100
    }
}

virtual_server 192.168.1.100 80 {
    delay_loop 15    #健康检查时间
    lb_algo rr    #LVS调度算法
    lb_kind DR   #LVS工作模式
    !persistence 60    #是否保持连接，！不保持
    protocol TCP    #服务采用TCP协议
    real_server 192.168.1.10 80 {
        weight 1    #权重
        TCP_CHECK {    #TCP检查
            connect_port 80   #检查端口80
            connect_timeout 3    #超时时间3秒
            nb_get_retry 3    #重试次数3次
            delay_before_retry 4    #重试间隔4秒
        }
    }
    real_server 192.168.1.20 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 4
        }
    }
}





为了方便实验验证关闭防火墙和selinux

 systemctl stop firewalld
 setenforce 0

重启keepalived服务

 systemctl restart keepalived
 systemctl enable keepalived



通过ip a验证虚拟IP是否生效

 [root@lvs1 ~]# ip a
 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
     inet 127.0.0.1/8 scope host lo
        valid_lft forever preferred_lft forever
     inet6 ::1/128 scope host
        valid_lft forever preferred_lft forever
 2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
     link/ether 00:0c:29:1c:36:0f brd ff:ff:ff:ff:ff:ff
     inet 192.168.1.30/24 brd 192.168.1.255 scope global noprefixroute ens33
        valid_lft forever preferred_lft forever
     inet 172.16.102.100/32 scope global ens33    #虚拟IP
        valid_lft forever preferred_lft forever
     inet6 fe80::e407:238a:8fd0:2ee8/64 scope link noprefixroute
        valid_lft forever preferred_lft forever
 ​
 # -----------------------------我做的----------------------------------
 [root@localhost ~]# ip a
 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
     inet 127.0.0.1/8 scope host lo
        valid_lft forever preferred_lft forever
     inet6 ::1/128 scope host
        valid_lft forever preferred_lft forever
 2: enp7s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
     link/ether 98:f5:37:e1:b7:0e brd ff:ff:ff:ff:ff:ff
     inet 172.16.0.52/16 brd 172.16.255.255 scope global noprefixroute enp7s0
        valid_lft forever preferred_lft forever
     inet 172.16.102.100/32 scope global enp7s0              #可以看到VIP
        valid_lft forever preferred_lft forever
     inet6 fe80::2979:e126:dc3e:6627/64 scope link noprefixroute
        valid_lft forever preferred_lft forever
 3: enp8s0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN group default qlen 1000
     link/ether 98:f5:37:e1:b7:0f brd ff:ff:ff:ff:ff:ff
 4: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
     link/ether 52:54:00:97:2a:e9 brd ff:ff:ff:ff:ff:ff
     inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
        valid_lft forever preferred_lft forever
 5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000
     link/ether 52:54:00:97:2a:e9 brd ff:ff:ff:ff:ff:ff

LVS2的配置同LVS1，只需将配置文件中下面两处修改即可

vim /etc/keepalived/keepalived.conf

 global_defs {
     router_id LVS_TEST
 }
 ​
 vrrp_instance VI_1 {
     state BACKUP     #类型为备份
     interface em1
     virtual_router_id 51
     priority 99      #优先级
     advert_int 1
     authentication {
         auth_type PASS
         auth_type 1234
     }
     virtual_ipaddress {
         172.16.102.100
     }
 }
 ​
 virtual_server 172.16.102.100 80 {
     delay_loop 15
     lb_algo rr
     lb_kind DR
     !persistence 60
     protocol TCP
     real_server 172.16.102.38 80 {
         weight 1
         TCP_CHECK {
             connect_port 80
             connect_timeout 3
             nb_get_retry 3
             delay_before_retry 4
         }
     }
     real_server 172.16.102.39 80 {
         weight 1
         TCP_CHECK {
             connect_port 80
             connect_timeout 3
             nb_get_retry 3
             delay_before_retry 4
         }
     }
 }



 ​

关掉主服务器的keepalived服务，验证备份的keepalived是否生效

 systemctl stop keepalived
 # 主端

在备端查看VIP是否已经漂移

 [root@lvs2 ~]# ip a
 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
     inet 127.0.0.1/8 scope host lo
        valid_lft forever preferred_lft forever
     inet6 ::1/128 scope host
        valid_lft forever preferred_lft forever
 2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
     link/ether 00:0c:29:97:50:6a brd ff:ff:ff:ff:ff:ff
     inet 192.168.1.40/24 brd 192.168.1.255 scope global noprefixroute ens33
        valid_lft forever preferred_lft forever
     inet 172.16.102.100/32 scope global ens33       #虚拟IP漂到备份服务器上了
        valid_lft forever preferred_lft forever
     inet6 fe80::422b:2205:9d05:215d/64 scope link noprefixroute
        valid_lft forever preferred_lft forever
 ​
 # --------------------------我做的-----------------------
 [root@localhost ~]# ip a
 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
     inet 127.0.0.1/8 scope host lo
        valid_lft forever preferred_lft forever
     inet6 ::1/128 scope host
        valid_lft forever preferred_lft forever
 2: em1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
     link/ether d4:ae:52:78:82:3c brd ff:ff:ff:ff:ff:ff
     inet 172.16.0.53/16 brd 172.16.255.255 scope global noprefixroute em1
        valid_lft forever preferred_lft forever
     inet 172.16.102.100/32 scope global em1             # VIP飘过来了
        valid_lft forever preferred_lft forever
     inet6 fe80::634b:7788:48cb:554f/64 scope link noprefixroute
        valid_lft forever preferred_lft forever
 3: em2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
     link/ether d4:ae:52:78:82:3e brd ff:ff:ff:ff:ff:ff
 4: em3: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
     link/ether d4:ae:52:78:82:40 brd ff:ff:ff:ff:ff:ff
 5: em4: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
     link/ether d4:ae:52:78:82:42 brd ff:ff:ff:ff:ff:ff
 6: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
     link/ether 52:54:00:04:73:82 brd ff:ff:ff:ff:ff:ff
     inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
        valid_lft forever preferred_lft forever
 7: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000
     link/ether 52:54:00:04:73:82 brd ff:ff:ff:ff:ff:ff
 ​





验证DR是否生效

NAT+keepalived模式

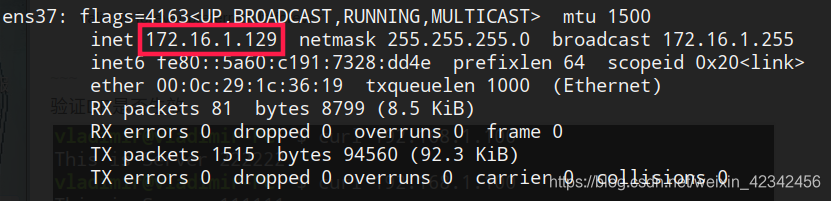

说明：NAT模式的话，两个lvs调度器分别需要两张网卡，一张用来连接内部web服务器，一张模拟外网，其他配置跟DR+keepalived模式一样，只需给两台lvs调度服务器分别添加一张网卡，在keepalived配置文件中再添加一个虚拟IP，将lvs模式从DR修改成NAT即可，具体操作步骤如下： （1）给两台lvs调度服务器添加一张网卡，跟第一张网卡不要在同一网段即可（此处省略）,我添加网卡的网段如下： LVS1 LVS2 （2）其他要安装的包和需要关闭的东西和前面DR+keepalived模式一样（此处省略）,唯一不同的是需要在两台LVS调度器上启用路由转发功能，具体操作如下：

 echo "1" > /proc/sys/net/ipv4/ip_forward

（3）修改keepalived配置文件，大致内容与DR+keepalived模式一样，具体要修改的地方如下： LVS1

 vi /etc/keepalived/keepalived.conf
 ......
 vrrp_instance VI_1 {
     state MASTER
     interface ens33
     virtual_router_id 51
     priority 101
     advert_int 1
     authentication {
         auth_type PASS
         auth_type 1234
     }
     virtual_ipaddress {
         172.16.102.100
     }
 }
 # 再原来DR+keepalived模式的基础上添加一个虚拟IP
 vrrp_instance VI_2 {
     state MASTER
     interface ens37    #指定接口为新添加的网卡
     virtual_router_id 51
     priority 101
     advert_int 1
     authentication {
         auth_type PASS
         auth_type 1234
     }
     virtual_ipaddress {
         172.16.1.100
     }
 }
 # 这一块将原来的172.16.102.100改为172.16.1.100，并将模式改为NAT,其他配置不变
 virtual_server 172.16.1.100 80 {
     delay_loop 15
     lb_algo rr
     lb_kind NAT   #LVS工作模式
     !persistence 60
     protocol TCP
     ......
 ​
 ​

修改完之后重启服务

 systemctl restart keepalived

LVS2修改的内容跟LVS1一样,修改完后重启服务（此处省略） （4）验证NAT+keepalived模式是否成功 关掉LVS1上的keepalived服务，再次验证，看keepalived有没有成功

 systemctl stop keepalived

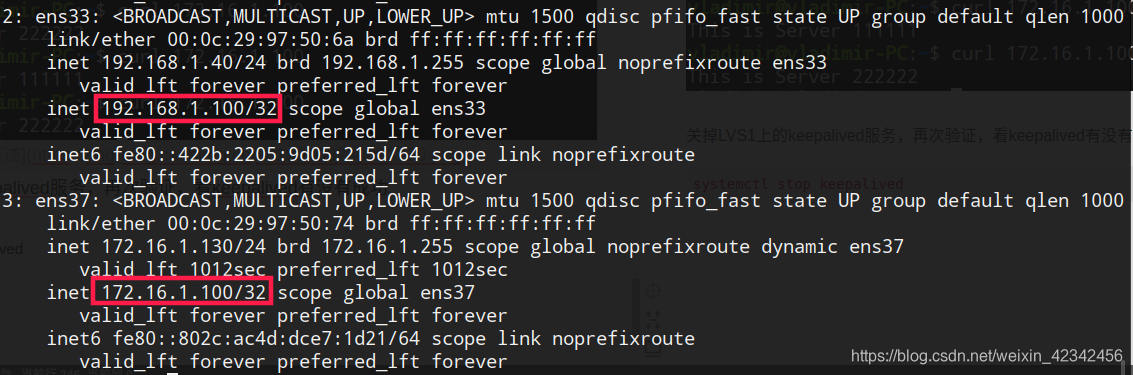

虚拟IP成功漂到备份服务器上 lvs负载正常跳转
