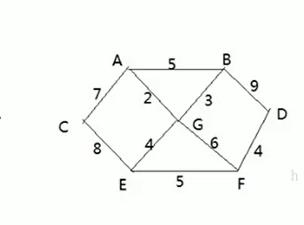

最小生成树的7顶点连接问题

最短最少的路劲链接7个点





package com.zou.Algorithm.prim;

import java.util.Arrays;

public class Prim {
    public static void main(String[] args) {
        char[]data=new char[]{'A','B','C','D','E','F','G'};
        int verxs=data.length;
        int weight[][]=new int[][]{//0表示不连通
                {100,5,7,100,100,100,2},
                {5,100,100,9,100,100,3},
                {7,100,100,100,8,100,100},
                {100,9,100,100,100,4,100},
                {100,100,8,100,100,5,4},
                {100,100,100,4,5,100,6},
                {2,3,100,100,4,6,100},
        };
        MGraph graph = new MGraph(verxs);
        MinTree minTree = new MinTree();
        minTree.creatGraph(graph,verxs,data,weight);
        minTree.showGraph(graph);
        minTree.prim(graph,0);
    }
}
//最小生成树--》村庄
class MinTree{
    //创建图的邻接矩阵
    public void creatGraph(MGraph graph,int verxs,char data[],int [][]weight){
        int i,j;
        for ( i = 0; i < verxs; i++) {//顶点
           graph.data[i] =data[i];
            for ( j = 0; j < verxs; j++) {
                graph.weight[i][j]=weight[i][j];
            }
        }
    }
    //显示邻接矩阵
    public void showGraph(MGraph graph){
       for (int[] link:graph.weight){
           System.out.println(Arrays.toString(link));
       }
    }
    public void prim(MGraph graph,int v){
        //Visited[]标记节点是否被访问过
        int visited[]=new int[graph.verxs];
        //已访问标记为1
        visited[v]=1;
        //h1和h2记录两个顶点的下标
        int h1=-1;
        int h2=-1;
        int minWeight=1000;//初始化最小值
        for (int k = 1; k < graph.verxs; k++) {//顶点
            //这个是确定每个生成的子图，和那个节点的距离
            for (int i = 0; i < graph.verxs; i++) {//i节点表示被访问过节点
                for (int j = 0; j < graph.verxs; j++) {//j节点表示还没有访问过
                    if (visited[i]==1&&visited[j]==0&&graph.weight[i][j]<minWeight){
                        //替换minWeight（寻找已访问节点和未访问节点的权值最小边）
                        minWeight=graph.weight[i][j];
                        h1=i;
                        h2=j;
                    }
                }
            }
            //找到一条边是最小
            System.out.println("边 <"+graph.data[h1]+","+graph.data[h2]+"> 权值："+minWeight);
            //将当前这个节点标记为以访问
            visited[h2]=1;
            //minWeight重新设置为最大值
            minWeight=1000;
        }
    }
}
class MGraph{
    int verxs;//表示图的节点个数
    char[]data;//存放节点数据
    int[][] weight;//存放边，就是我们的邻接矩阵
    public MGraph(int verxs){
        this.verxs=verxs;
        data=new char[verxs];
        weight=new int[verxs][verxs];

    }
}
