Cuyahoga

国外的开源CMS一般都是基于模块设计的 ,好处是可以随意定制自己的页面和模块,这样在以后的应用中就能够灵活的满足变化的功能需求. 一个模块齐全的CMS如DNN , Rainbow就可以快速搭建符合需求的系统.

下面就来介绍如何为Cuyahoga这个著名的开源网站框架加入具有后台管理的公告模块.可以参考这篇如何在Cuyahoga中新增一个简单的功能模块了解基础的步骤.

为Cuyahoga开发自定义模块时,你可以选择任何数据访问策略.然而Cuyahoga本身是使用NHibernate作为数据持久层,可以做到支持多数据库. 采用Castle.Windsor进行依赖注入,降低模块之间的耦合. 我们的数据访问层也将用NHibernate实现.

最终项目的目录结构如下:


主要步骤如下
1 .创建一个Sql文件(Install.sql)用来安装数据表及添加模块的相关信息 , 该sql文件会在安装模块时,由Cuyahoga自动执行.也可以手工执行进行安装.

install.sql
IF NOT EXISTS (SELECT * FROM sysobjects WHERE id = OBJECT_ID(N'[cm_Announcements]') AND OBJECTPROPERTY(id, N'IsUserTable') = 1)
 BEGIN
CREATE TABLE [cm_Announcements] (
    [AnnouncementsID] [int] IDENTITY (1,1)NOT NULL ,
    [sectionid] [int] NOT NULL ,
    [createdby] [nvarchar] (100) NULL ,//公告作者
    [Title] [nvarchar] (150) NULL ,//公告标题
    inserttimestamp datetime DEFAULT current_timestamp NOT NULL,
    updatetimestamp datetime DEFAULT current_timestamp NOT NULL,

    CONSTRAINT [PK_cm_Announcements] PRIMARY KEY  NONCLUSTERED
    (
        [AnnouncementsID]
    ),
    CONSTRAINT [FK_cm_Announcements_cm_Modules] FOREIGN KEY
    (sectionid) REFERENCES cuyahoga_section (sectionid)
)
END
GO
/*加入模块信息*/
INSERT INTO cuyahoga_moduletype ([name], assemblyname, classname, path, editpath, inserttimestamp, updatetimestamp) VALUES
('Announcements', 'Cuyahoga.Modules.Announcements', 'Cuyahoga.Modules.Announcements.AnnouncementsModule',
'Modules/Announcements/Announcements.ascx', 'Modules/Announcements/EditAnnouncements.aspx', current_timestamp, current_timestamp)
GO
/*加入模块版本信息*/
INSERT INTO cuyahoga_version (assembly, major, minor, patch) VALUES ('Cuyahoga.Modules.Announcements', 1, 5, 0);
go

2.创建域模型 在本例中是实体类

Announcement.cs
using System;
using Cuyahoga.Core.Domain;

namespace Cuyahoga.Modules.Announcements.Domain
{
    public class Announcement
    {
        private int _id;
        private string _title;
        private string _content;
        private DateTime _expiredate;
        private Section _section;
        private User _createdBy;
        private DateTime _updateTimestamp;

        /// <summary>
        /// Property Id (int)
        /// </summary>
        public int Id
        {
            get { return this._id; }
            set { this._id = value; }
        }
        /// <summary>
        /// Property Title (string)
        /// </summary>
        public string Title
        {
            get { return this._title; }
            set { this._title = value; }
        }
        /// <summary>
        /// Property Section (Section)
        /// </summary>
        public Section Section
        {
            get { return this._section; }
            set { this._section = value; }
        }
        /// <summary>
        /// Property CreatedBy (User)
        /// </summary>
        public User CreatedBy
        {
            get { return this._createdBy; }
            set { this._createdBy = value; }
        }
        /// <summary>
        /// Property UpdateTimestamp (DateTime)
        /// </summary>
        public DateTime UpdateTimestamp
        {
            get { return this._updateTimestamp; }
            set { this._updateTimestamp = value; }
        }
        public Announcement()
        {
            this._id = -1;
        }
    }
}

3.创建映射文件

Announcement.hbm.xml
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.0">
  <class name="Cuyahoga.Modules.Announcements.Domain.Announcement, Cuyahoga.Modules.Announcements" table="cm_Announcements">
    <id name="Id" column="Announcementsid" type="Int32" unsaved-value="-1">
      <generator class="native">
        <param name="sequence">cm_Announcements_Announcementsid_seq</param>
      </generator>
    </id>
    <timestamp name="UpdateTimestamp" column="updatetimestamp" />
    <property name="Title" column="title" type="String" length="150" />
    <many-to-one name="Section" class="Cuyahoga.Core.Domain.Section, Cuyahoga.Core" column="sectionid" not-null="true" />
    <many-to-one name="CreatedBy" class="Cuyahoga.Core.Domain.User, Cuyahoga.Core" column="createdby" not-null="true" />
  </class>
</hibernate-mapping>

4.创建公告模块的核心控制类

AnnouncementsModule.cs
using System;
using System.Collections;
using System.Xml;
using System.Xml.XPath;
using System.Net;
using System.Web;
using System.Text;
using System.IO;
using System.Threading;

using NHibernate;
using Castle.Services.Transaction;
using Castle.Facilities.NHibernateIntegration;

using log4net;

using Cuyahoga.Core;
using Cuyahoga.Core.Domain;
using Cuyahoga.Core.Service;
using Cuyahoga.Core.Util;
using Cuyahoga.Web.Util;
using Cuyahoga.Web.Components;
using Cuyahoga.Modules.Announcements.Domain;

namespace Cuyahoga.Modules.Announcements
{
    //采用Facilities管理事务
    [Transactional]
    public class AnnouncementsModule : ModuleBase, INHibernateModule
    {
        private static readonly ILog log = LogManager.GetLogger(typeof(AnnouncementsModule));
        private int _cacheDuration;
        private ISessionManager _sessionManager;

        //该模块需要用到NHibernate session manager提供的服务 进行依赖注入
        public AnnouncementsModule(ISessionManager sessionManager)
        {
            this._sessionManager = sessionManager;
        }

        public override void ReadSectionSettings()
        {
            base.ReadSectionSettings();
            // Set dynamic module settings
            this._cacheDuration = Convert.ToInt32(base.Section.Settings["CACHE_DURATION"]);
        }

        ///不创建子事务
        [Transaction(TransactionMode.RequiresNew)]
        public virtual IList GetAllAnnouncements()
        {
            ISession session = this._sessionManager.OpenSession();
            string hql = "from Announcement f where f.Section.Id = :sectionId";
            IQuery q = session.CreateQuery(hql);
            q.SetInt32("sectionId", base.Section.Id);
            return q.List();
        }

        [Transaction(TransactionMode.RequiresNew)]
        public virtual Announcement GetAnnouncementsById(int AnnouncementsID)
        {
            ISession session = this._sessionManager.OpenSession();
            return (Announcement)session.Load(typeof(Announcement), AnnouncementsID);
        }

        [Transaction(TransactionMode.RequiresNew)]
        public virtual void SaveAnnouncement(Announcement announcements)
        {
            ISession session = this._sessionManager.OpenSession();
            session.SaveOrUpdate(announcements);
        }

        [Transaction(TransactionMode.RequiresNew)]
        public virtual void DeleteAnnouncements(Announcement announcements)
        {
            ISession session = this._sessionManager.OpenSession();
            session.Delete(announcements);
        }
    }
}

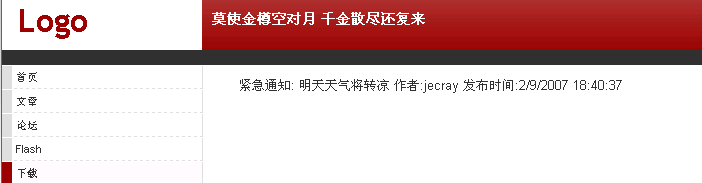

5.创建用于前台显示的用户控件 用来显示公告的标题 作者和发布时间.

Announcements.ascx
<%@ Control Language="C#" AutoEventWireup="true" Codebehind="Announcements.ascx.cs"
    Inherits="Cuyahoga.Modules.Announcements.Web.Announcements" %>
<asp:repeater id="rptAnnouncementItems" runat="server" enableviewstate="False">
    <itemtemplate>
            <div class="genericdetails" style="width:100%">
            <marquee  direction="left" >
                <asp:label id="lblTitle" runat="server"><%# DataBinder.Eval(Container.DataItem, "Title")%></asp:label>
                <asp:label id="lblAuthor" runat="server">作者:<%# DataBinder.Eval(Container.DataItem, "CreatedBy.FullName")%></asp:label>
                <asp:label id="lblTime" runat="server">发布时间:<%# DataBinder.Eval(Container.DataItem, "UpdateTimestamp")%></asp:label>
            </marquee>
            </div>
    </itemtemplate>
</asp:repeater>

Announcements.ascx.cs
using System;
using System.Data;
using System.Drawing;
using System.Web;
using System.Web.UI.WebControls;
using System.Web.UI.HtmlControls;

using Cuyahoga.Core.Util;
using Cuyahoga.Web.UI;
using Cuyahoga.Modules.Announcements.Domain;

namespace Cuyahoga.Modules.Announcements.Web
{
    public partial class Announcements : BaseModuleControl
    {
        private AnnouncementsModule _module;
        protected void Page_Load(object sender, EventArgs e)
        {
            if (!this.IsPostBack && !base.HasCachedOutput)
            {
                this._module = base.Module as AnnouncementsModule;
                this.rptAnnouncementItems.DataSource = this._module.GetAllAnnouncements();
                this.rptAnnouncementItems.DataBind();
            }
        }
    }
}

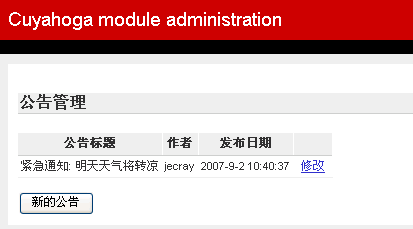

6.创建公告管理的列表页面

EditAnnouncements.aspx
<%@ Page Language="C#" AutoEventWireup="true" Codebehind="EditAnnouncements.aspx.cs"
    Inherits="Cuyahoga.Modules.Announcements.Web.EditAnnouncements" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>公告管理页面</title>
</head>
<body>
    <form id="Form1" method="post" runat="server">
        <div id="moduleadminpane">
            <h1>
                公告管理</h1>
            <table class="tbl">
                <asp:Repeater ID="rptAnnouncements" runat="server" OnItemDataBound="rptFiles_ItemDataBound">
                    <HeaderTemplate>
                        <tr>
                            <th>
                                公告标题</th>
                            <th>
                                作者</th>
                            <th>
                                发布日期</th>
                            <th>
                            </th>
                        </tr>
                    </HeaderTemplate>
                    <ItemTemplate>
                        <tr>
                            <td>
                                <%# DataBinder.Eval(Container.DataItem, "Title") %>
                            </td>
                            <td>
                                <%# DataBinder.Eval(Container.DataItem, "CreatedBy.FullName")%>
                            </td>
                            <td>
                                <asp:Literal ID="litDateModified" runat="server"></asp:Literal></td>
                            <td>
                                <asp:HyperLink ID="hplEdit" runat="server">修改</asp:HyperLink>
                            </td>
                        </tr>
                    </ItemTemplate>
                </asp:Repeater>
            </table>
            <br />
            <input id="btnNew" type="button" value="新的公告" runat="server" name="btnNew"/>
        </div>
    </form>
</body>
</html>

EditAnnouncements.aspx.cs
using System;
using System.Collections;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Web;
using System.Web.SessionState;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.HtmlControls;

using Cuyahoga.Core.Domain;
using Cuyahoga.Core.Util;
using Cuyahoga.Web.UI;
using Cuyahoga.Modules.Announcements.Domain;

namespace Cuyahoga.Modules.Announcements.Web
{
    public partial class EditAnnouncements : ModuleAdminBasePage
    {
        private AnnouncementsModule _module;
        protected void Page_Load(object sender, EventArgs e)
        {
            // The base page has already created the module, we only have to cast it here to the right type.
            this._module = base.Module as AnnouncementsModule;
            this.btnNew.Attributes.Add("onclick", String.Format("document.location.href=
'EditAnnouncement.aspx{0}&AnnouncementId=-1'",
base.GetBaseQueryString()));

            if (!this.IsPostBack)
            {
                BindFiles();
            }
        }
        private void BindFiles()
        {
            this.rptAnnouncements.DataSource = this._module.GetAllAnnouncements();
            this.rptAnnouncements.DataBind();
        }
        protected void rptFiles_ItemDataBound(object sender, System.Web.UI.WebControls.RepeaterItemEventArgs e)
        {
            Announcement announce = e.Item.DataItem as Announcement;

            Literal litDateModified = e.Item.FindControl("litDateModified") as Literal;
            if (litDateModified != null)
            {
                litDateModified.Text = TimeZoneUtil.AdjustDateToUserTimeZone(announce.UpdateTimestamp, this.User.Identity).ToString();
            }

            HyperLink hplEdit = e.Item.FindControl("hpledit") as HyperLink;
            if (hplEdit != null)
            {
                hplEdit.NavigateUrl = String.Format("~/Modules/Announcements/EditAnnouncement.aspx{0}&AnnouncementId={1}", base.GetBaseQueryString(), announce.Id);
            }
        }

    }
}

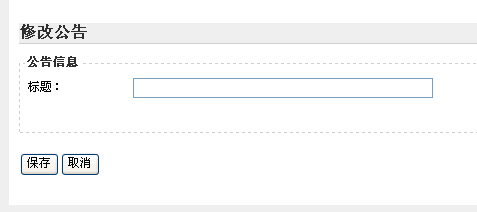

7.创建公告管理的具体页面

EditAnnouncement.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="EditAnnouncement.aspx.cs" Inherits="Cuyahoga.Modules.Announcements.Web.EditAnnouncement" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server">
    <title>修改公告页面</title>
</head>
<body>
   <form id="Form1" method="post" runat="server">
        <div id="moduleadminpane">
            <h1>
                修改公告</h1>
            <div class="group">
                <h4>
                    公告信息</h4>
                <table>
                    <tr>
                        <td style="width: 100px">
                            标题：</td>
                        <td>
                            <asp:TextBox ID="txtTitle" runat="server" Width="300px"></asp:TextBox>
                            <asp:RequiredFieldValidator ID="rfTitle" runat="server" ErrorMessage="输入标题"
                                Display="Dynamic" CssClass="validator" ControlToValidate="txtTitle" EnableClientScript="False"></asp:RequiredFieldValidator>
                        </td>
                    </tr>
                </table>
            </div>
            <p>
                <asp:Button ID="btnSave" runat="server" Text="保存" OnClick="btnSave_Click"></asp:Button><asp:Button ID="btnDelete"
                    runat="server" Visible="False" CausesValidation="False" Text="删除" OnClick="btnDelete_Click"></asp:Button><asp:Button
                        ID="btnCancel" runat="server" CausesValidation="False" Text="取消" OnClick="btnCancel_Click"></asp:Button></p>
        </div>
    </form>
</body>
</html>

EditAnnouncement.aspx.cs
using System;
using System.Collections;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Web;
using System.Web.SessionState;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.HtmlControls;

using Cuyahoga.Core.Domain;
using Cuyahoga.Web.UI;
using Cuyahoga.Modules.Announcements.Domain;

namespace Cuyahoga.Modules.Announcements.Web
{
    public partial class EditAnnouncement : ModuleAdminBasePage
    {
        private AnnouncementsModule _module;
        private int _announcementid;
        private Announcement _announcement;

        protected void Page_Load(object sender, EventArgs e)
        {
            // The base page has already created the module, we only have to cast it here to the right type.
            this._module = base.Module as AnnouncementsModule;

            this._announcementid = Int32.Parse(Request.QueryString["AnnouncementId"]);
            if (this._announcementid > 0)
            {
                this._announcement = this._module.GetAnnouncementsById(this._announcementid);
                if (!this.IsPostBack)
                {
                    BindAnnouncement();
                }
                this.btnDelete.Visible = true;
                this.btnDelete.Attributes.Add("onclick", "return confirm('Are you sure?');");
            }
            else
            {
                this._announcement = new Announcement();
                this.btnDelete.Visible = false;
            }

        }
        #region Web Form Designer generated code
        override protected void OnInit(EventArgs e)
        {
            //
            // CODEGEN: This call is required by the ASP.NET Web Form Designer.
            //
            base.OnInit(e);
        }
        #endregion
        private void BindAnnouncement()
        {
            this.txtTitle.Text = this._announcement.Title;
            this.txtContent.Text = this._announcement.Content;
            //this.calDatePublished.SelectedDate = this._file.DatePublished;
        }

        protected void btnSave_Click(object sender, EventArgs e)
        {
            if (this.IsValid)
            {
                this._announcement.CreatedBy = this.User.Identity as User;
                this._announcement.Title = this.txtTitle.Text;
                this._announcement.Content = this.txtContent.Text;
                this._announcement.Section = base.Section;
                //this._announcement.UpdateTimestamp = DateTime.Now;
                this._announcement.ExpireDate = DateTime.Now.AddDays(5);
                try
                {
                    // Only save meta data.
                    this._module.SaveAnnouncement(this._announcement);
                    Context.Response.Redirect("EditAnnouncements.aspx" + base.GetBaseQueryString());
                }
                catch (Exception ex)
                {
                    ShowError("Error saving file: " + ex.Message);
                }
            }
        }

        protected void btnDelete_Click(object sender, EventArgs e)
        {
            try
            {
                this._module.DeleteAnnouncements(this._announcement);
                Context.Response.Redirect("EditAnnouncements.aspx" + base.GetBaseQueryString());
            }
            catch (Exception ex)
            {
                ShowError("Error deleting Announcements: " + ex.Message);
            }
        }

        protected void btnCancel_Click(object sender, EventArgs e)
        {
            Context.Response.Redirect("EditAnnouncements.aspx" + base.GetBaseQueryString());
        }
    }
}

到此就完成了公告模块的开发 在后台页面将模块添加到前台页面就可以显示了.

可以改进的地方:
为模块添加url重写,在后台管理页面设置参数.Created by jecray
