再学 GDI+[83]: TGPImage(3) - 平行四边形变换

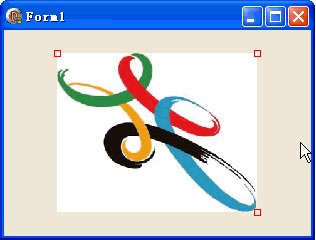

本例效果图:

---

代码文件:

---

unit Unit1;

interface

uses
  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
  Dialogs;

type
  TForm1 = class(TForm)
    procedure FormPaint(Sender: TObject);
    procedure FormCreate(Sender: TObject);
    procedure FormDestroy(Sender: TObject);
    procedure FormMouseDown(Sender: TObject; Button: TMouseButton;
      Shift: TShiftState; X, Y: Integer);
    procedure FormMouseMove(Sender: TObject; Shift: TShiftState; X, Y: Integer);
    procedure FormMouseUp(Sender: TObject; Button: TMouseButton;
      Shift: TShiftState; X, Y: Integer);
  end;

var
  Form1: TForm1;

implementation

{$R *.dfm}

uses GDIPOBJ, GDIPAPI;

var
  img: TGPImage;
  pts: array[0..2] of TGPPoint;
  flag: Integer = -1;

procedure TForm1.FormCreate(Sender: TObject);
var
  w,h: Integer;
begin
  img := TGPImage.Create('C:\temp\test.jpg');
  w := img.GetWidth;
  h := img.GetHeight;

  pts[0] := MakePoint((ClientWidth - w) div 2 + w, (ClientHeight - h) div 2);
  pts[1] := MakePoint((ClientWidth - w) div 2, (ClientHeight - h) div 2);
  pts[2] := MakePoint((ClientWidth - w) div 2 + w, (ClientHeight - h) div 2 + h);

  DoubleBuffered := True;
end;

procedure TForm1.FormDestroy(Sender: TObject);
begin
  img.Free;
end;

procedure TForm1.FormMouseDown(Sender: TObject; Button: TMouseButton;
  Shift: TShiftState; X, Y: Integer);
var
  i: Integer;
begin
  for i := 0 to Length(pts) do
    if PtInRect(Bounds(pts[i].X-3, pts[i].Y-3, 6, 6), Point(X, Y)) then
    begin
      flag := i;
      Exit;
    end;
end;

procedure TForm1.FormMouseMove(Sender: TObject; Shift: TShiftState; X,
  Y: Integer);
begin
  if flag = -1 then Exit;
  pts[flag] := MakePoint(X, Y);
  Repaint;
end;

procedure TForm1.FormMouseUp(Sender: TObject; Button: TMouseButton;
  Shift: TShiftState; X, Y: Integer);
begin
  flag := -1;
end;

procedure TForm1.FormPaint(Sender: TObject);
var
  g: TGPGraphics;
  p: TGPPen;
  i: Integer;
begin
  g := TGPGraphics.Create(Self.Canvas.Handle);
  p := TGPPen.Create(aclRed);

  {第一点: 右上角; 第二点: 左上角; 第三点: 右下角; 第四点将根据平行四边形计算; 只能是三个点.}
  g.DrawImage(img, PGPPoint(@pts), Length(pts));

  for i := 0 to Length(pts)-1 do g.DrawRectangle(p, pts[i].X-3, pts[i].Y-3, 6, 6);

  p.Free;
  g.Free;
end;

end.

窗体文件:

---

object Form1: TForm1
  Left = 0
  Top = 0
  Caption = 'Form1'
  ClientHeight = 206
  ClientWidth = 307
  Color = clBtnFace
  Font.Charset = DEFAULT_CHARSET
  Font.Color = clWindowText
  Font.Height = -11
  Font.Name = 'Tahoma'
  Font.Style = []
  OldCreateOrder = False
  Position = poDesktopCenter
  OnCreate = FormCreate
  OnDestroy = FormDestroy
  OnMouseDown = FormMouseDown
  OnMouseMove = FormMouseMove
  OnMouseUp = FormMouseUp
  OnPaint = FormPaint
  PixelsPerInch = 96
  TextHeight = 13
end
