好久没有更新技术文章了,很久之前研究过滑块验证码的破解,照着别人的代码改,将其他版本的代码改成java的,加上自己的一些研究,凑合凑合出了第一个java版本的,此版本不是控制浏览器进行验证,纯java控制(包含java js引擎执行js),目前都完成了,只是滑动轨迹的生成被后台识别出是机器人,除了这个问题以外,其他的均没有任何问题!如果谁能弄出轨迹算法出来,可以留言或者加我qq:1069478446,不胜感激

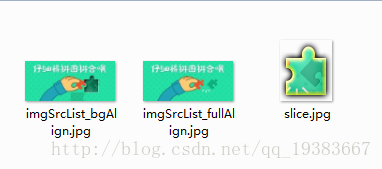

这是转换后的图片

废话不多说,自己上代码:

package com.test;

import java.awt.Container;
import java.awt.Image;
import java.awt.Toolkit;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.net.URL;
import java.sql.ResultSet;
import java.util.ArrayList;
import java.util.Random;

import javax.imageio.ImageIO;

import net.sf.json.JSONObject;

import org.apache.http.Header;
import org.apache.http.HeaderElement;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;

import com.util.DBUtil;

public class Geek {
    DBUtil dbu=new DBUtil();
    CloseableHttpClient httpclient = HttpClients.createDefault();
    String challenge="";
    String gt="";
    String json="";
    Random rnd = new Random();
    public boolean checkVcome()
    {
        String url="http://www.tianyancha.com/company/7117464";
        HttpGet httpPost=new HttpGet(url);
        String html="";
        try {
            CloseableHttpResponse response = httpclient.execute(httpPost);
            HttpEntity entitySort = response.getEntity();

            html=EntityUtils.toString(entitySort, "utf-8");

            if(html.indexOf("为确认本次访问为正常用户行为,请您协助验证")!=-1)
                return true;
            if(!"".equals(html.trim()))
            {
                return true;
            }
        } catch (ClientProtocolException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
        return false;
    }
    public void startPama()
    {
        String url="http://www.gsxt.gov.cn/SearchItemCaptcha?v="+System.currentTimeMillis();
        HttpGet httpPost=new HttpGet(url);
        httpPost.setHeader("Accept", "application/json, text/javascript, */*; q=0.01");
        httpPost.setHeader("Connection", "keep-alive");
        httpPost.setHeader("Host", "www.gsxt.gov.cn");
        httpPost.setHeader("Referer", "http://www.gsxt.gov.cn/corp-query-homepage.html");
        httpPost.setHeader("User-Agent", "Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/58.0.3029.110 Safari/537.36");
        httpPost.setHeader("X-Requested-With", "XMLHttpRequest");
        String html="";
        try {
            CloseableHttpResponse response = httpclient.execute(httpPost);
            HttpEntity entitySort = response.getEntity();
            html=EntityUtils.toString(entitySort, "utf-8");
            System.out.println(html);
            JSONObject json=JSONObject.fromObject(html);
            this.challenge=json.getString("challenge");
            this.gt=json.getString("gt");
            System.out.println("gt:"+gt);
        } catch (ClientProtocolException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
    public void getpage_comp()
    {
        String url="http://api.geetest.com/get.php?gt=#{gt}&challenge=#{challenge}&product=embed&offline=false";
        HttpGet httpPost=new HttpGet(url.replace("#{gt}", this.gt).replace("#{challenge}", this.challenge));
        httpPost.setHeader("Connection", "Keep-Alive");
        httpPost.setHeader("Host", "api.geetest.com");
        httpPost.setHeader("Pragma", "no-cache");
        httpPost.setHeader("Referer", "http://www.geetest.com/exp_normal");
        httpPost.setHeader("User-Agent", "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/54.0.2840.71 Safari/537.36");
        String html="";
        try {
            CloseableHttpResponse response = httpclient.execute(httpPost);
            HttpEntity entitySort = response.getEntity();
            html=EntityUtils.toString(entitySort, "utf-8");

            int sindex=html.indexOf("new Geetest(")+12;
            if(sindex<1)
                return;
            int eindex=html.indexOf(",true");
             this.json=html.substring(sindex, eindex);
            JSONObject json=JSONObject.fromObject(this.json);
            this.challenge=json.getString("challenge");
        } catch (ClientProtocolException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
    public String getImage(String name,String url)
    {
        System.out.println(url);
        try {
            HttpGet httpimg = new HttpGet(url);
            httpimg.setHeader("user-agent", "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/54.0.2840.71 Safari/537.36");
            httpimg.setHeader("Connection", "keep-alive");
            httpimg.setHeader("Accept", "text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8");
            httpimg.setHeader("Host", "static.geetest.com");
            httpimg.setHeader("Upgrade-Insecure-Requests", "1");
            httpimg.setHeader("Referer", "http://www.geetest.com/exp_normal");
            HttpResponse responseimg =  httpclient.execute(httpimg);
            File file=new File("E:\\zjt\\img\\"+name+".jpg");
            OutputStream out=new FileOutputStream(file);
            responseimg.getEntity().writeTo(out);
            out.close();
        } catch (ClientProtocolException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return "E:\\zjt\\img\\"+name+".jpg";
    }
    /**
     * 合成指定的多张图片到一张图片
     *
     * @param imgSrcList       图片的地址列表
     * @param topLeftPointList 每张小图片的偏移量
     * @param countOfLine 每行的小图片个数
     * @param cutWidth         每张小图片截取的宽度(像素)
     * @param cutHeight        每张小图片截取的高度(像素)
     * @param savePath         合并后图片的保存路径
     * @param subfix         合并后图片的后缀
     * @return 是否合并成功
     */
    public static boolean combineImages(ArrayList<String> imgSrcList, ArrayList<String[]> topLeftPointList, int countOfLine, int cutWidth, int cutHeight, String savePath, String subfix) {
        if (imgSrcList == null || savePath == null || savePath.trim().length() == 0)
            return false;
        BufferedImage lastImage = new BufferedImage(cutWidth * countOfLine, cutHeight * ((int) (Math.floor(imgSrcList.size() / countOfLine))), BufferedImage.TYPE_INT_RGB);
        String prevSrc = "";
        BufferedImage prevImage = null;
        try {
            for (int i = 0; i < imgSrcList.size(); i++) {
                String src = imgSrcList.get(i);
                BufferedImage image;
                if (src.equals(prevSrc))
                    image = prevImage;
                else {
                    if (src.trim().toLowerCase().startsWith("http"))
                        image = ImageIO.read(new URL(src));
                    else
                        image = ImageIO.read(new File(src));
                    prevSrc = src;
                    prevImage = image;

                }
                if (image == null)
                    continue;
                String[] topLeftPoint = topLeftPointList.get(i);
                int[] pixArray = image.getRGB(0 - Integer.parseInt(topLeftPoint[0].trim()), 0 - Integer.parseInt(topLeftPoint[1].trim()), cutWidth, cutHeight, null, 0, cutWidth);
                int startX = ((i) % countOfLine) * cutWidth;
                int startY = ((i) / countOfLine) * cutHeight;

                lastImage.setRGB(startX, startY, cutWidth, cutHeight, pixArray, 0, cutWidth);
            }
            File file = new File(savePath);
            return ImageIO.write(lastImage, subfix, file);
        } catch (Exception ex) {
            ex.printStackTrace();
            return false;
        }
    }
    /**
     * 通过背景的完整图片与有缺失的图片进行对比,得到偏移量
     * @param imgSrc1   有缺失的图片路径
     * @param imgSrc2   完整的背景图路径
     * @return
     */
    public static int findXDiffRectangeOfTwoImage(String imgSrc1, String imgSrc2) {
        try {
            BufferedImage image1 = ImageIO.read(new File(imgSrc1));
            BufferedImage image2 = ImageIO.read(new File(imgSrc2));
            int width1 = image1.getWidth();
            int height1 = image1.getHeight();
            int width2 = image2.getWidth();
            int height2 = image2.getHeight();

            if (width1 != width2) return -1;
            if (height1 != height2) return -1;

            int left = 0;
            /**
             * 从左至右扫描
             */
            boolean flag = false;
            for (int i = 0; i < width1; i++) {
                for (int j = 0; j < height1; j++)
                    if (isPixelNotEqual(image1, image2, i, j)) {
                        left = i;
                        flag = true;
                        break;
                    }
                if (flag) break;
            }
            return left;
        } catch (Exception ex) {
            ex.printStackTrace();
            return -1;
        }
    }

    private static boolean isPixelNotEqual(BufferedImage image1, BufferedImage image2, int i, int j) {
        int pixel1 = image1.getRGB(i, j);
        int pixel2 = image2.getRGB(i, j);

        int[] rgb1 = new int[3];
        rgb1[0] = (pixel1 & 0xff0000) >> 16;
        rgb1[1] = (pixel1 & 0xff00) >> 8;
        rgb1[2] = (pixel1 & 0xff);

        int[] rgb2 = new int[3];
        rgb2[0] = (pixel2 & 0xff0000) >> 16;
        rgb2[1] = (pixel2 & 0xff00) >> 8;
        rgb2[2] = (pixel2 & 0xff);

        for (int k = 0; k < 3; k++)
            if (Math.abs(rgb1[k] - rgb2[k]) > 50)//因为背景图会有一些像素差异
                return true;

        return false;
    }
    /**
     * 在此方法内有尝试进行生成滑动轨迹并且提交滑动后的数据的信息
     * @param xpos
     */
    public void GetValidate(int xpos)
    {
        JSONObject actions = GetActions(xpos);

        int imgLoadTime = rnd.nextInt(200) + 50;
        String passtime=actions.getString("passtime");
        String actString=actions.getString("action");
        //String response=GetResponseString(xpos, this.challenge);
        System.out.println("xpos:\t"+xpos+"\tthis.challenge:\t"+this.challenge+"\nactString:"+actString);
        String response=ResponseJS.getResponseforJS(xpos, this.challenge, "D:\\src\\code1\\geetest\\GetResponseString.js");
        System.out.println("this.gt"+this.gt);
        String url="http://api.geetest.com/ajax.php?gt="+this.gt+"&challenge="+this.challenge+"&imgload="+imgLoadTime+"&passtime="+passtime+"&userresponse="+response+"&a="+actString+"&callback=cb";
        try {
            Thread.sleep(imgLoadTime+Integer.parseInt(passtime));
        } catch (NumberFormatException e2) {
            // TODO Auto-generated catch block
            e2.printStackTrace();
        } catch (InterruptedException e2) {
            // TODO Auto-generated catch block
            e2.printStackTrace();
        }
        HttpGet httpPost=new HttpGet(url);
        httpPost.setHeader("Connection", "Keep-Alive");
        httpPost.setHeader("Host", "api.geetest.com");
        httpPost.setHeader("Pragma", "no-cache");
        httpPost.setHeader("Referer", "http://antirobot.tianyancha.com/captcha/verify?return_url=http://www.tianyancha.com/search?key=%E6%B8%A9%E5%B7%9E%E6%B8%A9%E5%95%86%E6%96%87%E5%8C%96%E4%BC%A0%E5%AA%92%E8%82%A1%E4%BB%BD%E6%9C%89%E9%99%90%E5%85%AC%E5%8F%B8&checkFrom=searchBox&rnd=YZTvuxLYLFV9xdh7mX0Lzw==");
        httpPost.setHeader("User-Agent", "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/54.0.2840.71 Safari/537.36");
        try {
            Thread.sleep(Long.parseLong(passtime));
        } catch (NumberFormatException e1) {
            // TODO Auto-generated catch block
            e1.printStackTrace();
        } catch (InterruptedException e1) {
            // TODO Auto-generated catch block
            e1.printStackTrace();
        }
        String html="";
        try {
                CloseableHttpResponse cresponse = httpclient.execute(httpPost);
                HttpEntity entitySort = cresponse.getEntity();
                html=EntityUtils.toString(entitySort, "utf-8");
                System.out.println(html);
                if(html.indexOf("forbidden")==-1&&html.indexOf("fail")==-1)
                {
                    System.exit(-1);
                }
            } catch (ClientProtocolException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            } catch (IOException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }

    }
    /**
     * 计算参数
     * @param xpos
     * @return
     */
     private JSONObject GetActions(int xpos)
     {

             JSONObject act = new JSONObject();
             act.put("pos", xpos+"");
             ArrayList<int[]> action =generate(xpos);
             for(int ac=0;ac<action.size();ac++)
             {
                 int[] is=action.get(ac);
                 for(int iii=0;iii<is.length;iii++)
                 {
                     System.out.print(is[iii]+"\t");
                 }
                 System.out.println("");
             }
             act.put("action", encrypt(action));
             int pt = 0;
             for(int j=0;j<action.size();j++)
             {
                 int[] ffints=action.get(j);
                 pt=ffints[2];
             }
             act.put("passtime", pt+"");
        return act;
     }
     /**
      * 从数据库中获得距离相似的数据
      * @param xpos
      * @return
      */
     public ArrayList<int[]> getDBdata(int xpos)
     {
         ArrayList<int[]> list=new ArrayList<int[]>();
         ArrayList<String> actlist=new ArrayList<String>();
         String sql="select posx,data from poxsData";
         try {
             ResultSet rs=dbu.Execute(sql);
             while(rs.next())
             {
                 String posx=rs.getString("posx").trim();
                 String data=rs.getString("data").trim();
                 int dbposx=Integer.parseInt(posx);
                 int wc=dbposx-xpos;
                 if(wc<2&&wc>-2)//满足误差
                 {
                     actlist.add(data);
                 }
             }
        } catch (Exception e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }

         Random myR = new Random(System.currentTimeMillis());
         if(actlist.size()==0)
         {
             return list;
         }
         int mt=Math.abs(myR.nextInt() %actlist.size());
         String data=actlist.get(mt).replace("{", "a").replace("}", "b");
         System.out.println(data);
         String [] str=data.split("ba");
         for(int i=0;i<str.length;i++)
         {
             String fstr=str[i].replace("a","").replace("b","");
             String[] points=fstr.split(",");
             int[] pointdata=new int[3];
             int flag=i%2;
             for(int j=0;j<3;j++)
             {
                 String x=points[0];
                 String y=points[1];
                 String t=points[2];
                 pointdata[0]=Integer.parseInt(x);
                 pointdata[1]=Integer.parseInt(y);
                 pointdata[2]=Integer.parseInt(t);

             }
             list.add(pointdata);
         }
         for(int i=list.size()-1;i>0;i--)
         {
             int[] end=list.get(i);
             int[] start=list.get(i-1);
             int[] ns=new int[3];
             ns[0]=end[0]-start[0];
             ns[1]=end[1]-start[1];
             ns[2]=end[2]-start[2];
             list.set(i, ns);
         }
         ArrayList<int[]> bxlist=new ArrayList<int[]>();//对原有的人工轨迹进行修改

         for(int i=0;i<list.size();i++)
         {
             int[] xyzold=list.get(i);
             if(i==0)
             {
                 int[] xyz=new int[3];
                 xyz[0]=xyzold[0];
                 xyz[0]=xyzold[0];
                 xyz[0]=xyzold[2];
                 bxlist.add(xyz);
             }else
             {
                 xyzold[2]--;
                 bxlist.add(xyzold);
             }

         }
         return list;
     }
     private String encrypt(ArrayList<int[]> action)
     {
         ArrayList<int[]> d = action;// diff(action);
         String dx = "", dy = "", dt = "";
         for(int j=0; j<d.size(); j++)
         {
             char b = replace(d.get(j));
             if(b != 0){
                 dy += b+"";
             }
             else
             {
                 dx += (d.get(j)[0]);
                 dy += (d.get(j)[1]);
             }
             dt += (encode(d.get(j)[2]));
         }
       return  dx + "!!" + dy + "!!" + dt;
     }
     private String encode(int n)
     {
         String b = "()*,-./0123456789:?@ABCDEFGHIJKLMNOPQRSTUVWXYZ_abcdefghijklmnopqr";
         int c = b.length();
         char d = (char)0;
         int e = Math.abs(n);
         int f = e / c;
         if (f >= c)
             f = c - 1;
         if (f != 0)
         {
             d = b.charAt(f);
             e %= c;
         }
         String g = "";
         if (n < 0)
             g += "!";
         if (d != 0)
             g += "$";

         return g + (d == 0 ? "": d+"" + b.charAt(e));
     }
     private char replace(int[] a2)
     {
         int[][] b = new int[][] { new int[] { 1, 0 }, new int[] { 2, 0 }, new int[] { 1, -1 },
             new int[] { 1, 1 }, new int[] { 0, 1 }, new int[] { 0, -1 },
             new int[] { 3, 0 }, new int[] { 2, -1 }, new int[] { 2, 1 } };
         String c = "stuvwxyz~";
         for (int d = 0; d < b.length; d++)
             if (a2[0] == b[d][0] && a2[1] == b[d][1])
                 return c.charAt(d);
         return '\0';
     }
     private ArrayList<int[]> generate(int xpos)
     {
         System.out.println(xpos);
         int sx = rnd.nextInt(15)-25;
         int sy = rnd.nextInt(15)-25;
         ArrayList<int[]> arr = new ArrayList<int[]>();
         arr.add(new int[] { sx, sy, 0 });
         int maxCount = 300; // max len 100
         double x = 0;
         double lx = xpos - x;
         while (Math.abs(lx) > 0.8 && maxCount-- > 0)
         {
             double rn = rnd.nextDouble();

             double dx = rn * lx * 0.6;
             if (Math.abs(dx) < 0.5)
                 continue;
             double dt = rnd.nextDouble() *  (rn * 80 + 50)+ 10;

             rn = rnd.nextDouble();
             double dy = 0;
             if (rn < 0.2 && dx > 10) //
             {
                 dy = rn * 20.0;
                 if (rn < 0.05)
                     dy = -rn * 80;
             }

             x += dx;
             arr.add(new int[] { (int)(dx + 0.5), (int)(dy + 0.5), (int)(dt + 0.5) });
             lx = xpos - x;
         }
         double dtlast = 500.0 * rnd.nextDouble() + 100.0;
         arr.add(new int[] { -1, 0, (int)(dtlast) });
         return arr;
     }
     /**
      * 自己写的轨迹算法
      * @param xpos
      * @return
      */
     private ArrayList<int[]> generate3(int xpos)
     {
         int sx = rnd.nextInt(15)+15;
         int sy = rnd.nextInt(5)+15;
         ArrayList<int[]> arr = new ArrayList<int[]>();
         int[] ints=new int[3];
         ints[0]=sx;
         ints[1]=sy;
         ints[2]=0;
         arr.add(ints);

         int maxCount = 100; // max len 100
         double mds = 0.25;
         double speed = rnd.nextDouble() * 0.3 + 0.05;
         double ds = rnd.nextDouble() * 0.5 * mds;
         int dsign = 1;
         double x = 0;
         double lx = xpos - x;
         while (Math.abs(lx) > 1.0 && maxCount-- > 0)
         {
             double rn = rnd.nextDouble();
             double dt = rn * 100 + 10;
             if (rn < 0.2)
             {
                 dt += rn * 200;
             }

             speed += ds * dsign;
             if (speed > 0.25)
                 speed = 0.25;
             rn = rnd.nextDouble();

             if (rn < (speed / 0.25))
                 dsign = -dsign;
             ds = rnd.nextDouble() * mds * 0.5;
             if (Math.abs(lx) < 10)
             {
                 speed *= lx / 20;
             }
             else if (x < xpos / 3)
             {
                 speed *= (x / xpos + 1.0);
             }

             if (speed < 0)
                 speed = -speed;
             double dx = speed * dt;
             if (Math.abs(dx) < 0.6)
                 continue;

             x += dx;
             if (x - xpos > 0 && dx > 0)
             {
                 speed = -speed;
                 x -= 2 * dx;
             }

             rn = rnd.nextDouble();
             double dy = 0;
             if (rn < 0.1 && dt > 70)
             {
                 dy = rn * 30;
                 if (rn < 0.05)
                     dy = -rn * 60;
             }
             arr.add(new int[] { (int)(dx + 0.5), (int)(dy + 0.5), (int)(dt + 0.5) });
             lx = xpos - x;
             speed = rnd.nextDouble() * 0.2 + 0.01;
         }
         double dtlast = 50.0 * rnd.nextDouble() + 10.0;
         arr.add(new int[] { 0, 0, (int)(dtlast+20) });
         return arr;
     }
     private ArrayList<int[]> generate2(int xpos)
     {
         int sx = rnd.nextInt(15)+15;
         int sy = rnd.nextInt(5)+15;
         ArrayList<int[]> arr = new ArrayList<int[]>();
         int[] ints=new int[3];
         ints[0]=sx;
         ints[1]=sy;
         ints[2]=0;
         arr.add(ints);

         int maxCount = 200; // max len 100
         double mds = 0.21;
         double speed = rnd.nextDouble() * 0.1 + 0.01;
         double ds = rnd.nextDouble() * 0.4 * mds;
         int dsign = 1;
         double x = 0;
         double lx = xpos - x;
         double lsadd=0;
         while (Math.abs(lx) > 1.0 && maxCount-- > 0)
         {
             double rn = rnd.nextDouble();
             double dt = rn * 100 + 10;
             if (rn < 0.2)
             {
                 dt += rn * 200;
             }

             speed += ds * dsign;
             if (speed > 0.25)
                 speed = 0.25;
             rn = rnd.nextDouble();

             if (rn < (speed / 0.25))
                 dsign = -dsign;
             ds = rnd.nextDouble() * mds * 0.5;
             if (Math.abs(lx) < 10)
             {
                 speed *= lx / 20;
             }
             else if (x < xpos / 3)
             {
                 speed *= (x / xpos + 1.0);
             }

             if (speed < 0)
                 speed = -speed;
             double dx = speed * dt;
             if (Math.abs(dx) < 0.6)
                 continue;

             x += dx;
             if (x - xpos > 0 && dx > 0)
             {
                 speed = -speed;
                 x -= 2 * dx;
             }

             rn = rnd.nextDouble();
             double dy = 0;
             if (rn < 0.1 && dt > 70)
             {
                 dy = rn * 30;
                 if (rn < 0.05)
                     dy = -rn * 60;
             }
             arr.add(new int[] { (int)(dx + 0.5), (int)(dy + 0.5), (int)(dt + 0.5) });
             lx = xpos - x;
             speed = rnd.nextDouble() * 0.2 + 0.01;
         }
         double dtlast = 50.0 * rnd.nextDouble() + 10.0;
         arr.add(new int[] { 0, 0, (int)(dtlast) });
         return arr;
     }
     public static String getCookie(String cookiename,CloseableHttpResponse response )
        {
            Header[] cookie=response.getAllHeaders();
            for(int i=0;i<cookie.length;i++)
            {
                HeaderElement[] he=cookie[i].getElements();
                for(int j=0;j<he.length;j++)
                {
                    String name=he[j].getName();
                    if(cookiename.equals(name))
                        return he[j].getValue();
                }
            }
            return "";
        }
    public static void main(String[] args)
    {
        Geek g=new Geek();
        g.startPama();
        g.getpage_comp();
        JSONObject json=JSONObject.fromObject(g.json);
        String imgUrlBase="http://static.geetest.com/";
        String bg=json.getString("bg");
        String fullbg=json.getString("fullbg");
        String slice=json.getString("slice");
        int ypos=Integer.parseInt((String)json.getString("ypos"))+3;
        String imgbgpath=g.getImage("gt", imgUrlBase+bg);
        System.out.println("imgbgpath="+imgbgpath);
        String imgFullBgpath=g.getImage("fullbg", imgUrlBase+fullbg);
        System.out.println("imgFullBgpath:="+imgFullBgpath);
        String imgSlicepath=g.getImage("slice", imgUrlBase+slice);
        System.out.println("imgSlicepath="+imgSlicepath);
        Toolkit tookkit = Toolkit.getDefaultToolkit();
        Image imgBg=tookkit.getImage(imgbgpath);
        Image imgFullBg=tookkit.getImage(imgFullBgpath);
        Image imgSlice=tookkit.getImage(imgSlicepath);
        ArrayList<String> imgSrcList_bg=new ArrayList<String>();
        for(int i=0;i<52;i++)
        {
            imgSrcList_bg.add(imgbgpath);
        }
        ArrayList<String> imgSrcList_full=new ArrayList<String>();
        for(int i=0;i<52;i++)
        {
            imgSrcList_full.add(imgFullBgpath);
        }
        ArrayList<String[]> topLeftPointList=new ArrayList<String[]>();//存储偏移量的信息
        /**
         * 存储的偏移量
         **/
        int[] ss={157, 145, 265, 277,181, 169, 241, 253, 109, 97, 289, 301, 85, 73, 25, 37, 13, 1, 121, 133, 61, 49, 217, 229, 205, 193,145, 157, 277, 265, 169, 181, 253, 241, 97, 109, 301, 289, 73, 85, 37, 25, 1, 13, 133, 121, 49, 61, 229, 217, 193, 205};
        for(int i=0;i<26;i++)
        {
            String[] fstrs={"-"+ss[i],"-58"};
            topLeftPointList.add(fstrs);
        }
        for(int i=26;i<52;i++)
        {
            String[] fstrs={"-"+ss[i],"0"};
            topLeftPointList.add(fstrs);
        }
        combineImages(imgSrcList_bg, topLeftPointList, 26, 10, 58, "E:\\zjt\\img\\imgSrcList_bgAlign.jpg", "jpg");
        combineImages(imgSrcList_full, topLeftPointList, 26, 10, 58, "E:\\zjt\\img\\imgSrcList_fullAlign.jpg", "jpg");
        //计算偏移量
        int xpoint=findXDiffRectangeOfTwoImage("E:\\zjt\\img\\imgSrcList_bgAlign.jpg", "E:\\zjt\\img\\imgSrcList_fullAlign.jpg");
        System.out.println("xpoint:"+xpoint);
        int xpoints=0;
        long rm=System.currentTimeMillis()%3;//通过随机数来最终确定需要滑动的偏移量
        if(rm==0)
        {
            xpoints=xpoint-4;
        }if(rm==1)
        {
            xpoints=xpoint-5;
        }
        if(rm==2)
        {
            xpoints=xpoint-3;
        }
        g.GetValidate(xpoints);
    }

}
  • 代码中,轨迹算法主要由:
private ArrayList<int[]> generate(int xpos)
     {
         System.out.println(xpos);
         int sx = rnd.nextInt(15)-25;
         int sy = rnd.nextInt(15)-25;
         ArrayList<int[]> arr = new ArrayList<int[]>();
         arr.add(new int[] { sx, sy, 0 });
         int maxCount = 300; // max len 100
         double x = 0;
         double lx = xpos - x;
         while (Math.abs(lx) > 0.8 && maxCount-- > 0)
         {
             double rn = rnd.nextDouble();

             double dx = rn * lx * 0.6;
             if (Math.abs(dx) < 0.5)
                 continue;
             double dt = rnd.nextDouble() *  (rn * 80 + 50)+ 10;

             rn = rnd.nextDouble();
             double dy = 0;
             if (rn < 0.2 && dx > 10) //
             {
                 dy = rn * 20.0;
                 if (rn < 0.05)
                     dy = -rn * 80;
             }

             x += dx;
             arr.add(new int[] { (int)(dx + 0.5), (int)(dy + 0.5), (int)(dt + 0.5) });
             lx = xpos - x;
         }
         double dtlast = 500.0 * rnd.nextDouble() + 100.0;
         arr.add(new int[] { -1, 0, (int)(dtlast) });
         return arr;
     }

来算的,目前识别率很低,不到1%
由哪个大神能提供轨迹算法,不胜感激,但是前提是不是使用保存下来的轨迹

posted on 2018-03-28 09:51  一天不进步,就是退步  阅读(321)  评论(0编辑  收藏  举报
